The Clearaudio balance reference phono is a premium phono equalizer designed for analog enthusiasts, offering independent inputs for both MM (Moving Magnet) and MC (Moving Coil) phono cartridges.

Independent inputs: Balanced (XLR) or unbalanced (RCA) inputs and outputs can be selected.
Flexible impedance adjustment: Suitable for most phono heads.

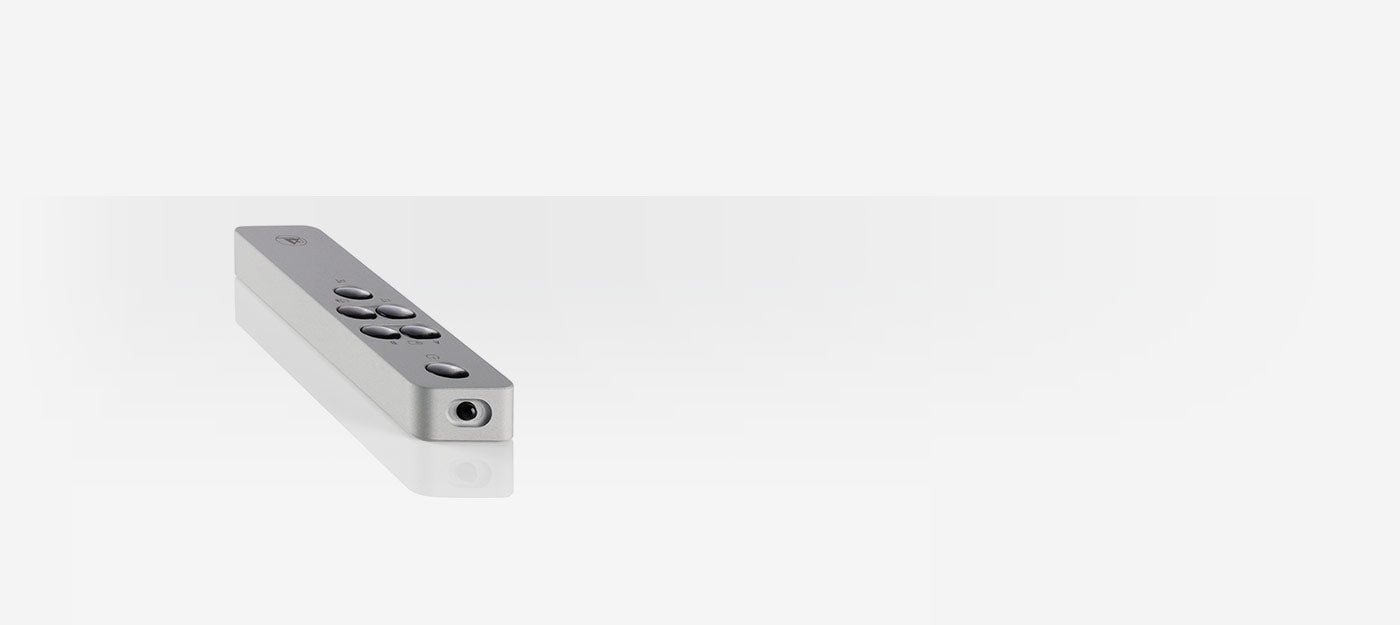

Volume and input adjustment : Accessible via remote control.
Premium design: 2 headphone jacks, dual-mono power supply with separate aluminum housing, ensuring the highest sound quality.

The new balance reference phono was developed especially for the phono enthusiast, featuring completely independent phono inputs for connecting moving coil and moving magnet phono cartridges. It provides total freedom in selecting balanced (XLR) or single-ended (RCA) inputs and outputs with the total flexibility of adjusting the input impedance for most cartridges.

The sophisticated volume and input circuitry are accessible with the supplied remote control. The high-performance design provides 2 headphone connections. A dual-mono power supply housed in its own dedicated aluminum chassis ensures the highest sound quality.

The balance reference phono is truly a world-class phono stage for analog aficionados.

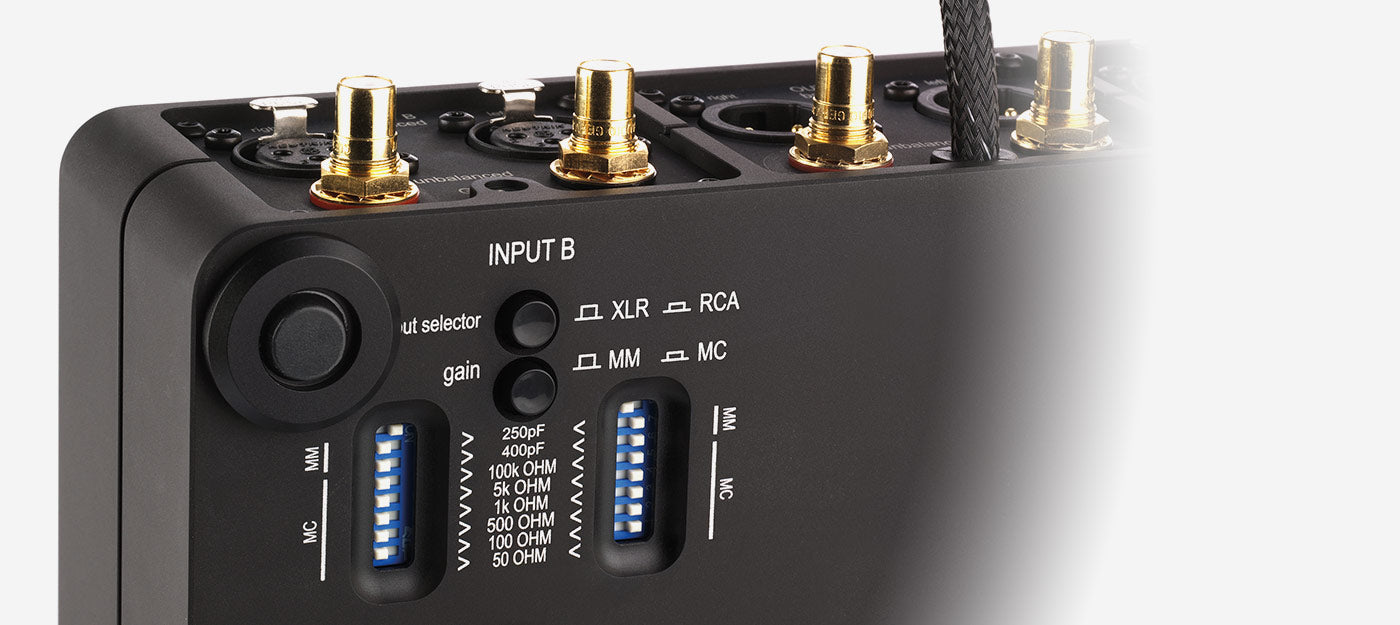

Mode MM / MC switchable (at bottom)
Subsonic filter switchable @20Hz (-18dB / Oct) (at bottom)
Stereo / Mono switchable
Amplification + 46dB (MM mode)
+ 66dB (MC mode)
Input load 50kΩ / 50pF (MM mode and MC mode)
+150pF, +270pF, +400pF (MM mode)
10kΩ, 5kΩ, 1000Ω, 500Ω, 100Ω, 50Ω (MC mode)
RIAA accuracy ± 0.1dB @ 20Hz - 100kHz
THD < 0.001% (IEC A)
Signal to noise ratio - 89dB @ 5mV / MM mode (IEC A)
- 79dB @ 500uV / MC mode (IEC A)
Headroom > + 21dB @ 1kHz
Max. output voltage > 12V
RIAA 75μs / 318μs / 3180μs, 2 passive filters
Channel separation > 95dB @ 1kHz (IEC A)
Output impedance 150Ω (balanced XLR)
75Ω (unbalanced RCA)

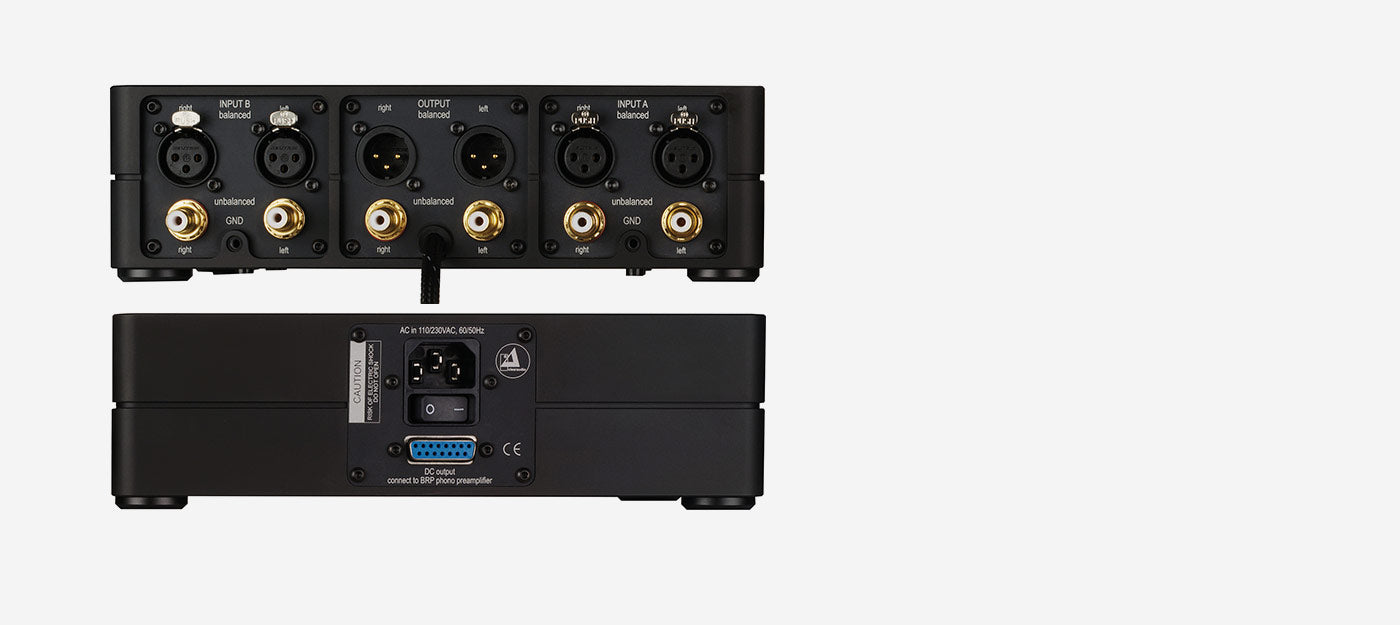

Inputs unbalanced (RCA)
balanced (XLR)
Outputs unbalanced (RCA)
balanced (XLR)
headphone output (2 × Jack: 6.3mm)
Power consumption Max. consumption: 12 watts
Standby mode: < 0.5 watts
Off mode: 0.0 watts (by switching off at the rear of the machine)
Power supply 2x ± 18V DC
(external power supply 2x ± 21V DC), 1.4m cable length
Total weight preamplifier Approx. 2.9 kg
Total weight power supply Approx. 2.2 kg
Dimensions preamplifier (W/D/H) Approx. 240 × 145 × 78mm
(158mm depth with RCA)
Dimensions preamplifier (W/D/H) Approx. 9.45 × 5.71 × 3.07 inches
(6.22 inches deep with RCA)
Dimensions power supply (W/D/H) Approx. 240 x 145 x 78mm
Dimensions power supply (W/D/H): Approx. 9.45 × 5.71 × 3.07 inches

User manual (EN)
