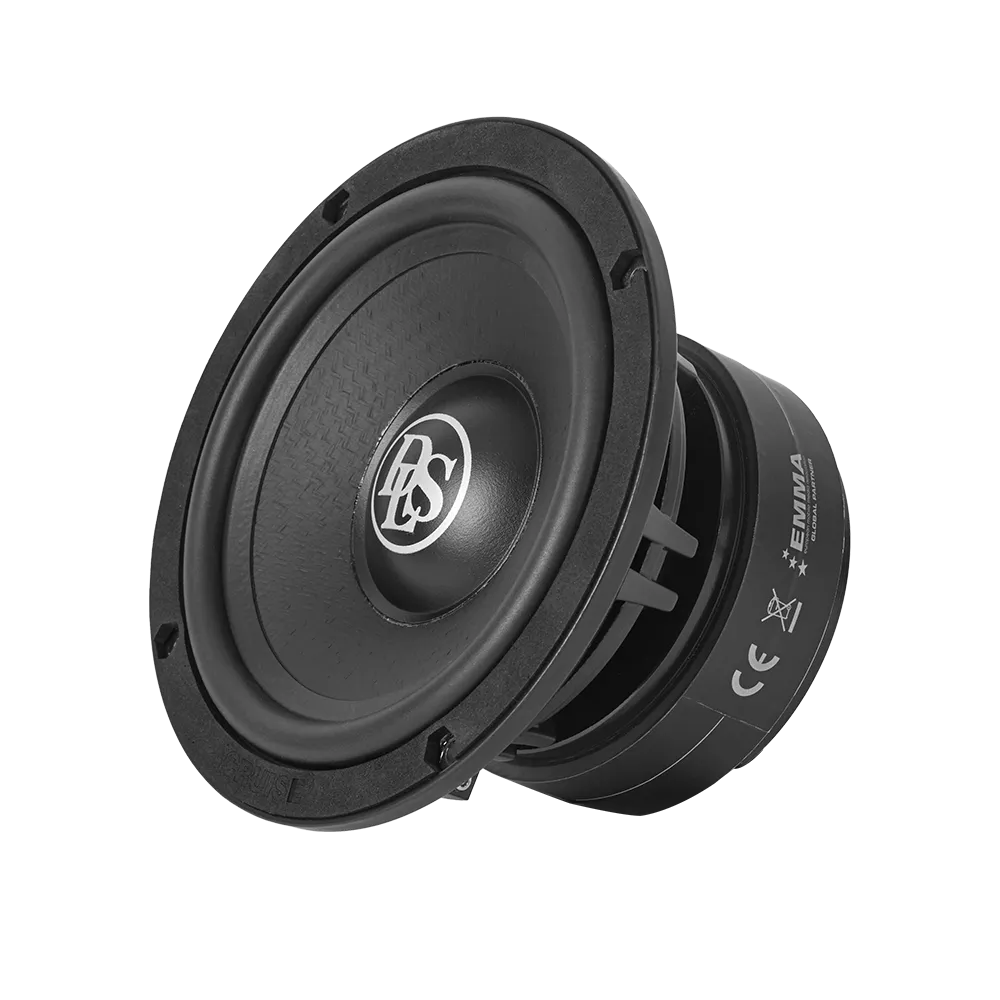

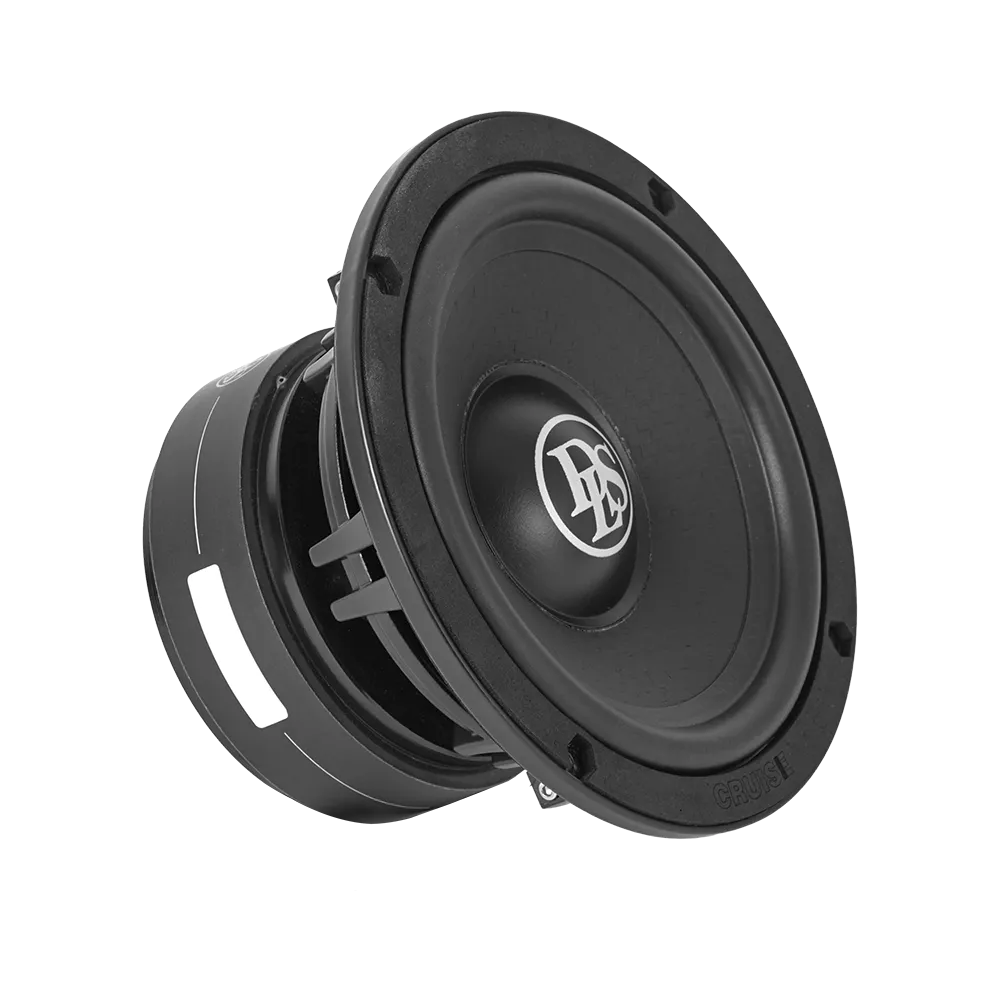

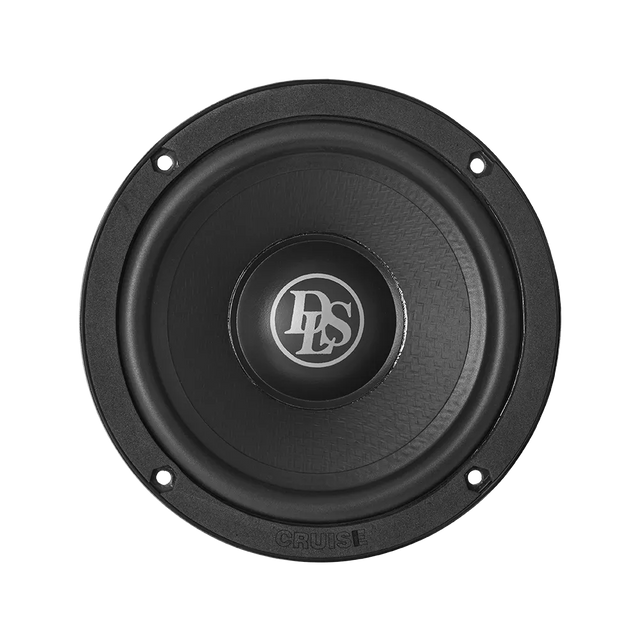

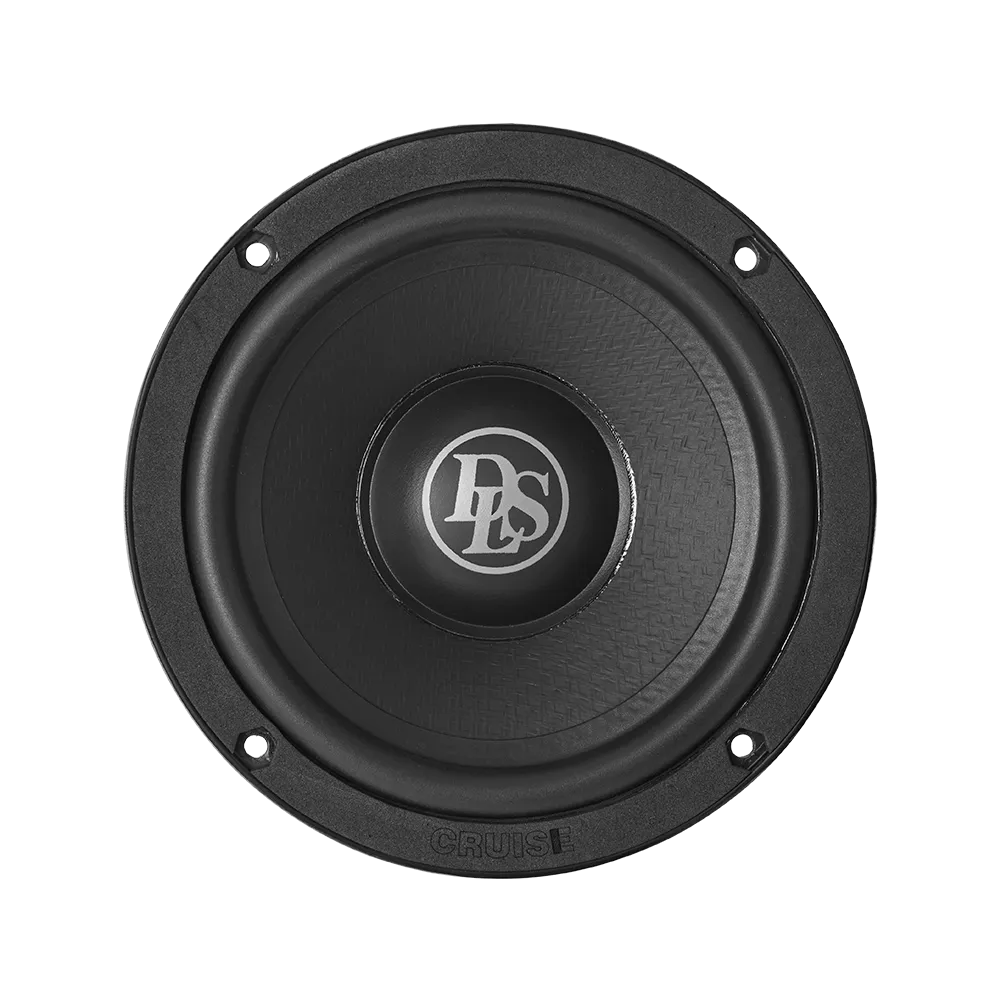

DLS Cruise CR6.D2, 16.5 cm automobilinis žemų dažnių garsiakalbis

INFORMACIJA

DLS Cruise CR6.D2 - tai 6,5 colių (165 mm) aukštos klasės žemų dažnių garsiakalbis, sukurtas muzikai suteikti gilumo ir aiškumo. Patikima Kevlaro membrana, dviguba magnetų sistema ir preciziškas dizainas užtikrina aukštą našumą bei ilgaamžiškumą. Tai idealus pasirinkimas ieškantiems kokybiško ir elegantiško sprendimo automobiliui ar namų garso projektui.

Dydis: 6,5” / 165 mm
RMS galia: 180 W
Maks. galia: 360 W
Varža: 2+2 Ω (dviguba ritė)
Jautrumas: 85 dB (1W/1M)
Dažnių diapazonas: 25–400 Hz

APRAŠYMAS

The CR6D.2 is a 6.5-inch subwoofer designed to bring depth and purpose to your music. It’s not built to impress on paper, but to sound right in practice. That means a carefully controlled suspension, predictable behavior in small enclosures, and a frequency response that supports the music instead of overpowering it.

At the core is a dual-stacked ferrite magnet system. It provides the force needed to drive the Kevlar-reinforced cone with precision and consistency. The voice coil is copper, four layers, wound on a Kapton former. Every part is chosen for stability, not show.

This is bass with intent. Made to match the tone, control and resolution of a high-quality sound upgrade. It gives your system a solid foundation without shifting the focus.

• Natural and musical-sounding premium subwoofer

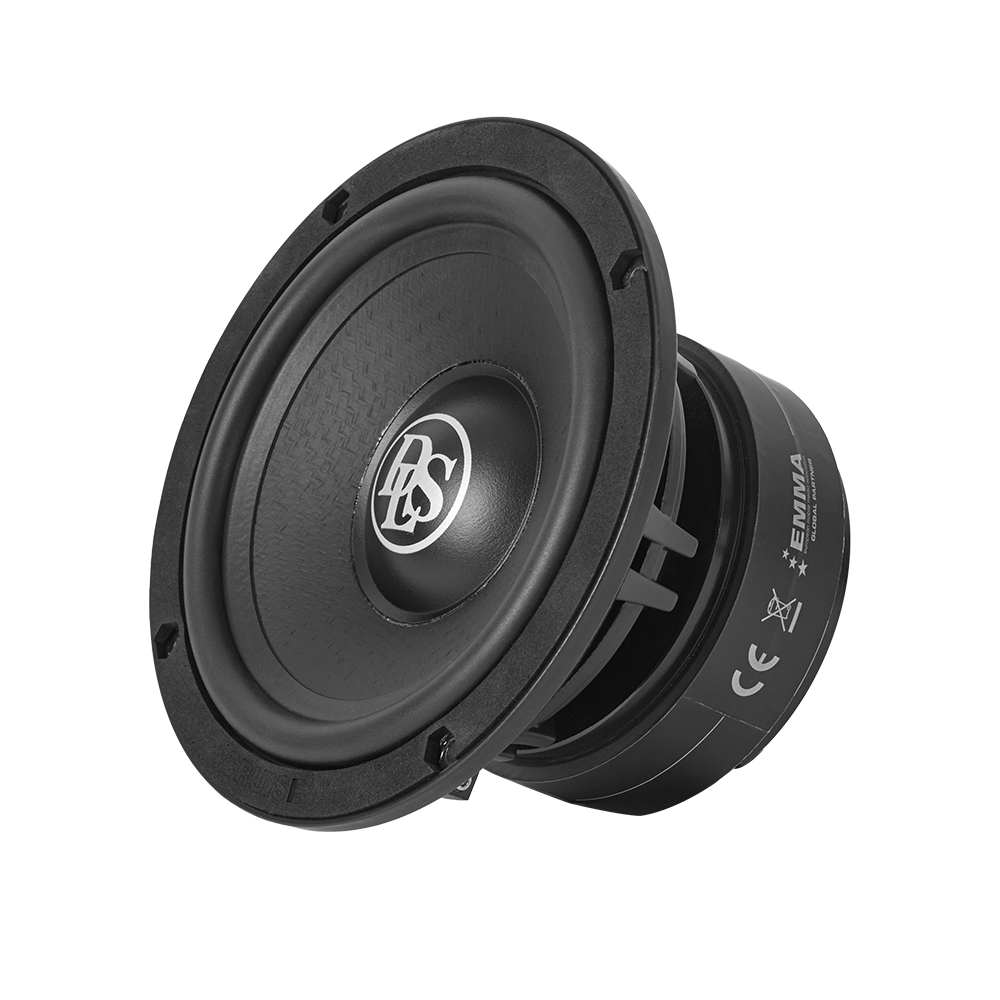

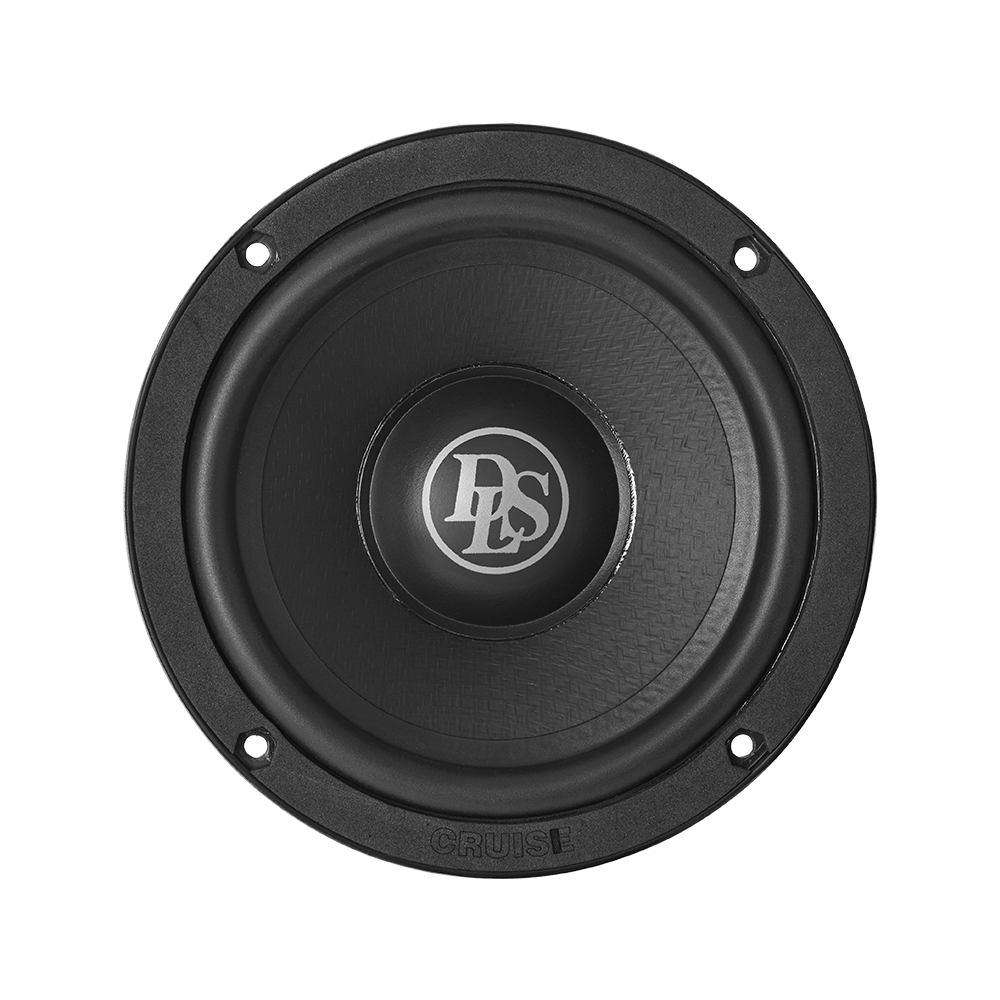

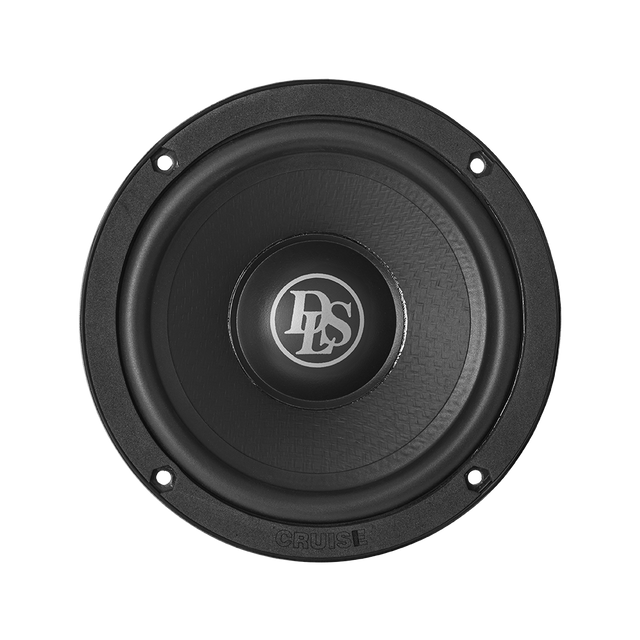

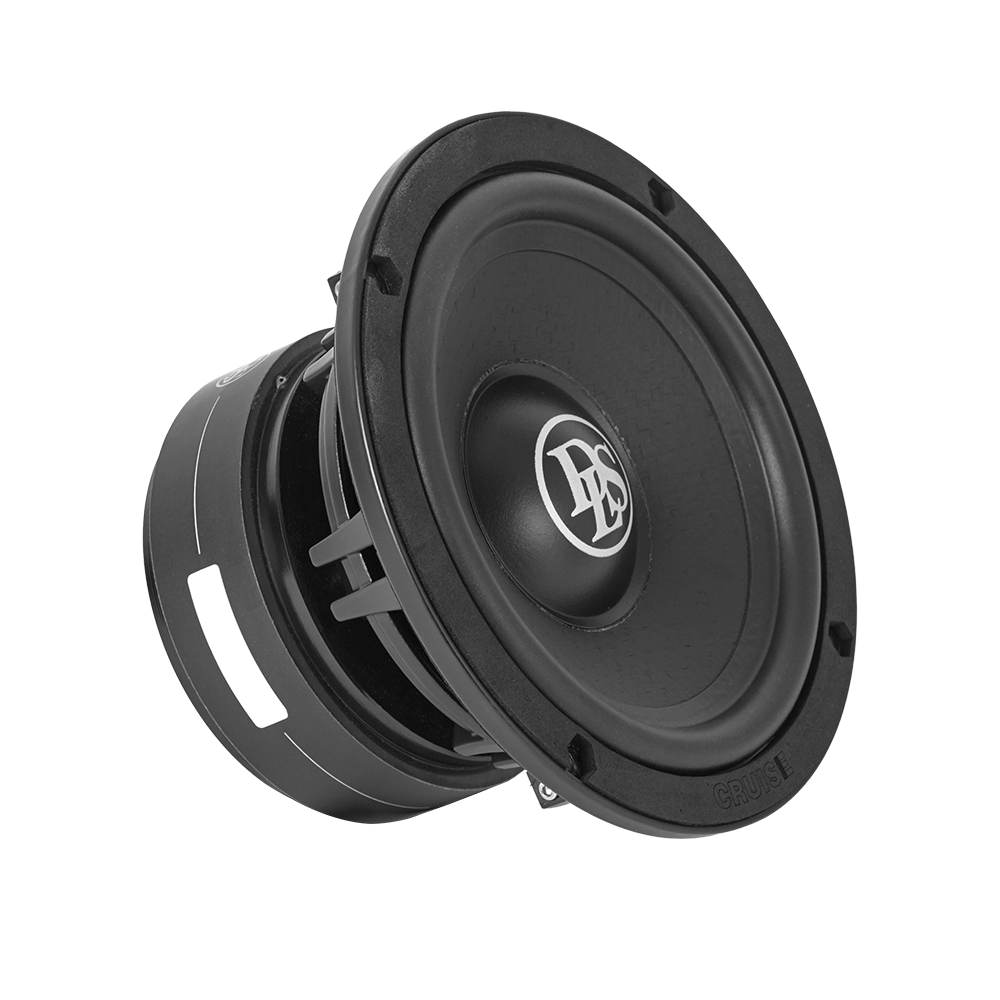

• Accurate & durable 6.5” Kevlar Compound cone for high performance and durability
• Polypropylene dust cap
• Kapton® former / 4-layer copper voice coil

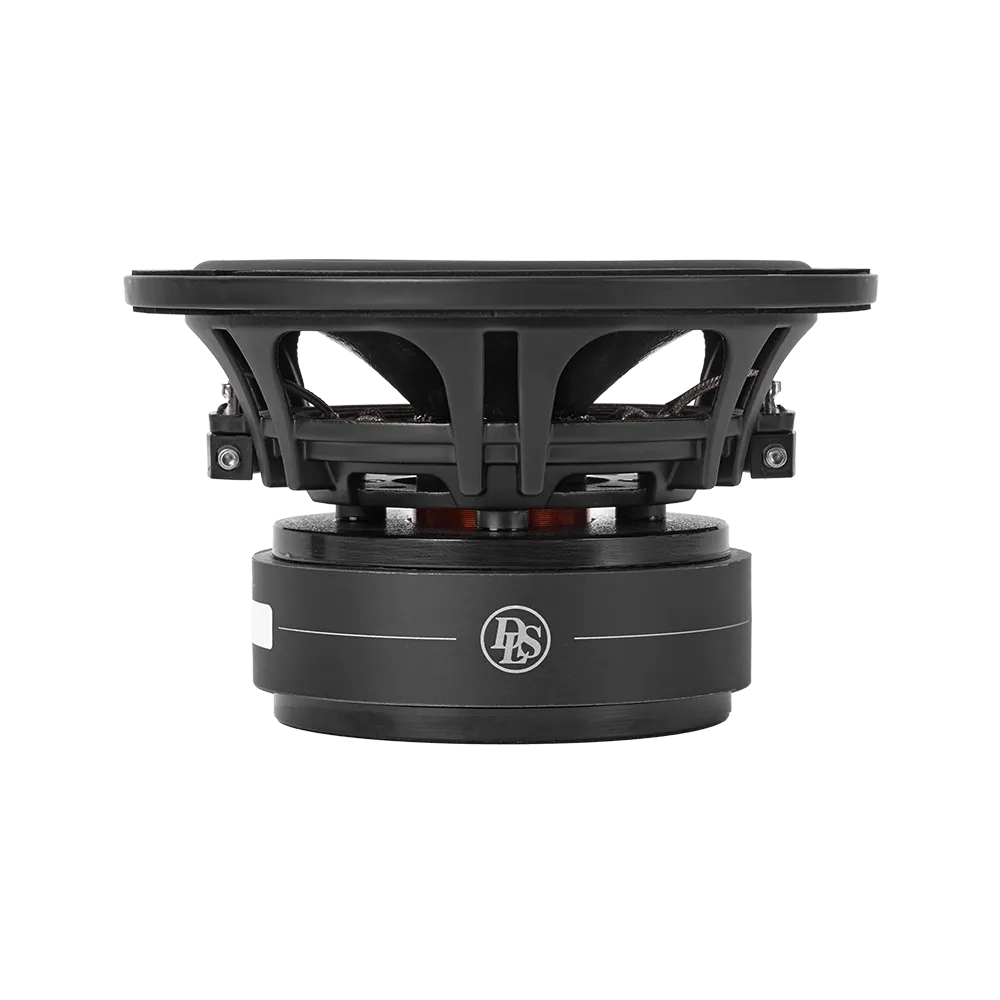

• Dual-stacked ferrite magnets (2×22.5oz)

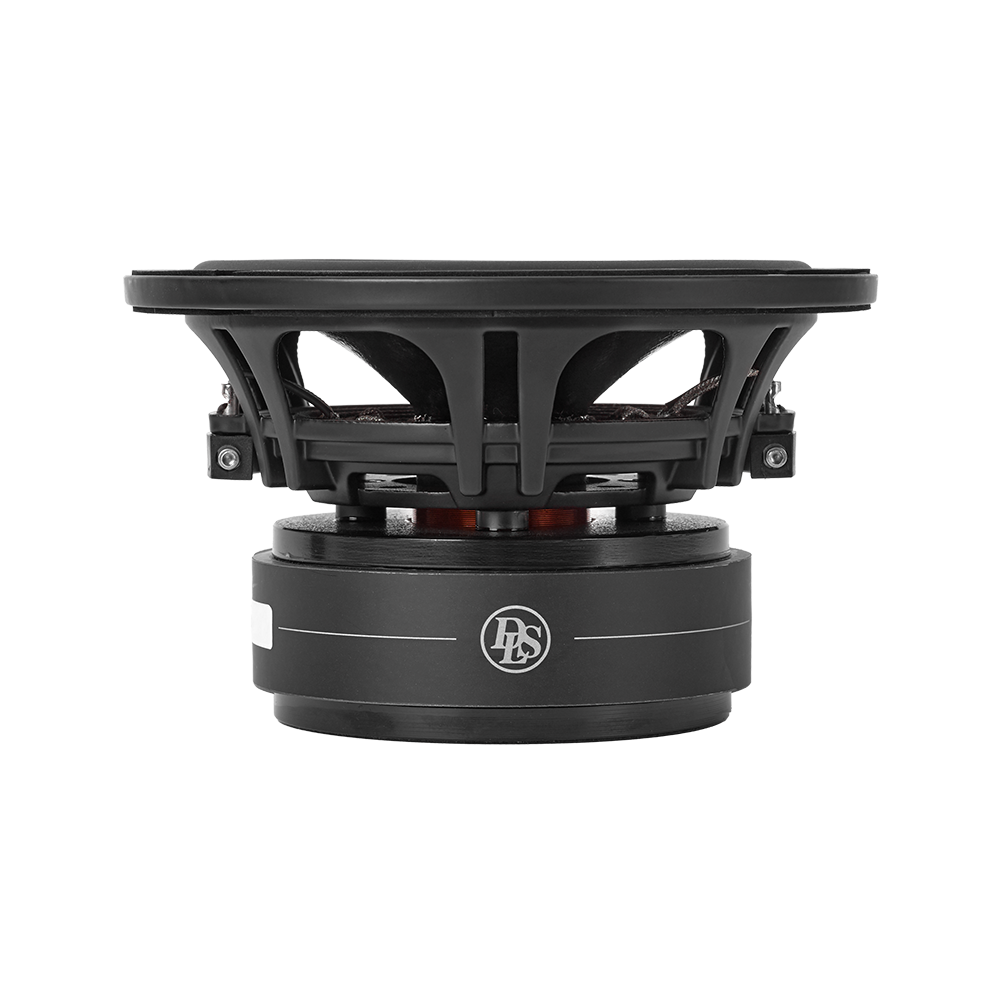

• Die-cast aluminum basket

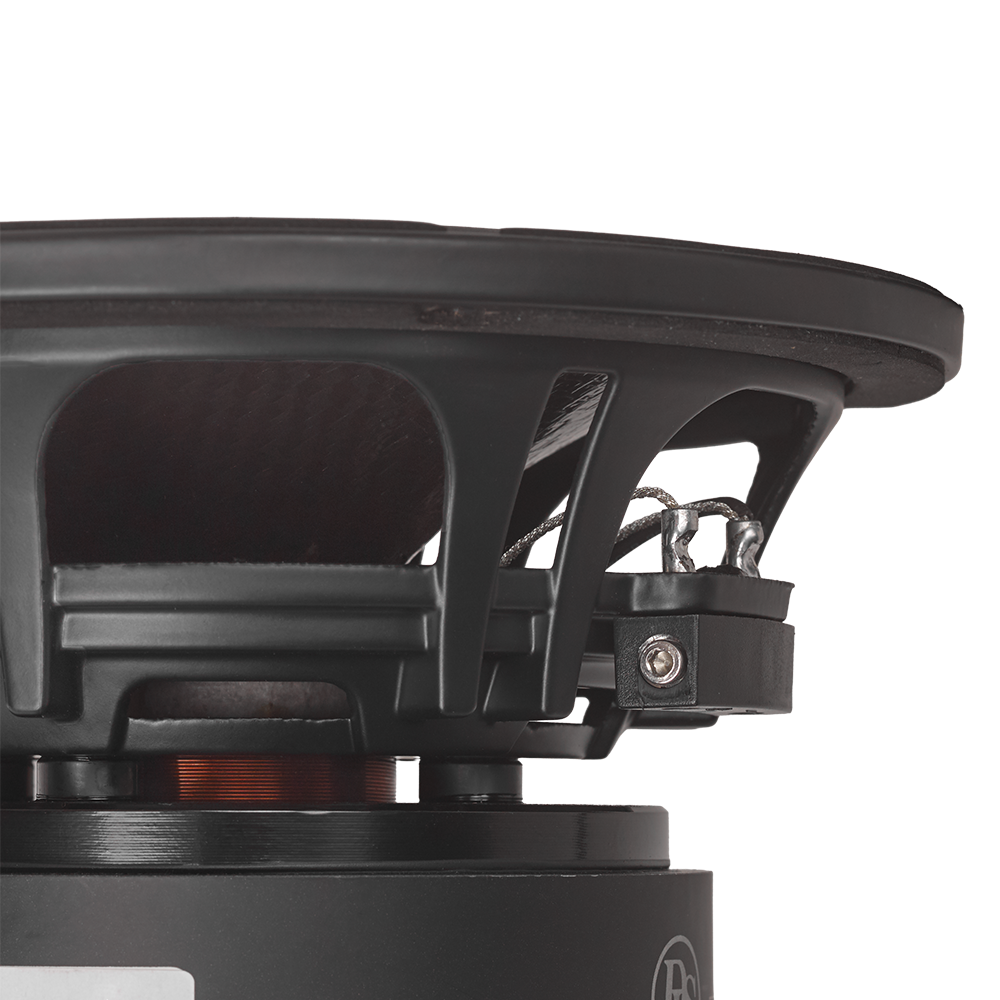

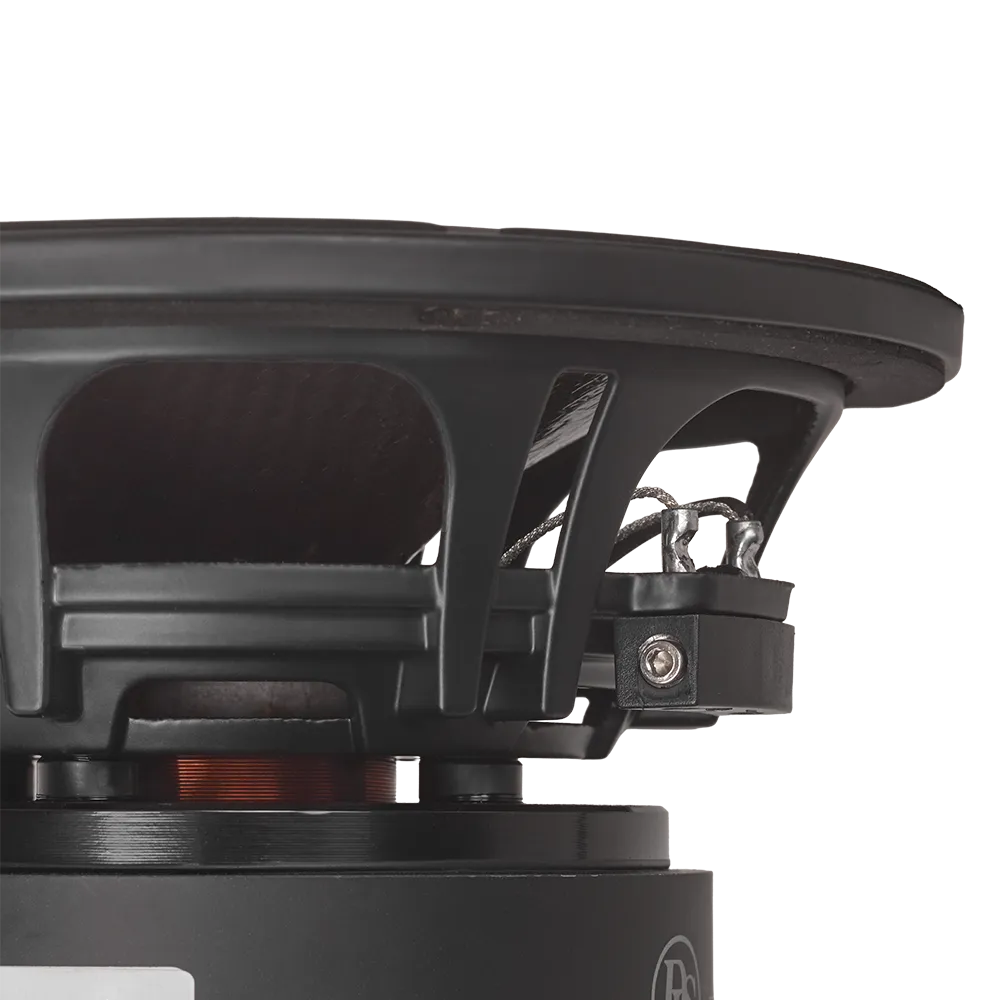

• Twin terminal for easier installation
• Optimized for smaller enclosures

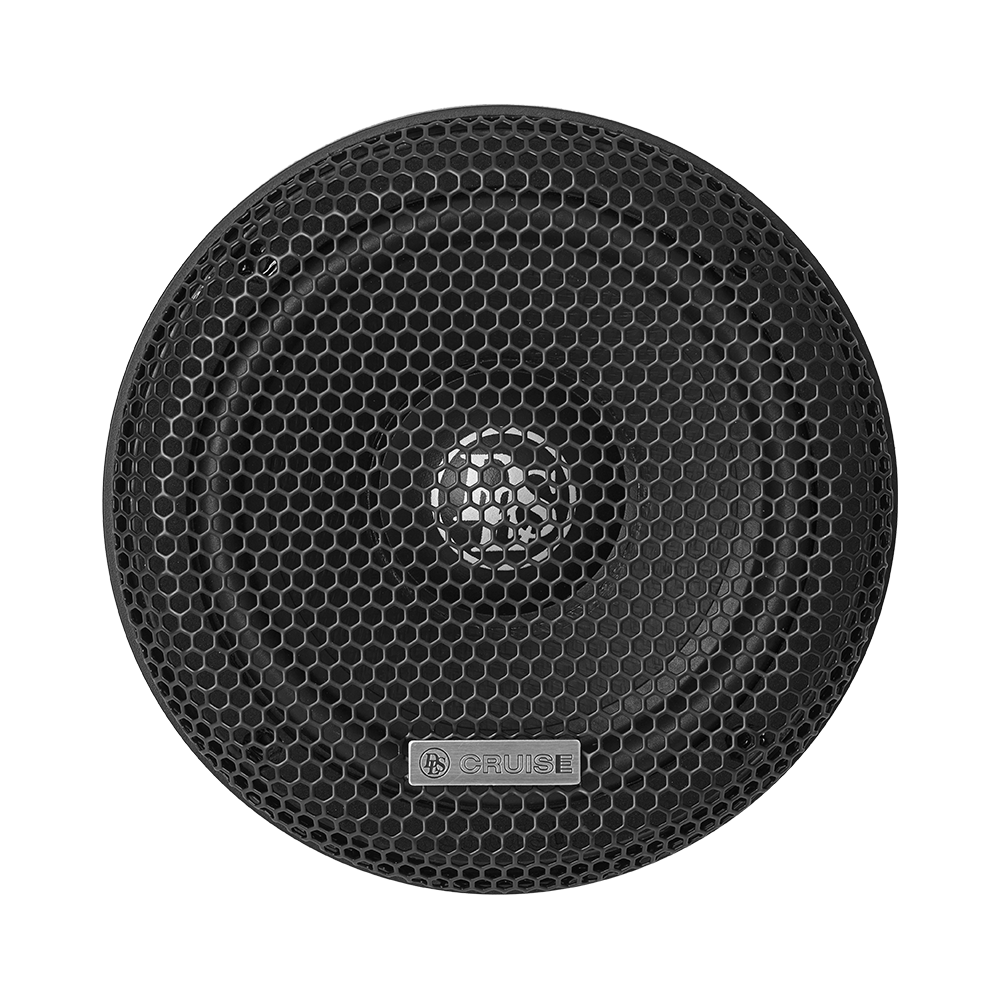

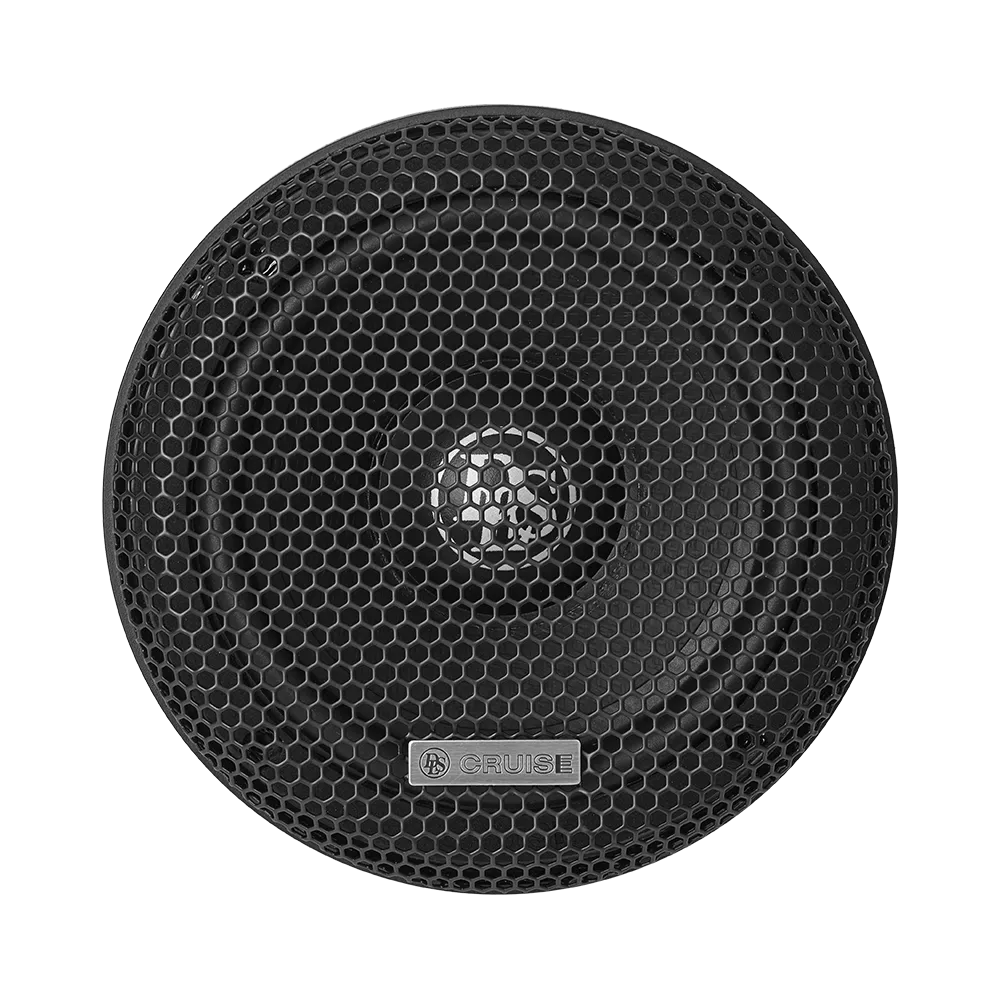

• Premium Cruise grill included

TECHNINIAI DUOMENYS

Re: 3.8 (1.9+1.9) Ohm
Fs: 37.2 Hz
Mms: 42.1 gr
Cms: 0.27
VAS: 11.2 L
Qts: 0.39
Qes: 0.41
Qms: 7.19
Bl: 12.1 T.m
SPL: 85 dB 1W/1M
Sd: 143 cm²

Size
6.5"/165mm

Impedance
2+2 Ohm

Power RMS
180W

Power MAX
360W

Sensitivity
85 dB

Voice coil size
1.5" / 38.5mm

Voice coil material
4-layer copper/Kapton former

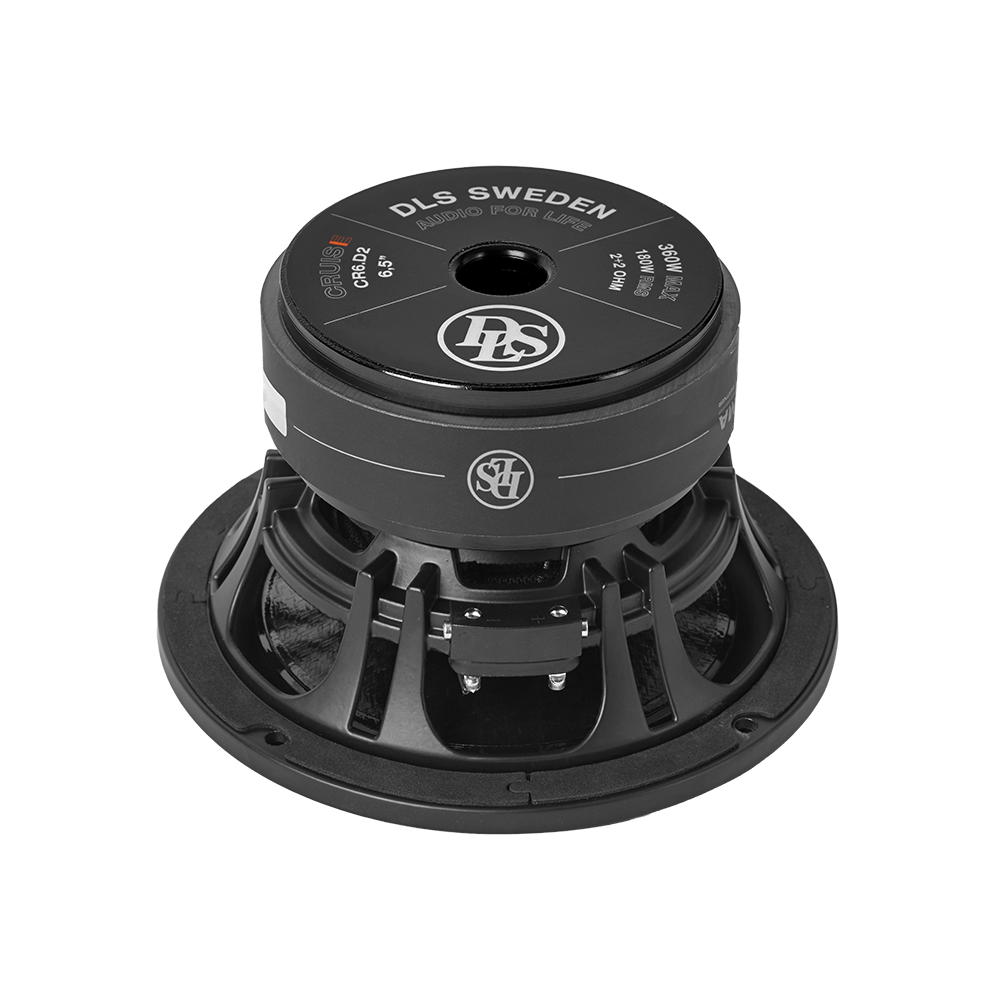

Magnet
2×22.5 Oz ferrite / Dual-stacked

Freq.range
25 – 400Hz

Weight
2.7kg

DOKUMENTAI

Vartotojo vadovas (EN)
