FiiO M33 R2R, nešiojamas Hi-Res muzikos grotuvas

INFORMACIJA

FiiO M33 R2R - modernus nešiojamasis „Hi-Res“ muzikos grotuvas, skirtas tiems, kurie nori mėgautis aukščiausios kokybės garsu bet kur. Integruotas 24 bitų R2R garso keitiklis suteikia muzikai šiltą, natūralų skambesį, išryškina smulkiausias detales ir leidžia pajusti tikrąjį įrašų charakterį.Galingas „Qualcomm Snapdragon 680“ procesorius kartu su „Android 13“ sistema užtikrina greitą ir patogų valdymą. 5,5 colio aukštos raiškos ekranas, 128 GB vidinė atmintis ir „Wi-Fi“ bei „Bluetooth“ ryšys leidžia lengvai pasiekti mėgstamą muziką. Integruotas ausinių stiprintuvas, išvystantis iki 1100 + 1100 mW galią, užtikrina dinamišką skambesį net naudojant reiklesnes ausines. Iki 15,5 valandos veikianti baterija, greitasis įkrovimas ir kompaktiškas, vos 258 g sveriantis korpusas paverčia „FiiO M33 R2R“ puikiu pasirinkimu tiek kasdieniam muzikos klausymuisi, tiek kelionėms.

Garso keitiklis (DAC): 24 bitų R2R
Procesorius: Qualcomm Snapdragon 680
Operacinė sistema: Android 13
Atmintis: 8 GB RAM / 128 GB vidinė, microSD iki 2 TB
Ekranas: 5,5 colio, 1080 × 2160 px

APRAŠYMAS

From desktop to portable, the evolution of R2R

We've taken our proprietary R2R resistor array originally designed for desktop equipment, and brought it over to a portable player for the first time.
Shaped by the ears of expert acoustic engineers and perfected through feedback from the global audiophile community, it delivers the ultimate listening experience:
The unmistakable, lush analog warmth traditionally associated with R2R combined with balanced, high-fidelity performance.

Extensive storage, enduringly smooth performance

The Qualcomm Snapdragon 680 and an expansive 8GB RAM + 128GB ROM storage featured in the M33 R2R is unmatched in its class. Experience effortless streaming and seamless multitasking. It offers extra performance and storage to easily handle any future updates as well as to ensure a stable and durable experience for years to come.

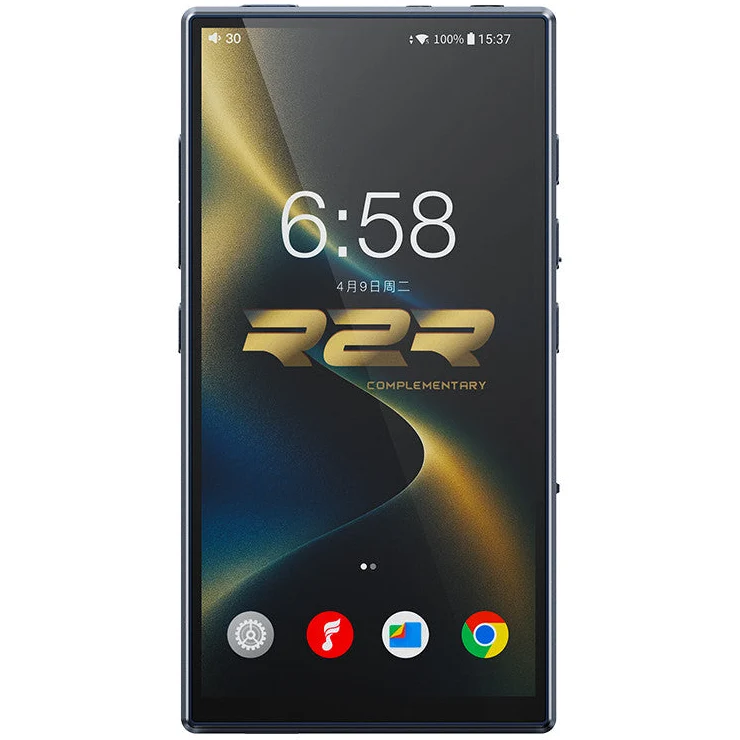

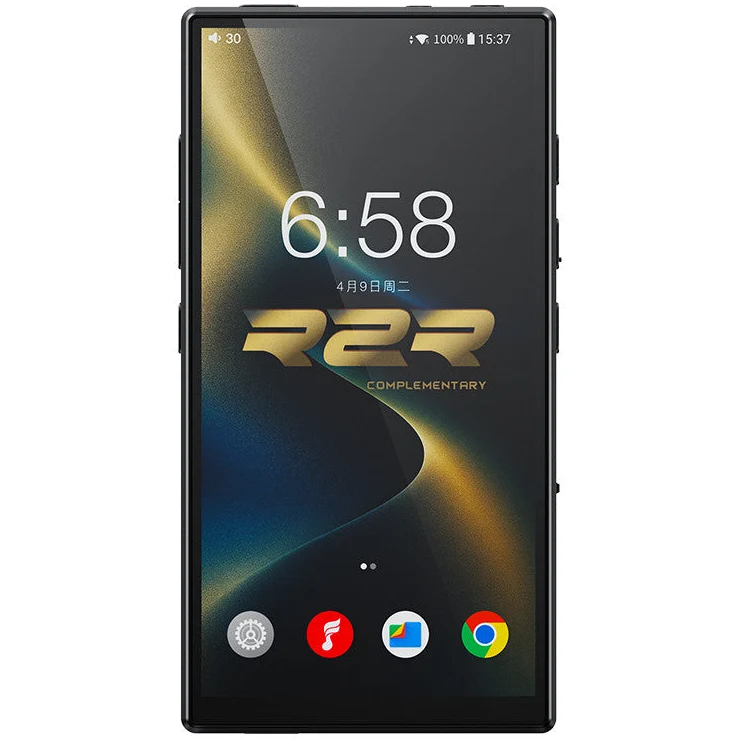

Large 5.5-Inch HD Display, only 258g in hand

Like with the minimalist design featured on the FIIO M21, the sleek, refined lines of the M33 R2R create a sophisticated aesthetic. Clever engineering allows us to strike the perfect balance between size and ergonomics. It's not just about the impressive numbers on the M33 R2R's spec sheet, it's about that seamless, natural feel in your hand.

Carefully engineered audio circuit, powered by TI

The pre-amp stage utilizes TI fully differential op-amps for I/V conversion and signal conditioning, delivering a natural and expansive soundstage. The output stage features quad INA1620 amp chips in a parallel configuration. Thanks to these chips, the result is output power up to 1100mW+1100mW to effortlessly drive any headphone. Finally, the precision electronic volume control ensures that you experience explosive dynamics without losing a hint of detail.

15.5 hours ultra-long battery life, say goodbye to power anxiety

Featuring a premium 4400mAh high-capacity battery, both single-ended and balanced playback times are significantly improved over the M23. Low-temperature fast charging means the M33 R2R powers up quickly without overheating. Between the long-lasting battery and rapid charging, your music never has to stop.

Compatible with RETRO BOX, bring your own soundtrack wherever

It is the perfect match for the RETRO BOX cassette-style Bluetooth speaker, opening up another way to enjoy music. The versatile UI of the RETRO BOX allows it to serve as both a decorative desktop centerpiece and your portable soundtrack source.

*RETRO BOX is not included and must be purchased separately.

TECHNINIAI DUOMENYS

Parameter    Specification
Name/Model    M33 R2R
Hardware solution    SoC: Qualcomm Snapdragon 680, DAC: FIIO proprietary R2R DAC, USB DAC: XU316
Working modes    Android / Pure Music / AirPlay / USB DAC / Bluetooth reception

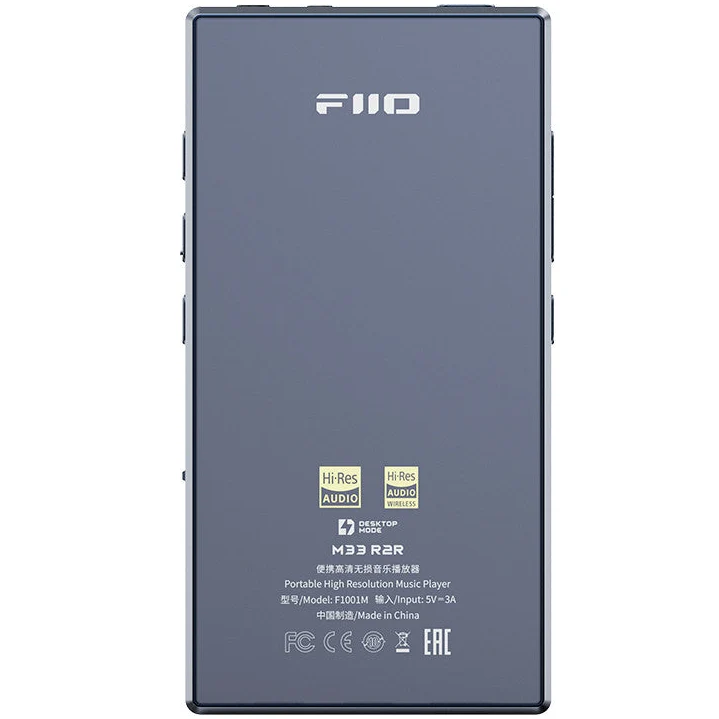

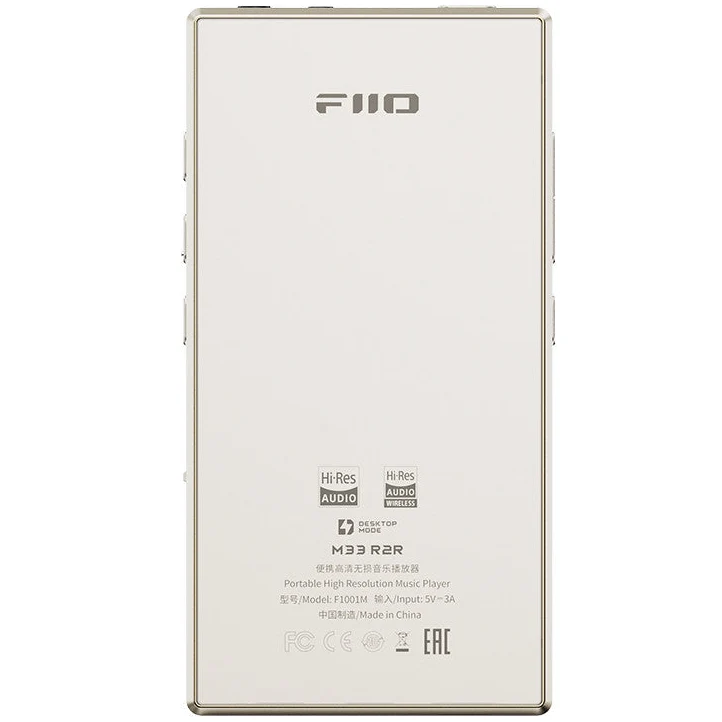

Colors    Retro gold / dark blue / black
Weight    About 258 g
Dimensions    About 138.2 × 71.5 × 17 mm
Volume control    Button control
Display    5.5-Inch (1080 × 2160) fully laminated screen
Internal storage / Usable storage (ROM)    128 GB / About 112 GB
Memory (RAM)    8 GB
Recommended headphone impedance    PO: 8–350 Ω / BAL: 8–350 Ω
Memory card    Supports up to 2 TB
Channel balance    L20–R20 (0.5 dB per level)
Gain selection    Over-ear headphone mode (Connect a fast charger) / High / Medium / Low

Buttons and Ports
Parameter    Specification
Buttons    Power button × 1, Volume button × 2, Multifunction button × 1, Play/Pause button × 1, Previous track × 1, Next track × 1

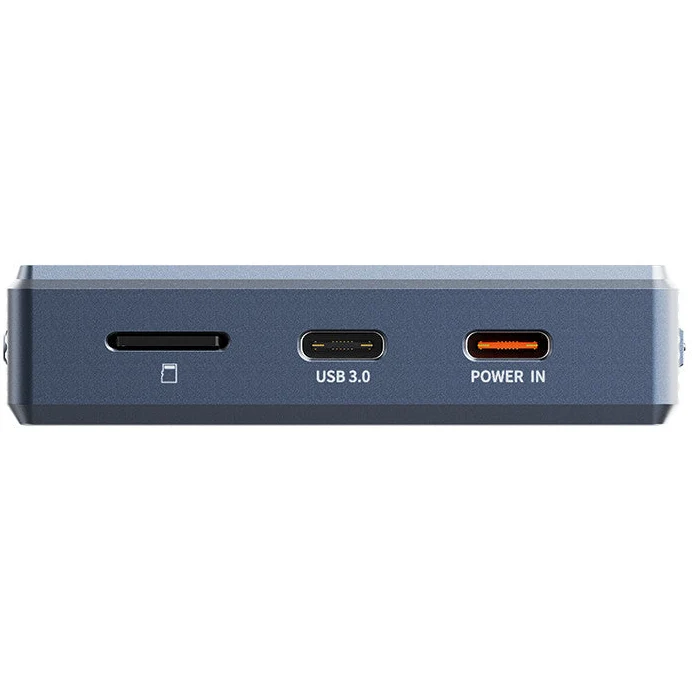

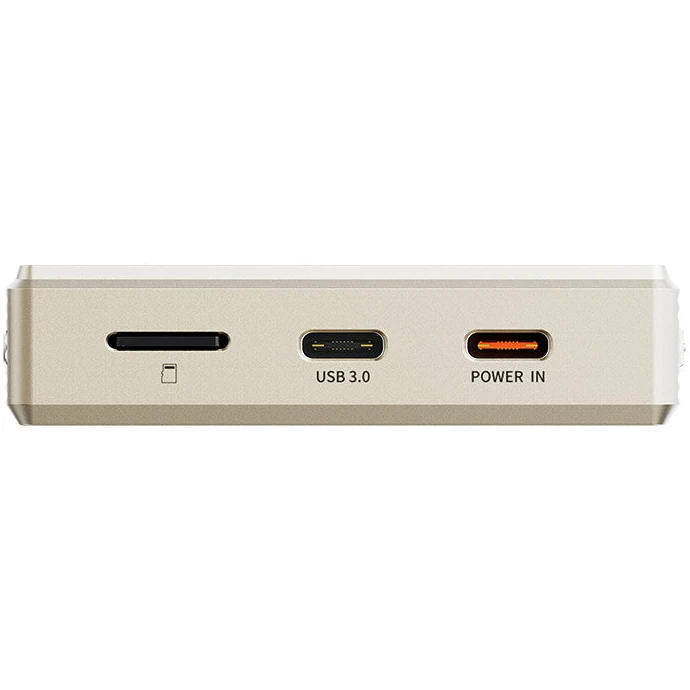

USB    Type-C USB 3.0 × 1 (Charging/Data transfer) + Type-C POWER IN × 1 (Charging/Independent power supply interface)
Slide switch    D.MODE button × 1

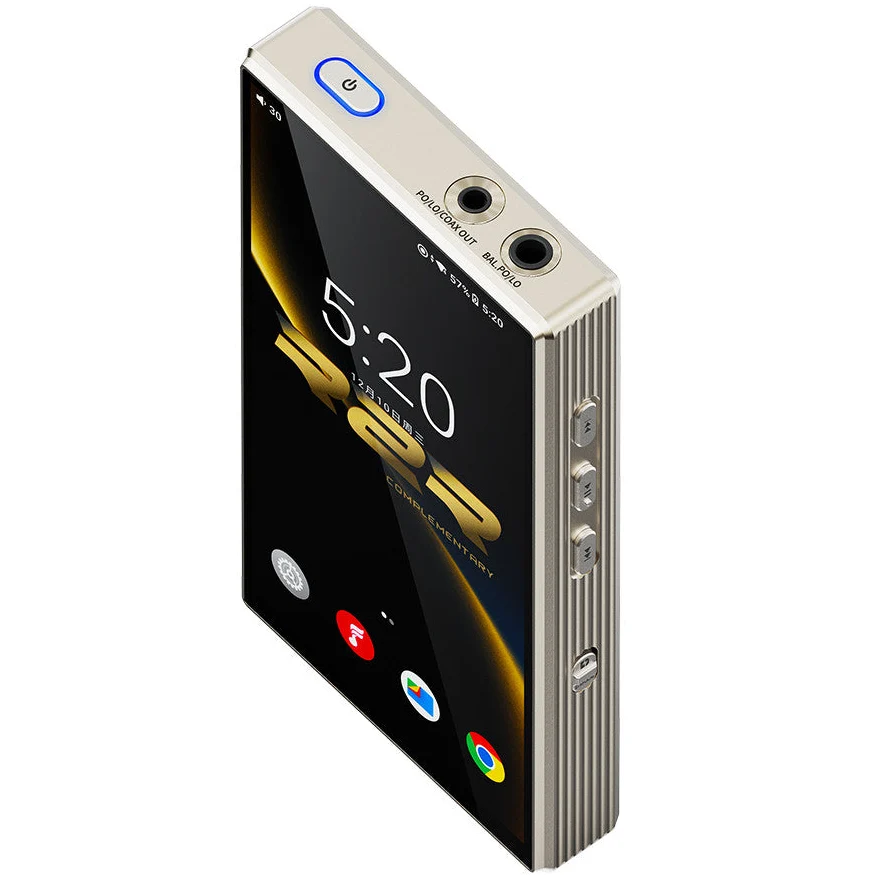

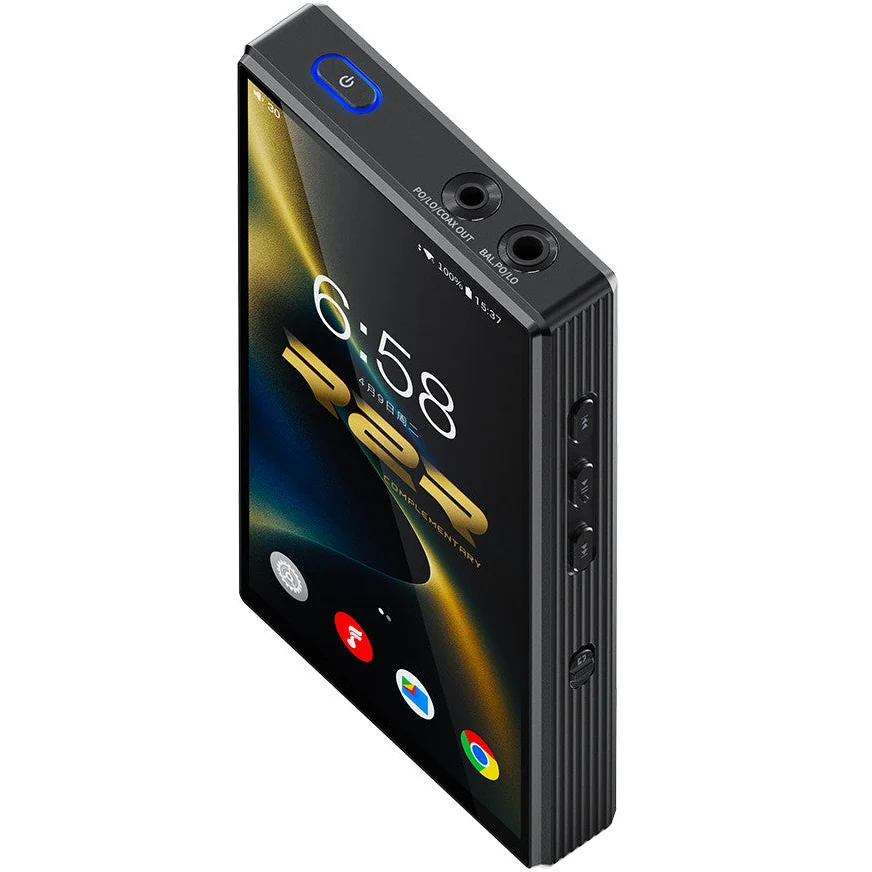

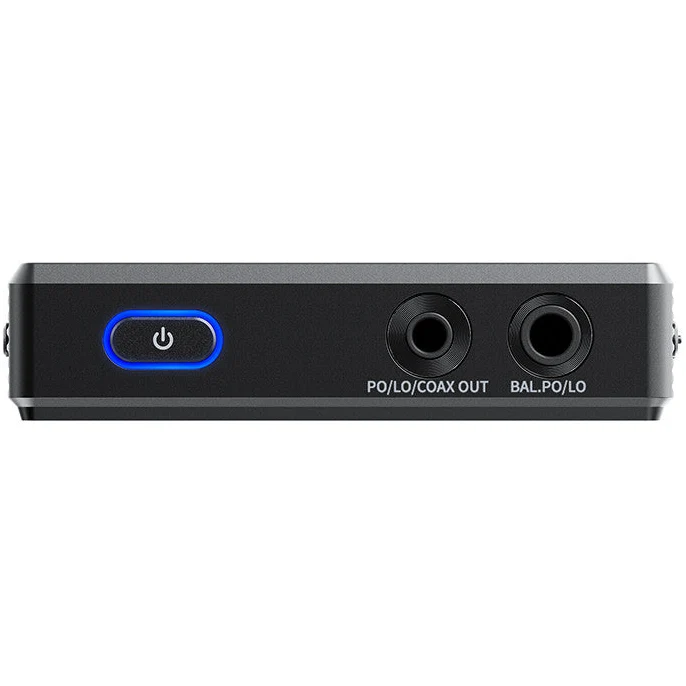

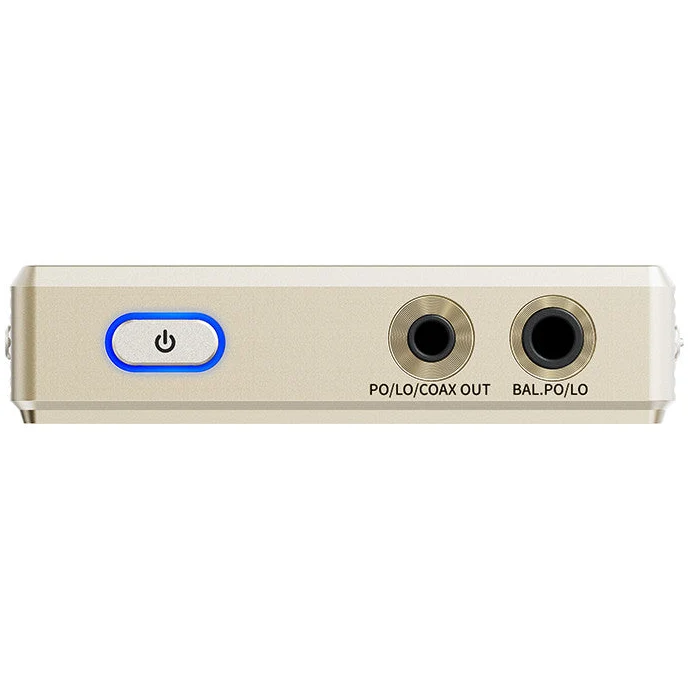

Headphone output    Standard 3.5 mm port
Line output    Standard 3.5 mm port (shared PO)
Coaxial output    Standard 3.5 mm port (shared PO)
Balanced headphone output    Standard 4.4 mm port
Balanced line output    Standard 4.4 mm port (shared BAL)

Special Functions
Parameter    Specification
WiFi    2.4 GHz / 5 GHz, DLNA / AirPlay / WiFi music transfer
Bluetooth transmission (5.0)    SBC / aptX / aptX HD / LDAC / LHDC
Bluetooth reception (5.0)    SBC / LDAC
Remote control    Supports WiFi control
MQA    Supports global decoding
ALL TO DSD    Yes

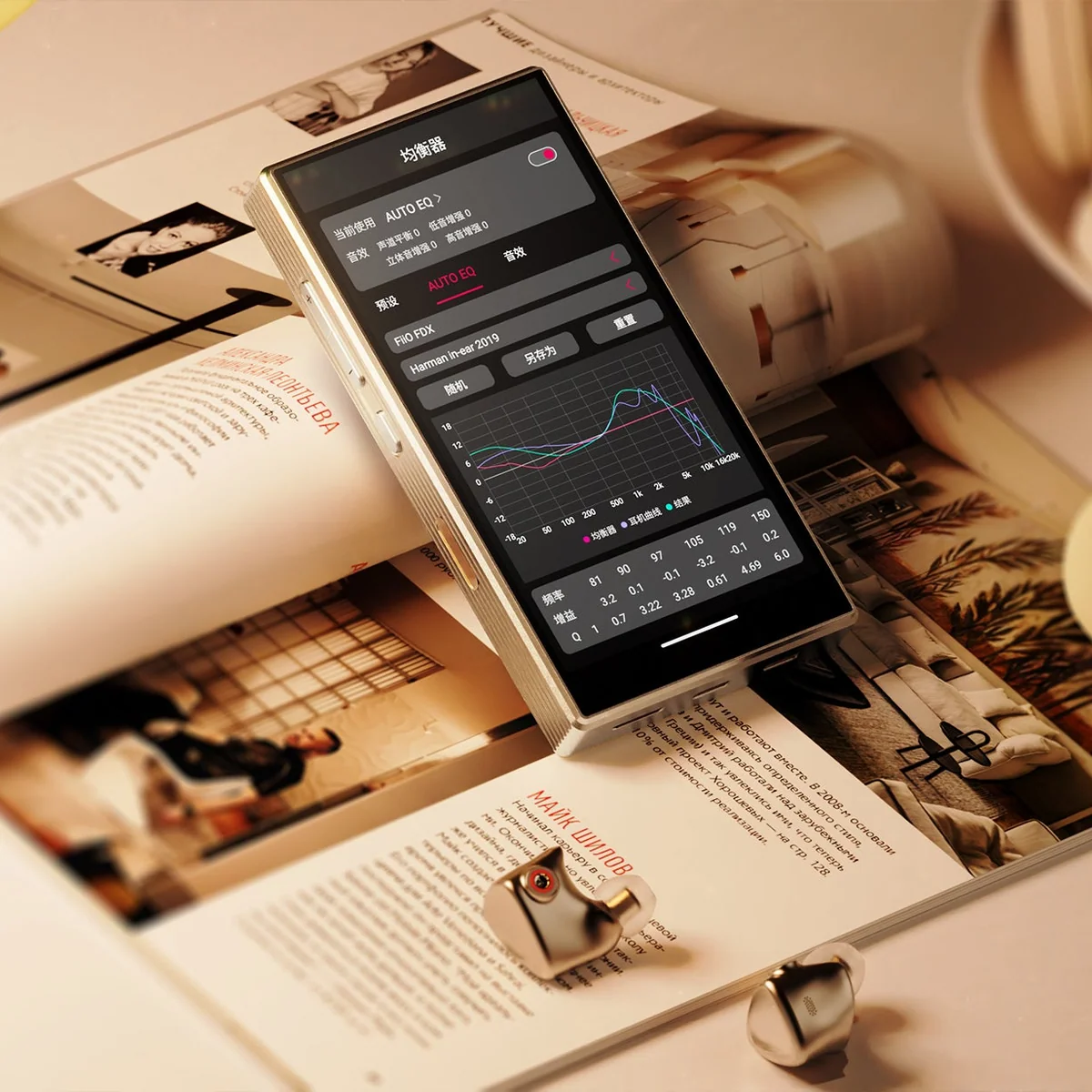

PEQ    Supports 10-band PEQ and AUTO EQ
Sound profiles    Natural sound / Warmer sound
Local DAC    Supports up to 384 kHz / 32 bit; DSD256 (Native)
USB DAC    Supports up to 768 kHz / 32 bit; DSD512 (Native)
USB Audio    768 kHz / 32 bit; DSD512 (Supports DoP/D2P/Native)
Coaxial output    Supports up to 384 kHz / 24 bit; DSD128 (DOP/D2P)
Double click to wakeup    Yes
Screen rotation    Yes
Operation    Supports gesture control, two-button and three-button navigation
Power-off timers    Supports idle poweroff/sleep
Firmware update    Supports local storage upgrade + microSD card local upgrade + OTA push upgrade

Power Supply Parameters
Parameter    Specification
Power supply    PD2.0 / PD3.0 PPS fast charging
Charging time    About 1.5 h (PD3.0 PPS fast charging)

Battery Life and Test Conditions
Parameter    3.5 mm Headphone Output    4.4 mm Balanced Output
Battery life    15.5 h    13.5 h
Volume level    43    31
Gain    High gain    High gain
Display status    OFF    OFF
Playback track and format    MP3 44 kHz / 16 bit    MP3 44 kHz / 16 bit
EQ    OFF    OFF
Load    32 Ω    32 Ω
Personalized sound    Natural sound: NOS    Natural sound: NOS

Audio Parameters
3.5 mm Headphone Output – Over-ear Headphone Mode
Local playback / USB DAC, Natural soundParameter    Specification
Output power (16 Ω)    ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω)    ≥470 mW + 470 mW, 3.9 Vrms
Output power (300 Ω)    ≥60 mW + 60 mW, 4.2 Vrms
Output impedance    Less than 0.8 Ω (32 Ω)
Crosstalk    ≥74 dB (1 kHz @ 32 Ω)
Noise floor    Less than 5.5 μV (A-weighted)
THD+N    PCM: 0.0183% / DSD: 0.0033%
SNR    ≥117 dB (A-weighted)
Dynamic range    ≥114 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response    20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage    Greater than 12 Vp-p

3.5 mm Headphone Output – High Gain
Parameter    Specification
Output power (16 Ω)    ≥465 mW + 465 mW, 2.7 Vrms
Output power (32 Ω)    ≥300 mW + 300 mW, 3.1 Vrms
Output power (300 Ω)    ≥50 mW + 50 mW, 3.9 Vrms
Output impedance    Less than 0.8 Ω (32 Ω)
Crosstalk    ≥74 dB (1 kHz @ 32 Ω)
Noise floor    Less than 4.9 μV (A-weighted)
THD+N    PCM: 0.0186% / DSD: 0.0033%
SNR    ≥116 dB (A-weighted)
Dynamic range    ≥113 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response    20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage    Greater than 10 Vp-p

3.5 mm Single-ended Line Output
Parameter    Specification
THD+N    PCM: 0.0182% / DSD: 0.0034%
SNR    ≥116 dB (A-weighted)
Noise floor    Less than 3 μV (A-weighted)
Crosstalk    ≥103 dB
Dynamic range    ≥104 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1 dB
Extended frequency response    20 Hz–60 kHz: attenuation less than 3 dB
Line output level    2 Vrms (1 kHz @ 10 kΩ)

4.4 mm Balanced Headphone Output – Over-ear Headphone Mode
Parameter    Specification
Output power (16 Ω)    ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω)    ≥1100 mW + 1100 mW, 6 Vrms
Output power (300 Ω)    ≥240 mW + 240 mW, 8.5 Vrms
Output impedance    Less than 1.5 Ω (32 Ω)
Crosstalk    ≥104 dB (1 kHz @ 32 Ω)
Noise floor    Less than 10.3 μV (A-weighted)
THD+N    PCM: 0.0171% / DSD: 0.0033%
SNR    ≥116 dB (A-weighted)
Dynamic range    ≥115 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response    20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage    Greater than 24 Vp-p

4.4 mm Balanced Headphone Output – High Gain
Parameter    Specification
Output power (16 Ω)    ≥540 mW + 540 mW, 2.9 Vrms
Output power (32 Ω)    ≥900 mW + 900 mW, 5.4 Vrms
Output power (300 Ω)    ≥165 mW + 165 mW, 7 Vrms
Output impedance    Less than 1.5 Ω (32 Ω)
Crosstalk    ≥104 dB (1 kHz @ 32 Ω)
Noise floor    Less than 9.1 μV (A-weighted)
THD+N    PCM: 0.0180% / DSD: 0.0033%
SNR    ≥116 dB (A-weighted)
Dynamic range    ≥114 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1.3 dB
Extended frequency response    20 Hz–40 kHz: attenuation less than 3 dB
Peak output voltage    Greater than 20 Vp-p

4.4 mm Balanced Line Output
Parameter    Specification
THD+N    PCM: 0.0163% / DSD: 0.0034%
SNR    ≥118 dB (A-weighted)
Noise floor    Less than 4.9 μV (A-weighted)
Crosstalk    ≥105 dB
Dynamic range    ≥114 dB
Frequency response    20 Hz–20 kHz: attenuation less than 1 dB
Extended frequency response    20 Hz–60 kHz: attenuation less than 3 dB
Line output level    4 Vrms (1 kHz @ 10 kΩ)

Output power measurements are specified at THD+N below 1%. The technical information and values follow the supplied FIIO M33 R2R specification document.
