Helix IK EC10.1-DVC2 VW MULTI-TRANS - specialiai suprojektuotas žemų dažnių garsiakalbis, pritaikytas montuoti į keleivio sėdynės konsolę be pasukamos sėdynės „Volkswagen“ T6.1, T6 ir T5 modeliuose. Jis užtikrina galingą, sodrų ir tolygiai sklindantį bosą visame automobilio salone, išnaudodamas erdvę maksimaliai efektyviai.
Nominali galia (RMS): 300 W
Rekomenduojama stiprintuvo galia (RMS): 150–300 W
Varža: 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Jautrumas: 90 dB @ 2,83V / 1m; 87 dB @ 1W / 1m
Suderinamumas: tinka įvairiems „Volkswagen T6.1“, „T6“ ir „T5“ automobiliams be pasukamų sėdynių
APRAŠYMAS
Specially designed for seamless integration into the passenger-side seat console without swivel seat of Volkswagen T6.1, T6, and T5, the HELIX IK EC10.1-DVC2 – VW MULTI-TRANS combines integration-intelligence with powerful low-frequency output. Its optimized enclosure design ensures excellent bass dispersion throughout the vehicle, making it a perfect fit for those seeking deep, immersive bass while using the available space efficiently.
Superior bass performance
The IK EC10.1-DVC2 – VW MULTI-TRANS features a high-performance 10" (250 mm) woofer with a sandwich paper cone, delivering rich and powerful bass that fills the vehicle. The larger chassis provides a noticeable increase in sound pressure and deep bass compared to conventional 200mm woofers in the same application Thanks to its up-firing design, the subwoofer directs sound upwards, resulting in an even and immersive bass experience.
Space-saving and durable design

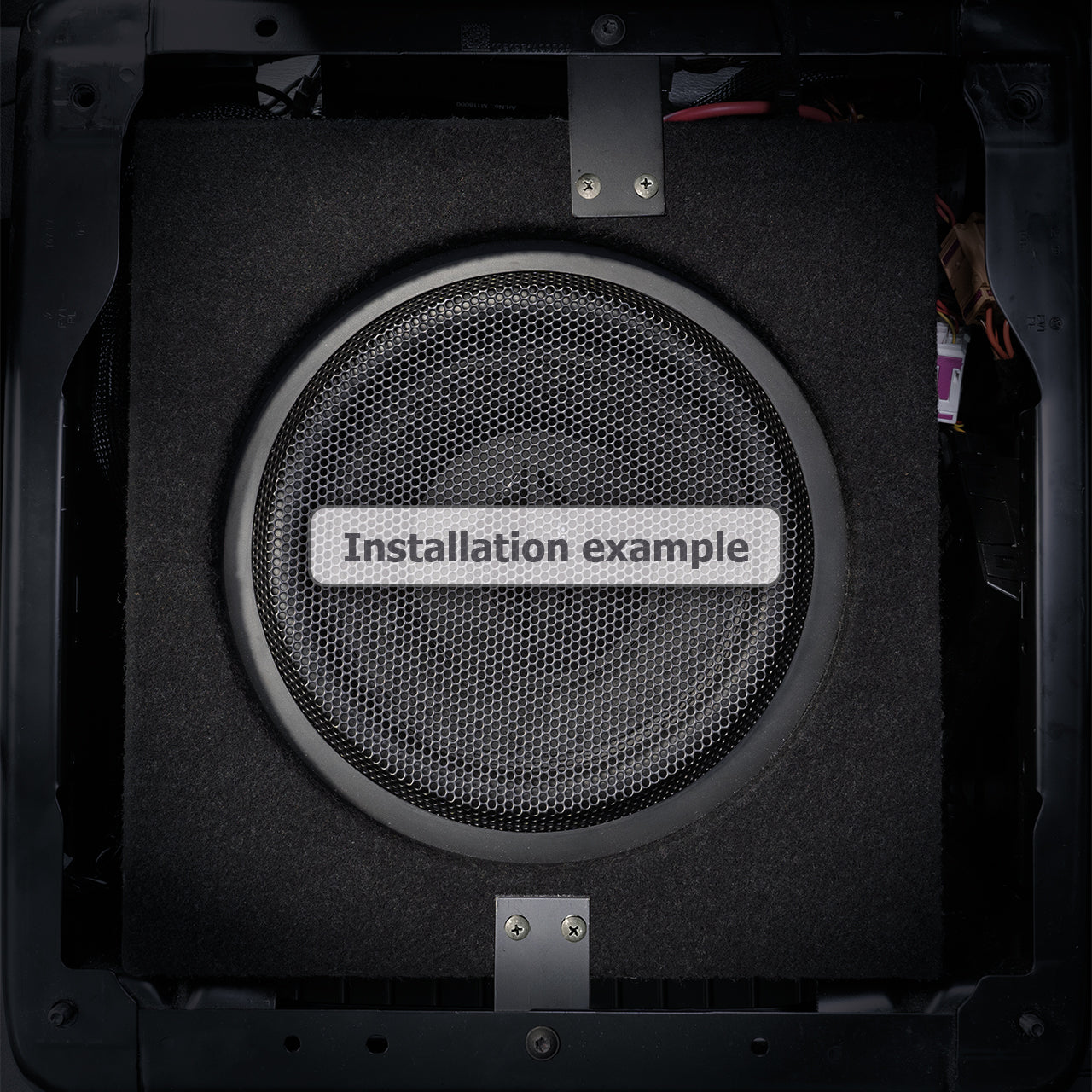

The woofer is optimized for installation in the passenger seat console without swivel seat of VW T6.1, T6, and T5 models, saving valuable space in the vehicle. Additionally, the flush-mounted chassis provides optimal protection for the speaker. The enclosure features a durable carpet surface with an embroidered HELIX logo, adding both style and resilience.
Easy installation and flexible configuration

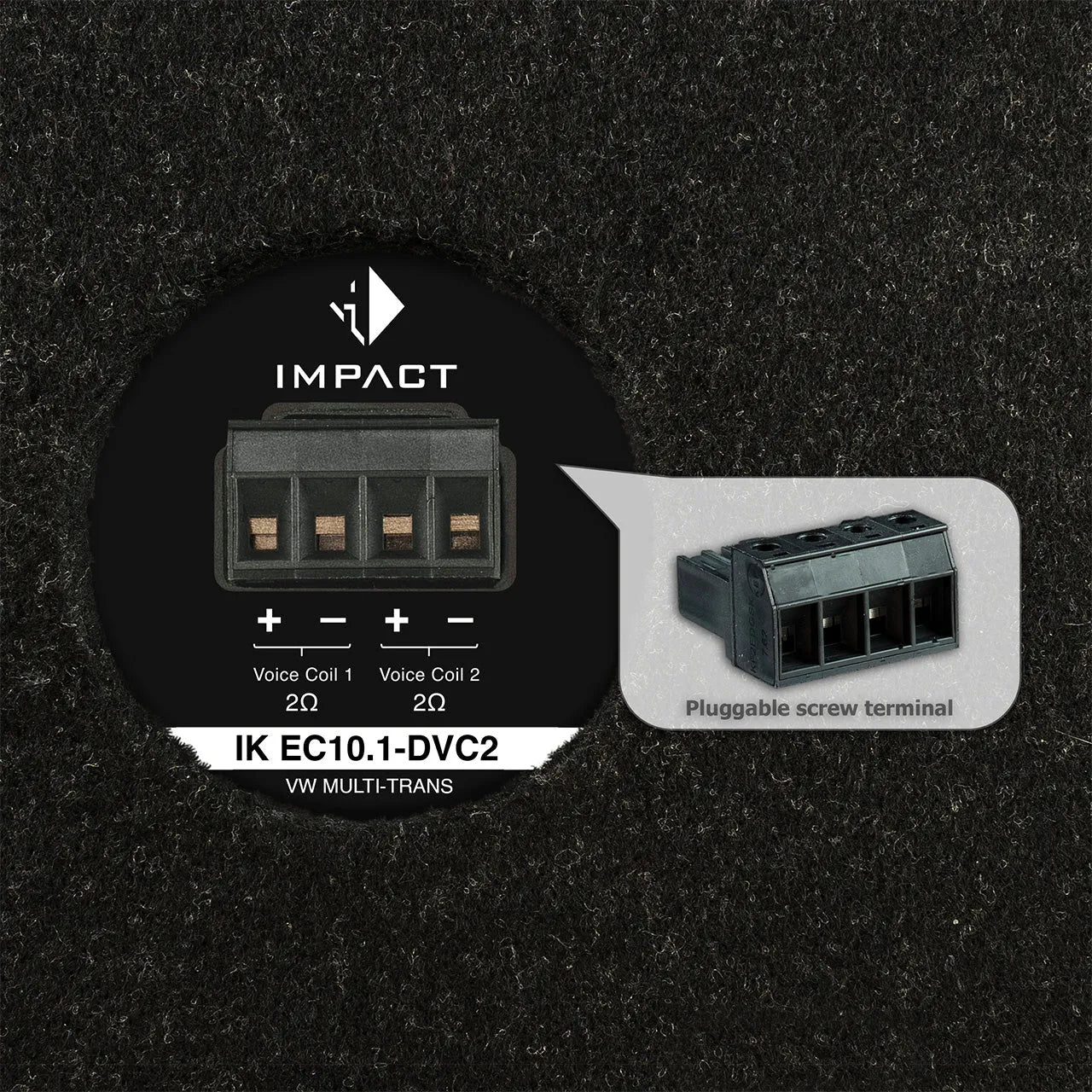

With a pluggable screw terminal, installation and removal of the subwoofer are quick and hassle-free. The configurable voice coil impedance (2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm) allows for flexible system integration with a variety of amplifiers, catering to different configurations effortlessly.
Features
- Powerful enclosure subwoofer especially designed for installation in the seat console without swivel seat of Volkswagen T6.1, T6 and T5
- Optimized construction design delivers outstanding sound quality and ideal bass dispersion in the vehicle
- Equipped with one powerful 250 mm / 10“ woofer with sandwich paper cone for rich, deep bass
- Pluggable screw terminal for quick and safe installation and removal
- Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Flush-mounted subwoofer chassis for space-saving design and enhanced protection
- Sturdy carpet surface with embroidered HELIX logo
- Including mounting kit for secure fixation in the seat console
TECHNINIAI DUOMENYS
Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb -
Sensitivity
SPL
90 dB @ 2.83V / 1m
87 dB @ 1W / 1m
Dimensions (H x W x D)
193 x 350 x 330 mm
7.6 x 13.5 x 13"
Integrated subwoofer chassis HELIX IK S10-DVC2
Recommended DSP settings "Self-define" highpass 46 Hz / Q = 1.4;
EQ filter: 100 Hz / Q = 1.5 / -3 dB
Compatibility
Suitable for various Volkswagen T6.1, T6 and T5 without swivel seats
Scope of delivery
1 x Enclosure subwoofer IK EC10.1-DVC2 – VW MULTI TRANS
1 x Mounting kit
1 x Data sheet
