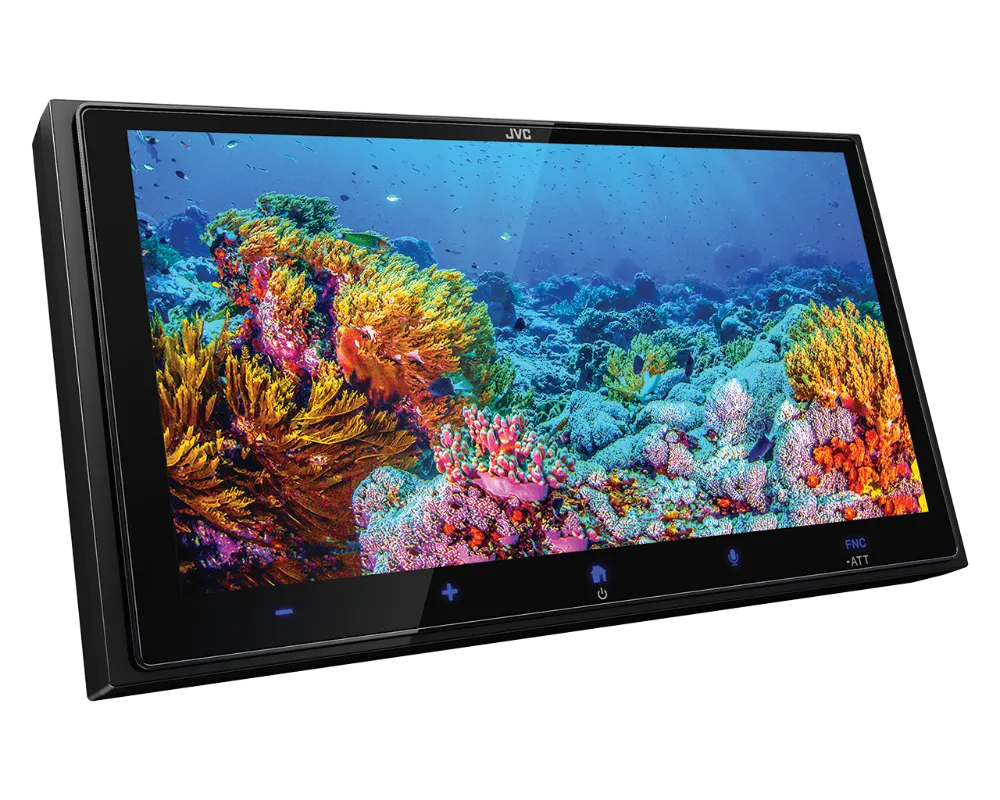

JVC KW-M795DBW, 6.92" HD automobilinė multimedija su belaidžiu Apple CarPlay ir Android Auto

INFORMACIJA

JVC KW-M795DBW - tai pažangi 2DIN automobilinė multimedija, sujungianti aukštos raiškos HD ekraną, belaidę išmaniųjų telefonų integraciją ir profesionalias garso reguliavimo galimybes. Šis modelis sukurtas vairuotojams, kurie vertina modernų funkcionalumą, patogų valdymą ir aukštos kokybės garsą kiekvienoje kelionėje.

Ekranas: 6.92″ HD (1280 × 720) jutiklinis
Apple CarPlay: laidinis ir belaidis
Android Auto: laidinis ir belaidis
Bluetooth: 5.0
Radijas: DAB+, FM, AM
Galia: 50W × 4 (Max), 22W × 4 RMS
Garso reguliavimas: 13 juostų EQ, DSP, Time Alignment

APRAŠYMAS

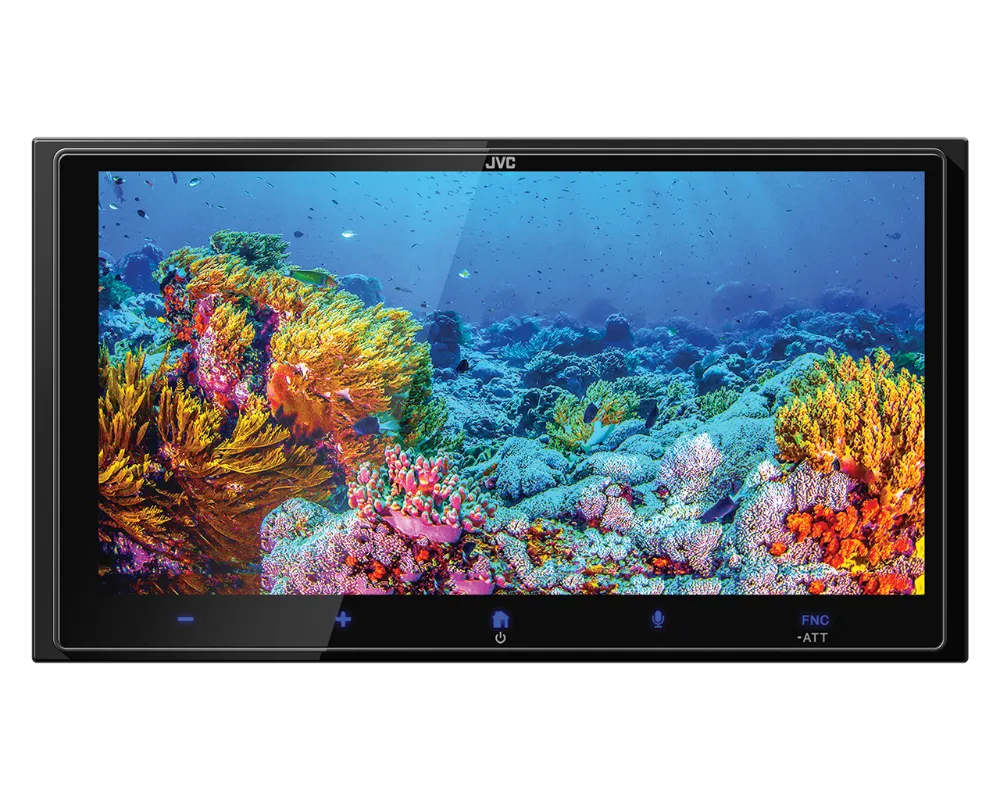

Large & High Definition Display (1280 x 720)
The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

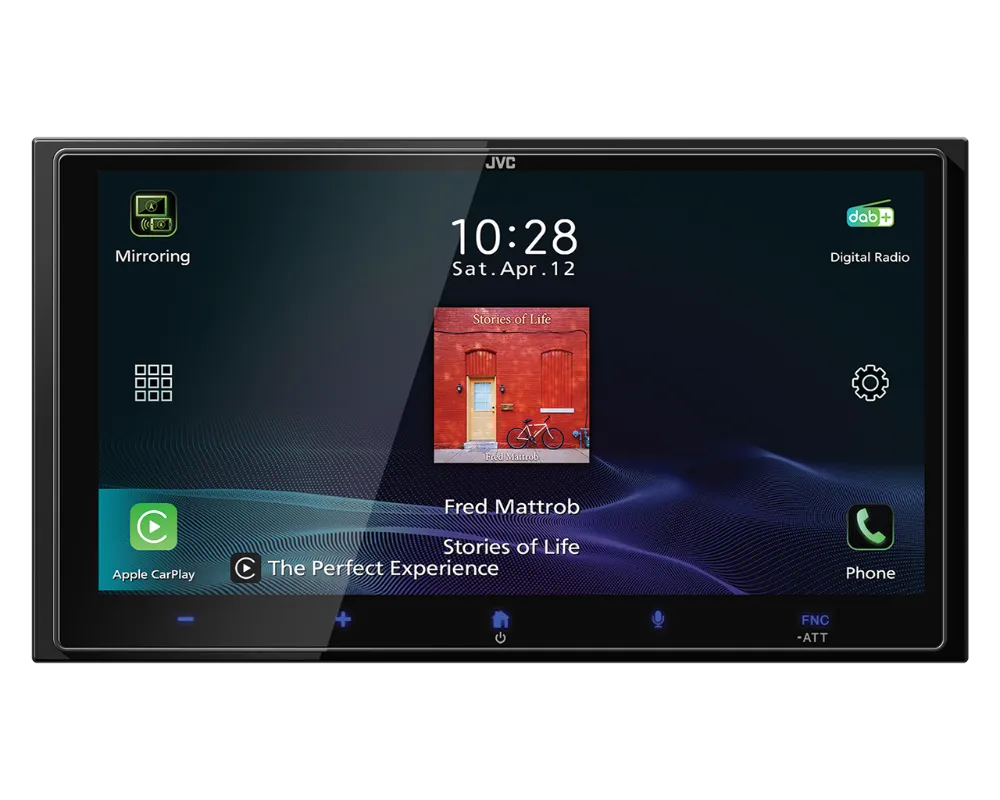

Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

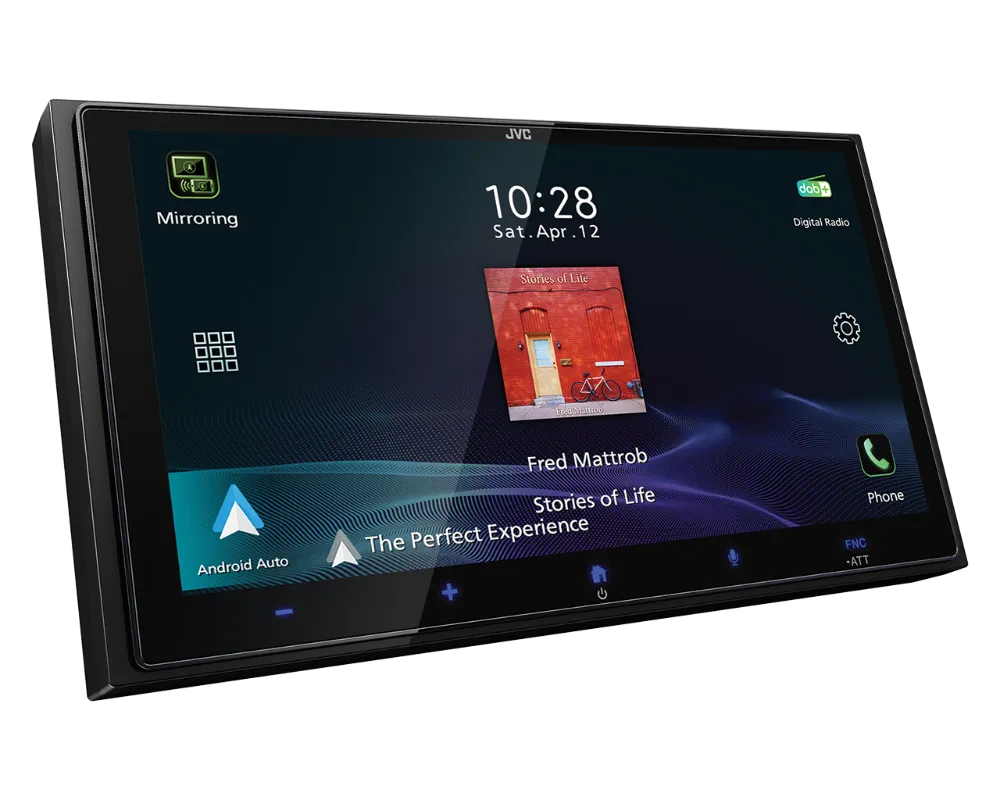

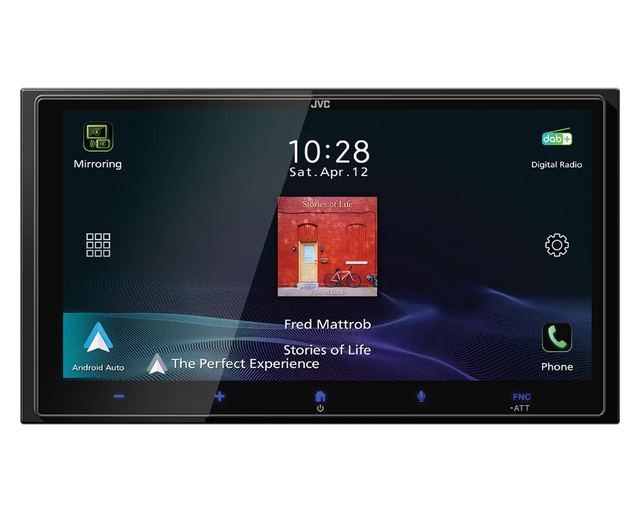

Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

Wirelessly or USB Mirroring for iPhone & Android Smartphone
Wireless or USB Mirroring is enabled by installing the "CarbitLink-EasyConnection" app on your iPhone or Android mobile phone*.
This is a groundbreaking solution for seamlessly displaying your smartphone apps, such as Waze, YouTube, Instagram and much more on the JVC Multimedia receiver large screen

DAB+ Tuner
DAB+ is short for Digital Audio Broadcasting, which means digital sound transmission. DAB+ radios are digital radios that are the successors to classic FM radios. DAB+ delivers CD-quality, crystal-clear reception with little noise and no sound distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

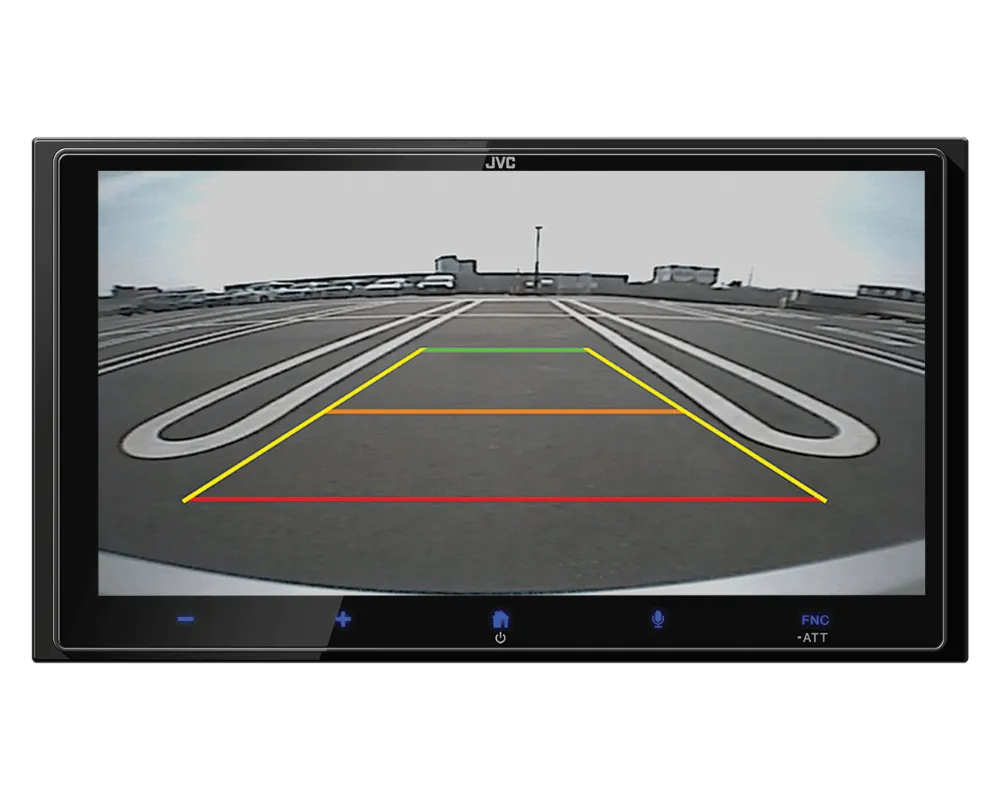

2-Camera Inputs
The 2 camera inputs enable users to add an optional rear view camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness and the AV-in input can be set as an additional camera input. Adding a front camera (sold separately), further enhances driver safety and convenience by offering a clear view of the vehicle's immediate front.

HD-Camera Input
An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition Resolution on the receivers screen.

HDMI™ Mirroring for Smartphones
Display your smartphone screen on the JVC Multimedia Receivers display via an HDMI cable*.

*Optional HDMI cable and smartphone specific third party adapter are required (sold separately).

Features
6.92" Display with HD LCD screen, sharp & high-contrast images, vivid colors and wide viewing angles.
DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
Wired & Wireless Screen Mirroring with CarbitLink-EasyConnection app for IOS & Android
Bluetooth(R) Wireless Hands-Free Calling (*Available functions depend on smartphone).
Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
3 RCA line outs (3.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.
1x AV input • 1x Video output • 1x Rear View Camera input • HD camera ready.

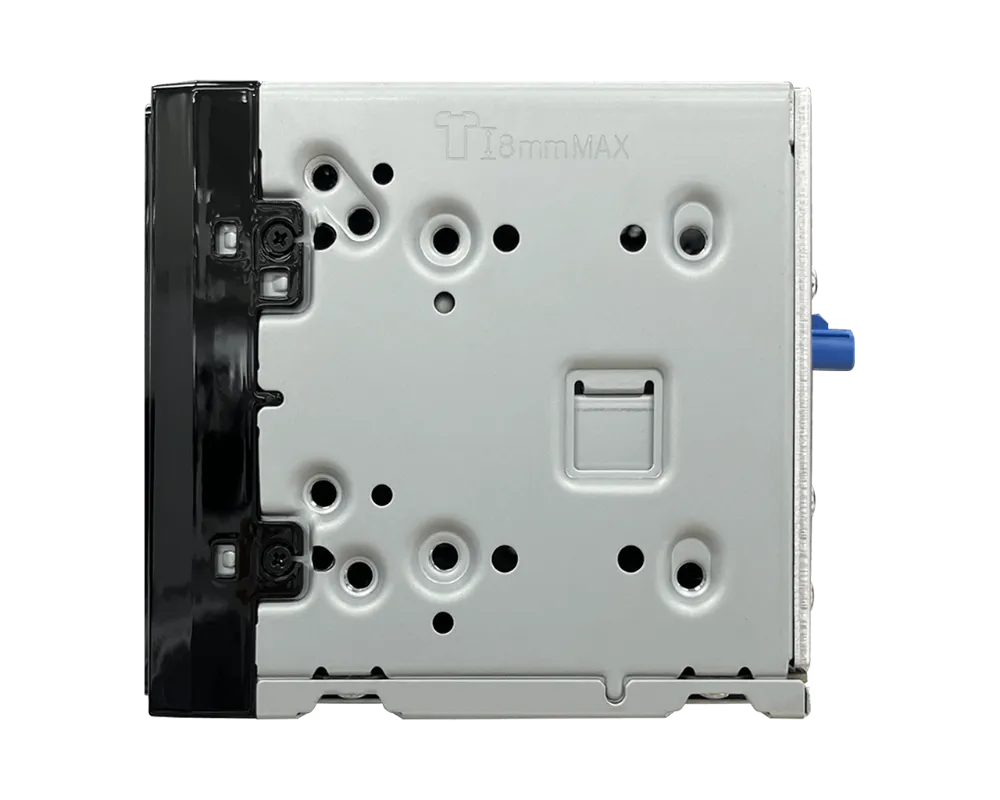

2DIN Short chassis for easy installation.
Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)
Playable USB Audio Files: MP3 • WMA • AAC • WAV • FLAC
Playable USB Video Files: MPEG1/2 • MPEG4 • H.264 • MKV • WMV
Steering wheel remote control adapter input (Optional, car specific interface required).
Wireless IR remote controller ready.

TECHNINIAI DUOMENYS

Monitor
Screen Size    6.92 inches (diagonal) wide
High Definition Monitor    1280 x 720 px
Touch Panel Type    Capacitive with Anti-finger Print film
Display System    TN LCD panel
Drive System    TFT active matrix system
Number of Pixels    1,152,000 (800 x 480 x RGB)
Effective Pixels    99.99 %
Pixel Arrangement    RGB striped arrangment
Back Lighting    LED
Touch Control    Yes
Gesture Touch Control    Yes
Key Illumination Colour    Blue
Dimmer    Yes, Illumination line Sync (Auto/On/Off)
Customizable GUI    Yes
Multilanguage Display    Yes, available languages:
► English(UK)(Default)
► English(US)
► Spanish
► French
► German
► Italian
► Dutch
► Portuguese
► Arabic
► Greek
► Polish
► Czech
► Hungarian
Radio Tuner
DAB+ Tuner
Digital Radio Certification Mark    Yes
DAB+ Frequency Band III    174.928MHz to 239.2MHz
DAB-DAB / DAB-FM Auto Switch    Yes
Seamless DAB-FM Blending    Yes
FM Tuner
Radio Data System (RDS)    Yes, (with Radio Text Plus)
FM Frequency Range    87.5 ~ 108.0MHz (50kHz step)
AM Tuner
AM Frequency Range    531kHz ~ 1,611kHz (9kHz Frequency Step)
Preset Stations    20 (FM:15ch, AM:5ch)
Tuner Preset Back-up Memory    Yes
Automatic Preset / SSM    Yes
Media Playback
Audio Decoder
MP3 Compatible with Tag    Yes
WMA Compatible with Tag    Yes
WAV Compatible with Tag    Yes
AAC Compatible with Tag    Yes
FLAC Compatible with Tag    Yes
Video Decoder
MPEG-1 / MPEG-2 Compatible    Yes
MPEG-4 Compatible    Yes
WMV Compatible    Yes
H.264 Compatible    Yes
MKV Compatible    Yes
USB
USB Standard    High Speed 2.0
Location    Rear
File System    FAT16 / FAT32 / exFAT
USB Mass Storage Class    Yes
Drive Change Mode for Mass Storage Class    Yes
Tag Information Display    Yes
Album Art Display    Yes
List Access    Yes
Alphabet Search    Yes
Category search    Yes
Link Search    Yes
Random / Repeat Play    Yes
Skip    Yes
Time Code Display    Yes
Last Position Memory / Resume    Yes
Bluetooth®
Built-In Bluetooth [1]    Yes (Version 5.0)
Supported profiles    Multi profile
Hands Free Call (HFP)    Yes (HFP1.8)
Advanced Audio Distribution Profile (A2DP)    V1.3.2
Audio/Video Remote Control Profile (AVRCP)    V1.6.2
Phone Book Access Profile (PBAP)    Yes
Alphabetical Search for Phone Book    Yes
Serial Port Profile (SPP)    Yes
Supported Audio Formats    AAC / SBC
Auto Pairing    Yes
Noise Canceller    Yes
Echo Canceller    Yes
Wired Microphone included    Yes
Wi-Fi Control
Built-in Wi-Fi    Yes
IEEE Standard    802.11 a/b/g/n/ac
Frequency Range    Dual Band (2.4GHz/5GHz)
Android Control
Android Auto
Android Auto wired    Yes, (via USB)
Android Auto wireless    Yes, (WiFi)
iPod/iPhone Control
Carplay
CarPlay wired    Yes, (via USB)
CarPlay wireless    Yes, (WiFi)
Audio
Maximum Power Output (Front & Rear)    50W x 4
Full Bandwidth Power (at less than 1%THD)    22W x 4 (Front & Rear)
Speaker Load Impedance    4 Ω ~ 8 Ω
Output Frequency Band    20 Hz ~ 88.000Hz
EQUALIZER
13-Band Graphic EQ    Yes
Preset EQ    Preset x8 + User x4 / Source
Volume Link EQ    Yes
3-Way X'over    Yes
High-Pass Filter/Low-Pass Filter    Yes/Yes
Digital Sound Processor (DSP)    yes
Time Alignment    Yes
Space Enhancement    Yes
Sound Response    Yes
Sound Lift    Yes
Loudness Control    Yes
Bass Boost (Hyper Bass System)    Yes

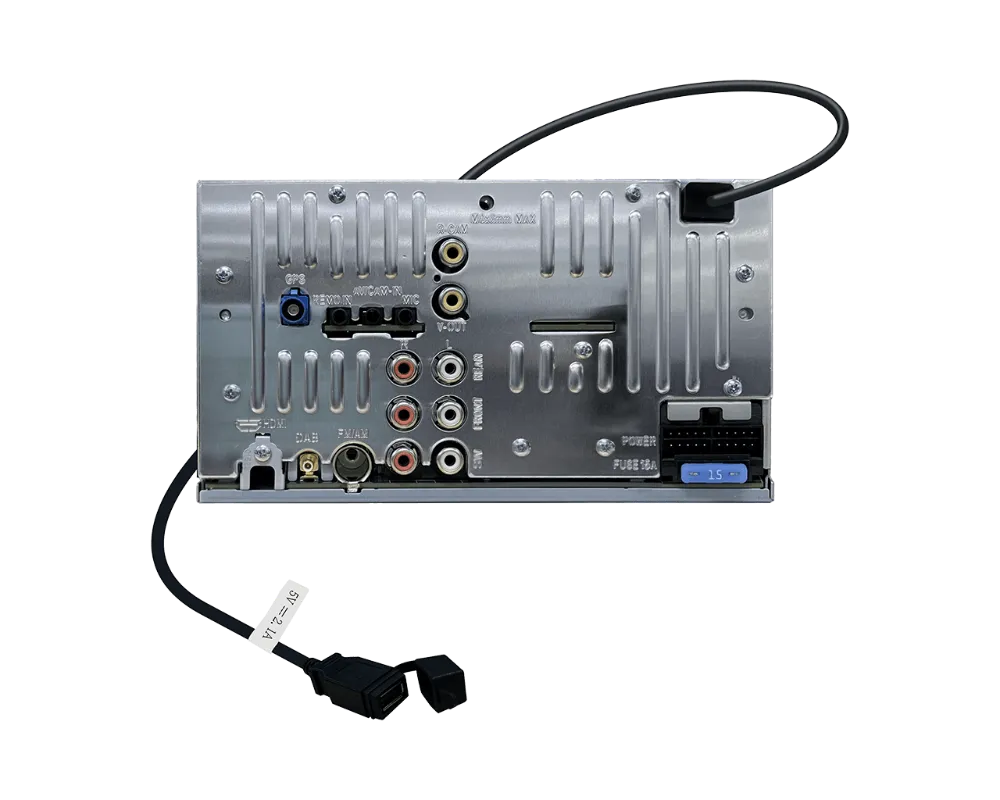

Inputs and Outputs
Audio Inputs and Outputs
Pre-Out Terminals    3 Pairs (Front + Rear + Subwoofer)
Pre-Out Impedance    Less than 600 ohms
Pre-Out Level/Impedance    3.0V/10k ohms
Audio Output level (mini jacks)    2V / 25k ohms
Subwoofer Output with Level/Frequency Control    Yes
Video Inputs and Outputs
Video Input Level/Impedance    1.0Vp-p / 75 ohms
AV Input    mini jack (AV-IN or Camera switchable)
Video Out    RCA
Colour System    NTSC/PAL
Video Output Level/Impedance    1.0Vp-p / 75 ohms
Camera inputs
Rear view camera Input    Yes
HD camera compatible input    Yes
Convert AV-input to camera input.    Yes
General
Back Up Memory    Yes
Installer Memory    Yes
GPS Antenna Input    Yes
DAB Antenna Input    Yes
Wireless Remote Control    Ready (RM-RK258 required)
Wired Steering Remote Control Ready    Yes
Learning Direct OEM Remote    Yes
ISO Connector    20-pin (New Type) to ISO Wiring harness
Short Chassis    Yes
Operation Voltage    12 VDC
Dimensions (W x H x D)    178mm x 100mm x 109mm
Weight    1,14 kg
[1] Available functions depend on mobile phone.
