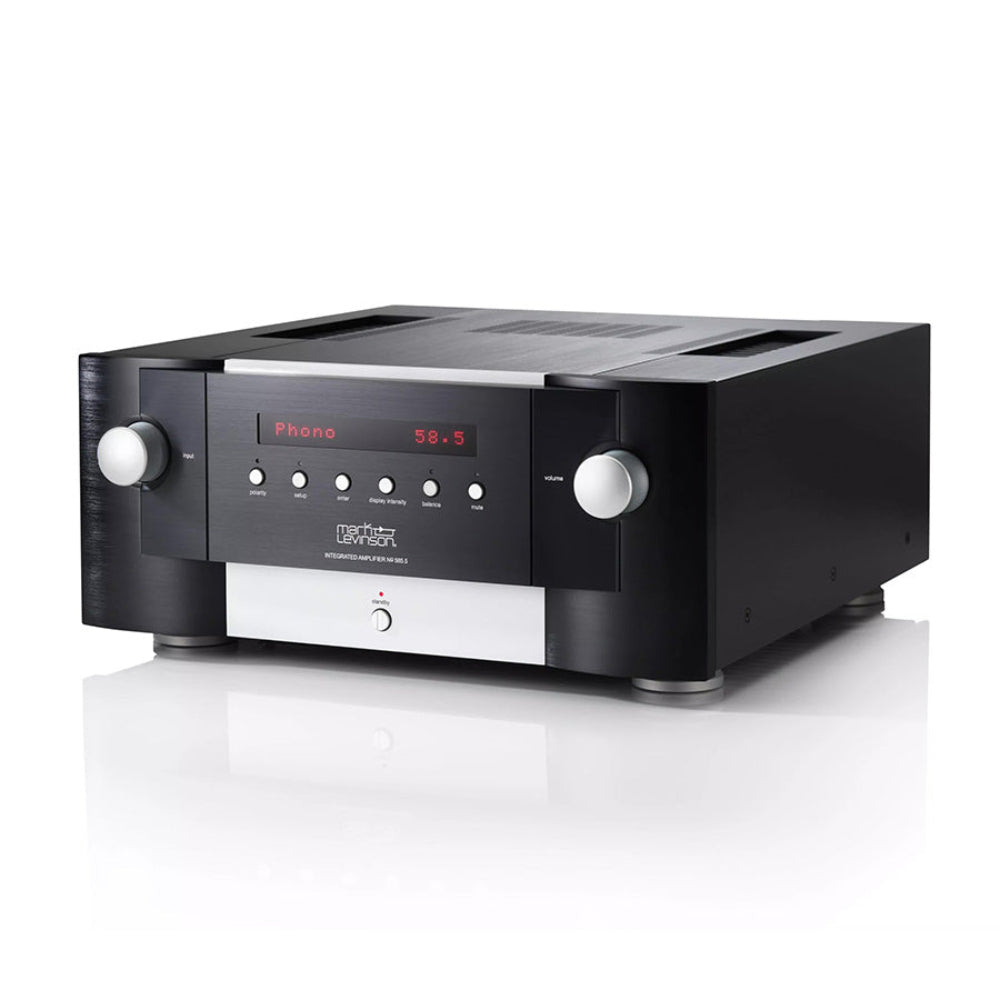

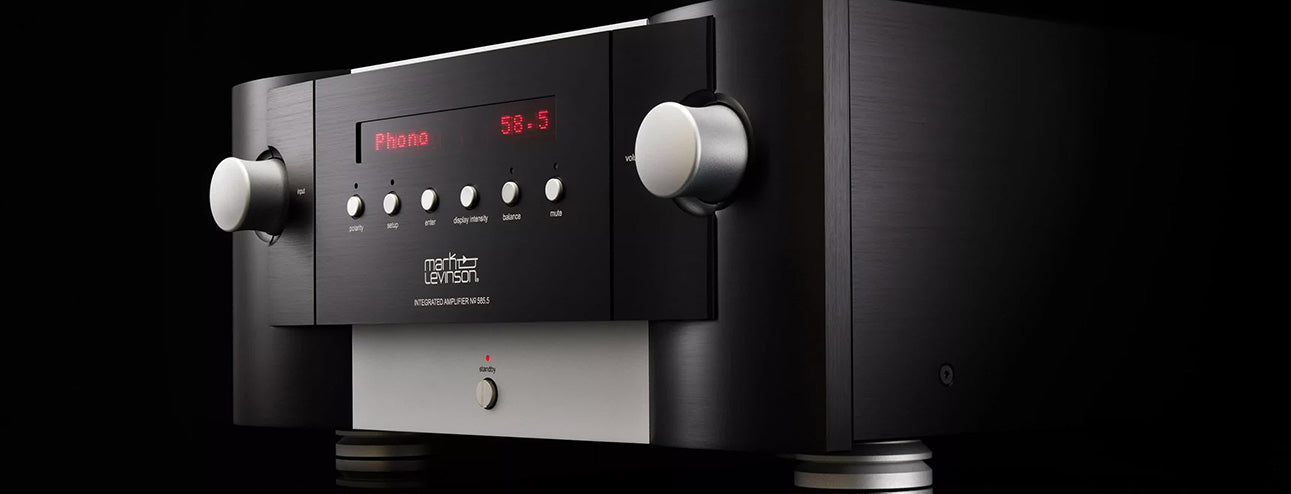

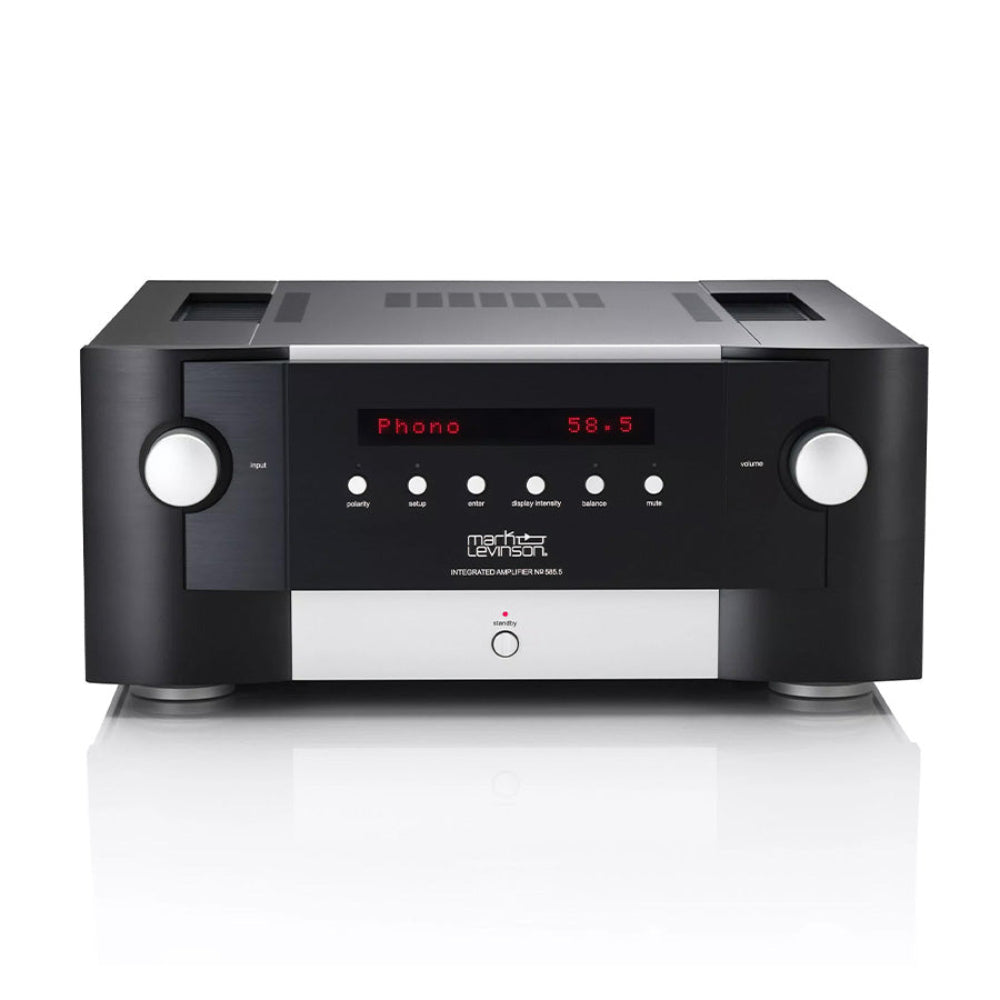

Mark Levinson No 585.5, integruotas stiprintuvas

INFORMACIJA

Mark Levinson No 585.5 - aukštos klasės integruotas stereo stiprintuvas su itin švariu ir detaliu garsu. Integruotas DAC palaiko aukštos raiškos muziką bei DSD formatus, o galinga 2 x 200 W konstrukcija užtikrina dinamišką ir tikslų atkūrimą.
Integruotas „Precision Link“ DAC palaiko iki 32-bit/192kHz PCM bei DSD formatų atkūrimą, todėl No 585.5 puikiai tinka tiek aukštos raiškos muzikos failams, tiek modernioms skaitmeninėms sistemoms. Pilnai subalansuota Class A/B architektūra ir dvigubo mono konstrukcija užtikrina maksimalų kanalų atskyrimą bei itin mažus iškraipymus.

Galia: 200 W x2 prie 8 Ω
Dažnių diapazonas: 20 Hz – 20 kHz ±0.13 dB
THD: <0.01 %
DAC palaikymas: PCM iki 32-bit/192kHz, DSD

APRAŠYMAS

Find a deeper connection to the music you love with the № 585.5. This integrated amplifier delivers superb performance, reproducing any source material with exceptional realism so you’re drawn into the details of your music with every single listen. The Mark Levinson № 585.5 integrated amplifier is a complete success in every area of its build and performance… it speaks with a clarity unrivaled among competing products.

Detailed Digital Audio
Unlock the full potential of your digital music collection. The № 585.5 contains a premium Precision Link Digital-to-Analog Converter (DAC) that accurately reproduces audio signals and minimizes noise, so you hear the truth, passion and detail of every note.

Pure Power
Fill your home with distortion-free sound. The № 585.5 contains an oversized toroidal transformer and massive capacitors that deliver all the headroom you need for your most dynamic performances.

Pure Path Circuit Design
Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 585.5 delivers unmatched sound quality that captures the nuances of every note.

Details at Any Volume
Mark Levinson’s innovative R-2R ladder volume control provides balanced and consistent sound. Discern subtle details in your music, even at low volume.

Home Theater Integration
Seamlessly integrate into your home theater system with SSP mode, allowing your Surround Sound Processor to control both the left and right loudspeakers powered by your № 585.5.

Features
Pure Path Phono preamp — a discrete design with no op-amps and operates exclusively in class A throughout
High resolution sound from class-A/B amps
Fixed-gain moving magnet (MM) section with 5 capacitive cartridge-loading settings
Discrete analog circuitry throughout
Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
Ultrasonic filter intelligently compensates for rumble and warping
32-bit/192khz performance, including DSD over PCM via USB
80Hz high-pass option allows proper operation of a 2.1-channel system
Designed and handcrafted in the USA

TECHNINIAI DUOMENYS

Design:
Fully Balanced Differential Class A/B Integrated Amplifier
Dual Mono Architecture
Amplifier Section:
Power Output: 200W RMS per Channel, 8 Ω, 20Hz – 20kHz
Frequency Response: 20 Hz – 20 kHz +/-0.13 dB; 2Hz – 250kHz, +0.2dB/–3dB
THD: <0.01% at 1 kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω
Signal-to-Noise Ratio: >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting
Damping Factor: >400 @ 20Hz, Referred to 8 Ω
Speaker Out Via 1 Pr “Hurricane” Binding Posts
Phono Stage:
RIAA Frequency Response: 20Hz to 20kHz, ±0.3dB
Infrasonic Filter Defeatable, 15Hz, 2nd order (12dB/octave)
Moving Magnet Mode:
Input Resistance: 47kΩ
Input Capacitance: selectable; 50, 100, 150, 200, or 680pF
Gain: 40dB @ 1kHz
THD+N, 20Hz to 20kHz, 2VRMS output: <0.03%
Moving Coil Mode:
Input Resistance: Selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47k
Input Capacitance: 50pF
Gain: Selectable; 50, 60, or 70dB @ 1kHz
THD+N, 20Hz to 20kHz, 2VRMS output: <0.02%, 50 or 60dB settings, <0.04%, 70db setting
Preamplifier Section:

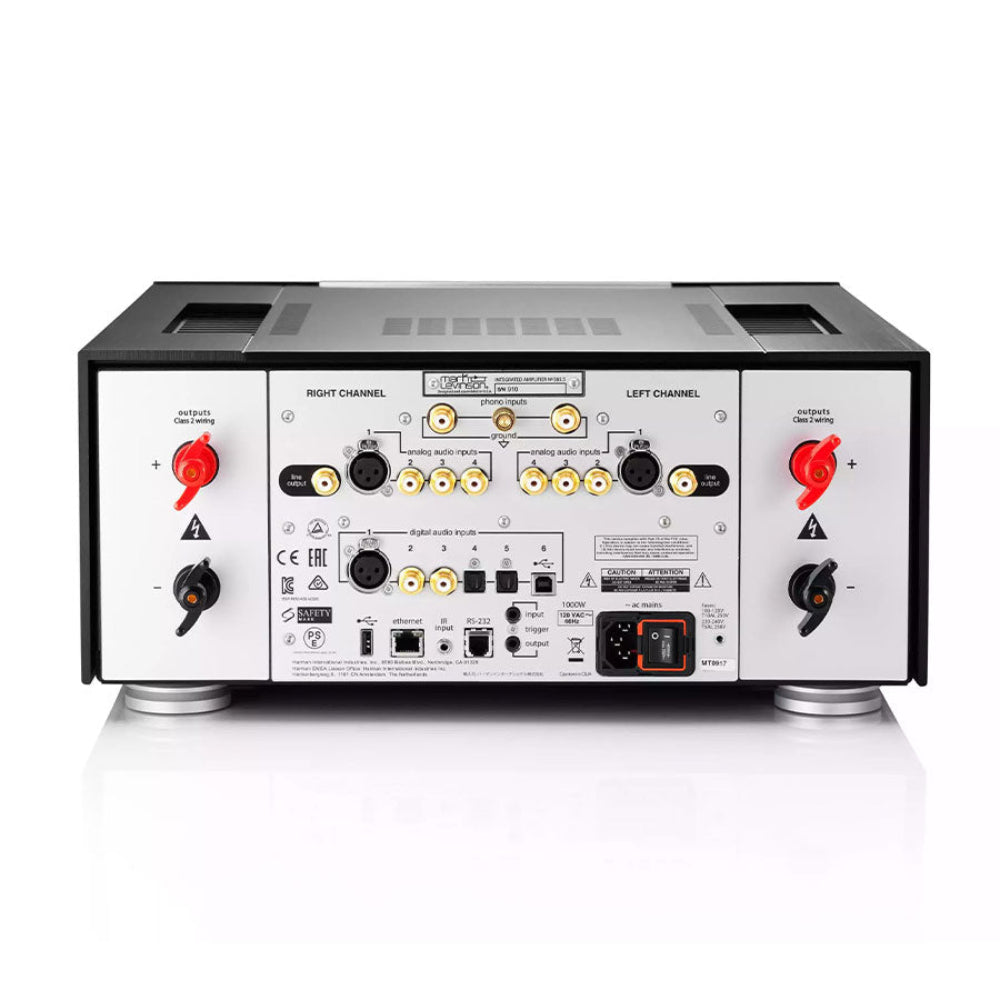

Analog Inputs: 1 Balanced XLR, 3 Unbalanced RCA
Input Impedance: >45k Ω (RCA & XLR)
Digital Inputs: 1 AES/EBU (XLR); 2 Coaxial S/PDIF (RCA); 2 Optical (Tos-Link); 1 Asynchronous USB (USB-B)
Outputs: 1 Unbalanced RCA Line Out
DAC Board – same as No 585:
DAC output voltage @ full scale (0dBFS): 3.7VRMS
DAC frequency response: 20Hz to 20kHz, +0 / ¬–0.2dB
DAC THD, full scale (0dBFS): <0.0001% @ 1kHz, <0.0003% @ 20kHz
DAC SNR (referred to 3.7VRMS / 0dBFS output): >120dB (A-weighted)
PCM sample rates/bit depth: 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits
DSD: Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)
Dimensions:
7.6” H x 17.1” W x 19.9” D
Weight:
74 Pounds Net

DOKUMENTAI

Vartotojo vadovas (EN)
