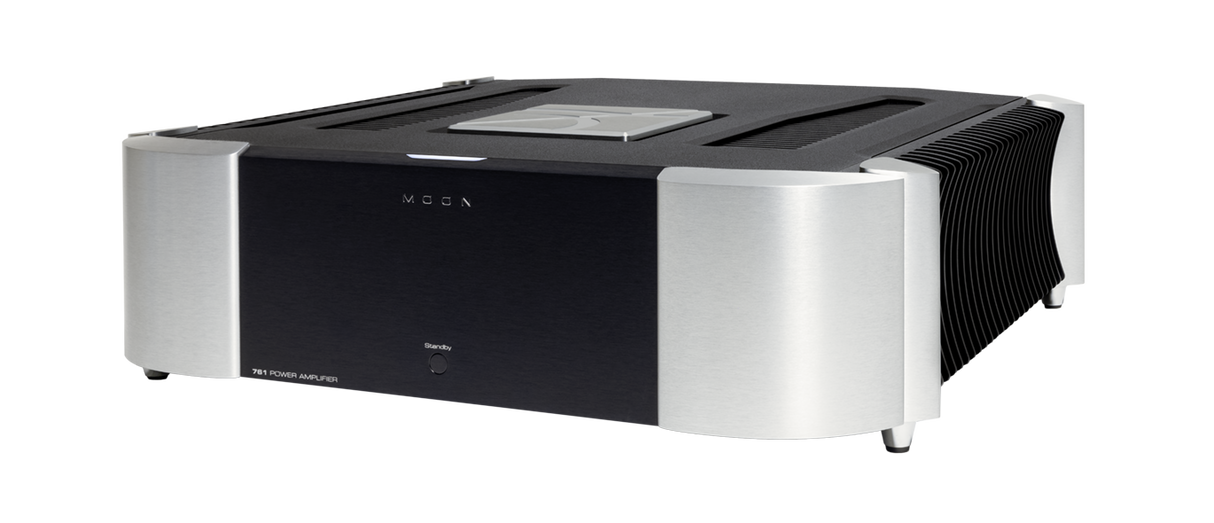

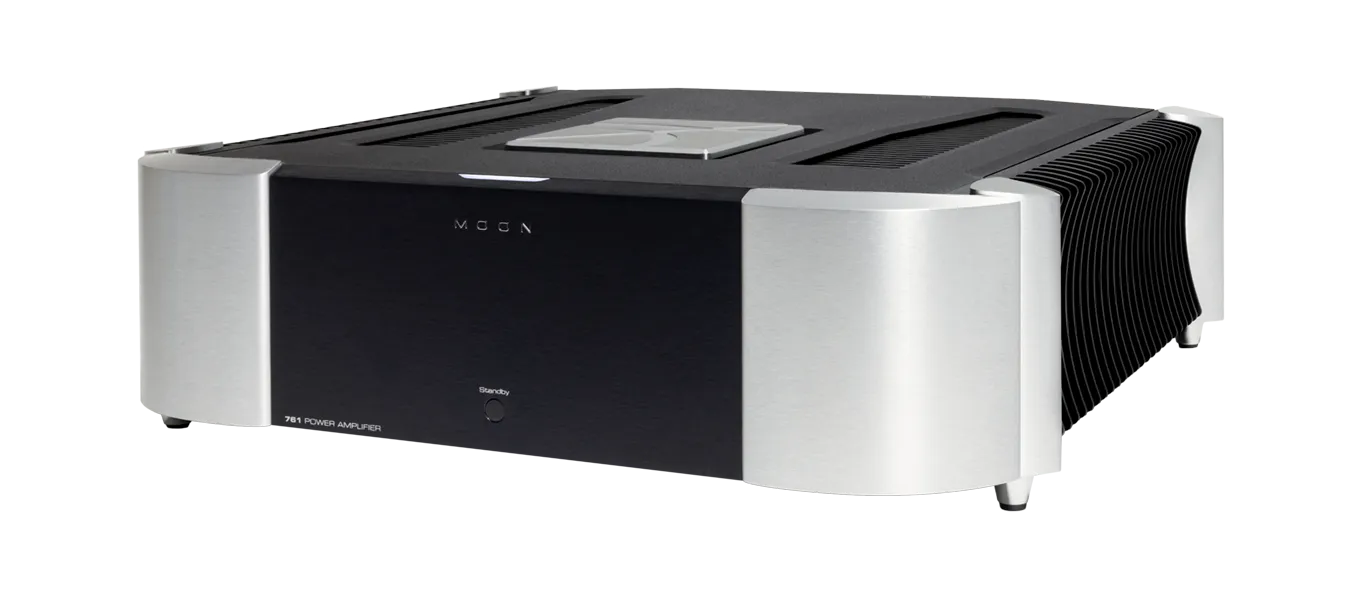

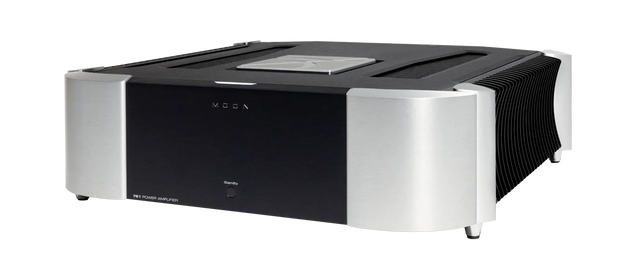

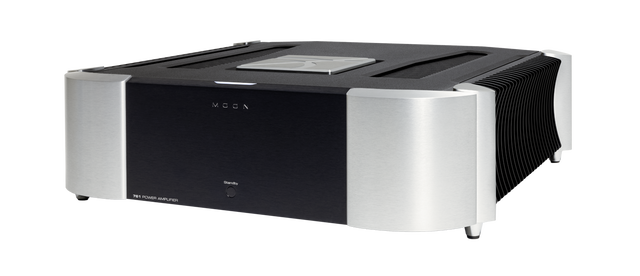

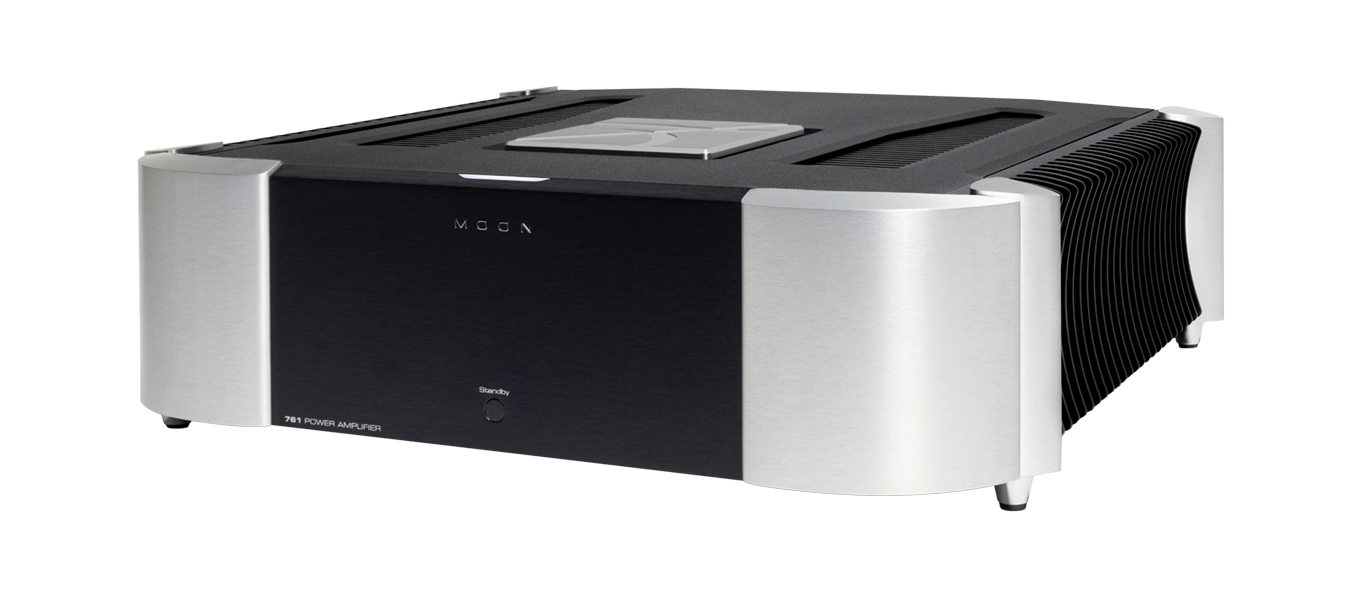

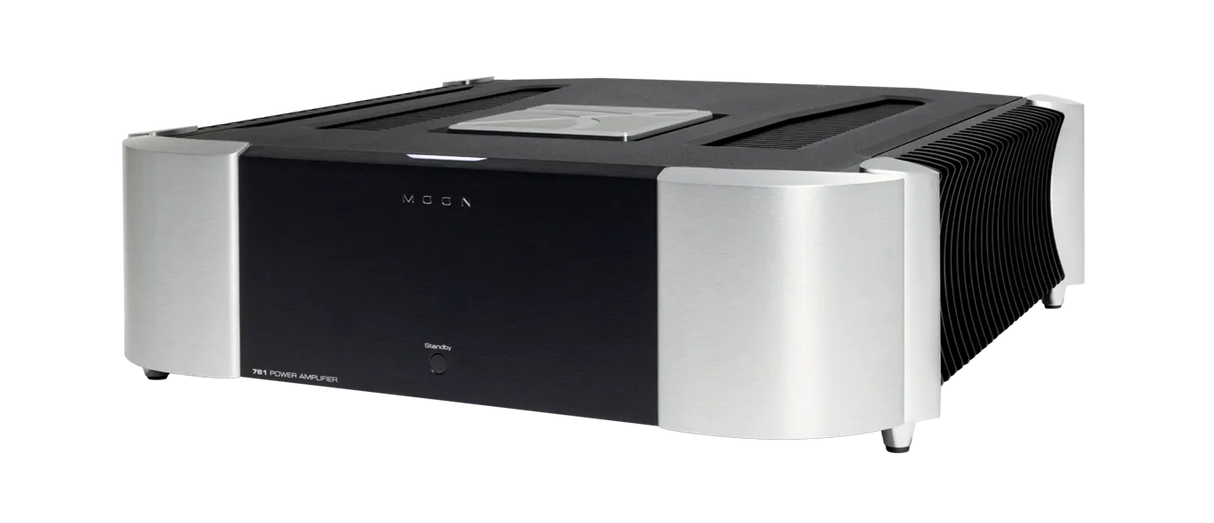

MOON 761, galios stiprintuvas

INFORMACIJA

MOON 761 - tai tikslumo ir galios derinys, skirtas išgauti maksimalų Jūsų garso sistemos potencialą. Su dual-mono architektūra, MDCA technologija ir 200–600 W galia, šis stiprintuvas užtikrina nepaprastai švarų, dinamišką ir kontroliuotą skambesį. Tai idealus pasirinkimas tiems, kurie ieško absoliutaus skaidrumo, stabilumo ir tikro high-end klasės garso.

Galia 8 Ω (stereo): 200 W
Galia 4 Ω (stereo): 400 W
Galia 8 Ω (mono): 600 W
Įėjimo jautrumas: 1.1 V
Dažnių diapazonas: 2 Hz – 100 kHz (+0 dB / –3 dB)
Crosstalk: -116 dB
Signalo ir triukšmo santykis: 117 dB
Slopinimo faktorius (Damping Factor): 800

APRAŠYMAS

The MOON 761 has one job to perform, and it performs it with authority. This power amplifier effortlessly delivers delicate audio signals from a preamplifier to loudspeakers with absolute transparency and finesse.

Controlled Power
The MOON 761 is a stereo power amplifier designed to deliver consistent energy, even under demanding loads. Its dual-mono topology ensures full channel separation and independent power supply per channel. It outputs 200 watts into 8 ohms, 400 watts into 4 ohms, and up to 600 watts in mono mode. The MDCA amplification architecture reduces distortion without relying on global feedback, delivering a stable response and dynamic consistency at any level. A high damping factor ensures authoritative control over complex speaker loads while preserving soundstage integrity.

Architecture & Power Supply

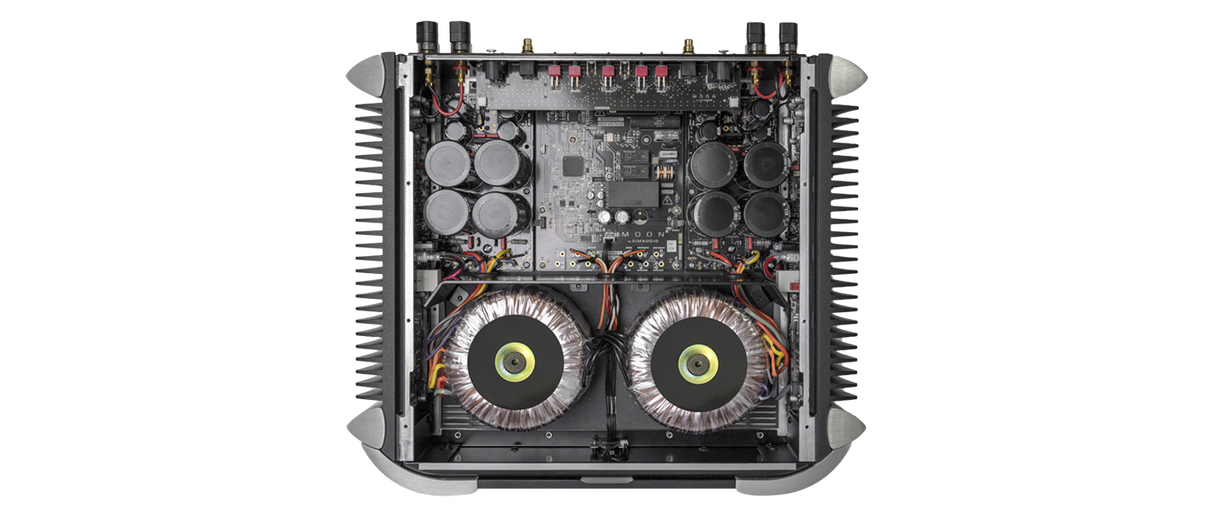

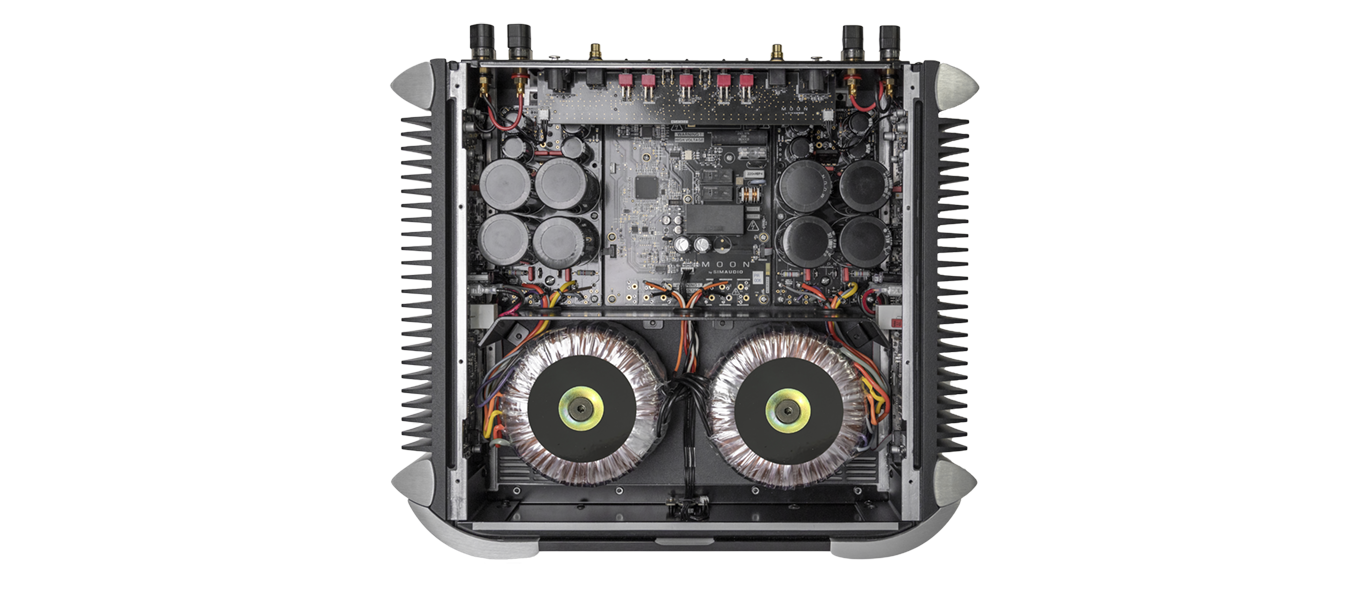

The 761 houses two custom low-noise 700 VA toroidal transformers and over 150,000 µF of power supply capacitance. This setup ensures fast, stable energy delivery during musical peaks. Side-mounted heatsinks maintain thermal stability, while the internal layout minimizes interference and preserves signal fidelity. With 31 dB gain, low output impedance, and extended bandwidth, the design prioritizes transparency and long-term consistency.

Integration & Use

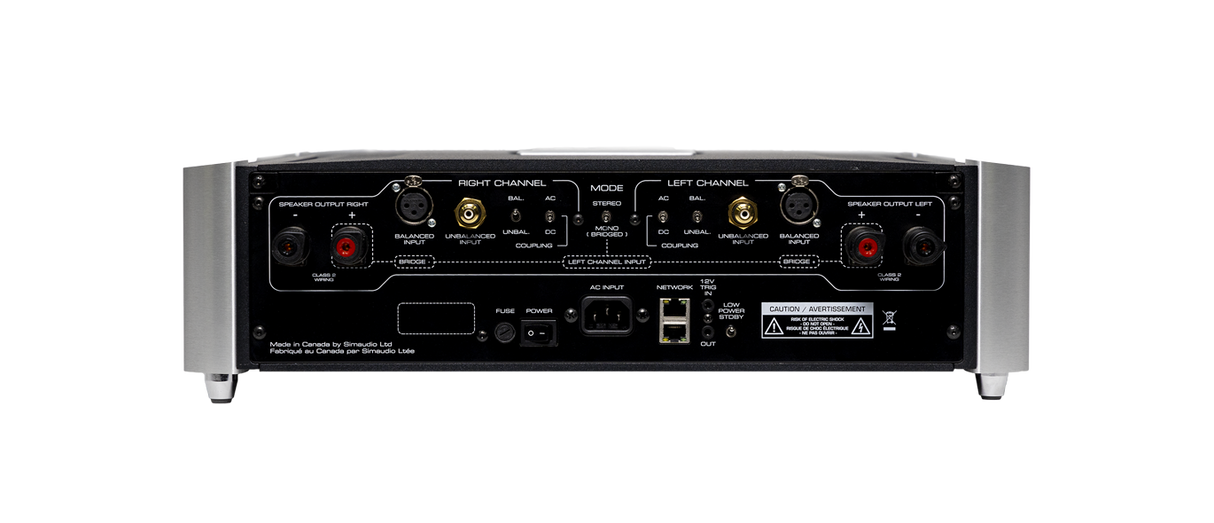

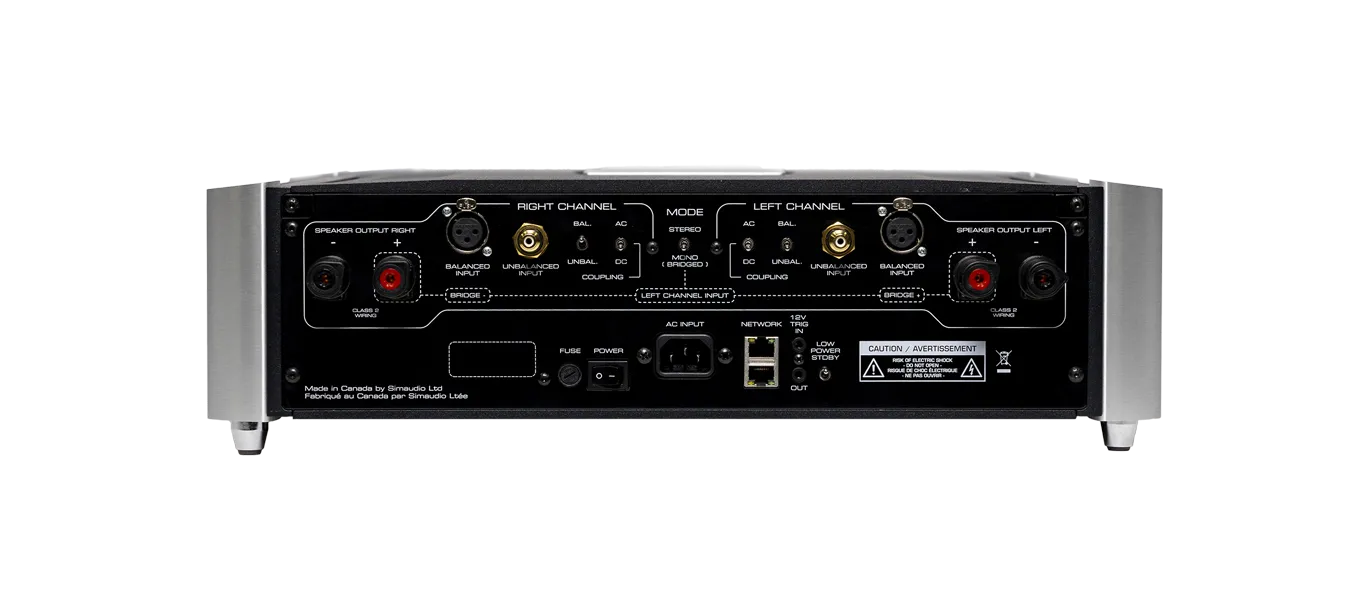

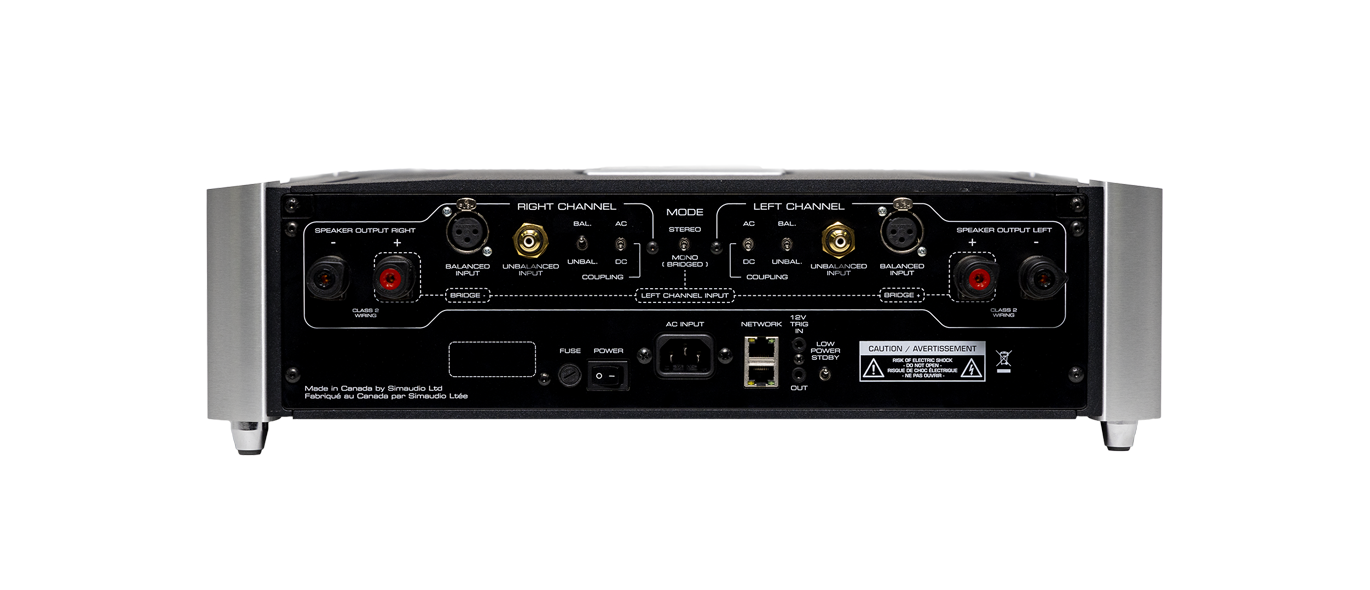

Engineered to integrate seamlessly into high-end systems, the MOON 761 provides balanced XLR and unbalanced RCA inputs, as well as a stereo/mono switch. Power consumption is reduced to 1.25 W in standby, with a full-power idle mode for instant responsiveness. Integration with MOON preamplifiers like the 791 is streamlined via MOONLink. The aluminium chassis, shielded circuits, and internal protections ensure long-term reliability for intensive daily use.

TECHNINIAI DUOMENYS

Design features
MDCA – MOON Distortion-Cancelling Amplifier
No Global Feedback Design
MOON Transistors
Dual Mono Configuration
Monaural Mode Toggle Switch
MOONLink
Multicolour LED Indicator
Specifications
Output Power (Stereo 8 Ω)
200 W
Output Power (Stereo 4 Ω)
400 W
Output Power (Mono 8 Ω)
600 W
Input Sensitivity
1.1 V
Input Impedance
47 kΩ
Gain
31 dB
Frequency Response
2 Hz – 100 kHz (+0 dB / –3 dB)
Crosstalk
–116 dB
Signal-to-Noise Ratio
117 dB
Total Harmonic Distortion + Noise (@ 1 W)
0.002%
Total Harmonic Distortion + Noise (@ 200 W)
0.001%
Intermodulation Distortion
0.002%
Damping Factor
800
Power Consumption (Idle)
55 W
Power Consumption (Full Power Standby)
50 W
Power Consumption (Low Power Standby)
1.25 W
Shipping Weight
79 lbs / 36 kg
Dimensions (width x height x depth)
18.95 x 5.53 x 17.53 in
48.1 x 14 x 44.5 cm

DOKUMENTAI

Vartotojo vadovas (EN)
