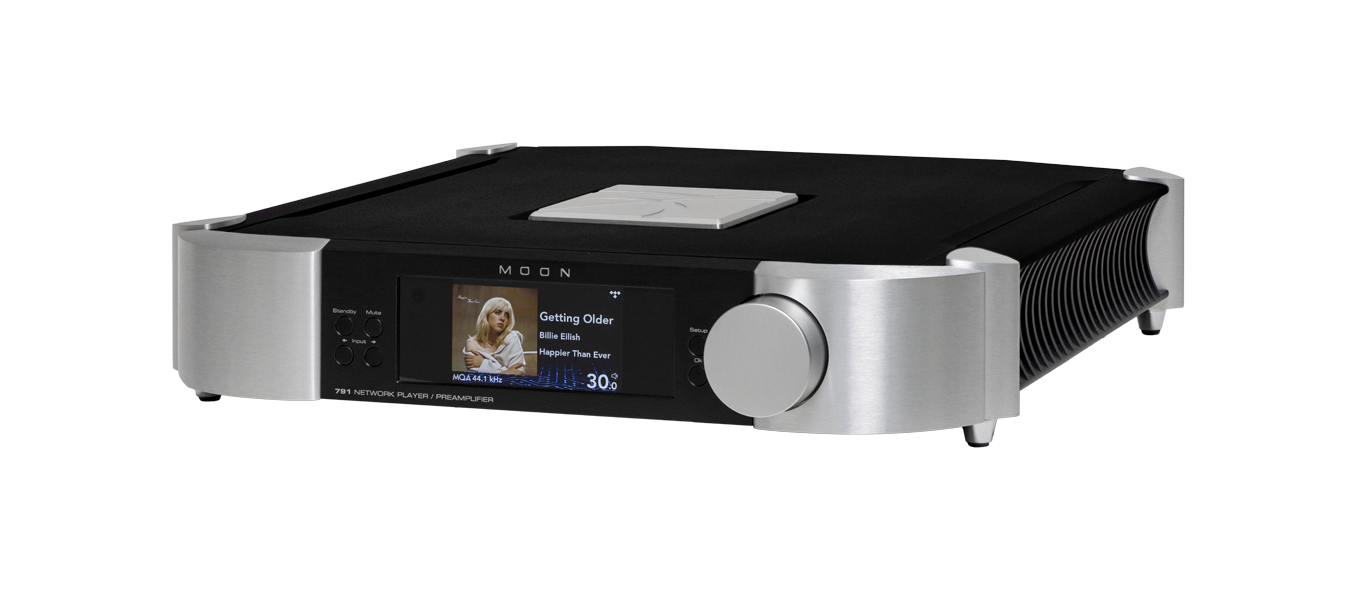

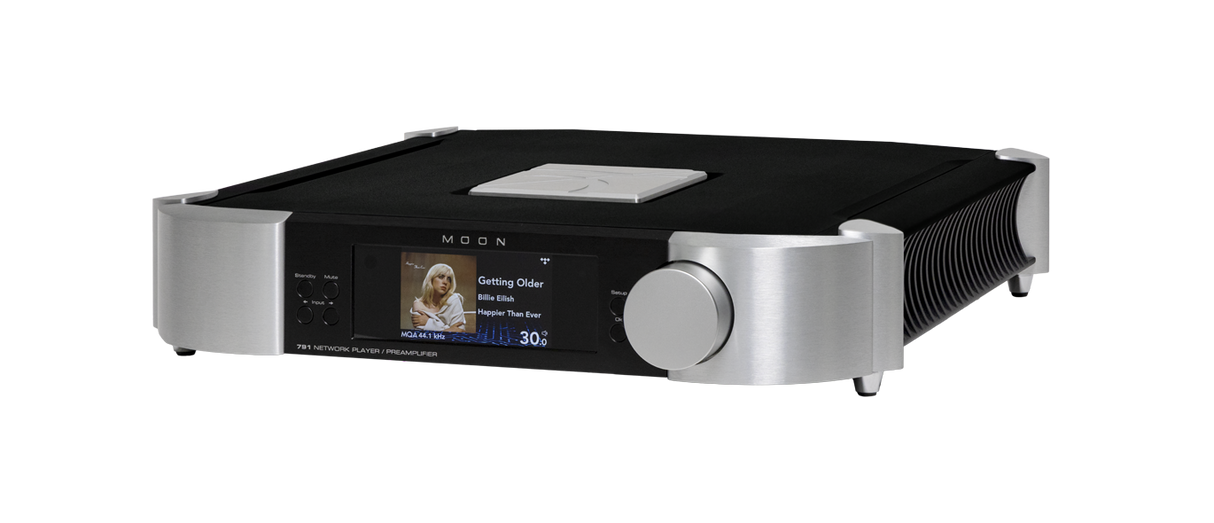

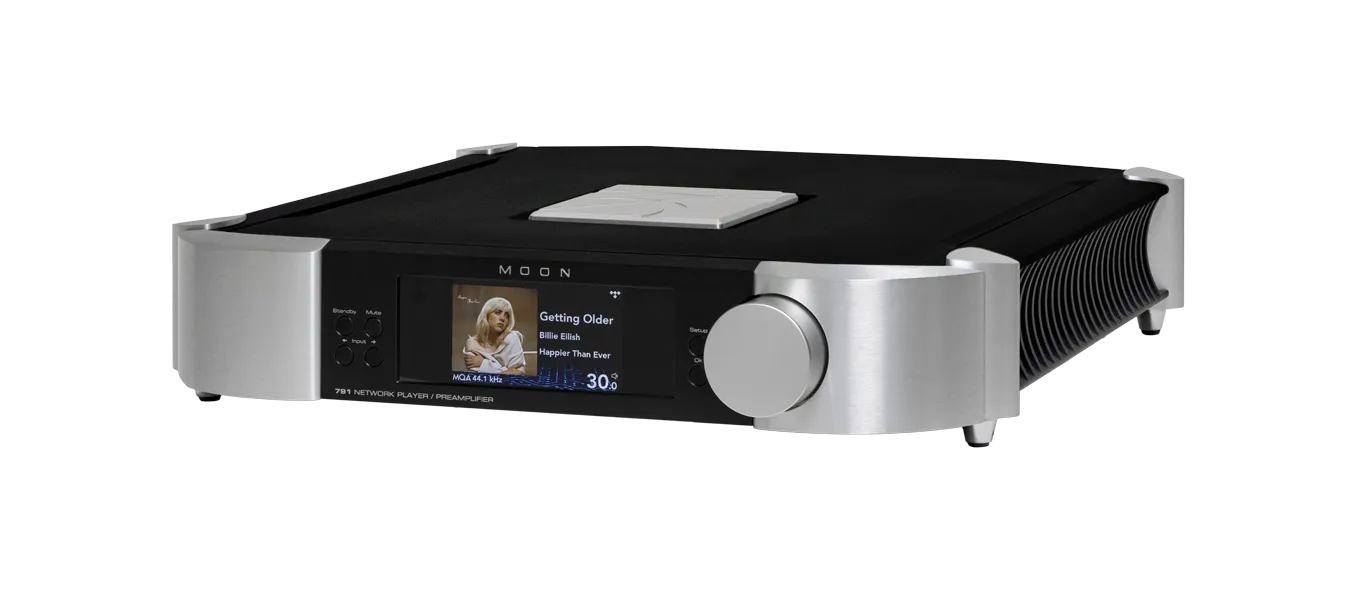

MOON 791, tinklo grotuvas

INFORMACIJA

MOON 791 - tai pagrindinis garso sistemos įrenginys, kuriame sujungtas priešstiprintuvas, skaitmeninio garso keitimas ir muzikos atkūrimas iš tinklo. Jis turi atskiras kanalo grandines, labai tikslų garsumo valdymą, platų dažnių diapazoną ir ypač mažą triukšmo lygį. Įrenginyje yra daug jungčių, aukštos kokybės įėjimas plokštelėms ir aiškus spalvotas ekranas.

Dažnių diapazonas: 2 Hz – 200 kHz (+0 dB / –3 dB)
Triukšmo lygio santykis: 120 dB
Dinaminis diapazonas: 125 dB
Iškraipymas (THD+N): 0,0004 %
Kanalų atskyrimas (Crosstalk): –125 dB

APRAŠYMAS

The MOON 791 is much more than a preamp. It combines a high-end phono stage and streaming DAC in a state-of-the-art analog preamplifier.

Balance and Mastery

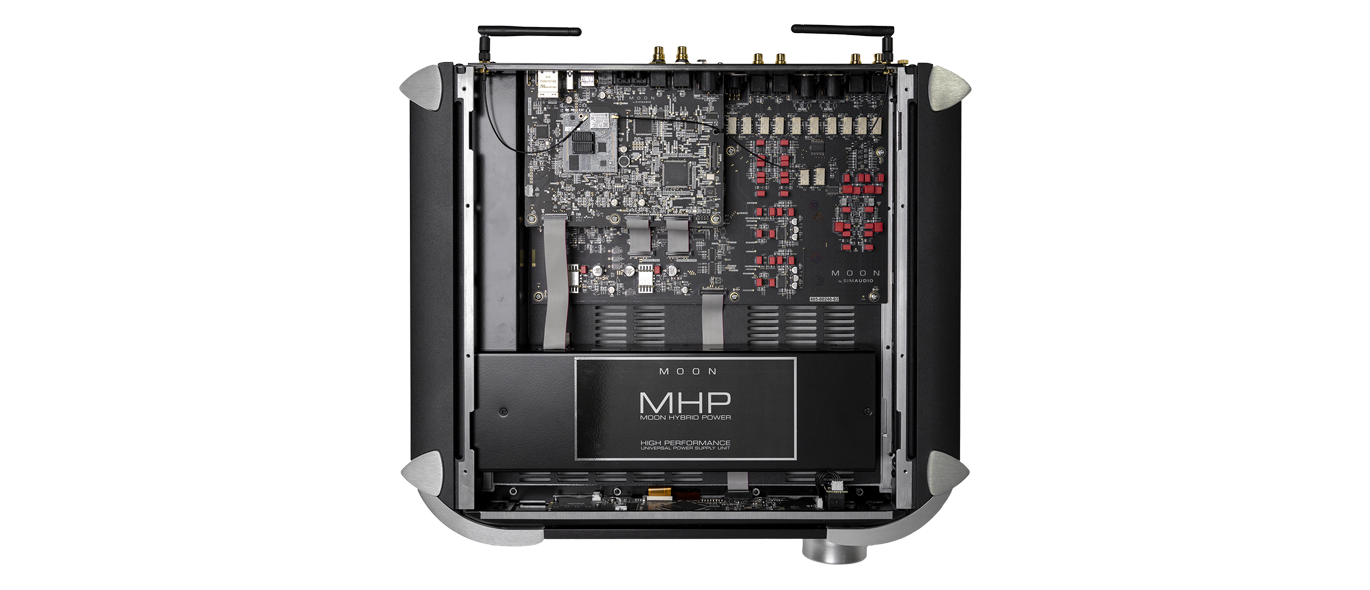

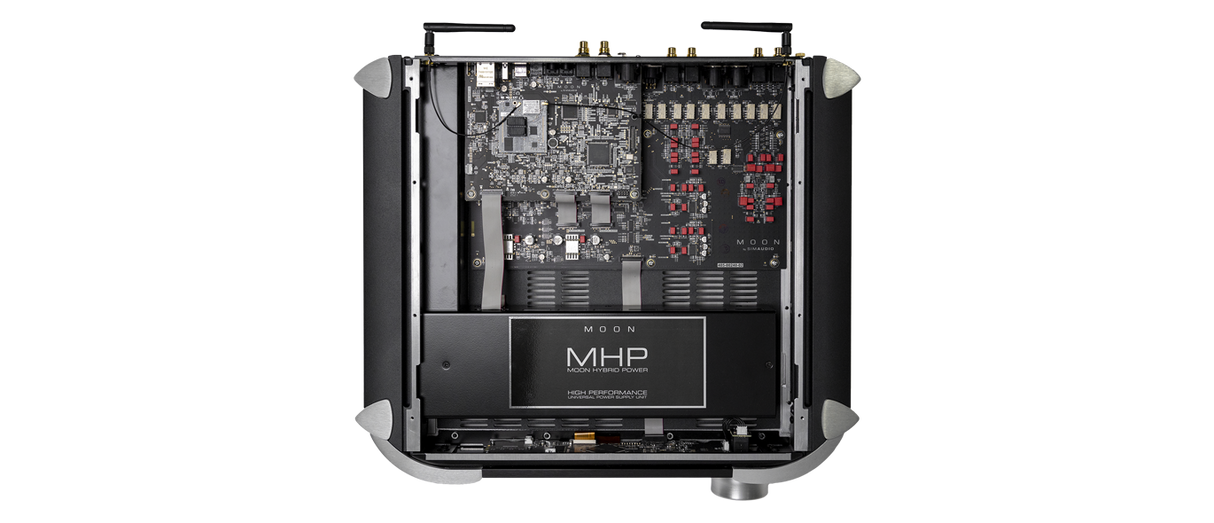

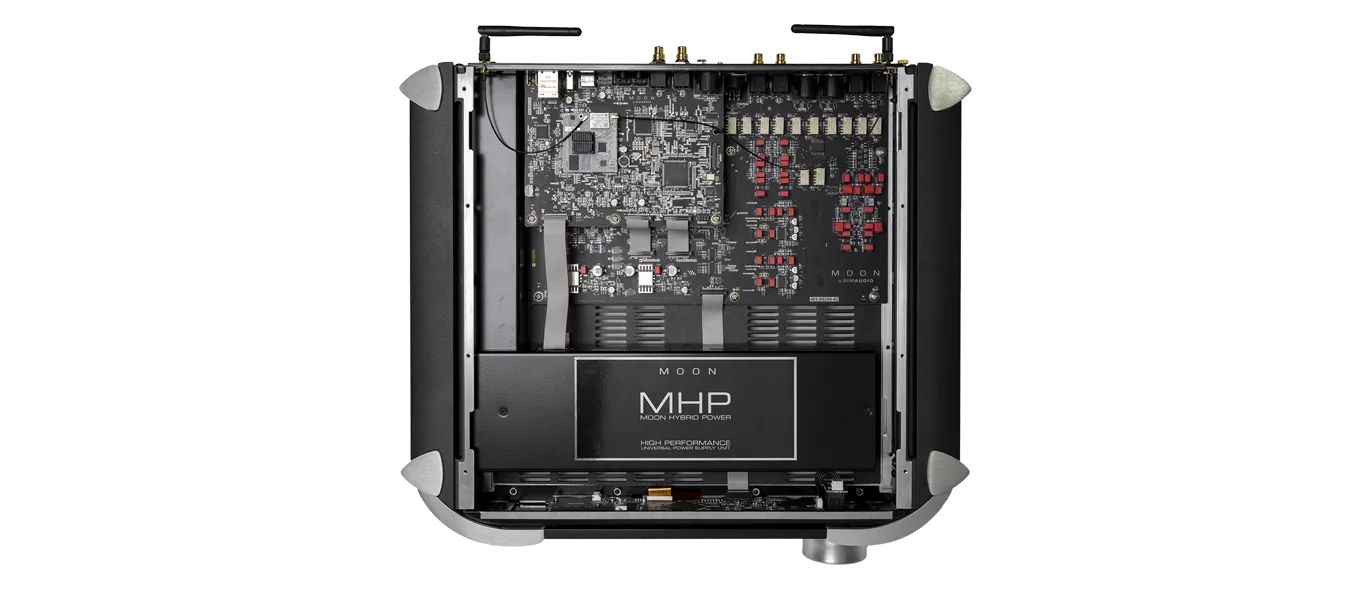

The MOON 791 combines a high-grade analog preamplifier, a full-featured DAC, and a MiND 2-based network player. It serves as the heart of a system for listeners who want total control without altering the signal. The M-VOL3 analog volume control ensures constant resolution, free from noise or imbalance, even at low levels. Dual-mono configuration and isolated power supplies maintain strict separation between stages, preserving a stable and transparent soundstage.

Processing and Transparency
The MDE2 digital module handles PCM up to 384 kHz and DSD up to 22.6 MHz (DSD512), with transparent, uncolored signal processing. The MiND 2 platform enables seamless playback from online services and local libraries, with support for Roon Ready, AirPlay, Spotify Connect, and Bluetooth aptX. The M-VOL3 analog volume control ensures precise level management at both high and low output. Daily interaction is handled through the BRM-1 remote, designed to offer direct access to essentials — no distraction, no delay. All circuits are physically and electrically isolated to preserve long-term clarity and stability.

Central Connectivity

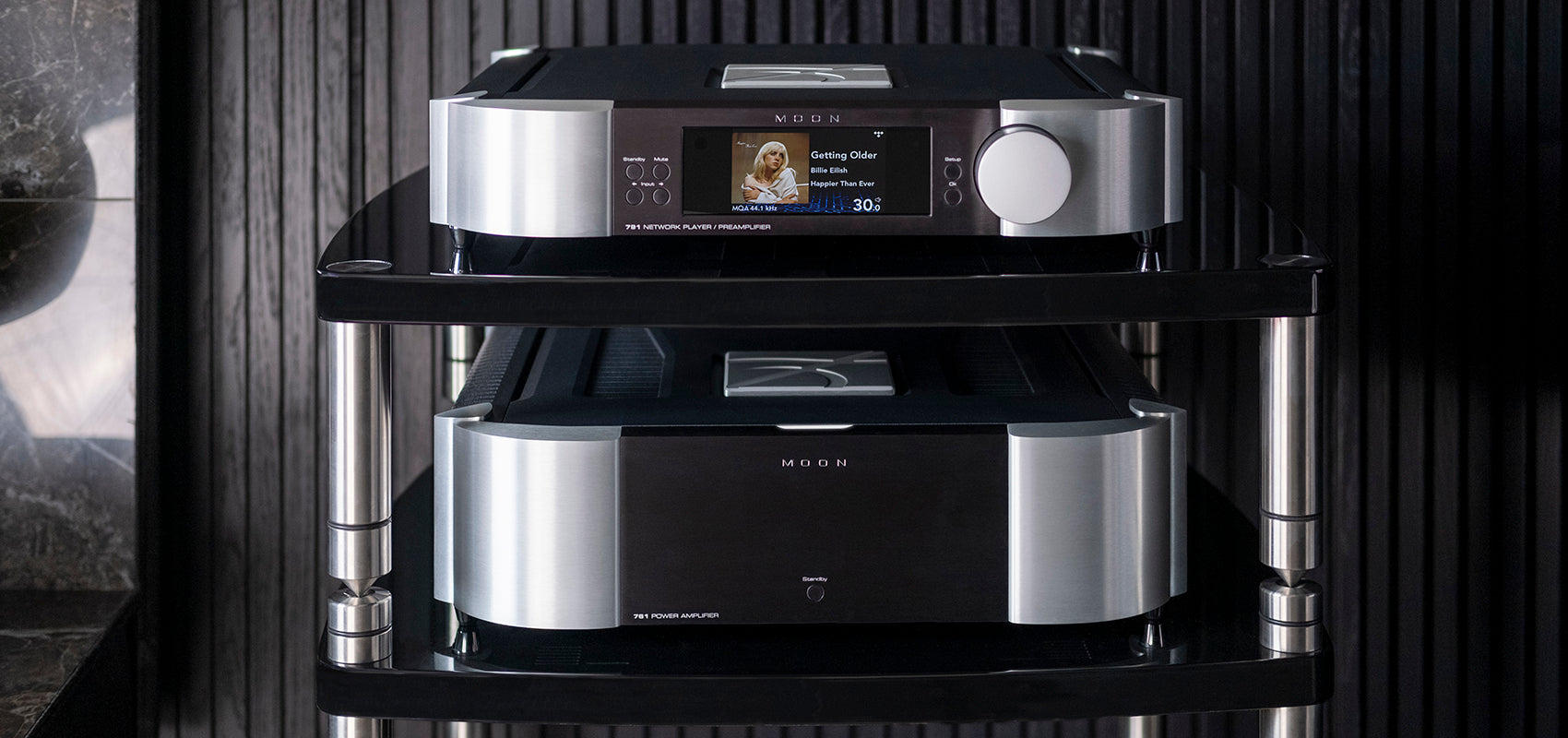

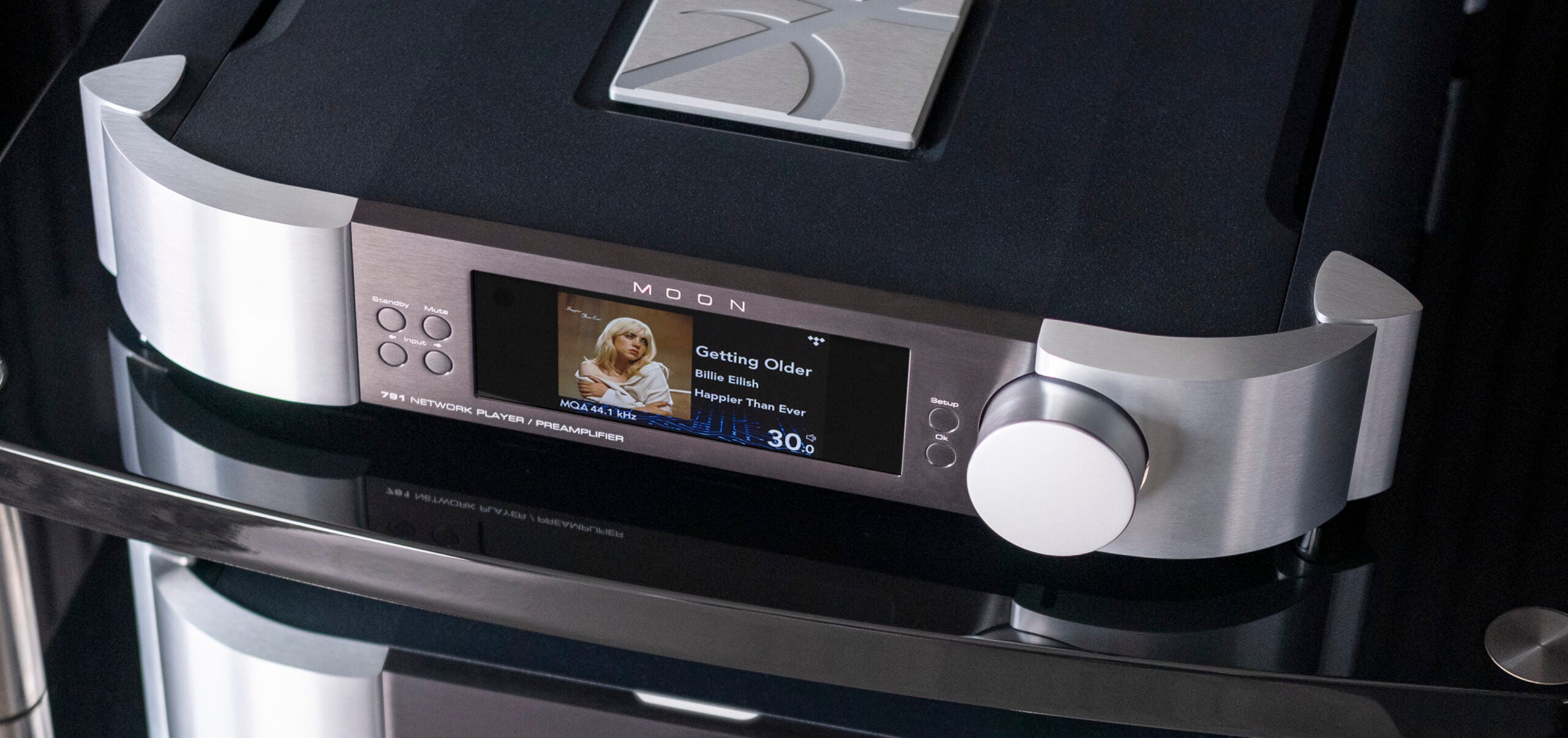

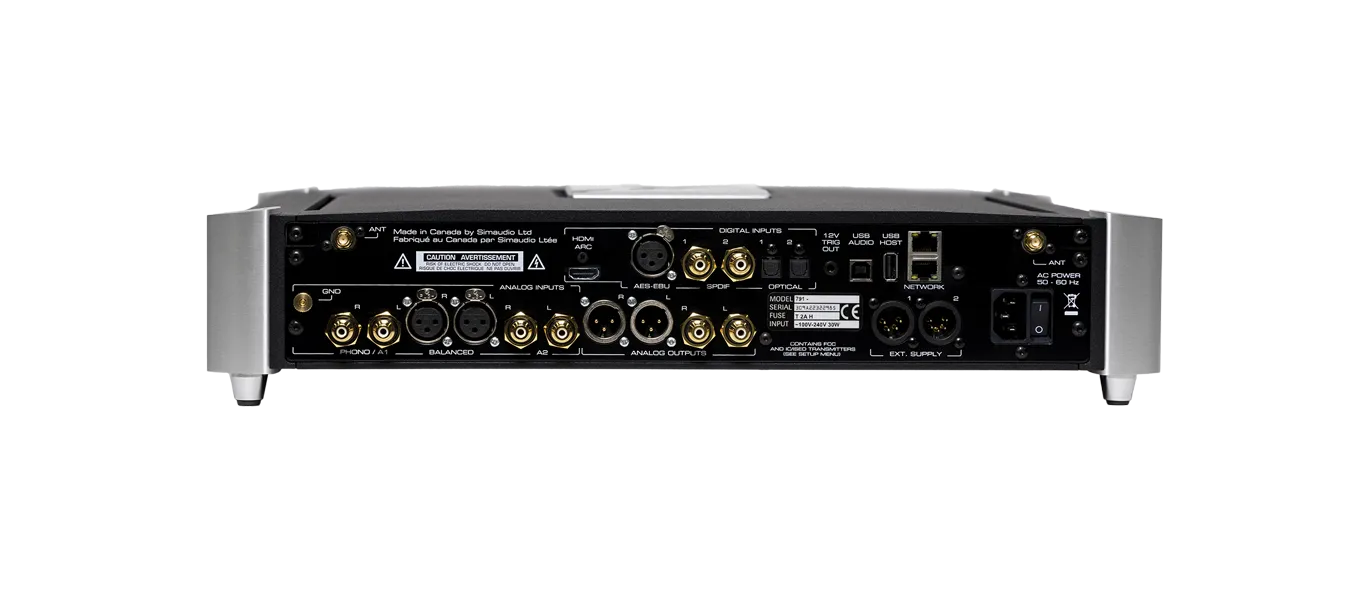

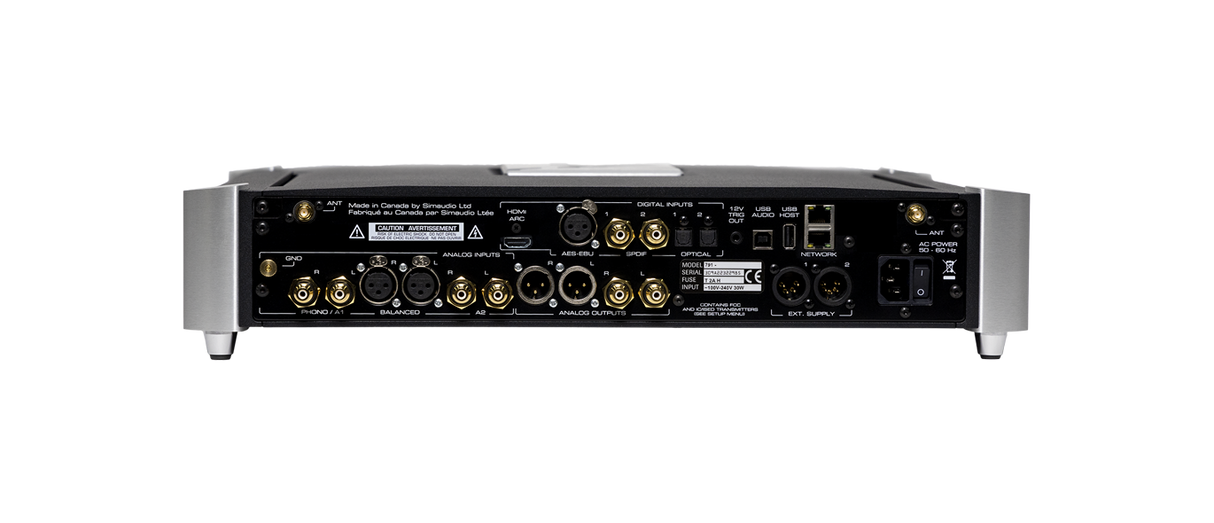

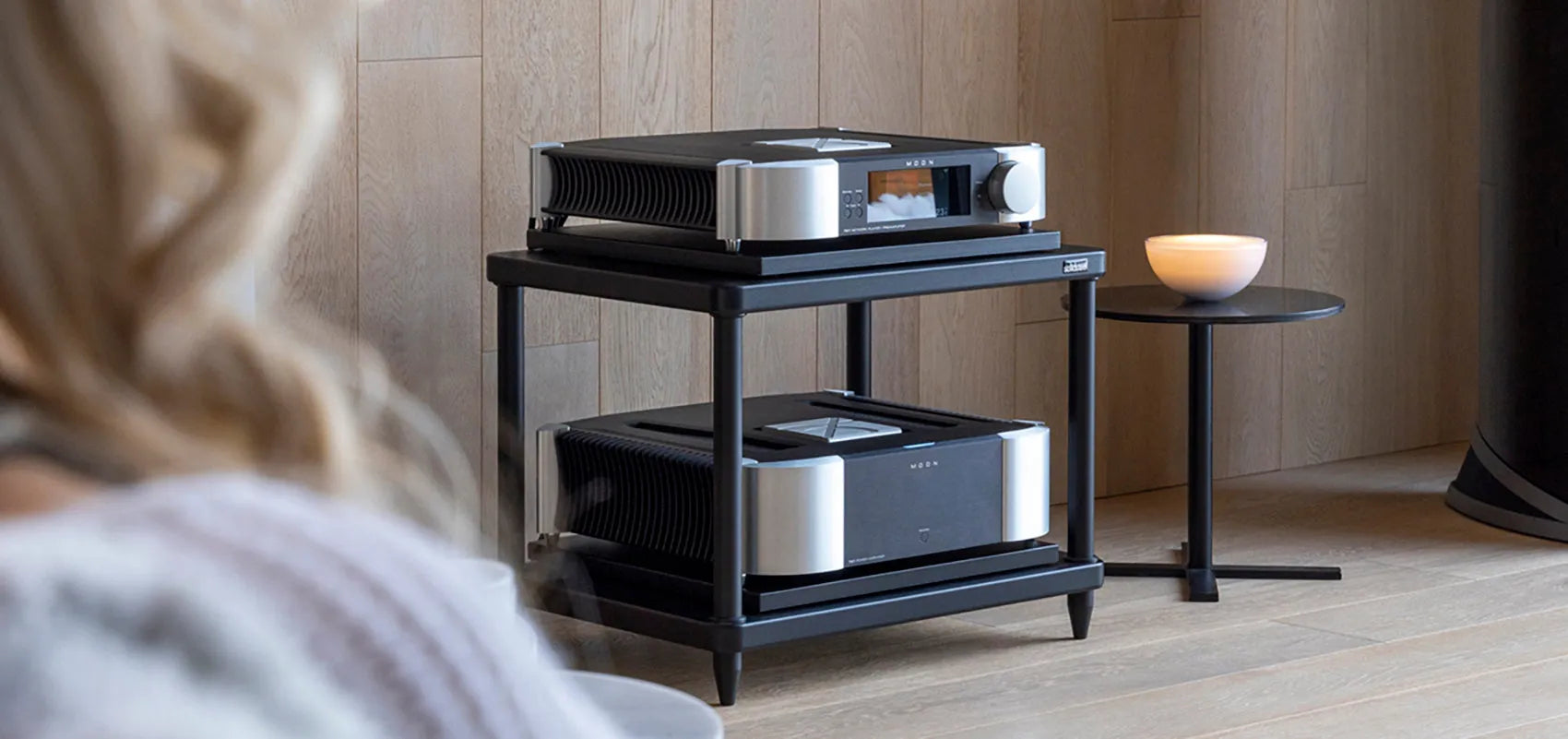

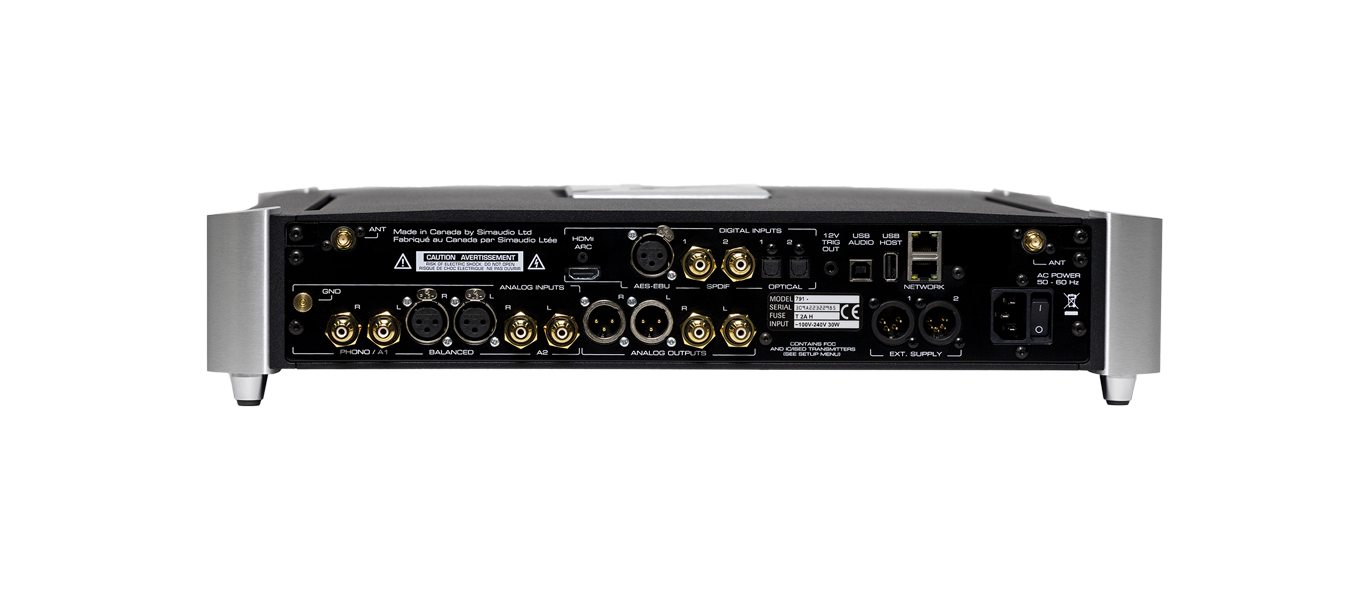

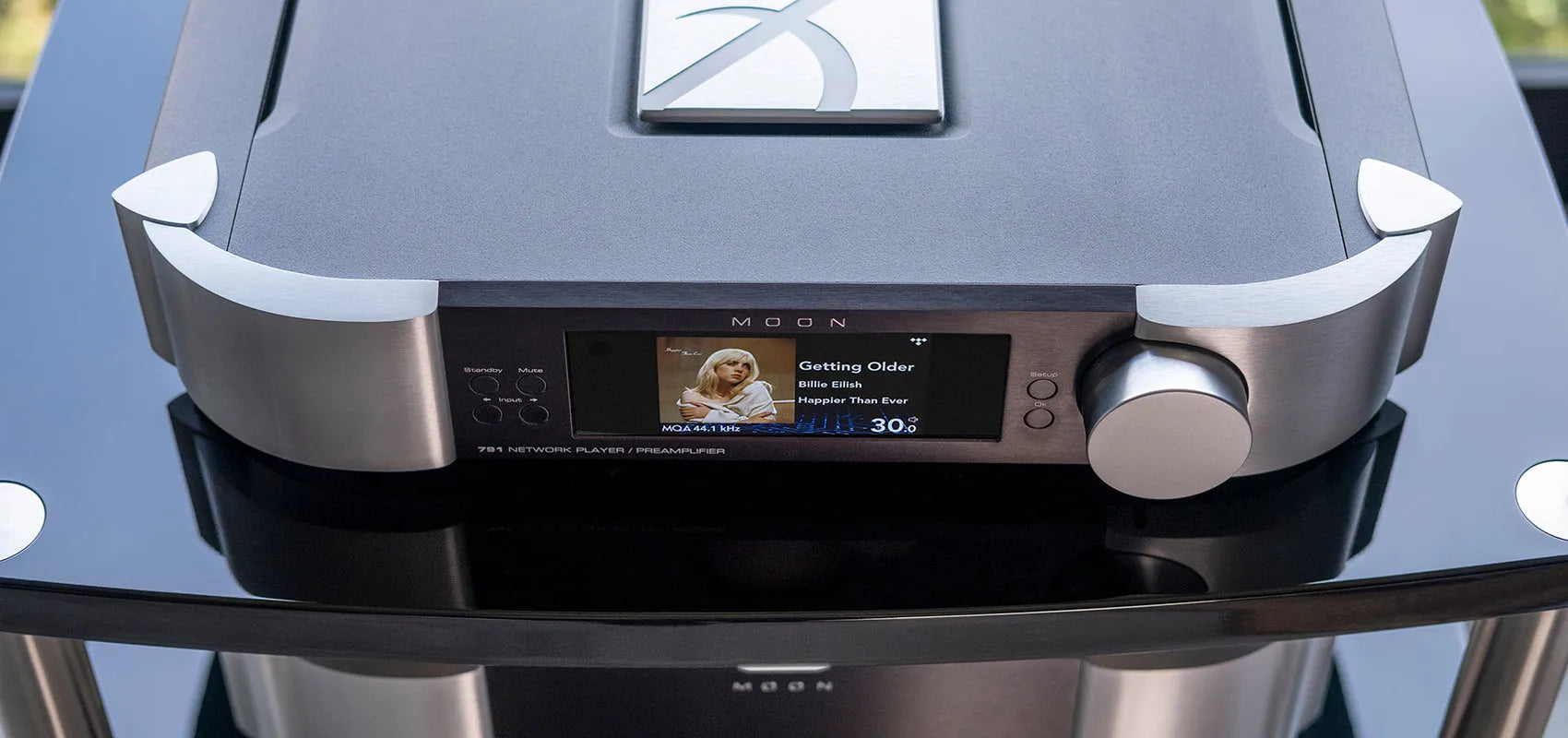

The MOON 791 includes five analog inputs (including two XLR), six digital inputs (USB audio, HDMI ARC, AES/EBU, optical, coaxial), and two analog outputs (RCA and XLR). Its 4.3" color display provides clear feedback on source, format, and album art. It integrates naturally with the MOON 761 via MOONLink for unified system operation. Every connection and control respects a consistent, understated logic — whether in an all-MOON setup or a hybrid installation.

TECHNINIAI DUOMENYS

Design features
6 Digital Inputs
1 HDMI with ARC
3 Analog Inputs
MM/MC Phono Stage
MiND2 Module
MDE-2 DAC Technology
M-VOL3 Volume Control
Fully-Balanced Configuration
4.3” Graphic Colour Display
BRM-1 Intelligent Remote Control
Specifications
Analog Input Impedance
22 kΩ
Maximum Gain (Line Level)
13.5 dB
Phono Input Gain
40 dB / 54 dB / 60 dB / 66 dB
Phono Input Capacitance
0 / 100 pF / 470 pF
Phono Input Resistance
10 Ω / 100 Ω / 1 kΩ / 47 kΩ
Output Impedance
50 Ω
Crosstalk
–125 dB
Frequency Response
2 Hz – 200 kHz (+0 dB / –3 dB)
Signal-to-Noise Ratio (Analog Preamplifier)
120 dB
Dynamic Range (Digital Input, Fixed Output)
125 dB
Total Harmonic Distortion + Noise
0.0004%
Intermodulation Distortion
0.0003%
Power Consumption (Idle)
25 W
Power Consumption (Full Power Standby)
22 W
Power Consumption (Low Power Standby)
5 W
Shipping Weight
41 lbs / 19 kg
Dimensions (width x height x depth)
18.95 x 4.03 x 17.66 in
48.1 x 10.2 x 44.9 cm

DOKUMENTAI

Vartotojo vadovas (EN)
