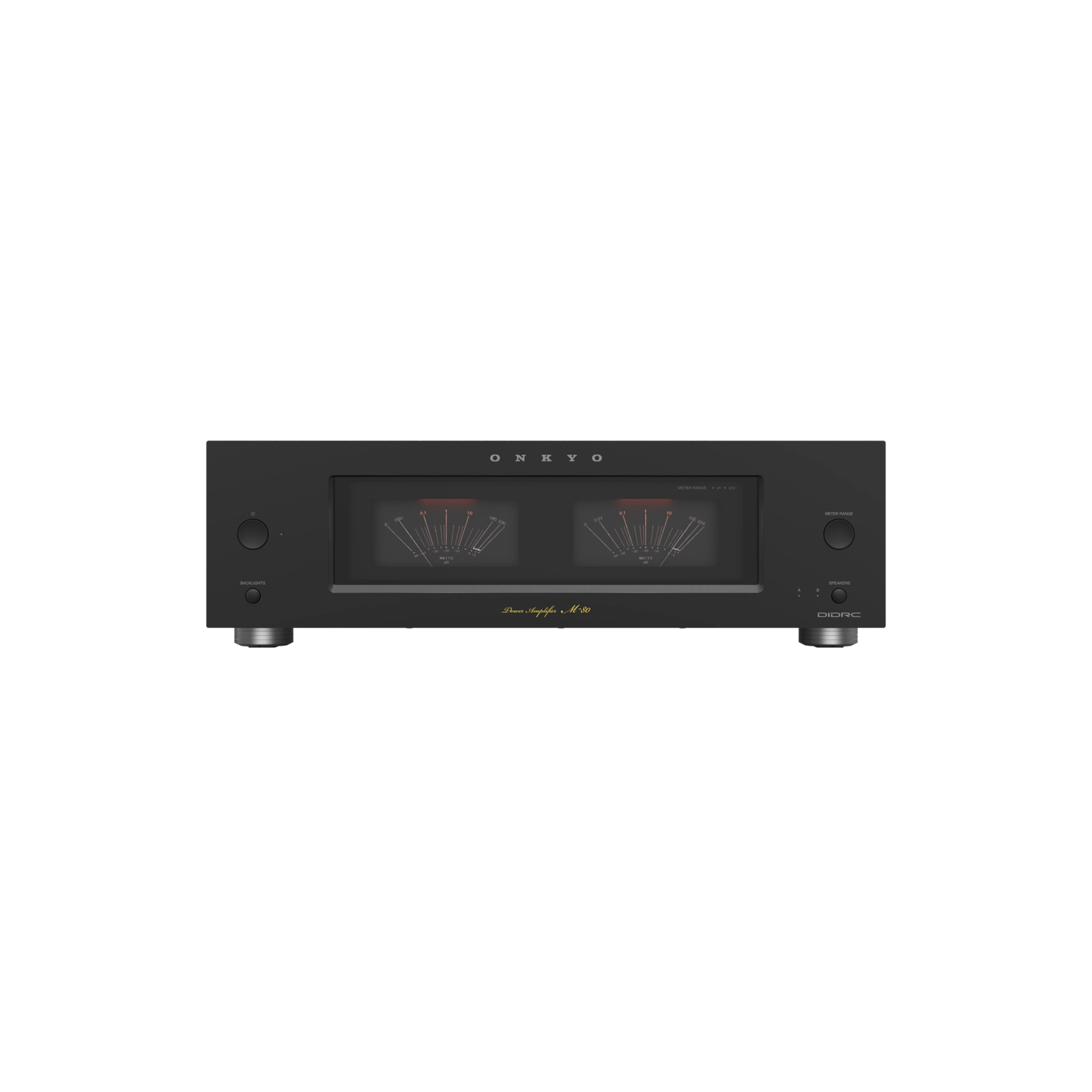

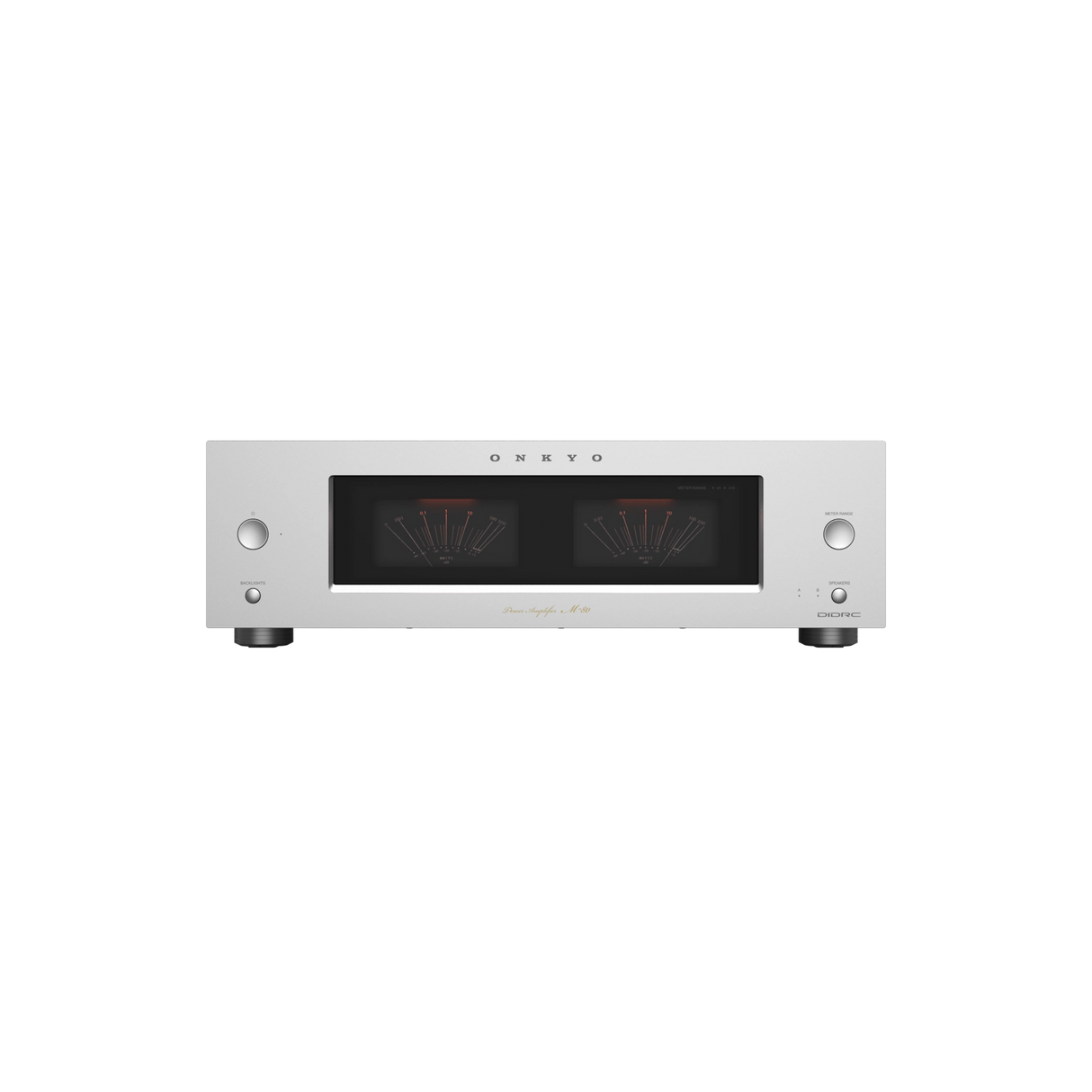

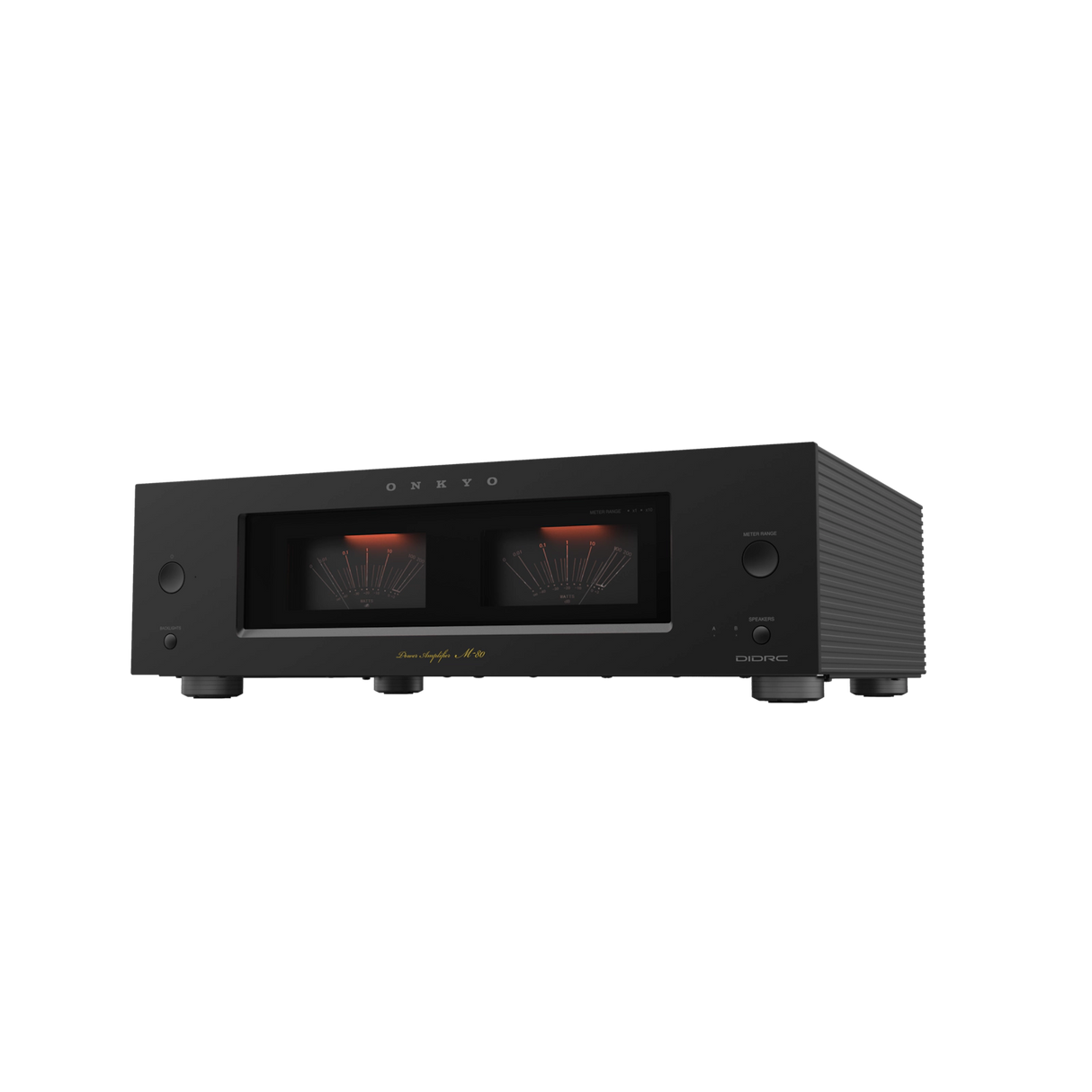

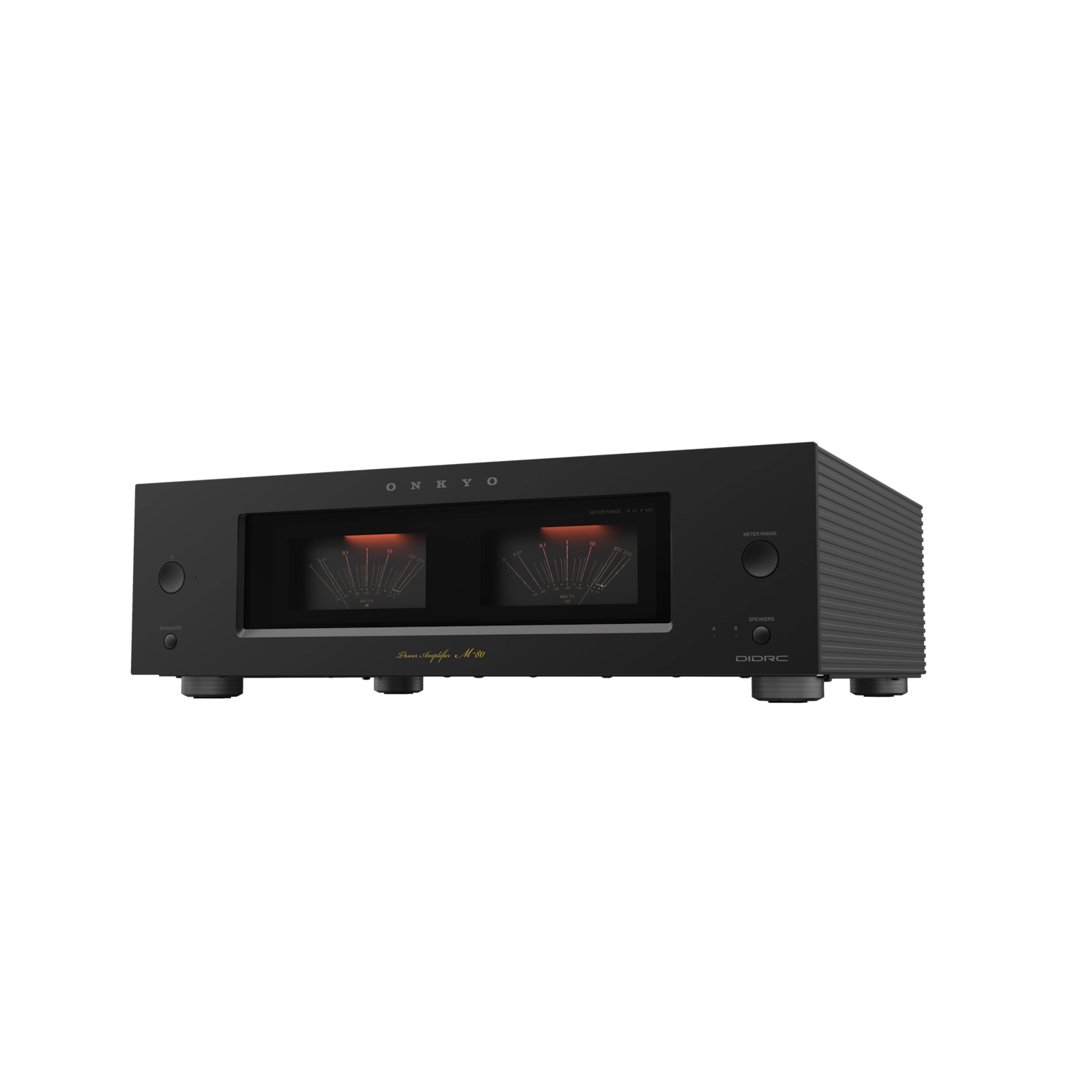

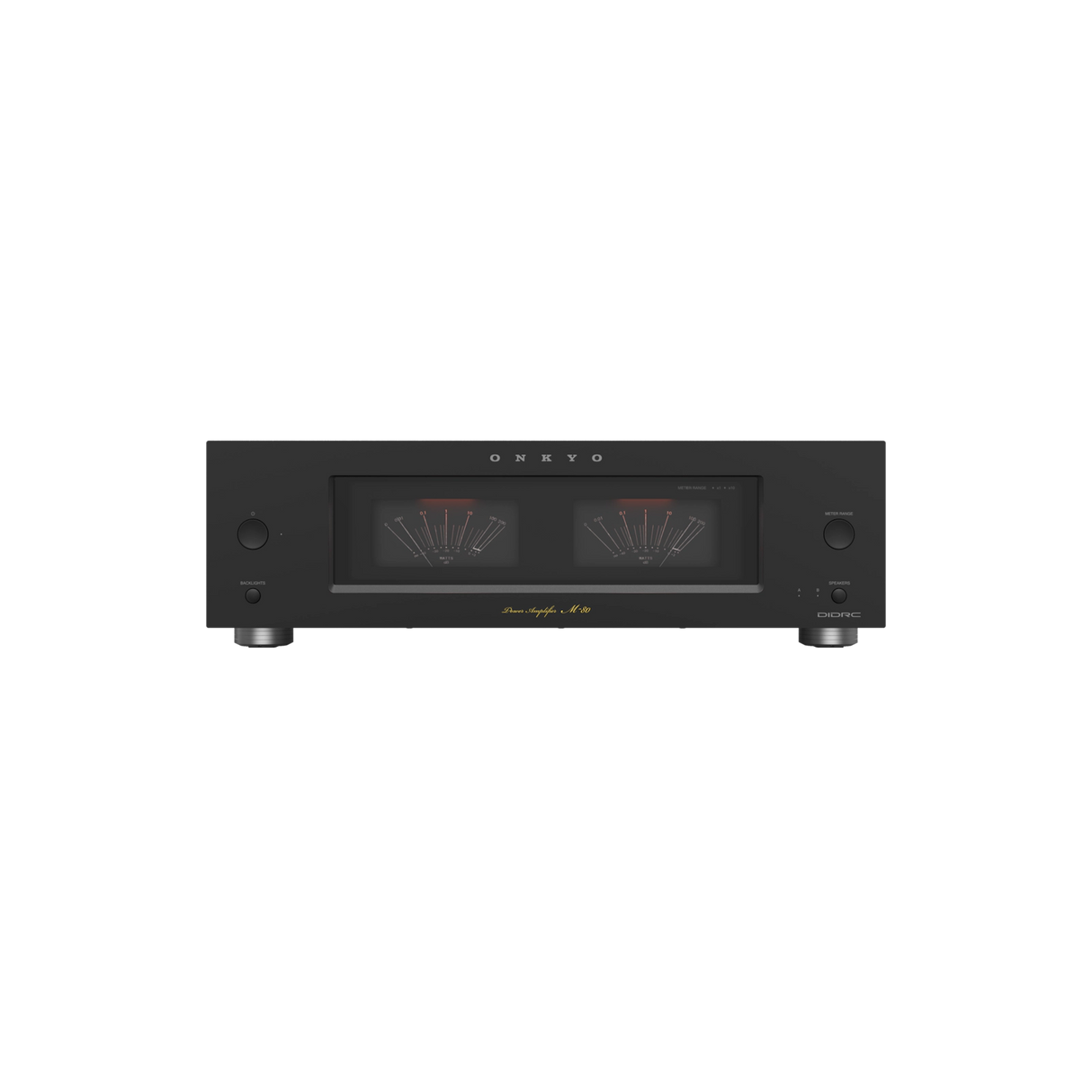

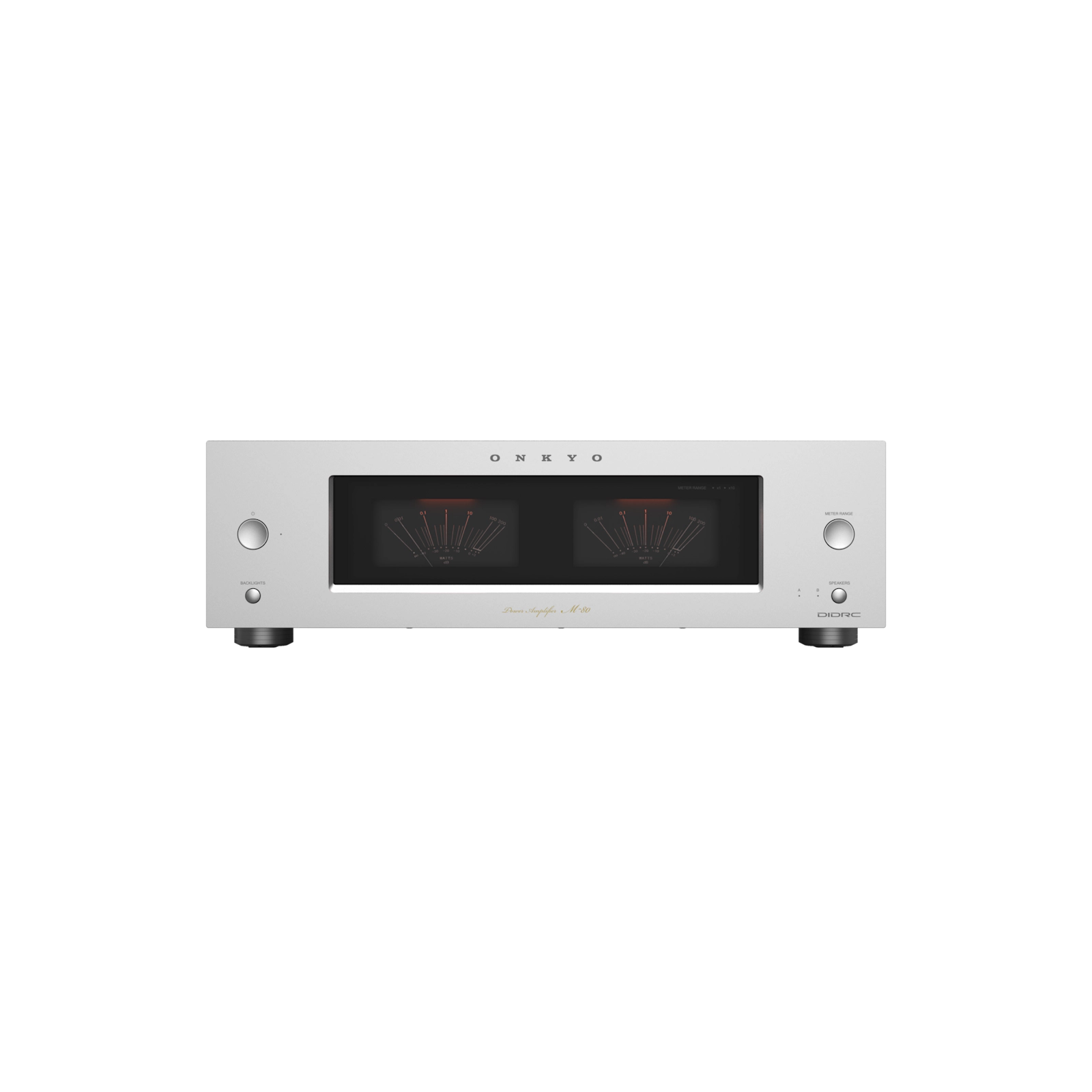

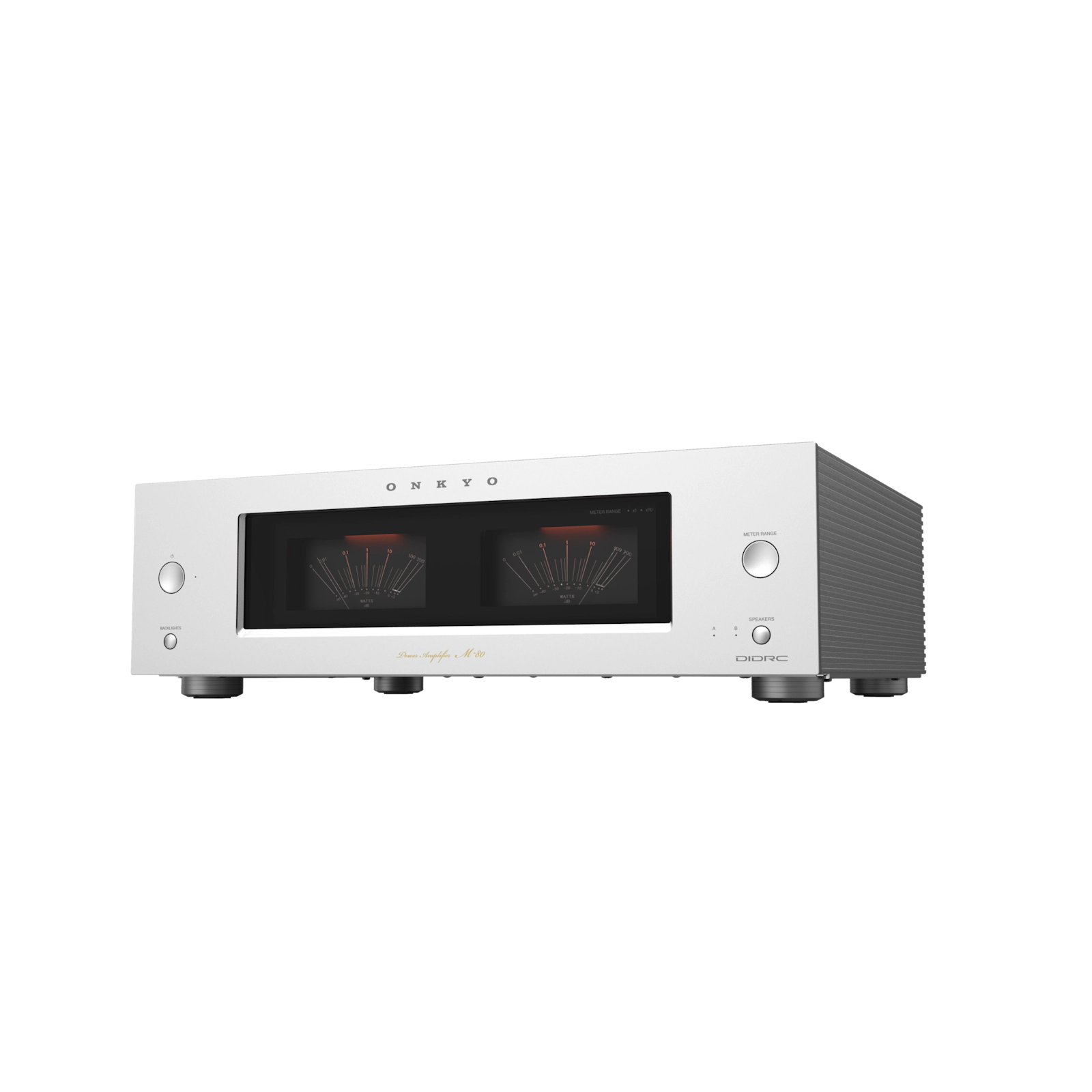

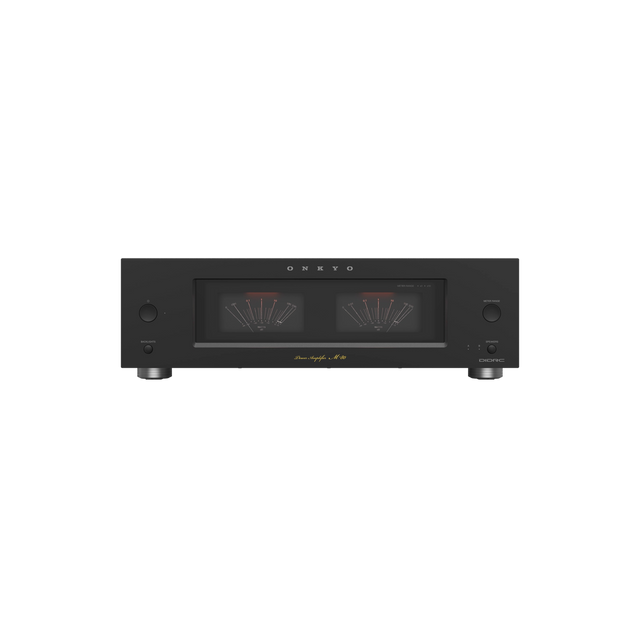

Onkyo M-80, stereo galios stiprintuvas, 150W/200W

INFORMACIJA

Onkyo M-80 - tai aukštos klasės dvikanalis galios stiprintuvas, sukurtas perteikti maksimalų muzikos dinamiškumą, skaidrumą ir galią. Naudojama trijų etapų Inverted Darlington stiprinimo architektūra leidžia tiekti itin didelę srovę bei išlaikyti itin žemą išėjimo varžą, todėl lengvai valdo net didelias, žemą jautrumą turinčias garso kalonėles.

Išėjimo galia: 150 W (8 Ω, 1 kHz, THD 0.7%, 2ch); 200 W (4 Ω, 1 kHz, THD 0.7%, 2ch)
Stiprintuvo tipas: Class AB
Kanalų skaičius: 2
Dažnių diapazonas: 5 Hz – 100 kHz (+1 / –3 dB)
Kolonėlių varža: 4–16 Ω

APRAŠYMAS

With a three-stage inverted Darlington amplifier and great care taken in damping vibration, the Onkyo M-80 power amplifier drives large speakers powerfully and delivers dynamic full-range sound that will captivate and move you.

Powering the music that moves you
The Onkyo M-80 Power Amplifier uses a three-stage Inverted Darlington Amplifier. This three-stage Inverted Darlington Amplifier has a very low output impedance and powerfully drives speakers with a large current. Additionally, by keeping NFB (negative feedback) low, it’s not affected by extra noise from the speaker, offering a powerful yet highly resolving and informative sound. The M-80’s output stage transistors are in parallel configuration, providing excellent instantaneous current supply capability, further enhancing the rise of sound and the sense of power. The driver stage of the M-80 amplifier uses DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) which reduces noise in the ultra-high frequency band with DIDRC’s High Slew Rate Design and helps produce the natural sound of an analog record.

Cutting-edge componentry, captivating playback
The Onkyo M-80 Power Amplifier features custom high current power supply to provide, dynamic full-range sound, and an extrusion aluminum heat sink that suppresses vibration. The addition of high-quality 10000uF capacitors custom-made exclusively for Onkyo, Hi-Fi grade terminals (both speaker output and audio input terminals), copper bus bars, and a robust vibration-proof front panel ensure powerful, world-class playback.

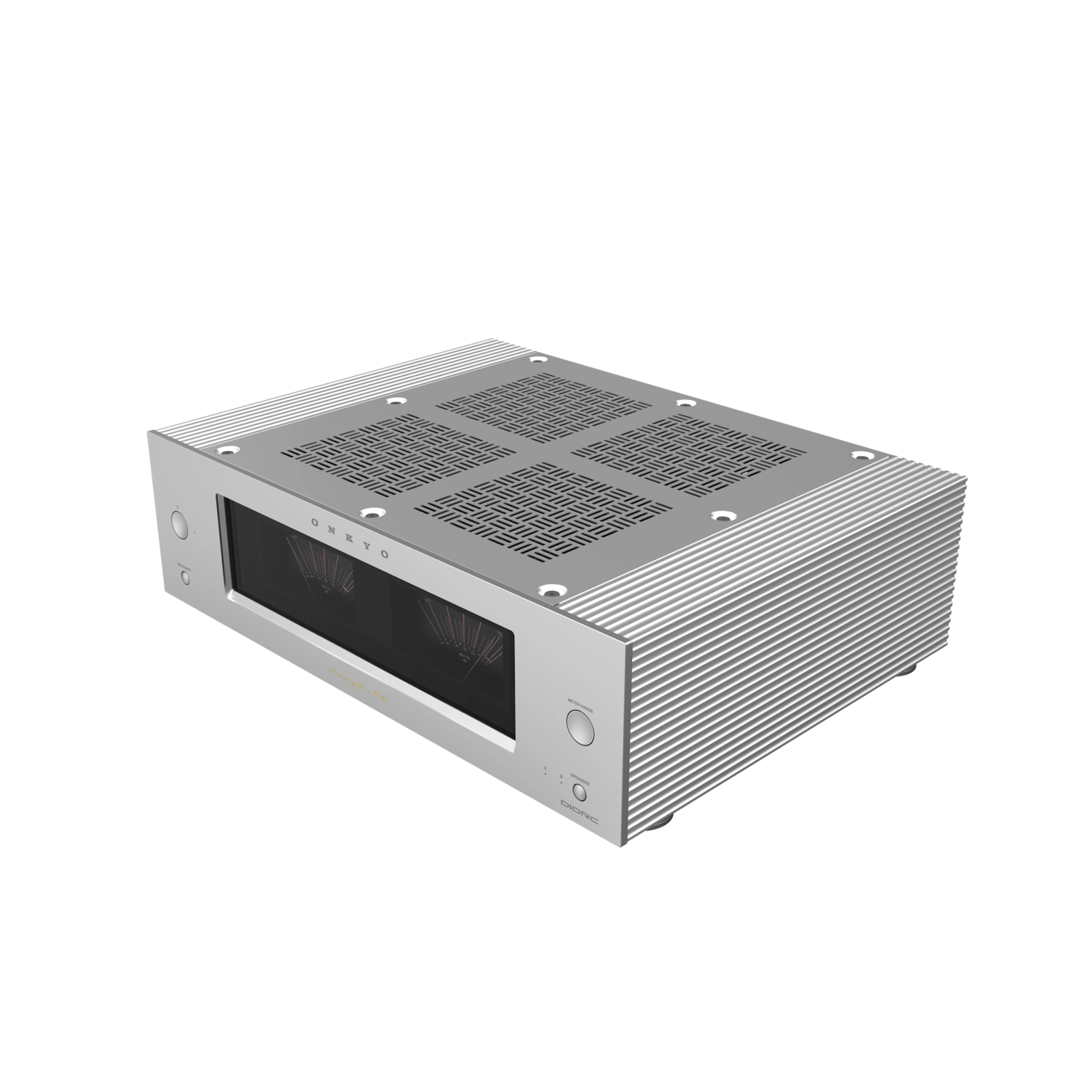

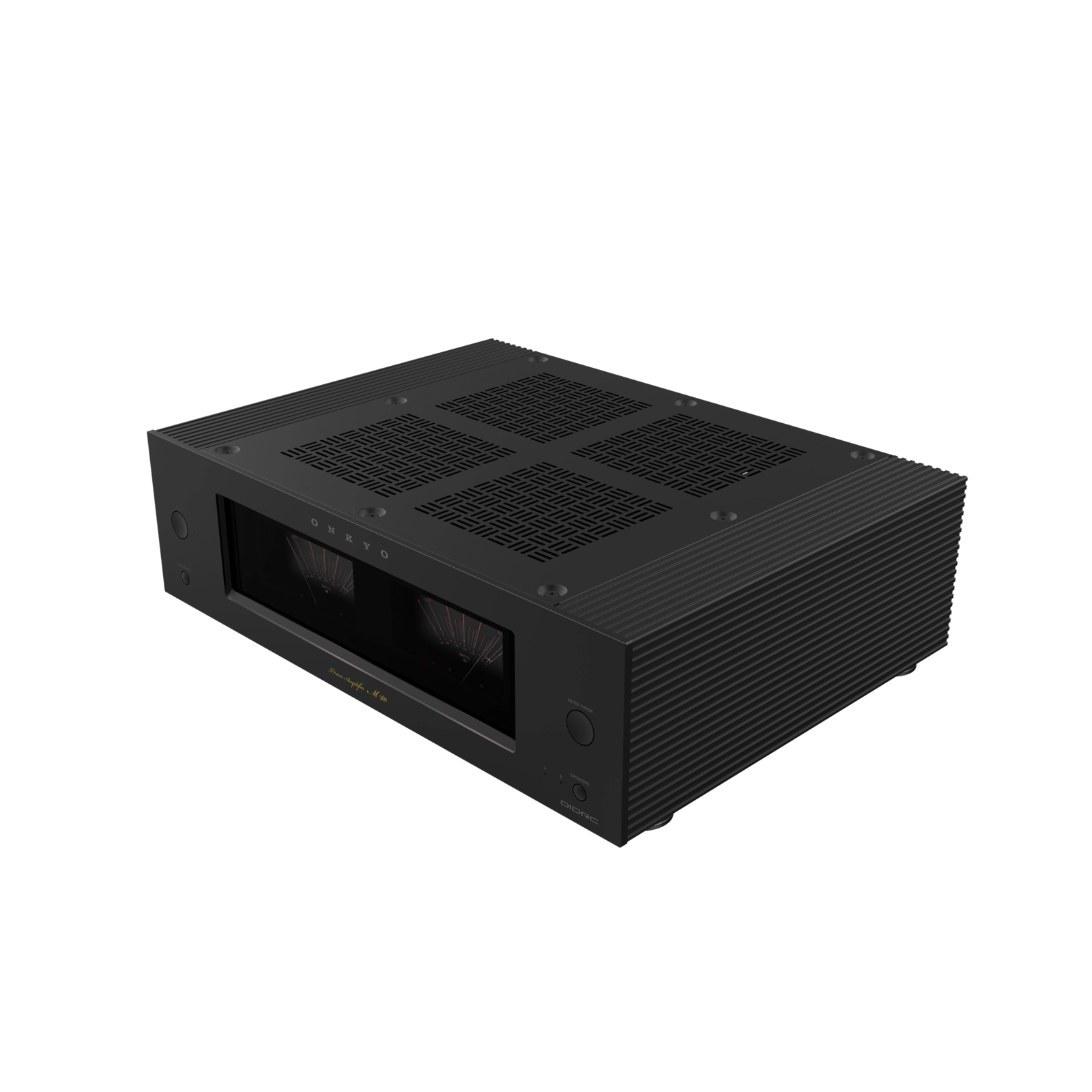

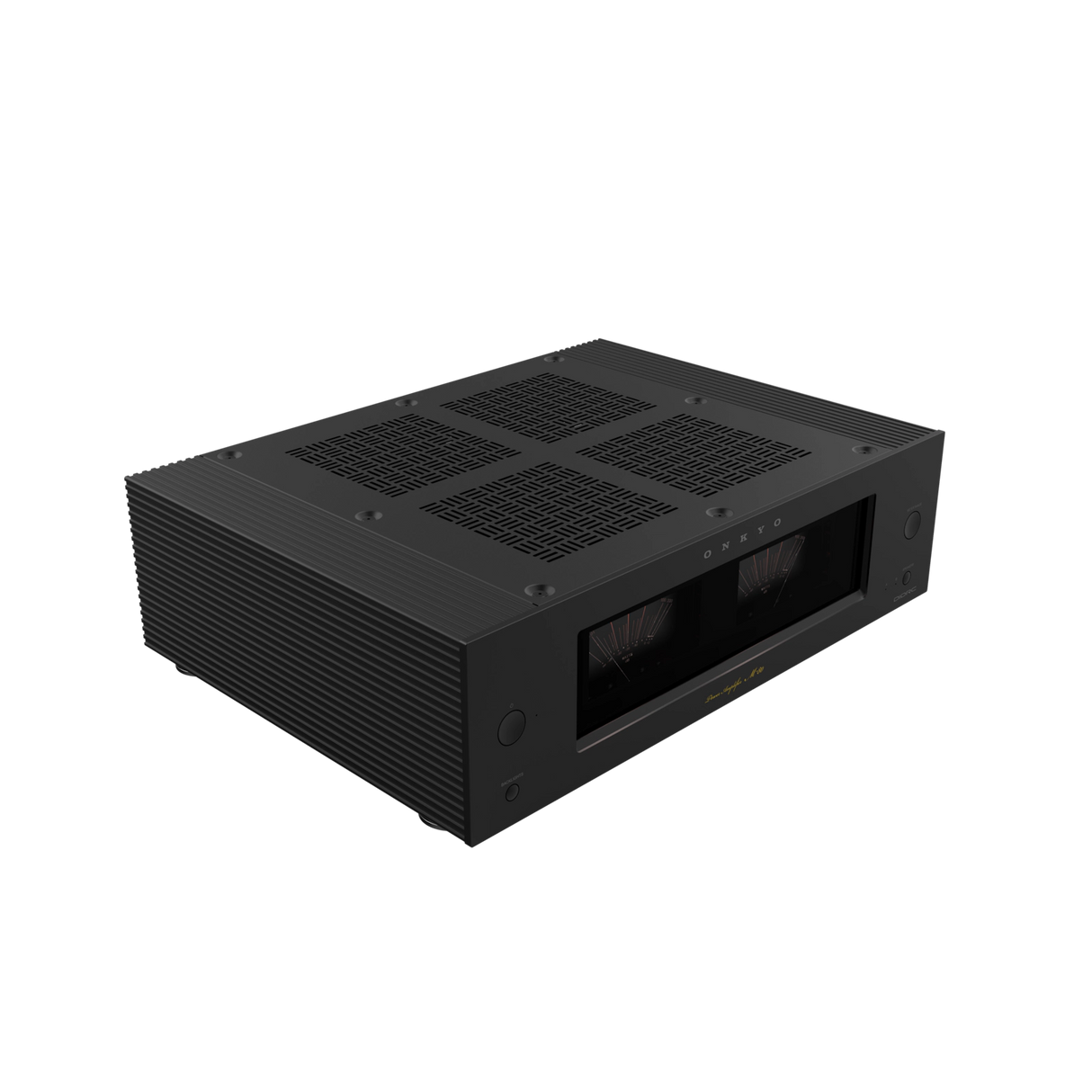

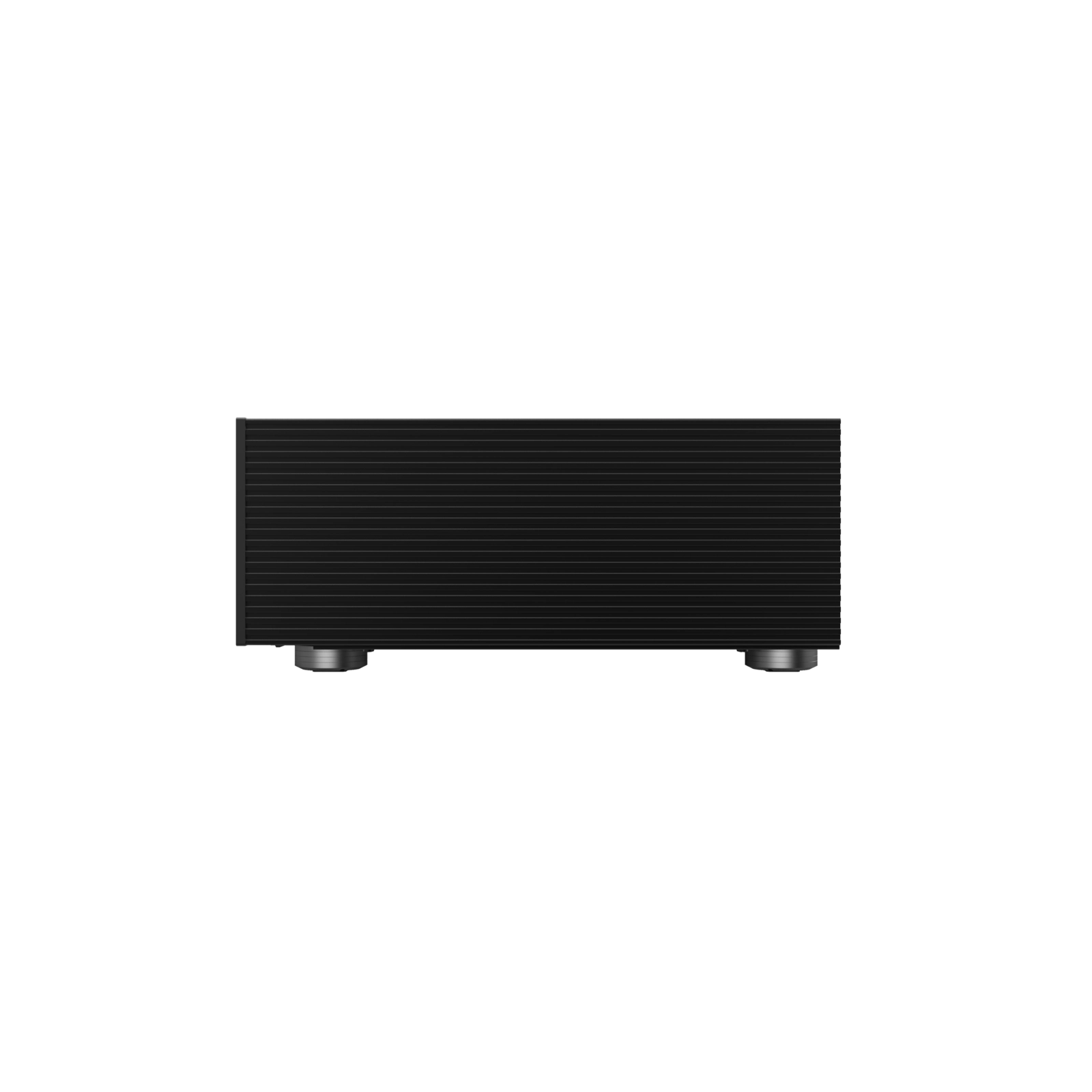

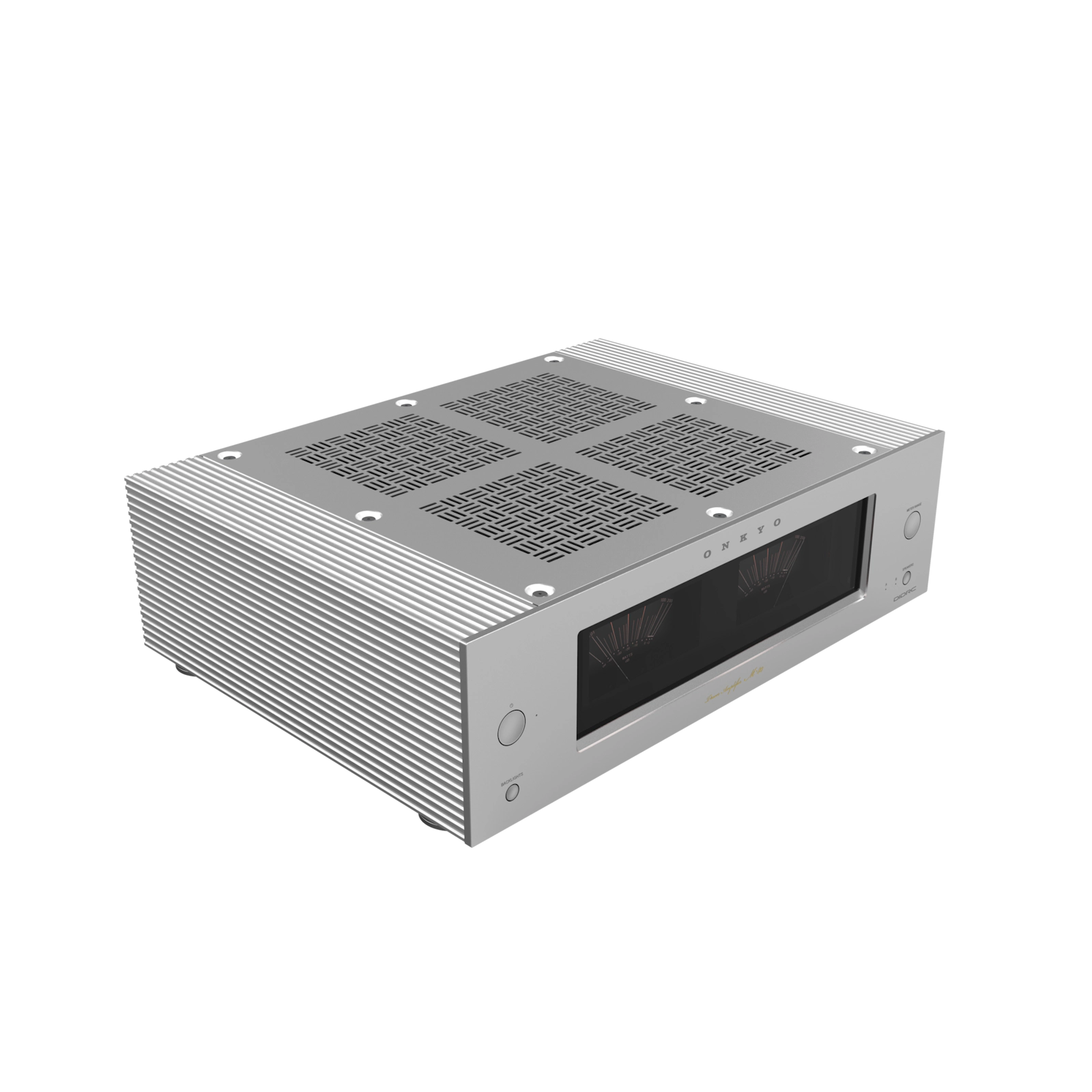

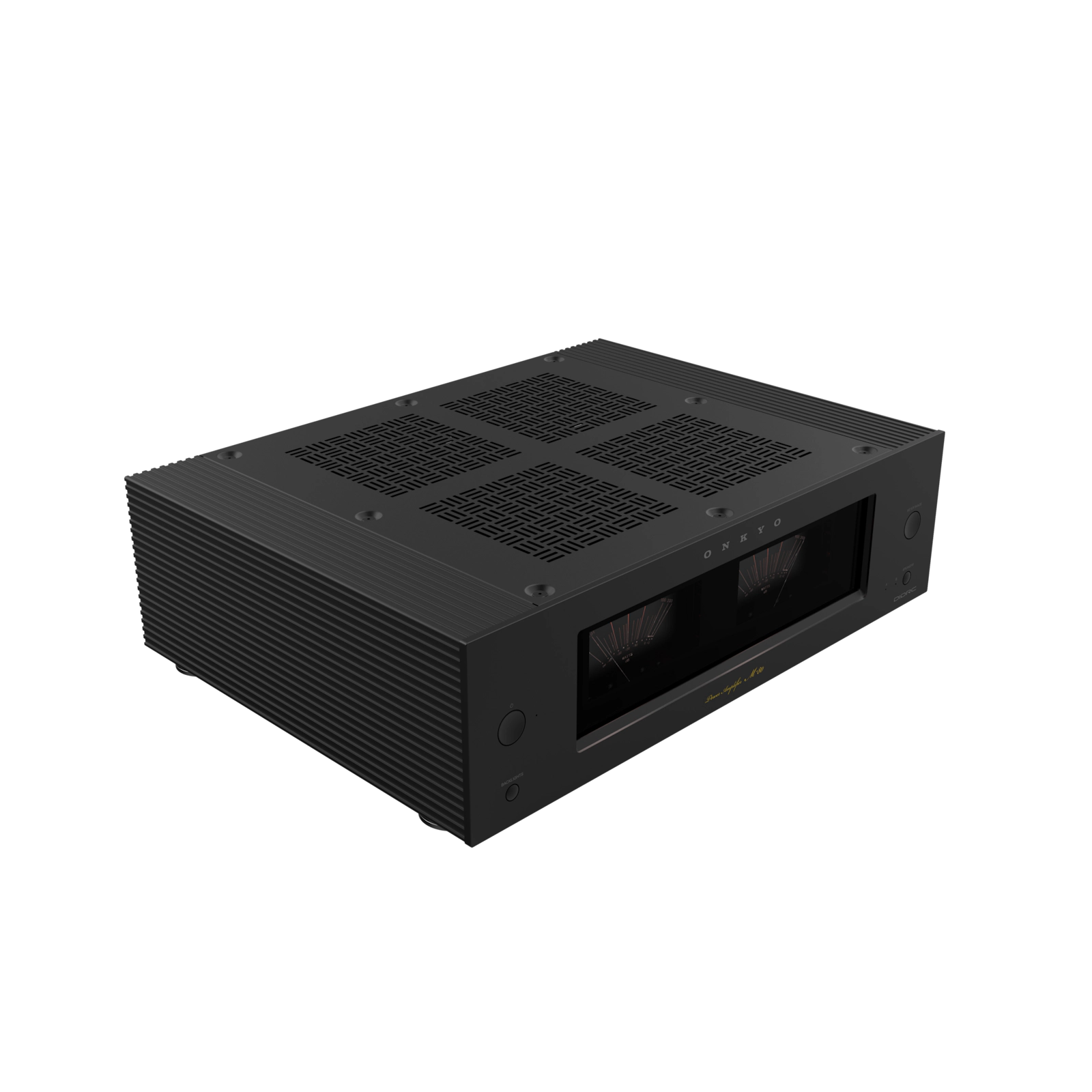

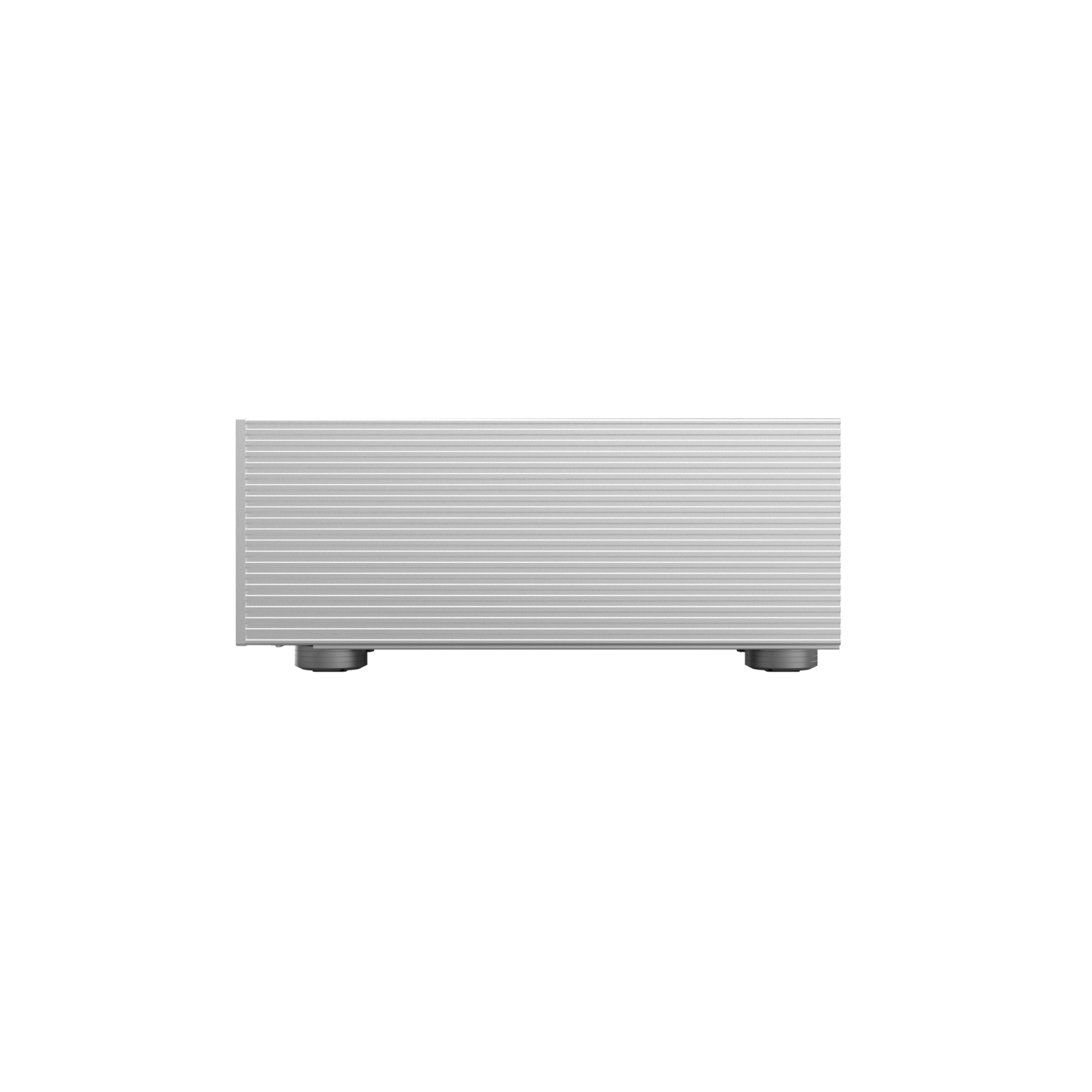

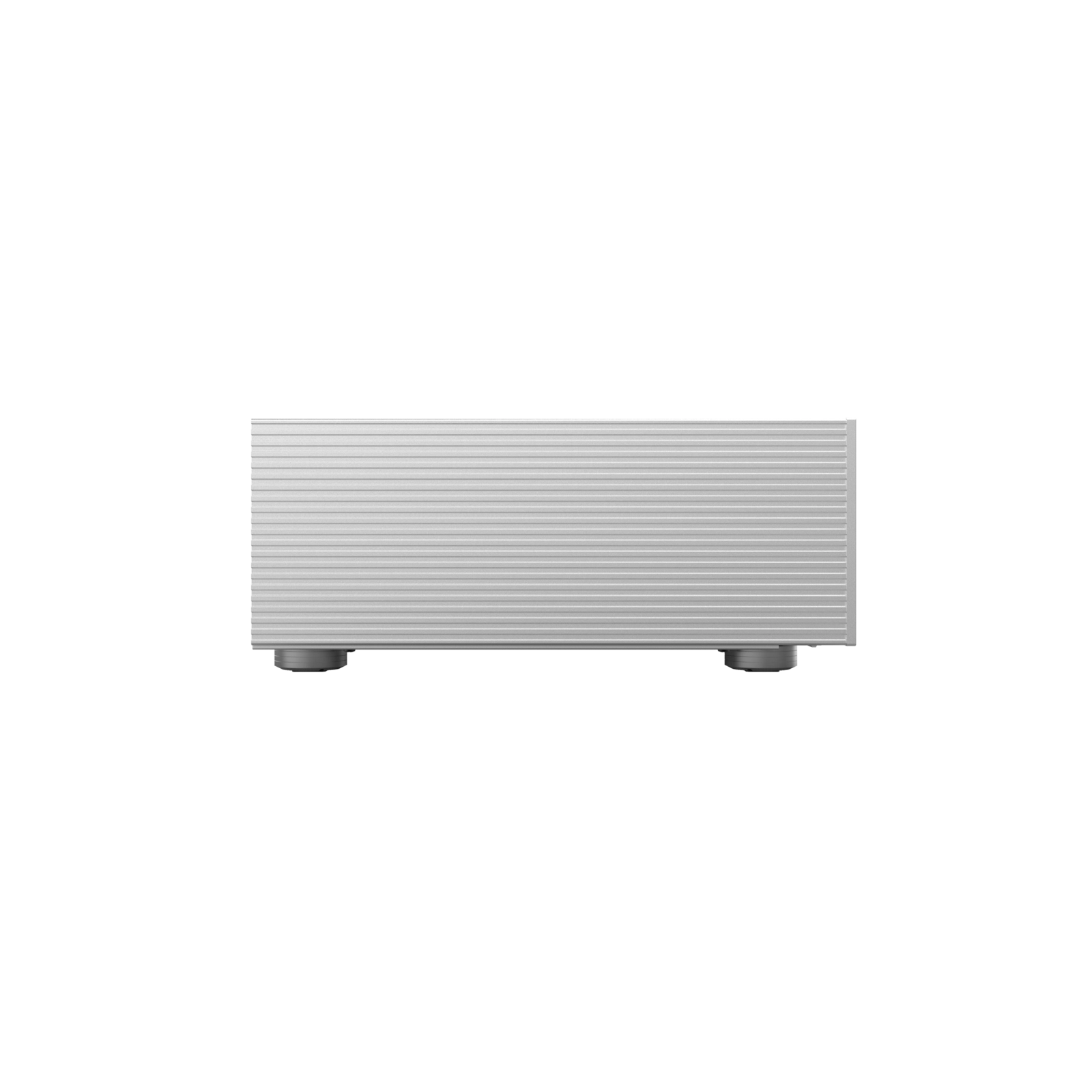

The M-80 housing consists of two aluminum side panels and a steel top panel. This three-piece housing construction increases rigidity and improves seismic resistance for altogether improved sound quality.

Create your perfect system

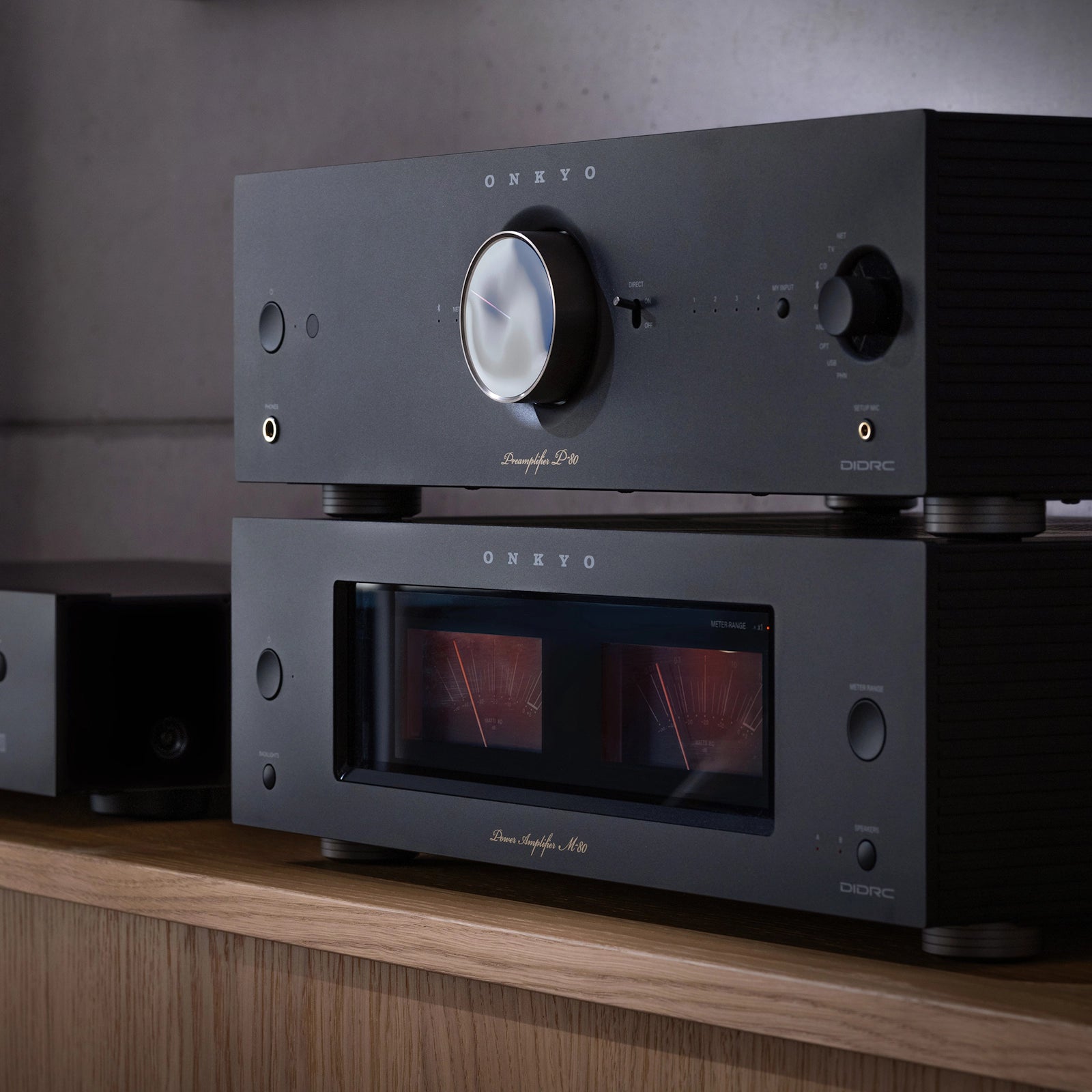

The M-80 has an output power of 200w(4Ω, 1kHz, THD 0.7%, 2ch driven) / 150w(8Ω, 1kHz, THD 0.7%, 2ch driven) which allows it to powerfully drive large speakers and bring you dynamic acoustic information. For example, Klipsch Forte speakers paired with the P-80 and M-80 would maximize the dynamic and extended sound of the Forte.

From Onkyo academy: Benefits of a power amplifier
A power amplifier receives the signal from your pre-amp and literally powers it into your speakers. Think of your pre-amp as a brain, and your power amplifier as the muscle. Separating your amplifiers into pre- and power give you ultimate flexibility in audio playback. Furthermore, since they are not affected by each other's circuits, they can provide high-resolution sound quality through even cleaner signal transmission. Audiophiles are well-known to prefer specific power amps and for the way they impact sound quality and coloration. The M-80 is a power amplifier that reproduces the full range of artists’ intentions in their music and drives you into a world of emotion.

The Icon series, developed to be the icon of the Onkyo brand, is not only a renewal of Onkyo’s previous Hi-Fi products but the culmination of Onkyo’s accumulated and continuously evolving sound creation technologies.

TECHNINIAI DUOMENYS

OUTPUT POWER 150W (8Ω, 1kHz, THD 0.7%, 2ch driven)
200W (4Ω, 1kHz, THD 0.7%, 2ch driven)
AMPLIFIER CHANNEL 2 Ch
AMPLIFIER TYPE Class AB
FREQUENCY RESPONSE 5Hz~100kHz(+1/-3dB)
SPEAKER IMPEDANCE 4-16Ω

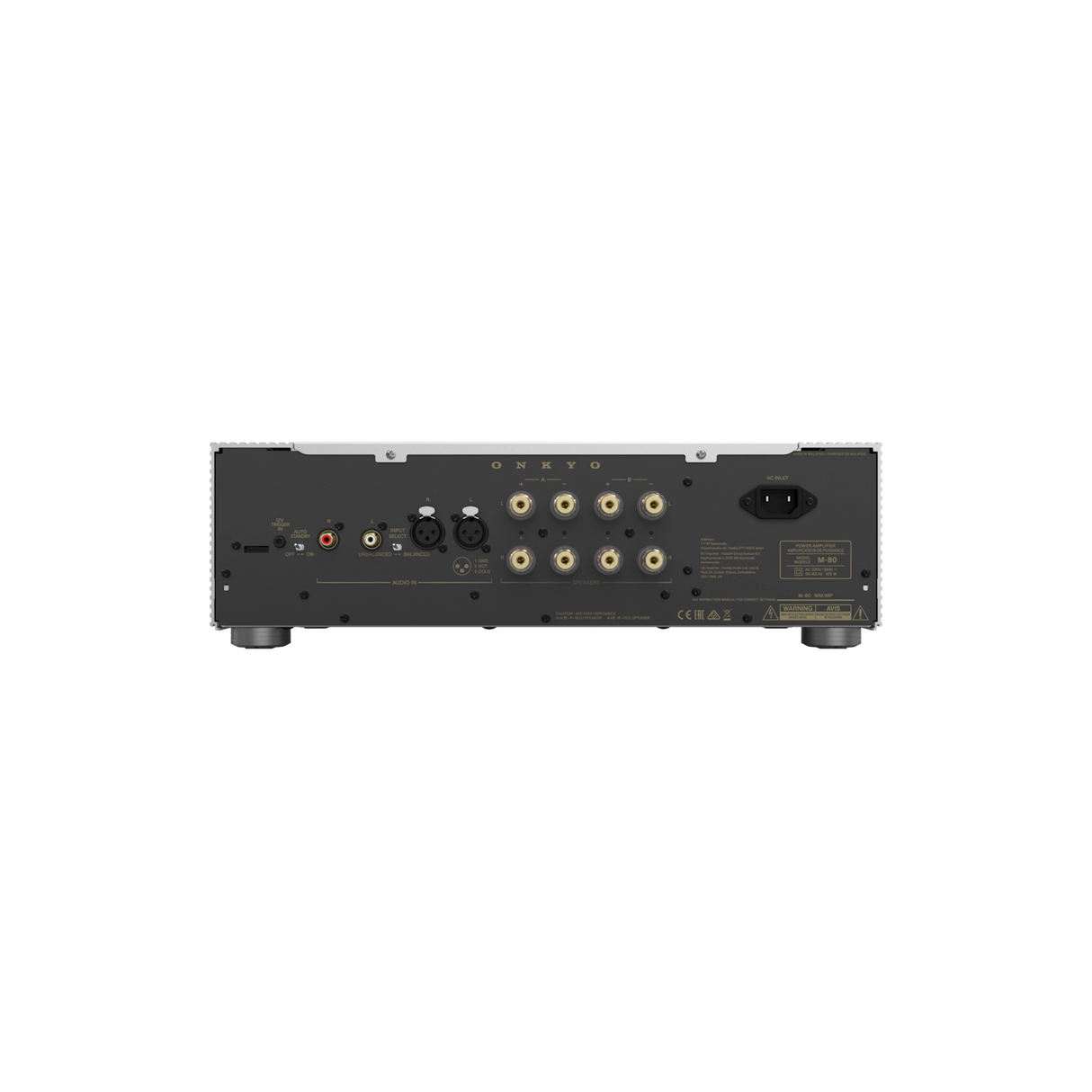

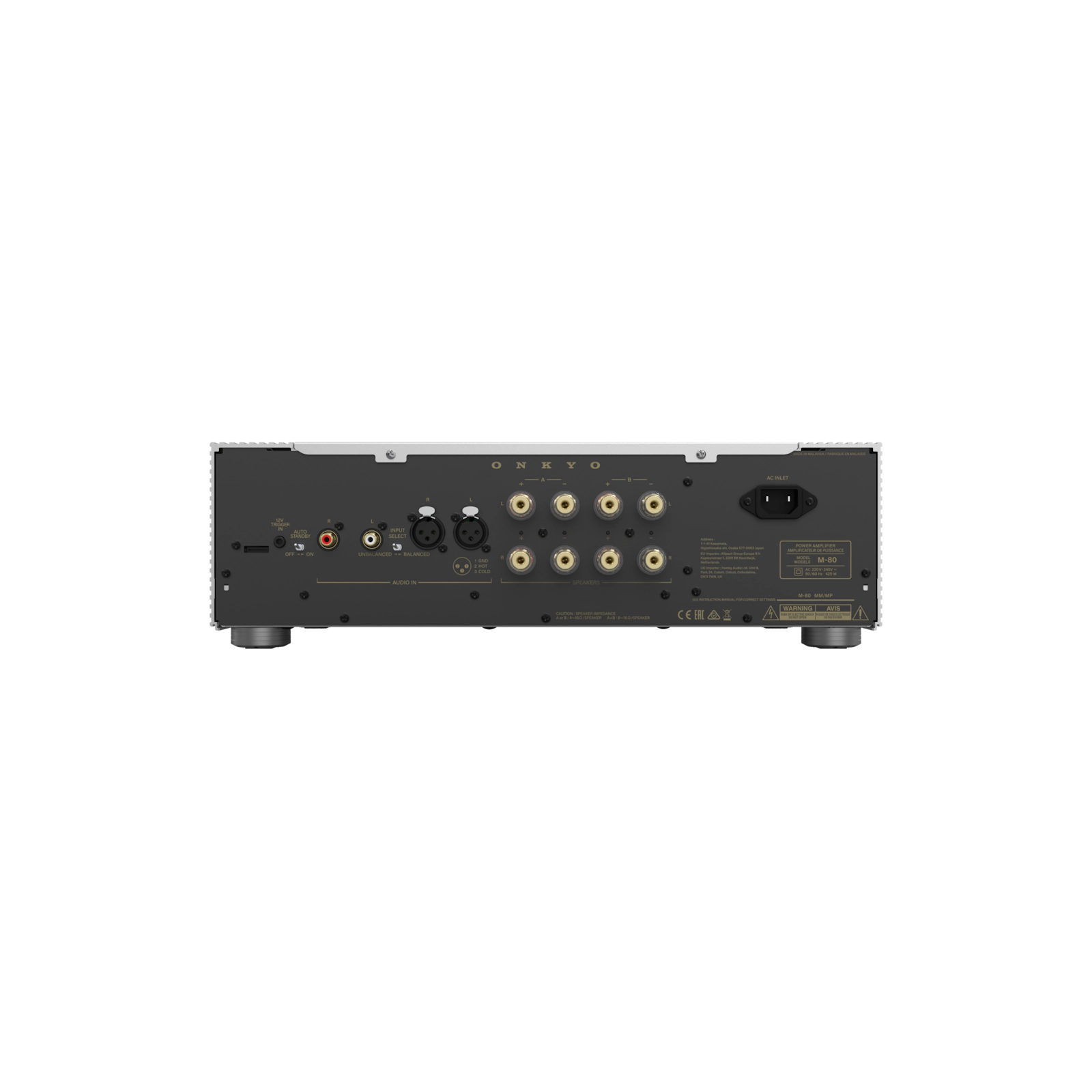

ANALOG AUDIO INPUT RCA(Unbalanced) x 1pair
XLR(Balanced) x 1pair
12V TRIGER Input(1/8”(3.5mm) Jack)
PRODUCT DIMENSIONS
(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 13.6” (345mm)
PRODUCT WEIGHT 13.5 kg
PACKAGE DIMENSIONS
(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)
POWER CONSUMPTION 445w, 51w(idle), Less than 0.3w(Standby)

DOKUMENTAI

Vartotojo vadovas (EN)
