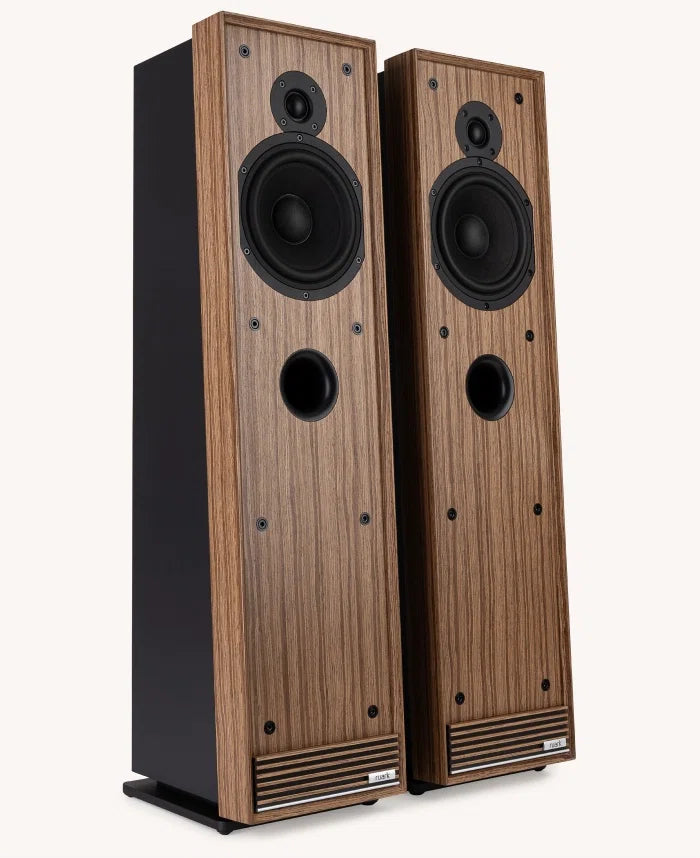

Ruark Talisman-R, grindinės garso kolonėlės

INFORMACIJA

Ruark Talisman-R  - 2 juostų grindinės „bass-reflex“ tipo garso kolonėlės, sukurtos natūraliam ir detaliam Hi-Fi garsui. Jose naudojamas 27 mm šilkinio kupolo aukštų dažnių garsiakalbis ir 6,5″ Ruark NS+ žemų / vidutinių dažnių garsiakalbis, o speciali vibracijas slopinanti korpuso konstrukcija padeda išlaikyti švarų ir tikslų skambesį. Kolonėlė veikia 40 Hz–22 kHz diapazone, turi 6 Ω nominalią varžą ir rekomenduojama naudoti su 50–250 W stiprintuvais. Speciali atskirta priekinė plokštė, vidinis korpuso sutvirtinimas ir slopinimo medžiagos padeda sumažinti vibracijas bei rezonansus.

Dažnių diapazonas: 40 Hz–22 kHz
Nominali varža: 6 Ω
Minimali varža: 3,8 Ω @ 5 kHz
Jautrumas: 87 dB (2,83 V / 1 m)
Rekomenduojama stiprintuvo galia: 50–250 W

Kaina nurodyta už porą (2 vnt.)

APRAŠYMAS

A legacy, in tune with now
Talisman-R Floorstanding Speakers

Our original Talisman was launched in 1990, and they did something most speakers never managed: they made people fall in love with how a speaker looked before they’d even heard them play. That slim silhouette, that sloped baffle, Talisman felt like they belonged in a home.

Talisman-R carries this legacy into the now. The connection between the original and new is clear, but with years of accumulated knowledge, Talisman-R incorporates innovations that bring a new level of performance along with a design that marries perfectly with our 100 Series aesthetic.

Talisman heritage
When we introduced the original Talisman in 1990, we were still a fledgling company looking to gain traction in the Hi-Fi world. Then (and still today) most speakers were rectangular and plain with little thought given to their aesthetic design and it was here that we saw our opportunity.

Talisman was developed as the antithesis to those ordinary speakers and became the model that defined Ruark and built our reputation for designing products that look as good as they sound.

Natural, pure sound

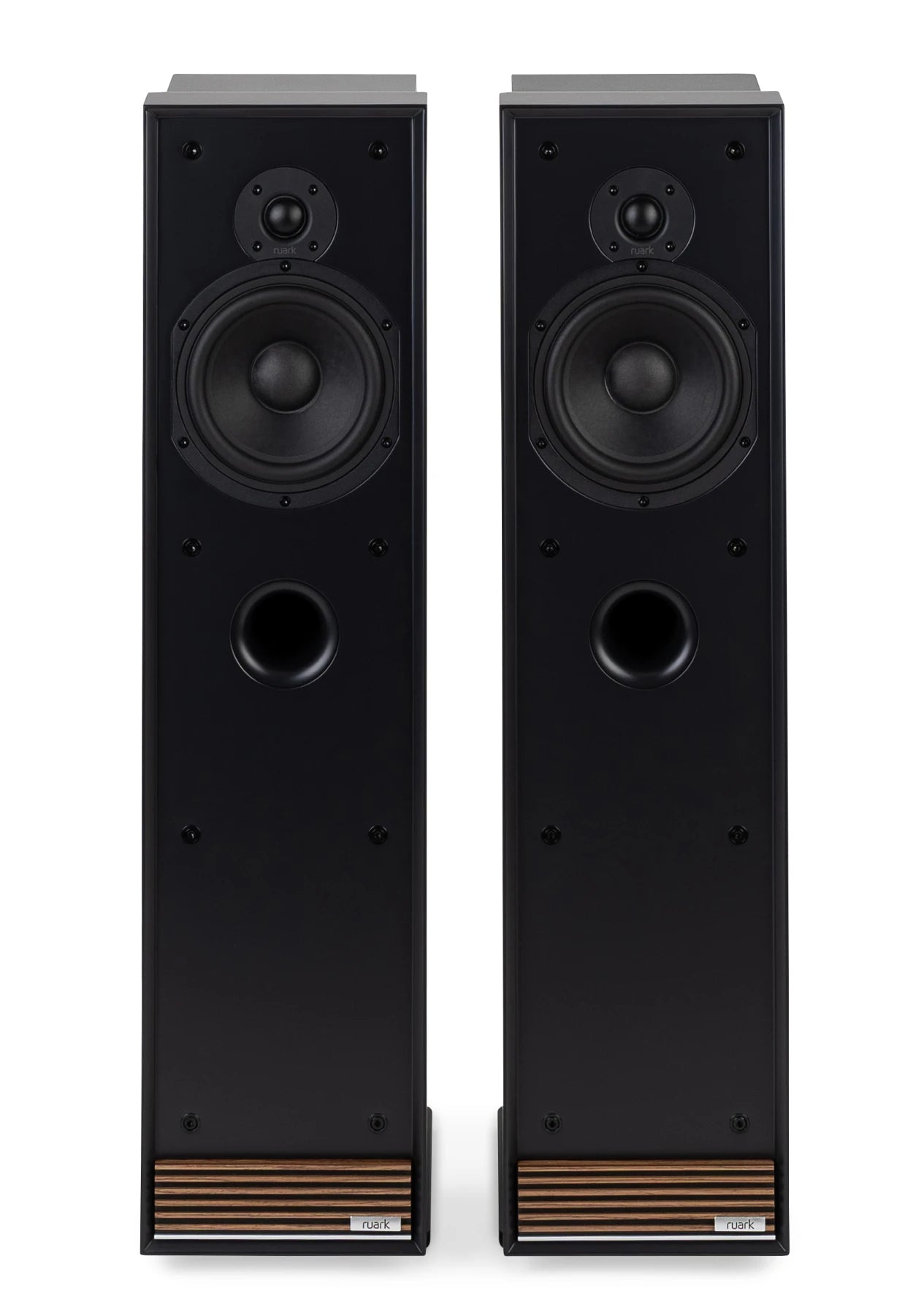

Like the original, Talisman-R is a high-quality two way, bass reflex design and retains our preference for natural driver materials, featuring a custom designed 165mm long throw treated fibre NS+ woofer along with 27mm silk dome tweeter. The drivers are unified via a carefully optimised crossover, with particular attention paid to phase integration, using premium audio-grade capacitors, resistors and low-loss inductors, for best signal transfer and reduced distortion. The outcome is speakers that produce a lifelike stereo soundstage with a natural and deeply engaging sound.

Engineered, inside and out

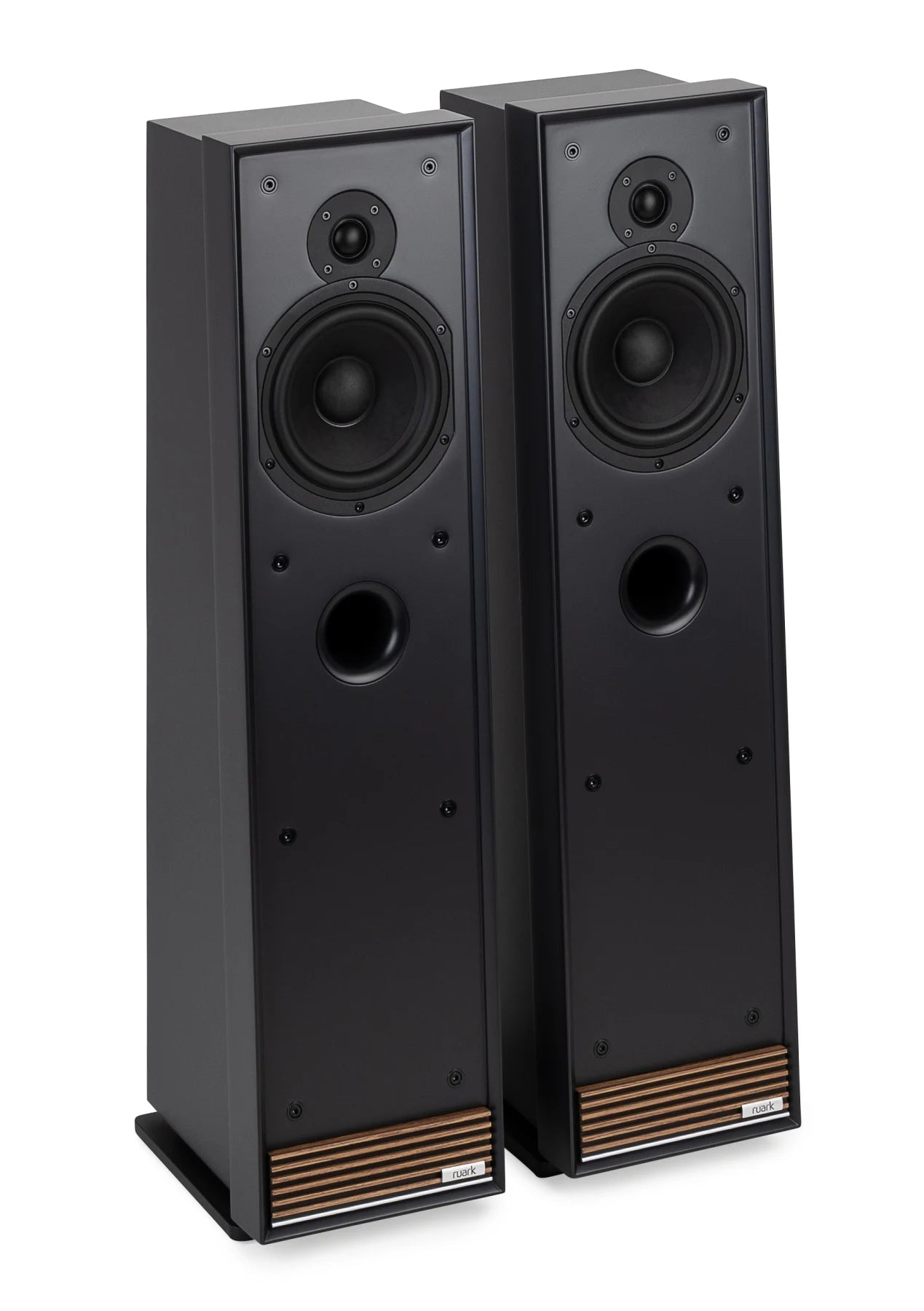

An area where we have paid special attention is in the development of the Talisman-R enclosures. In any loudspeaker, as much energy is transferred back into the cabinet as is projected forward, so controlling this energy is essential to achieving low-distortion sound. The visible bolts on Talisman-R’s front baffle are integral to our decoupled baffle design, securing the baffle via elastomer bushes that, together with a dual damping strip, help prevent vibration from the drive units from passing into the main cabinet. Internally, the enclosure is carefully braced to further reduce resonance and lined with compound wadding, which absorbs energy across a broader frequency range and helps control internal standing waves. The result is an enclosure with exceptionally low colouration, delivering sound that is clean, natural and pure.

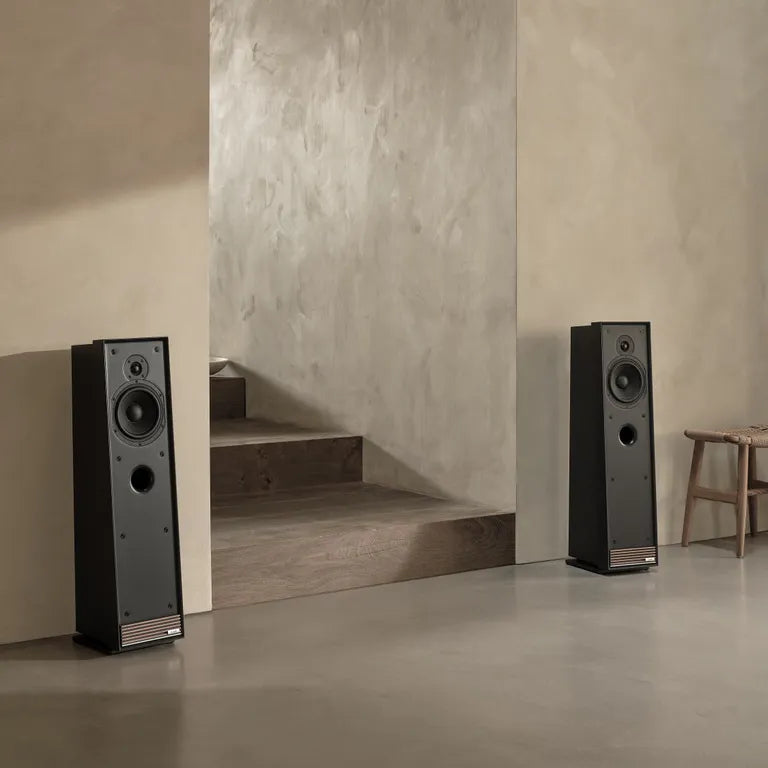

Made to be heard and seen
The design and considered materials of Talisman-R make them as much a part of a room as the sound they create. Their form makes them inherently stable, but to further aid stability the plinth of each is machined from solid steel with threads on each corner for the supplied adjustable rubber feet and carpet spikes. This extra mass lowers their centre of gravity further towards the base, so they are firmly grounded and when viewed from the front gives Talisman-R an attractive floating appearance.

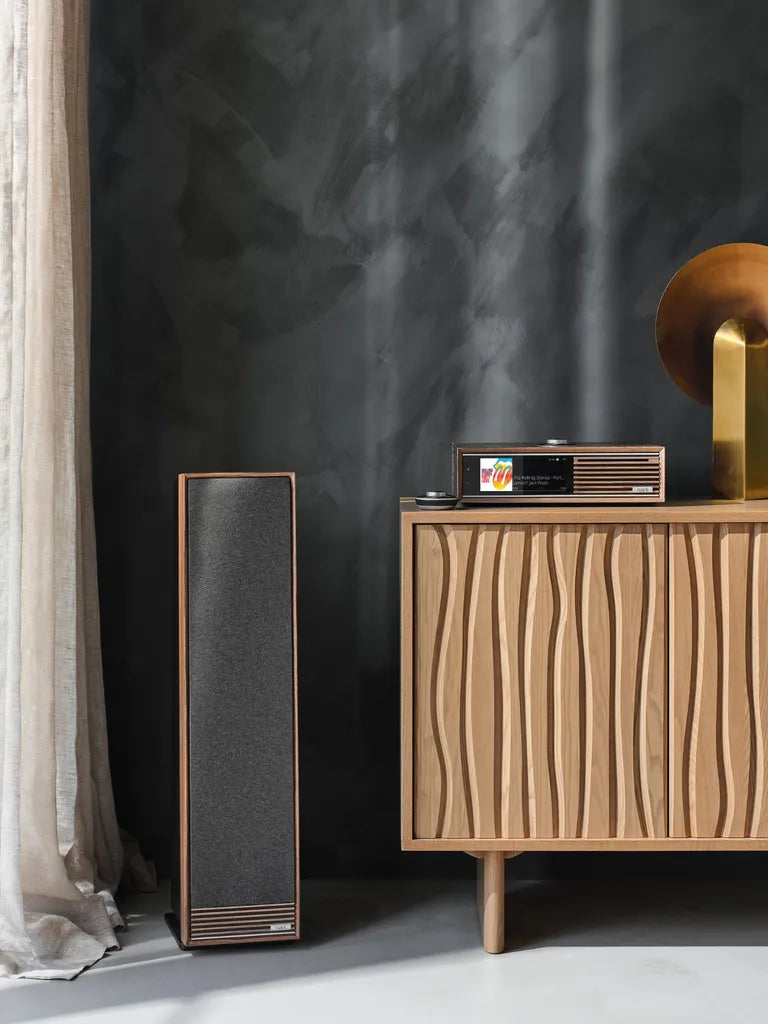

Talisman-R + R710
Mix and match

Talisman-R are undoubtedly a tempting proposition for customers seeking high performance speakers for their existing hi-fi separates, but for customers wanting a complete music solution, Talisman-R and R710 together create a formidable package. Talisman-R also work well with our R610 Music Console, but whichever you choose, the thrill and delight that music and sound can bring is guaranteed.

TECHNINIAI DUOMENYS

Audio
Frequency response
40Hz - 22kHz (typical in-room)
Tweeter
27mm silk dome with neodymium motor
Woofer
17cm/6.5” Ruark NS+, long-throw driver, treated fibre cone, 35mm 2-layer copper voice coil with Strontium ferrite motor
Cabinet type
Dual-flared tuned bass-reflex with decoupled baffle technology
Cabinet volume
14.5 litres
Tuning frequency
42Hz
Nominal impedance
6 ohm (min 3.8 ohm @ 5kHz)
Crossover frequency
2.2 kHz
Crossover type
Optimised 2nd order, premium audio film capacitors, low-loss inductors
Sensitivity (2.83v @ 1m)
87 dB
Recommended amp power
50-250W
Connection type
Dual gold-plated 4mm multi-way binding posts for single-wire or bi-wire connection. compatible with banana plug, spade terminal or bare wire

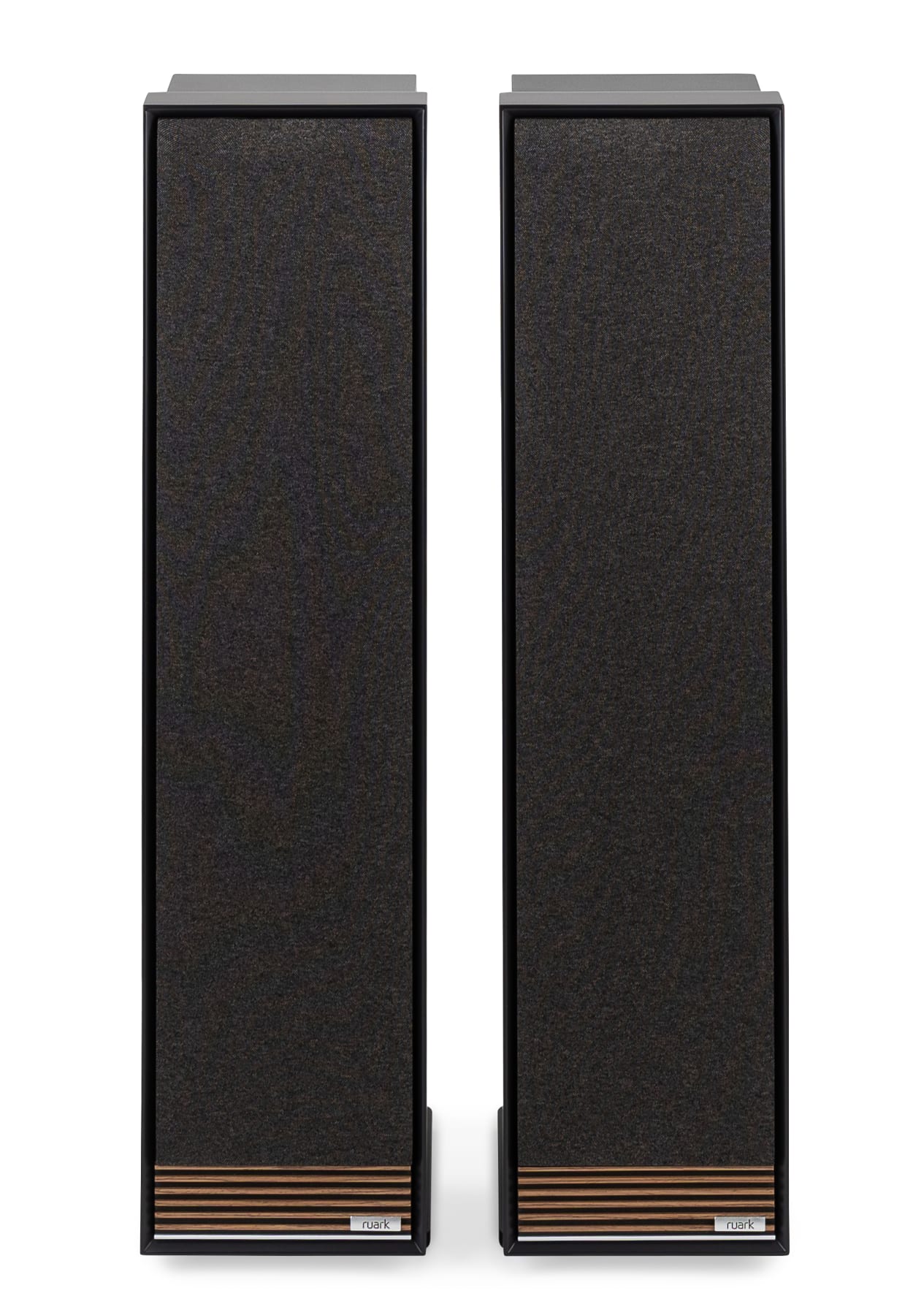

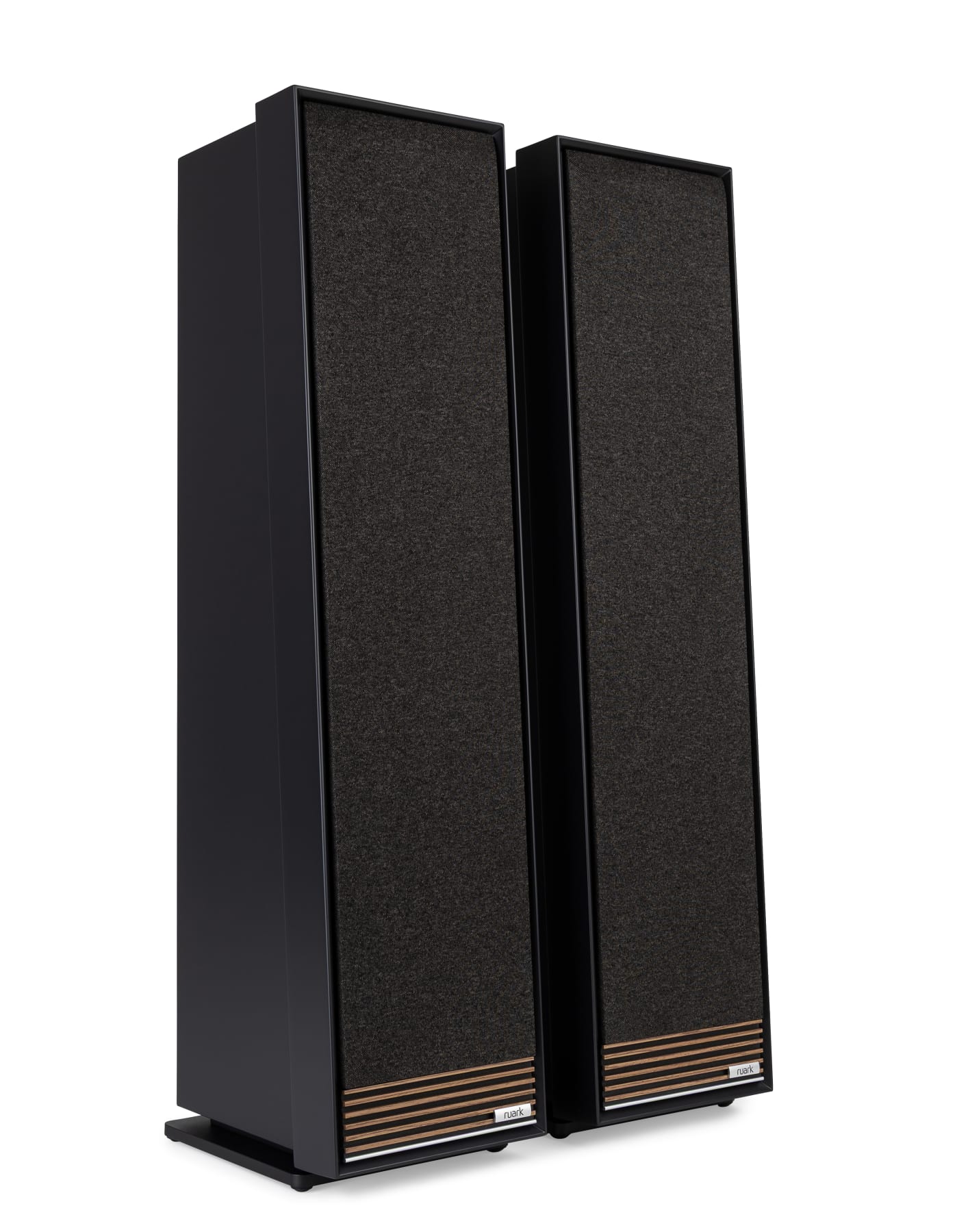

Grille
Removable magnetic frame with acoustically transparent fabric
Placement
Floorstanding

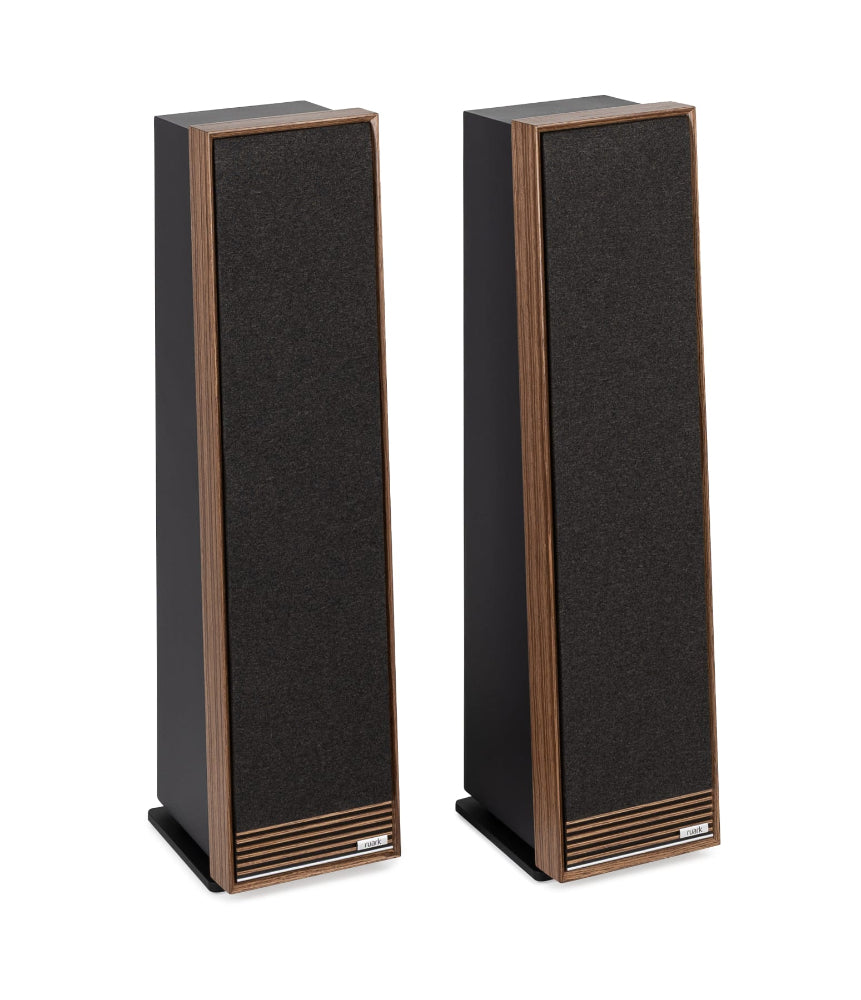

General specifications

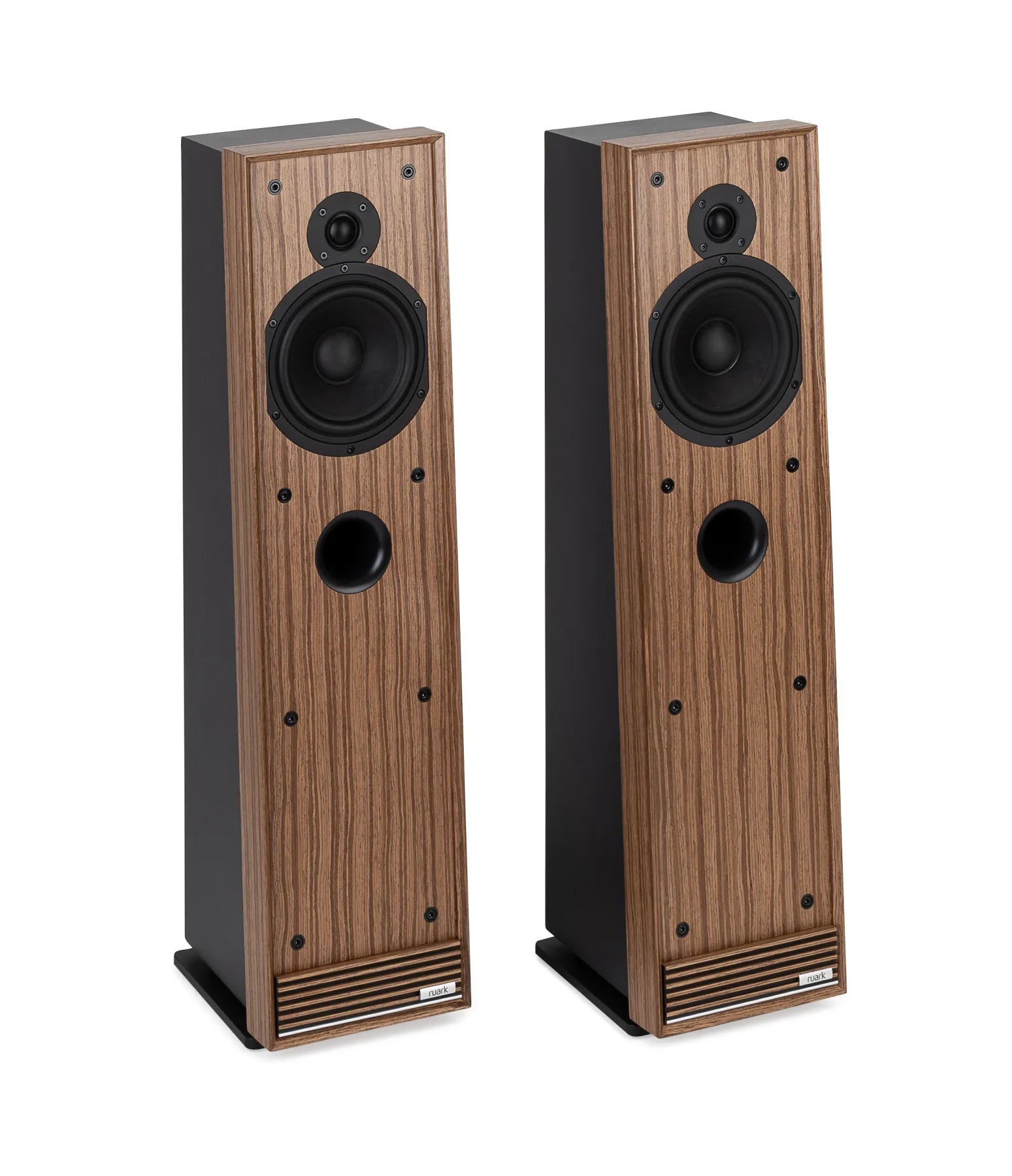

Fused Walnut veneer baffle with Charcoal cabinet and mottled fabric grille,
Satin Charcoal lacquer baffle with Charcoal cabinet and mottled fabric grille
Product dimensions (single speaker)
H850 × W210 × D250mm
Product weight (single speaker)
17.6kg
In the box
Talisman-R (single)
Quick Start Guide
Adjustable rubber coned feet
Adjustable carpet spikes
Carton
Carton dimensions (single speaker)
H975 × W325 × D395
Packaged weight (single speaker)
20.5kg
