SVS Ultra Evolution Nano, lentyninės garso kolonėlės

INFORMACIJA

 SVS Ultra Evolution Nano - kompaktiška, aukštos klasės lentyninė kolonėlė. Švaraus skaidrumo, absoliučios aiškumo, įspūdingo dinamizmo ir lengvai atkuriamo boso džiaugsmas dabar pasiekiamas daugiau žmonių nei bet kada. SVS Ultra Evolution Nano leidžia Jums giliai pajusti garso emociją.

Dažnių diapazonas: 44 Hz – 40 kHz (+/-3 dB)
Nominali varža: 6 Ω
Jautrumas: 85 dB (2,83V @ 1 m, 300 Hz – 3 kHz)
Rekomenduojama stiprintuvo galia: 20–150 W

Kaina už porą.

APRAŠYMAS

Time Aligned Cabinet Geometry
Curved front baffle aligns the acoustic center ofthe tweeter and wooferon a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.

Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.

Diamond Coated Aluminum Dome Tweeter
Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”

5.25" Glass Fiber Composite Mid-Woofer
Superb stiffness to mass ratio conveys stunning dynamics with flawless tonal accuracy, and deep, accurate bass.

Unrelenting Attention to Detail
Acoustically tuned enclosure optimizes low frequency tuning and eliminates any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum.

Uncompromising 2-Way crossover with premium components seamlessly blends driver output. Subtle musical details are rendered with breathtaking clarity, while massive dynamics radiate with weight and control from the highest to lowest octaves.

Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Chamfered front baffle minimizes edge diffraction for optimal off-axis frequency response.

Neodymium magnetic grilles

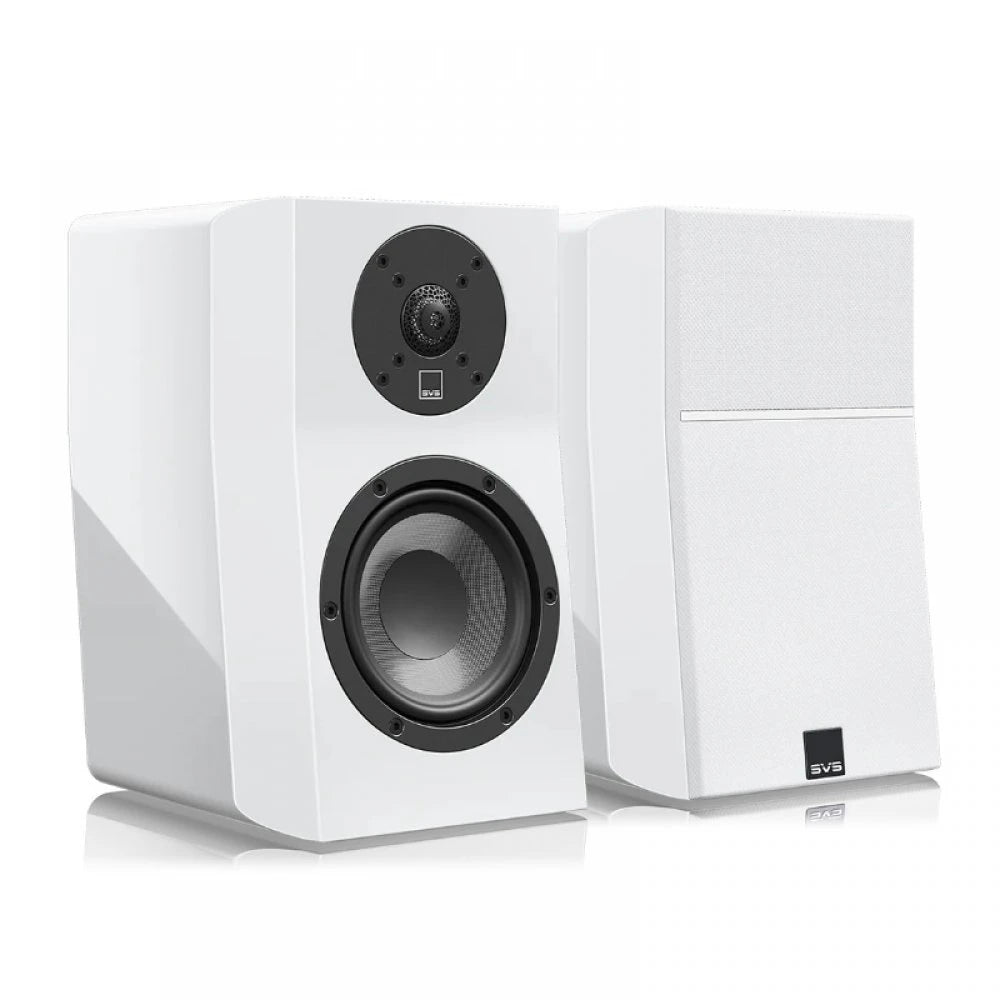

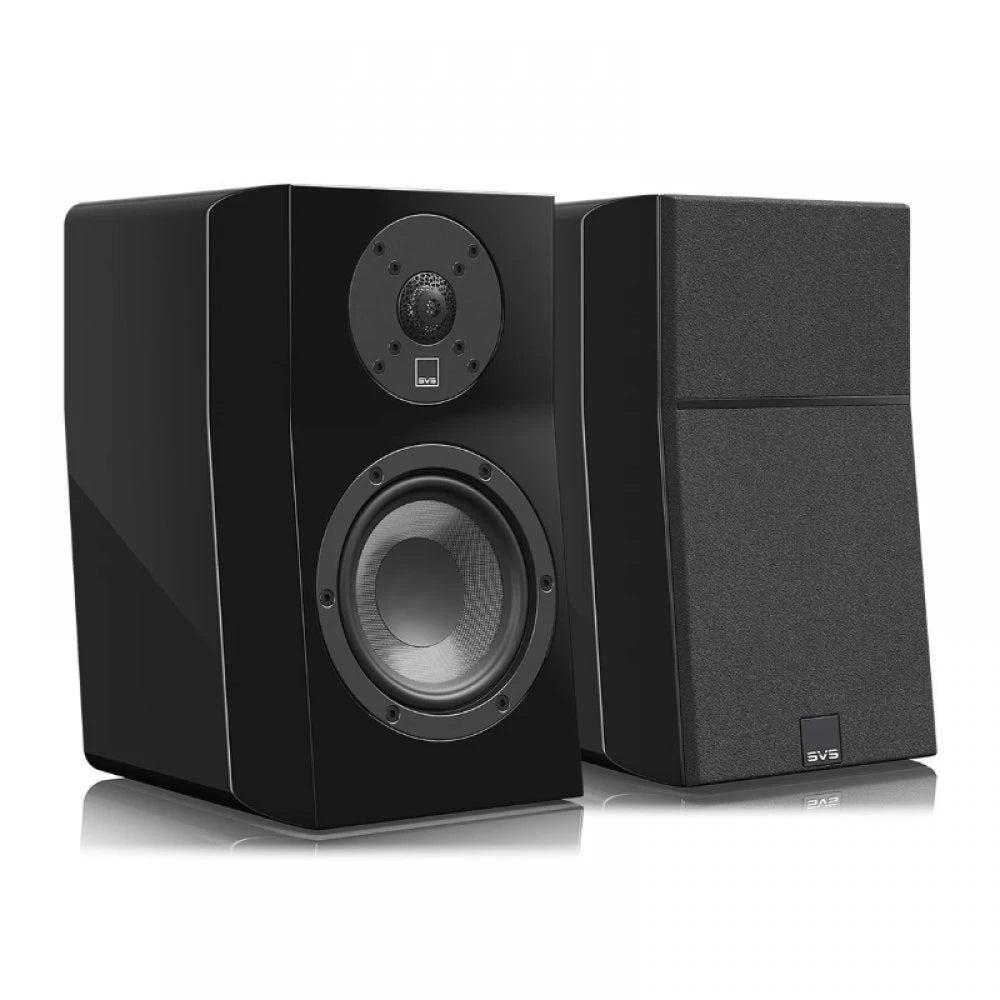

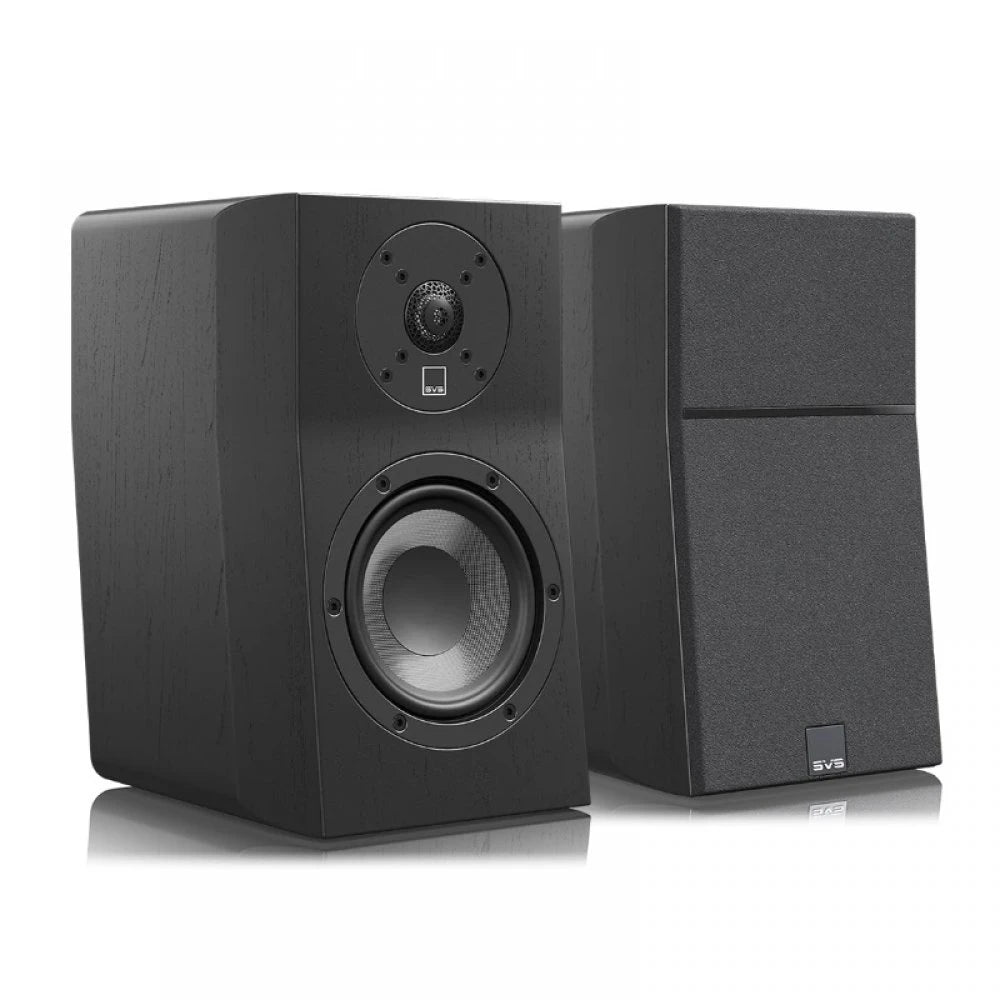

Stunning Piano Gloss Black, Piano Gloss White, and Black Oak Veneer Finish

TECHNINIAI DUOMENYS

Frequency Response / Acoustic Data:
Frequency Response: 44Hz to 40kHz (+/-3 dB)
Nominal impedance: 6 ohms.
Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended amplifier power: 20 – 150 watts
Speaker Specs:
Bookshelf Loudspeaker
Piano gloss black, piano gloss white, real black oak veneer finish options
Gold-plated 5-way binding posts

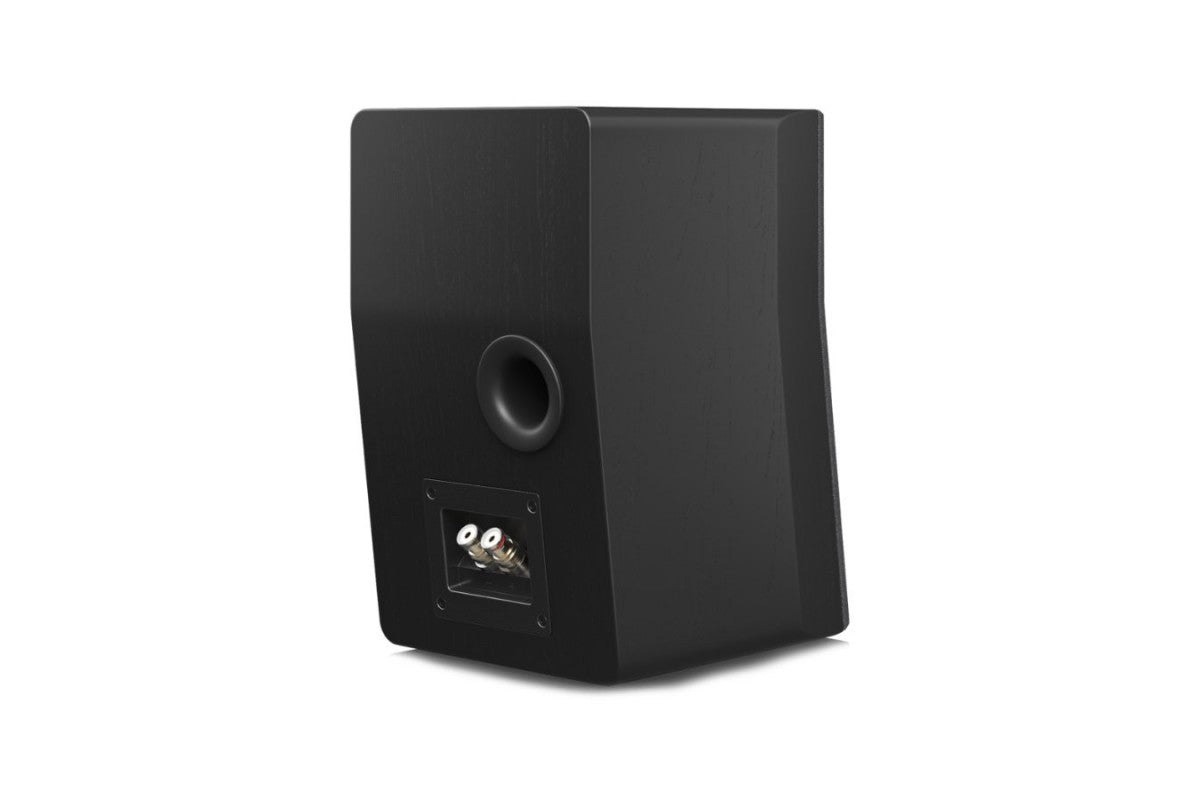

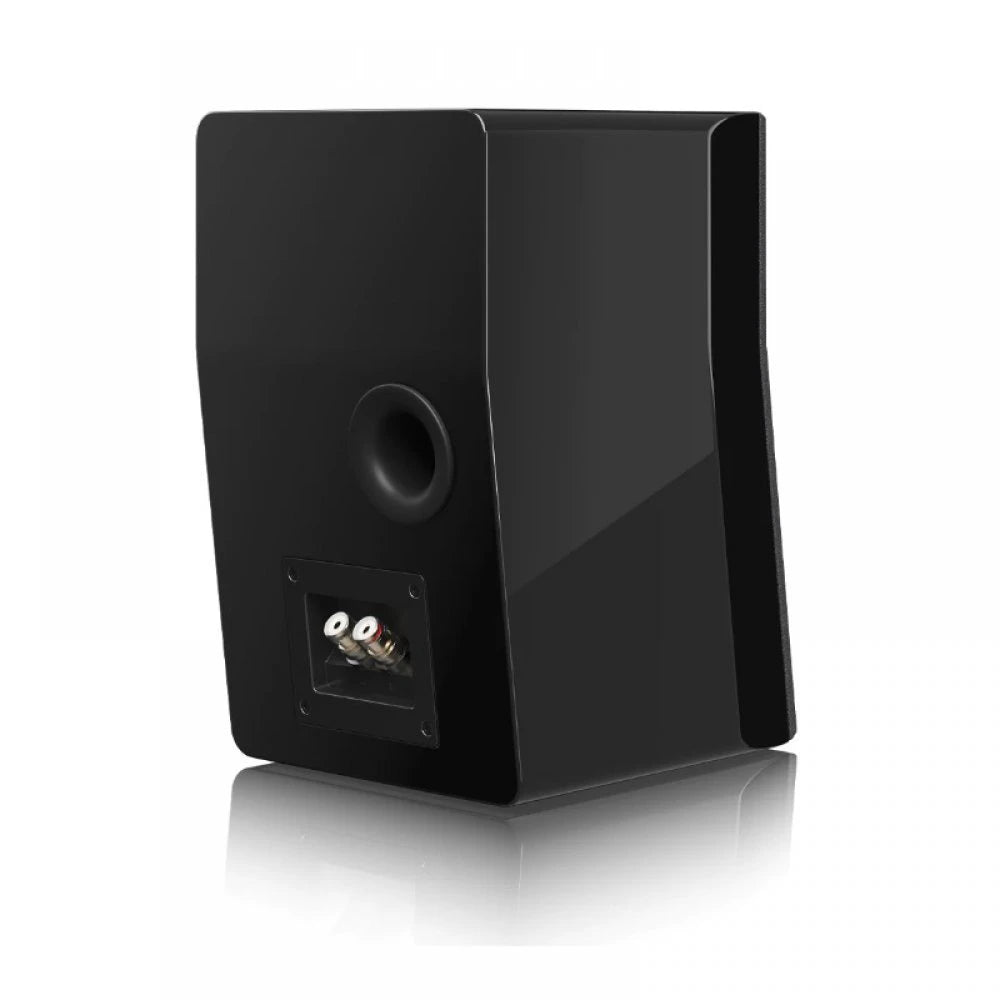

1.6” wide-flared rear-firing port
Cloth grille with magnetic retention system
Elastomer stick-on bumper feet
Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 223.9mm (D)
Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D)
Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
Weight Unboxed: 13.5 pounds / 6.1 kgs
Shipped Weight: 31.0 pounds / 14.1 kgs
Driver Specs:
1” Diamond Coated Tweeter
FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
Silver tinsel leads for optimal signal transfer and power handling.
5.25” Woofer:
Long stroke motor and suspension for high output.
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
Tweeter-to-Woofer crossover: 1.9 kHz
Cabinet:
Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage..
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

DOKUMENTAI

Vartotojo vadovas (EN)
