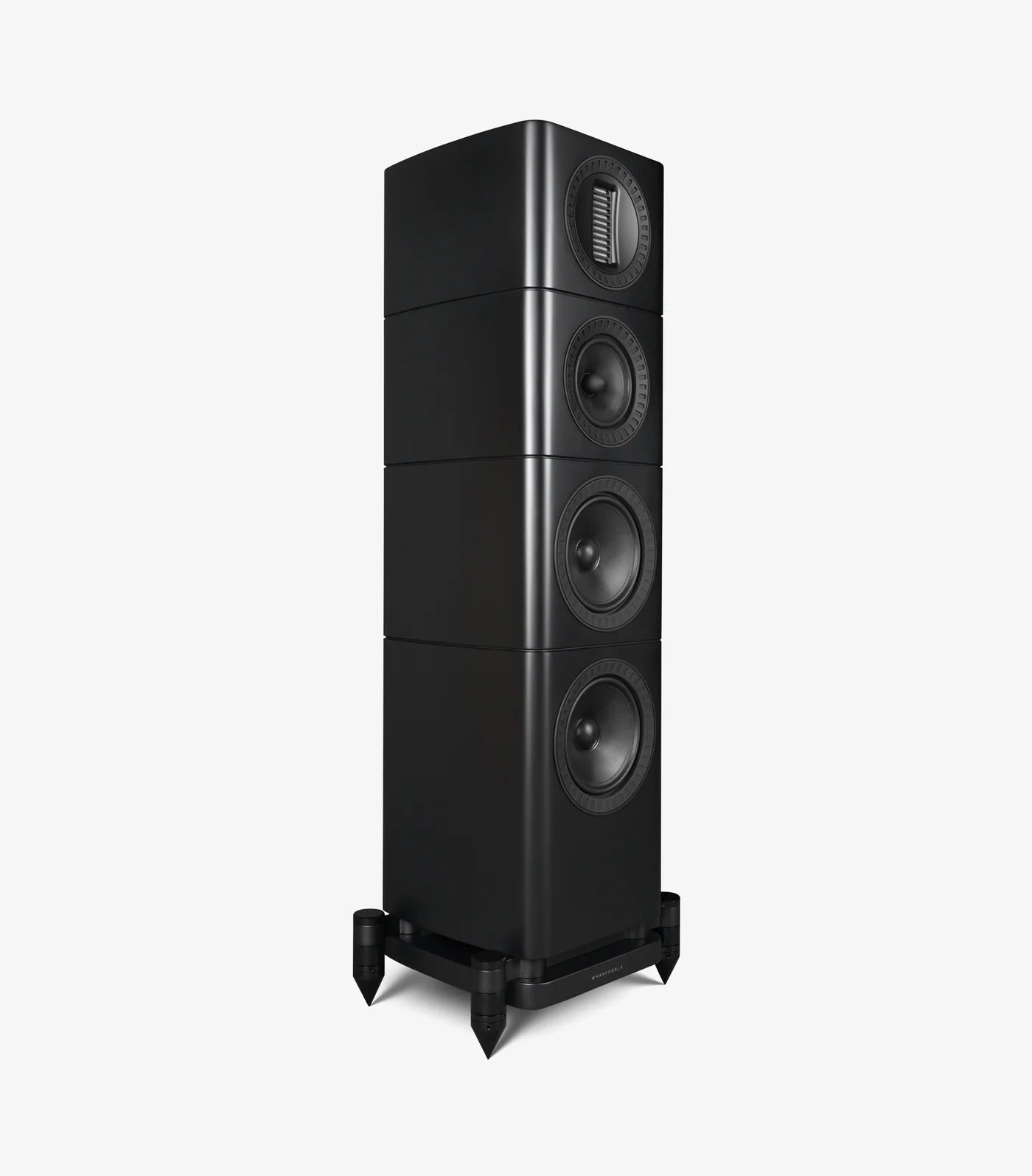

Wharfedale ELYSIAN 3R, grindinės garso kolonėlės

INFORMACIJA

Wharfedale ELYSIAN 3R - tai aukštos klasės trijų juostų grindinė kolonėlė, sukurta tiems, kurie nori didelio ir erdvaus garso, tačiau neturi vietos didžiausiam ELYSIAN serijos modeliui. Du 7 colių žemų dažnių garsiakalbiai, atskiras 6 colių vidutinių dažnių garsiakalbis ir AMT juostinis aukštadažnis užtikrina gilų, detalų ir natūralų skambesį tiek muzikai, tiek filmams.

Dažnių diapazonas: 44 Hz – 22 kHz (35 Hz pagal -6 dB);
Jautrumas: 89 dB;
Varža: 4 Ω;
Rekomenduojama stiprintuvo galia: 30–200 W.

Kaina nurodyta už porą (2vnt.).

APRAŠYMAS

The ELYSIAN 3R is the compact floorstanding loudspeaker in the ELYSIAN R Series, designed to deliver the authority, openness and dynamic expression of a high-end three-way system in a more elegant, room-friendly form.

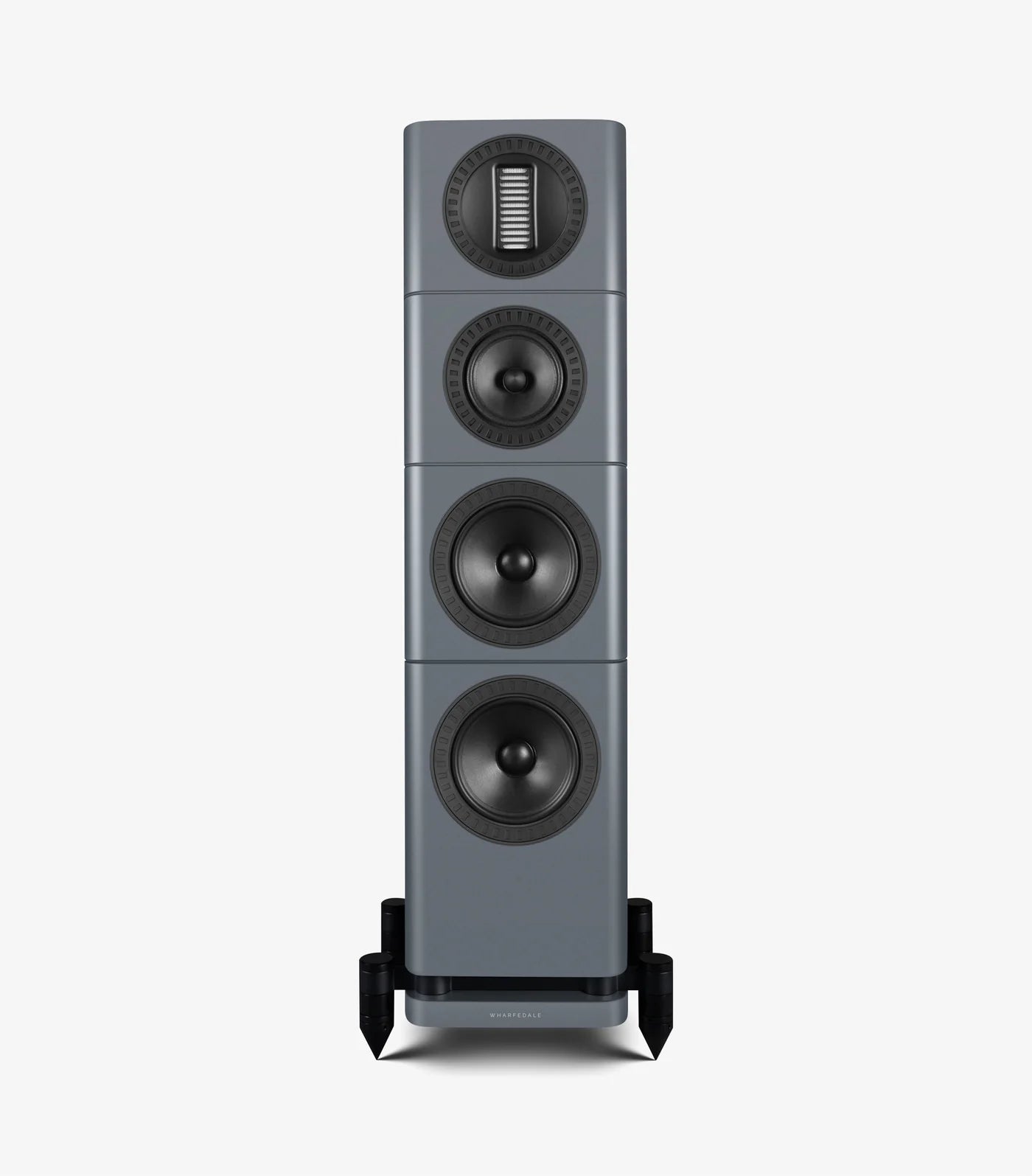

Its slim cabinet houses dual 7” coated glass fibre matrix bass drivers, a dedicated 6” coated glass fibre matrix midrange driver and the further-developed 27 x 90mm ELYSIAN R AMT treble unit. The result is a loudspeaker that combines controlled bass, natural vocal presence and expansive high-frequency detail with the understated luxury of the updated ELYSIAN R design language.

The story
ELYSIAN 3R is engineered for listeners who want the immersive scale of a floorstanding loudspeaker without the footprint of the flagship model. It uses a true three-way driver array, allowing the bass, midrange and treble sections to operate with clarity and control.
As part of the ELYSIAN R evolution, the 3R benefits from refined crossover modelling, improved driver consistency and further optimised cabinet behaviour. Its dual bass drivers provide low-frequency weight and dynamic ability, while the dedicated midrange driver preserves the natural expression of voices and instruments. The AMT treble unit gives the speaker its open, fast and effortlessly detailed character.
The 3R is compact by ELYSIAN standards, but unmistakably high-end in performance, finish and presence.

Compact floorstanding design
ELYSIAN 3R delivers the scale and authority of a floorstander while maintaining a slimmer profile for modern living spaces.

Dual 7” bass drivers
Two coated glass fibre matrix bass drivers provide dynamic low-frequency performance with speed, control and articulation.

SLPP bass management
Wharfedale’s Slot-Loaded Profiled Port system improves bass extension and control, reduces turbulence, and lessens placement sensitivity. The result is bass that is powerful, fast, and consistent in usual listening settings.

New Luxury finishes

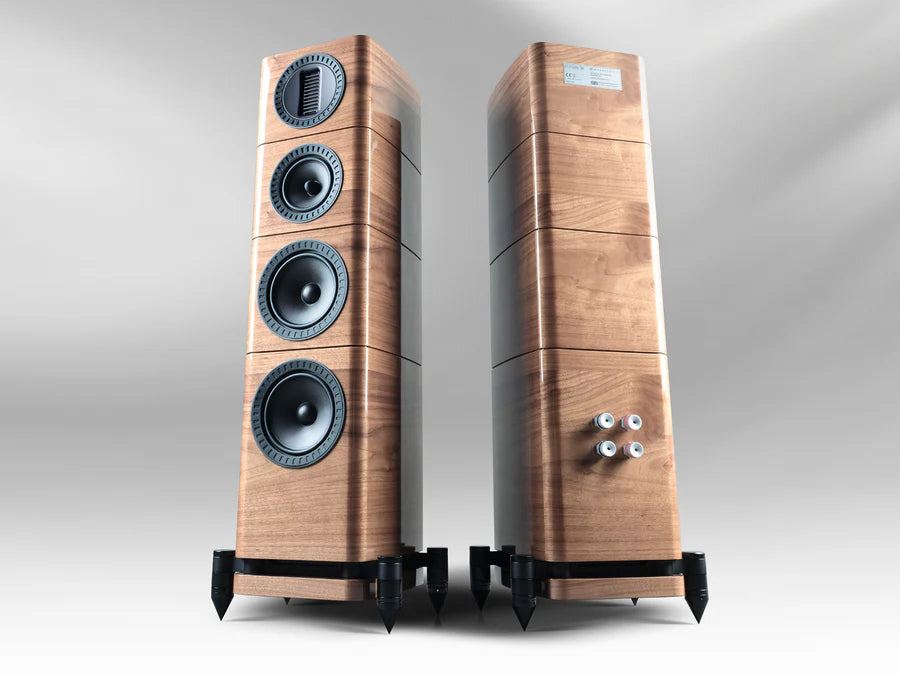

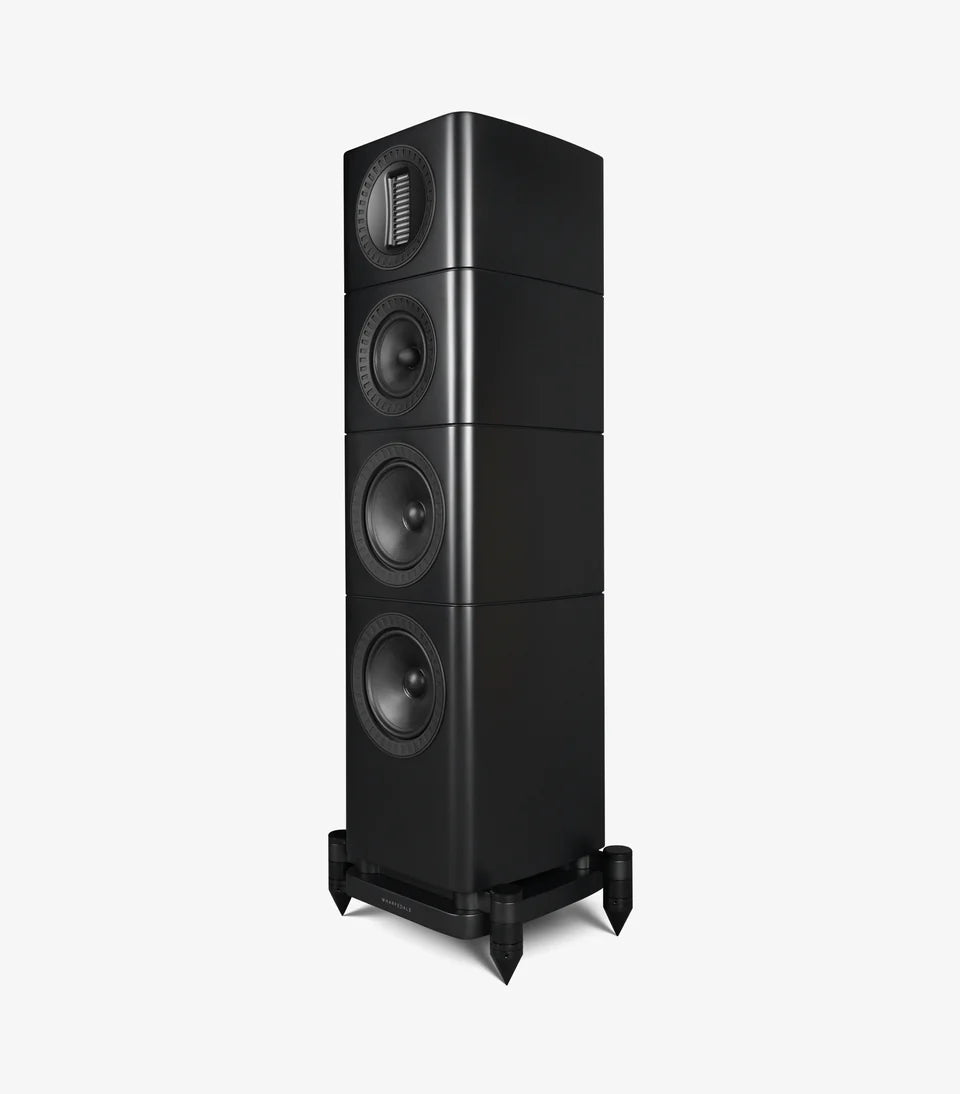

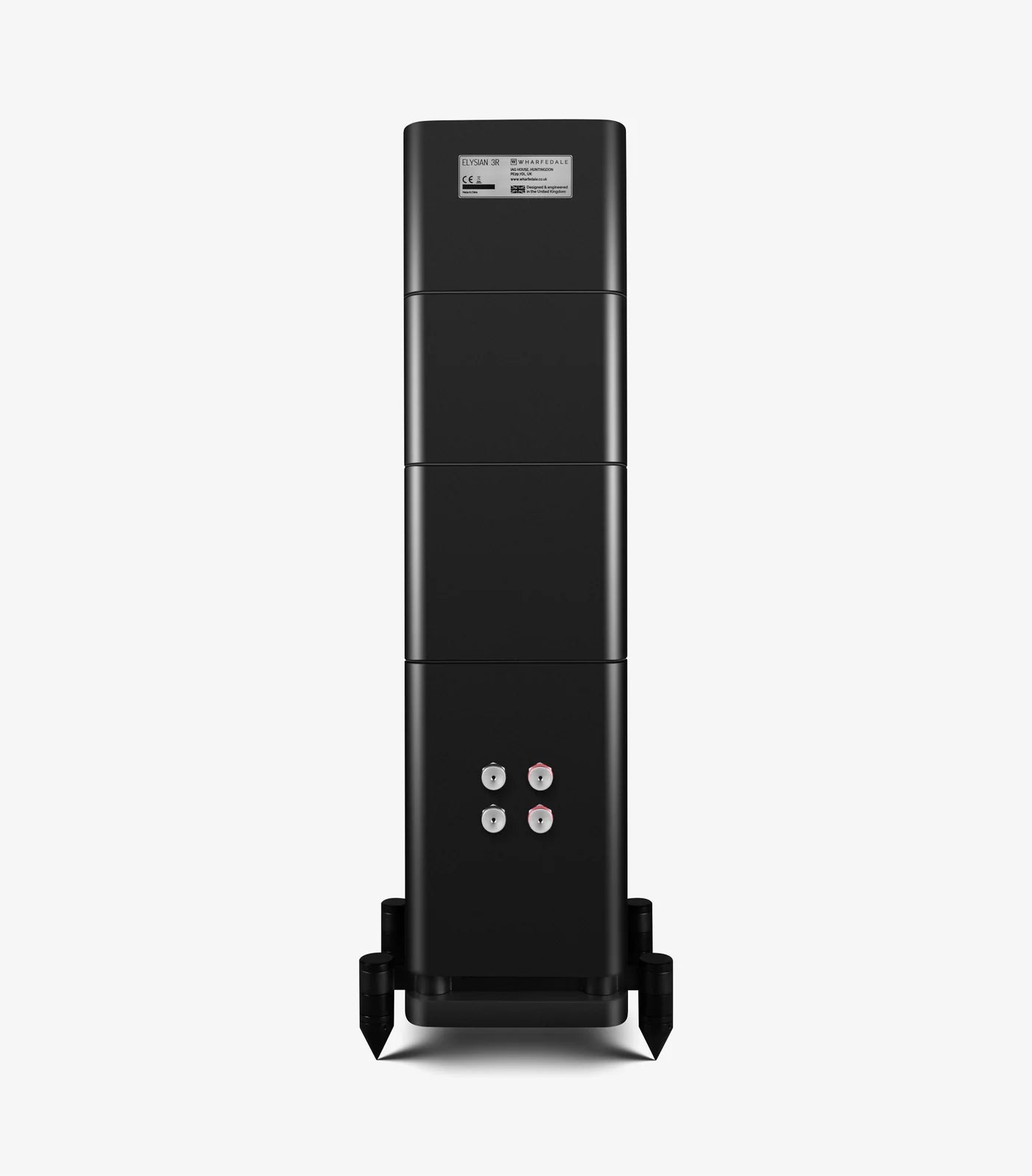

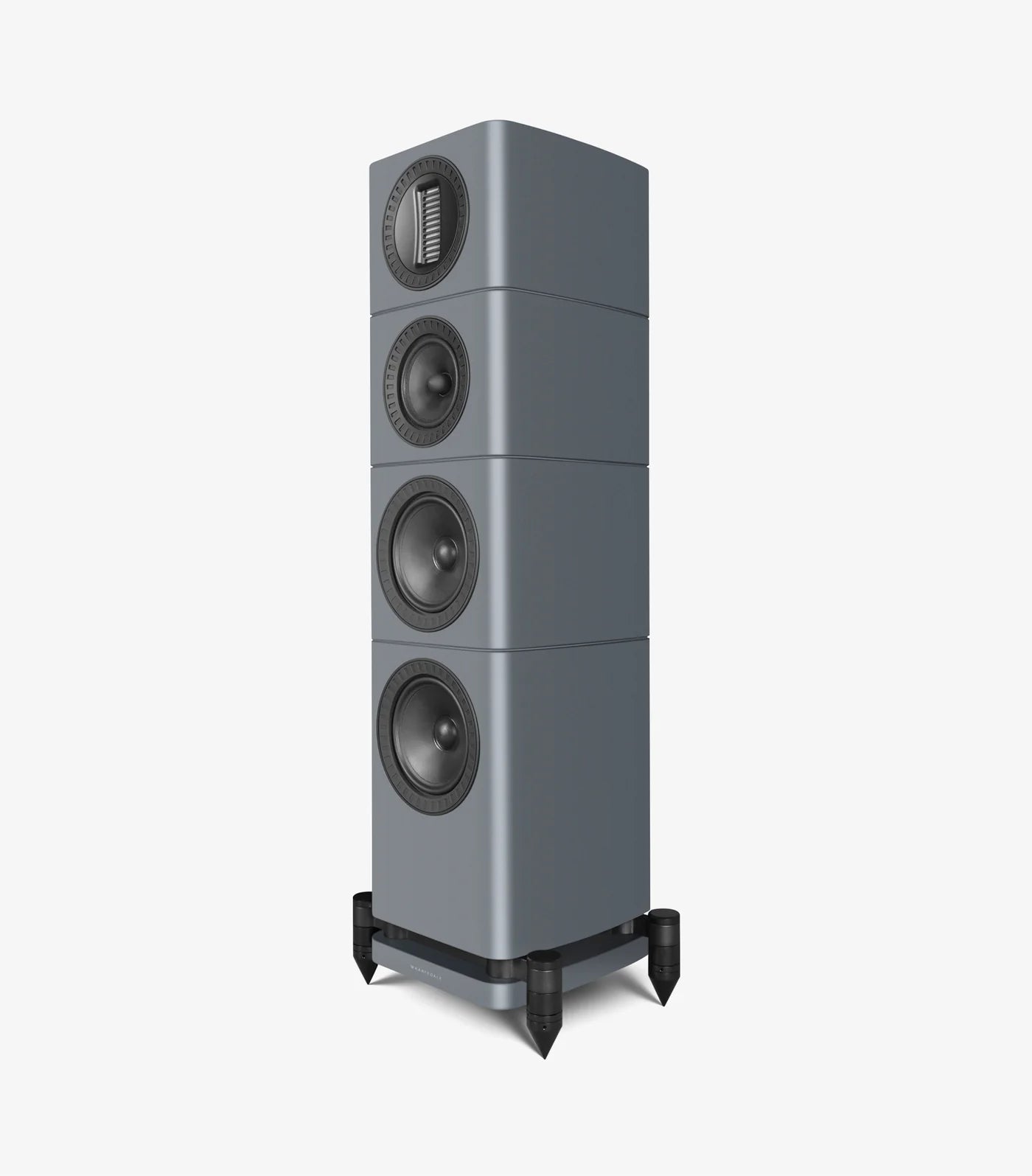

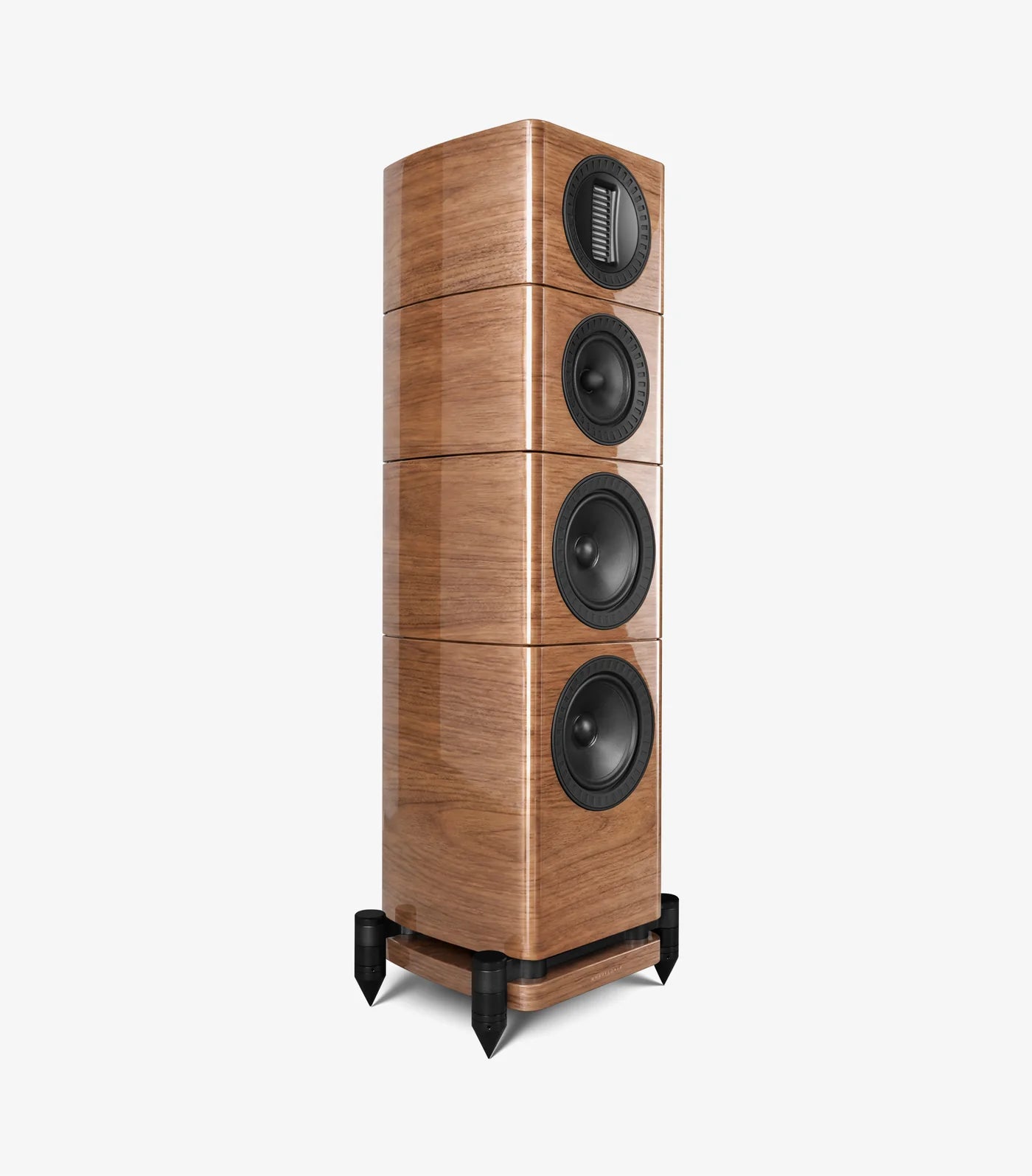

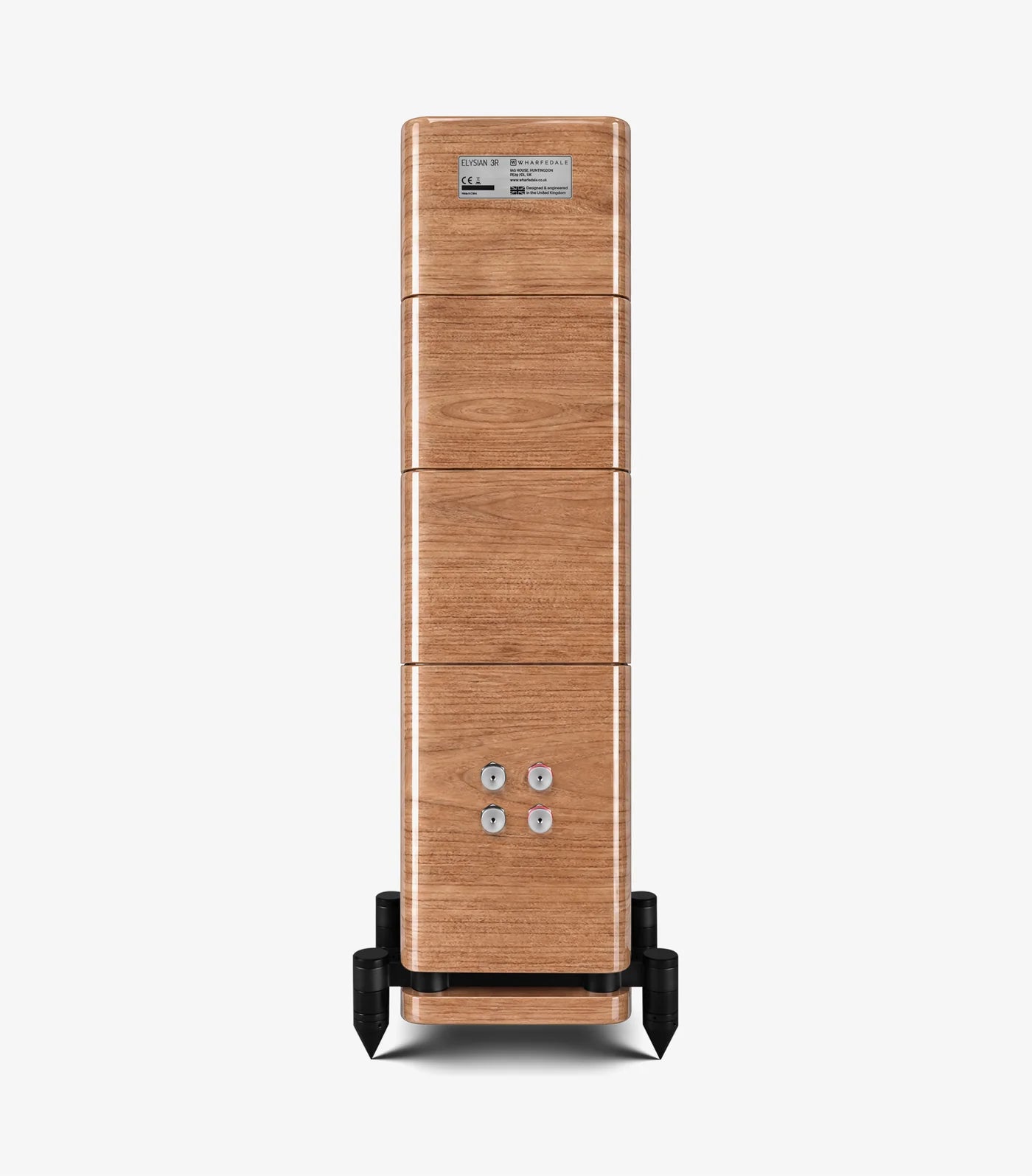

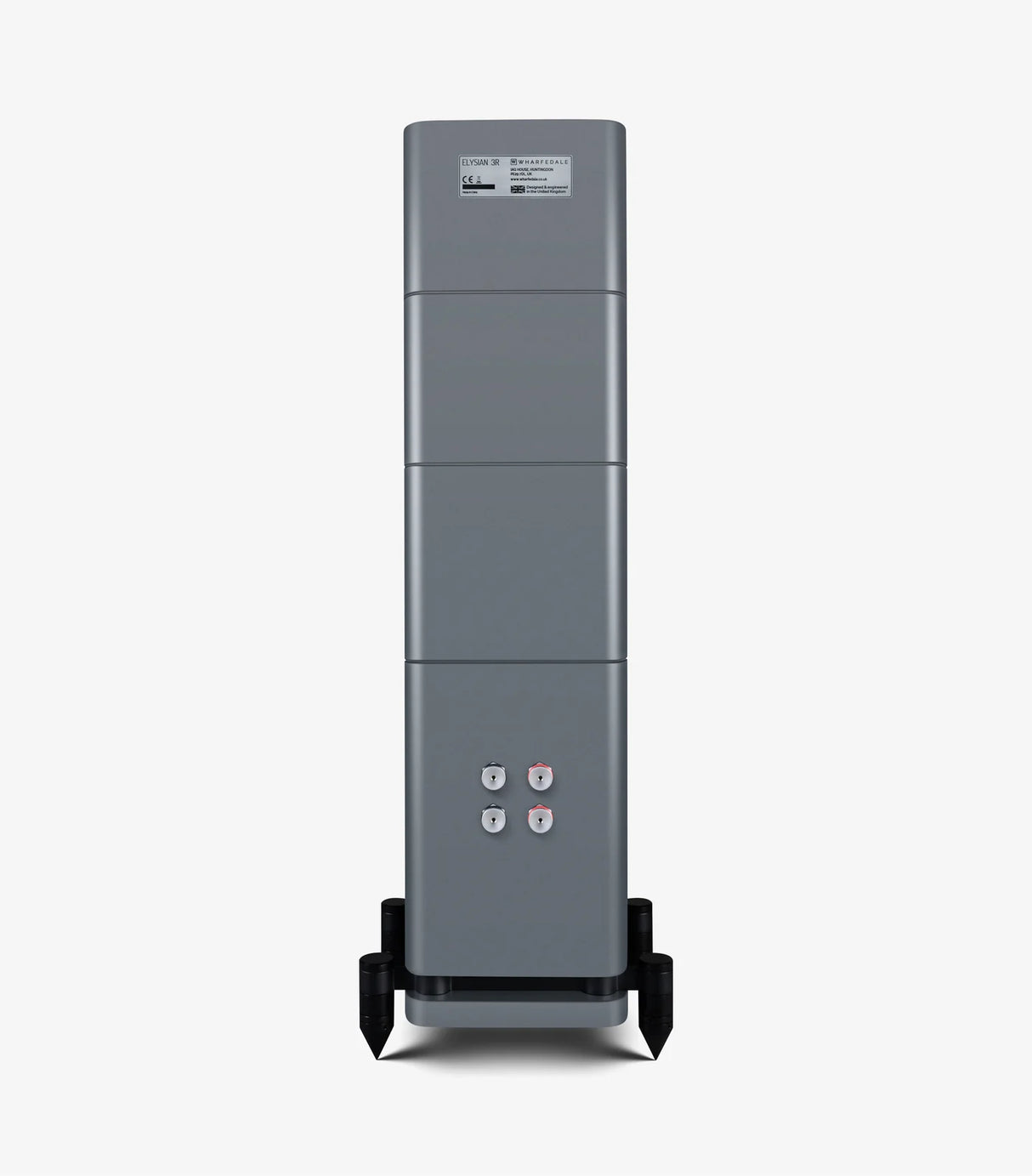

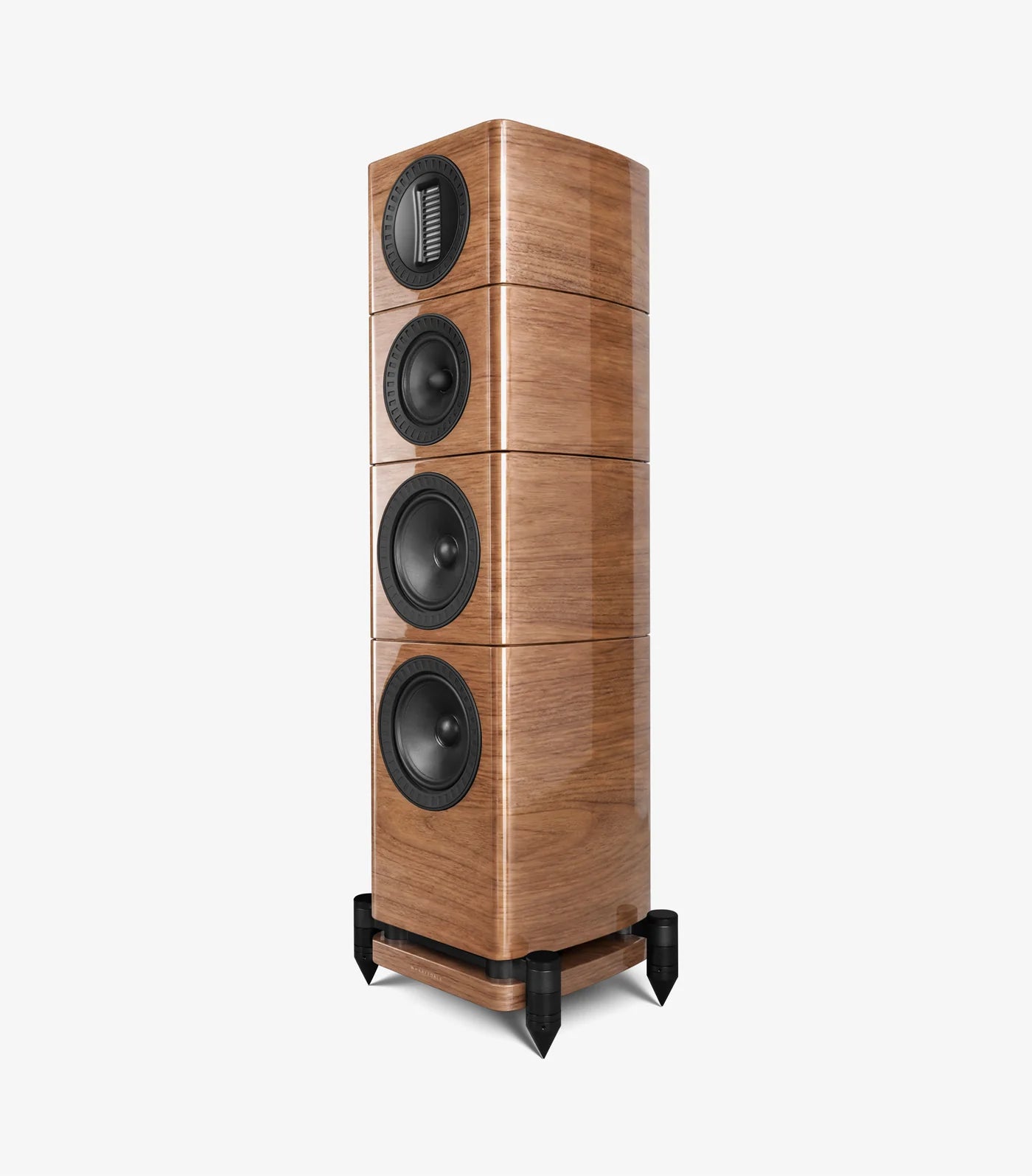

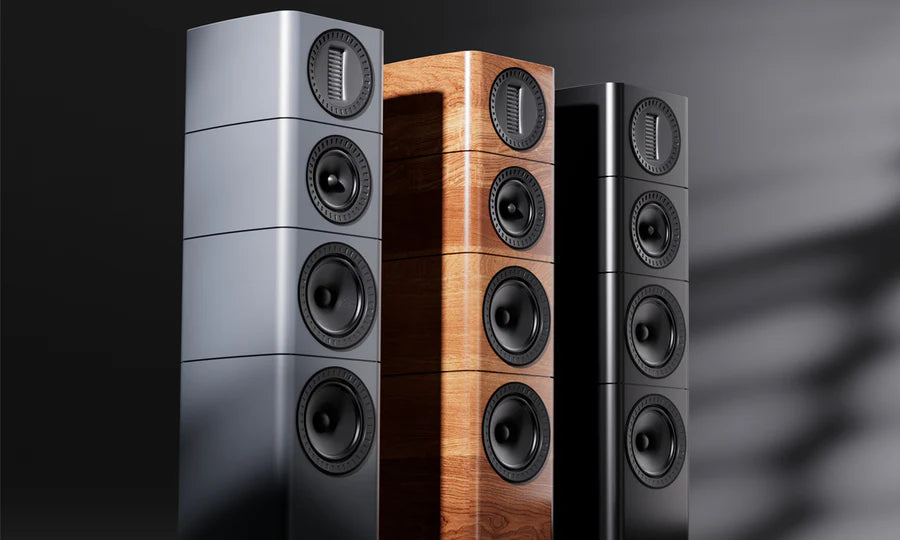

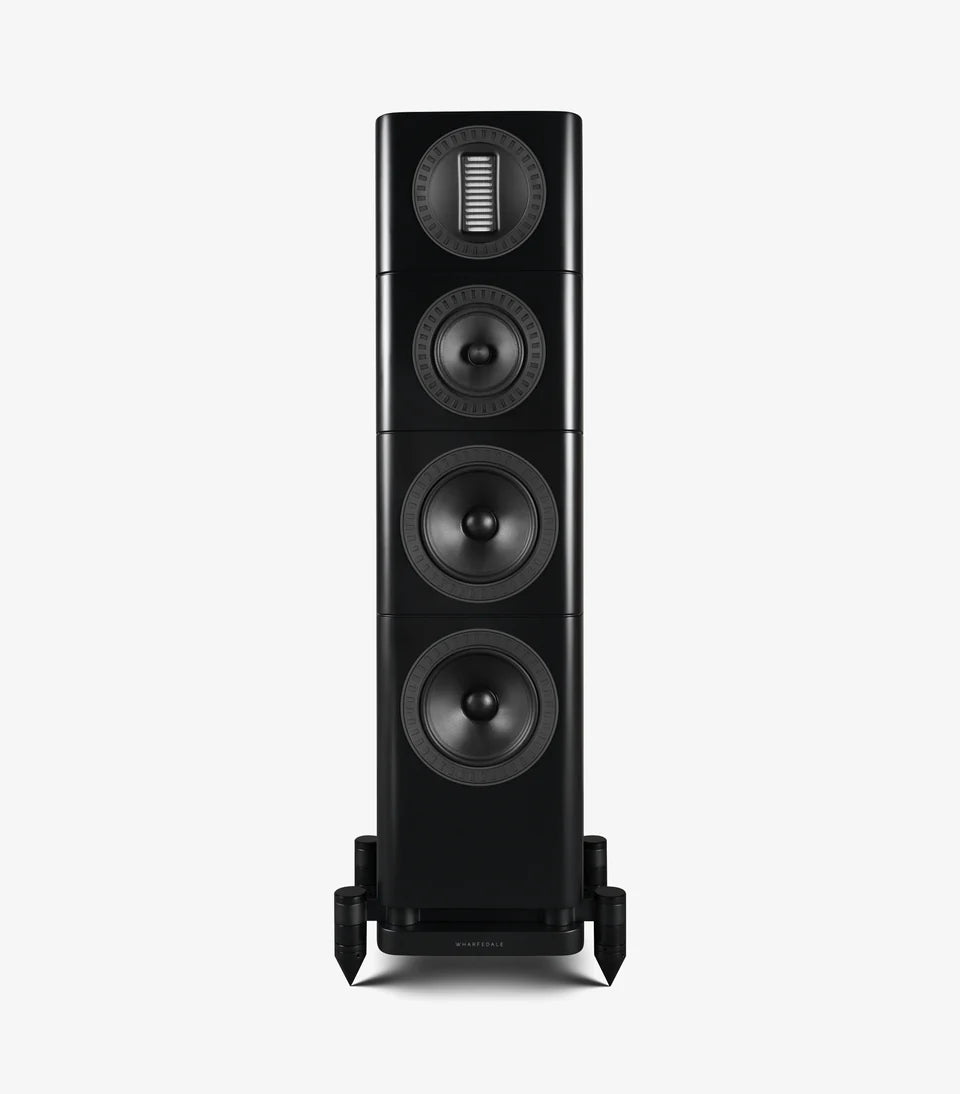

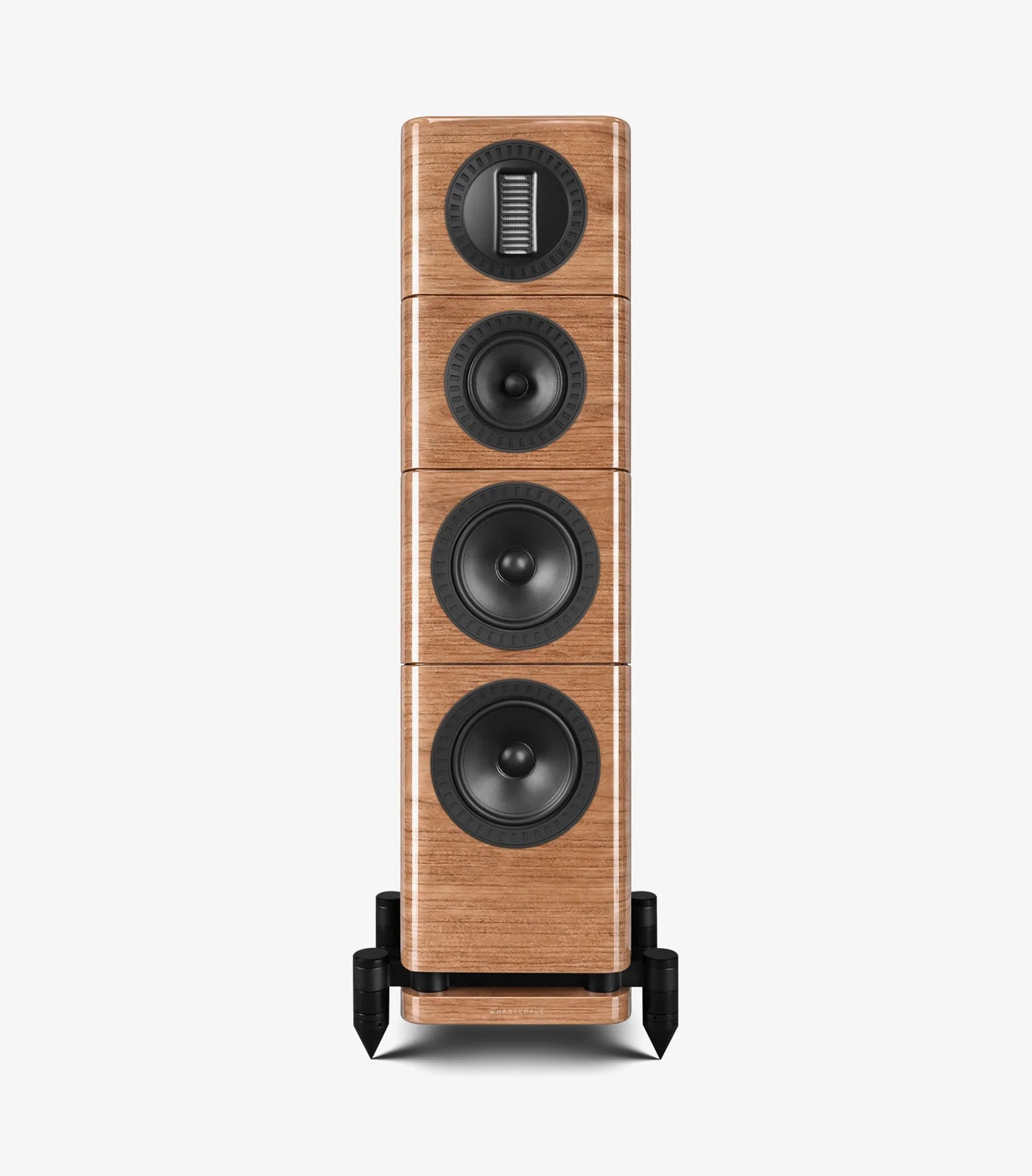

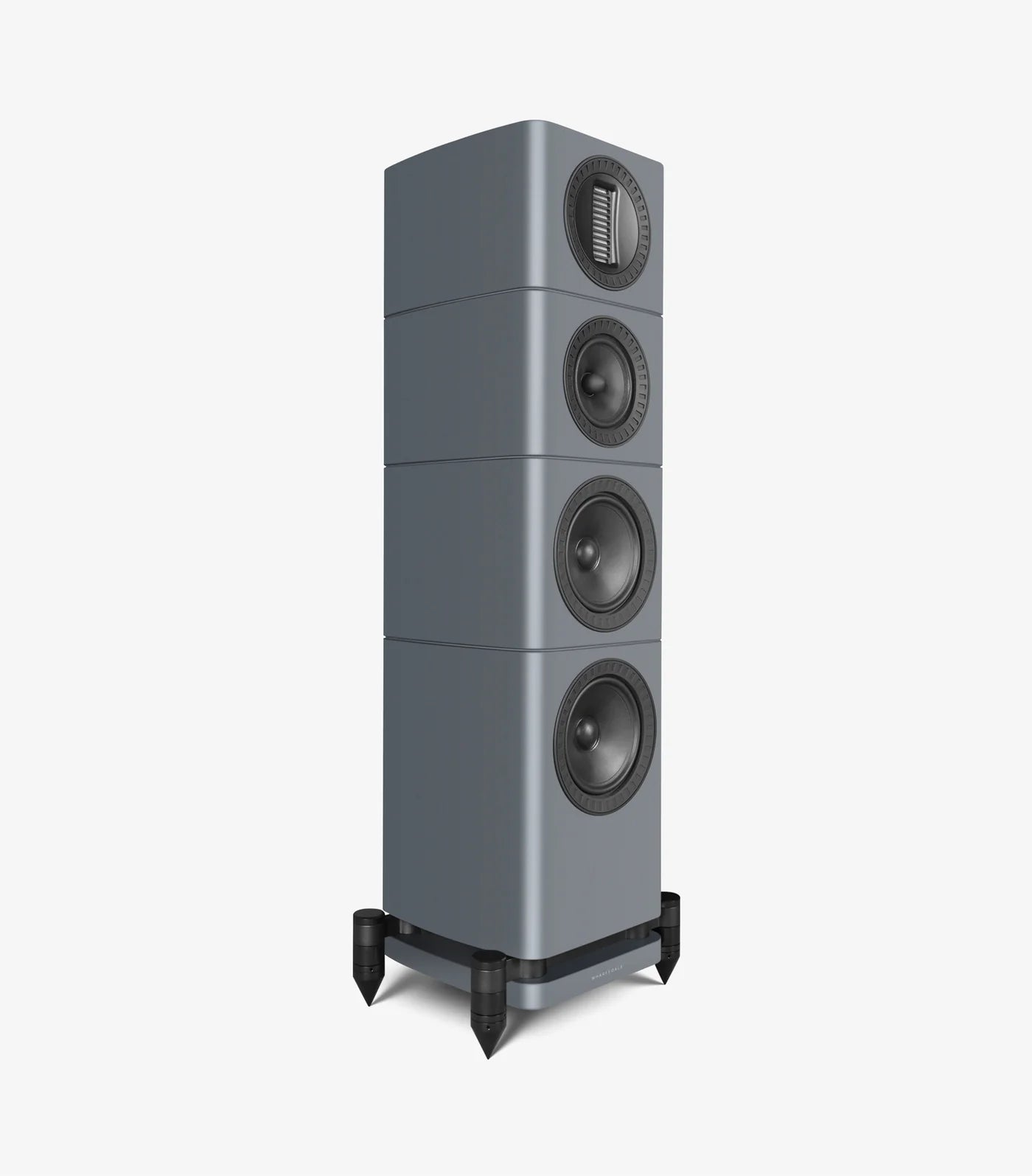

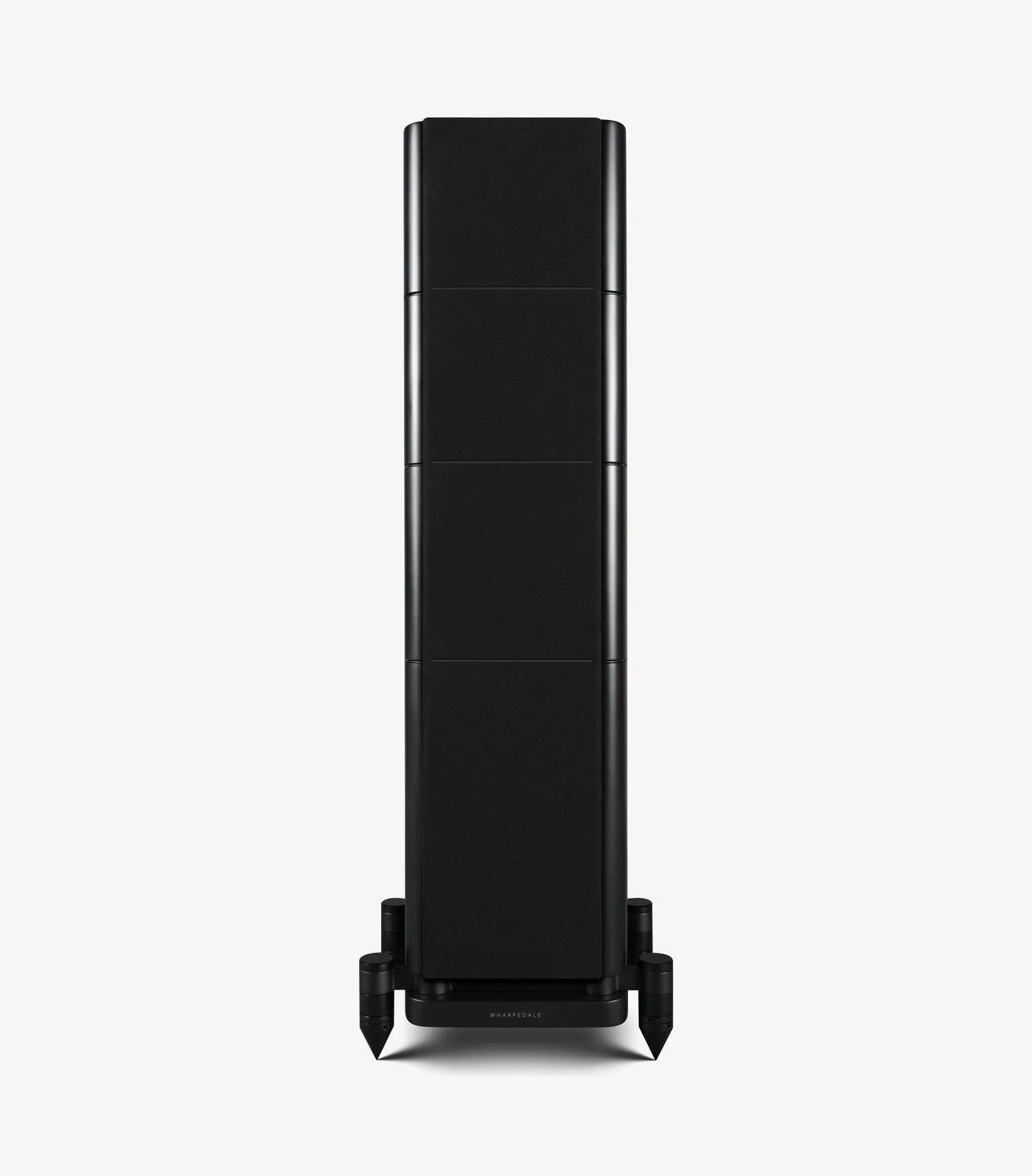

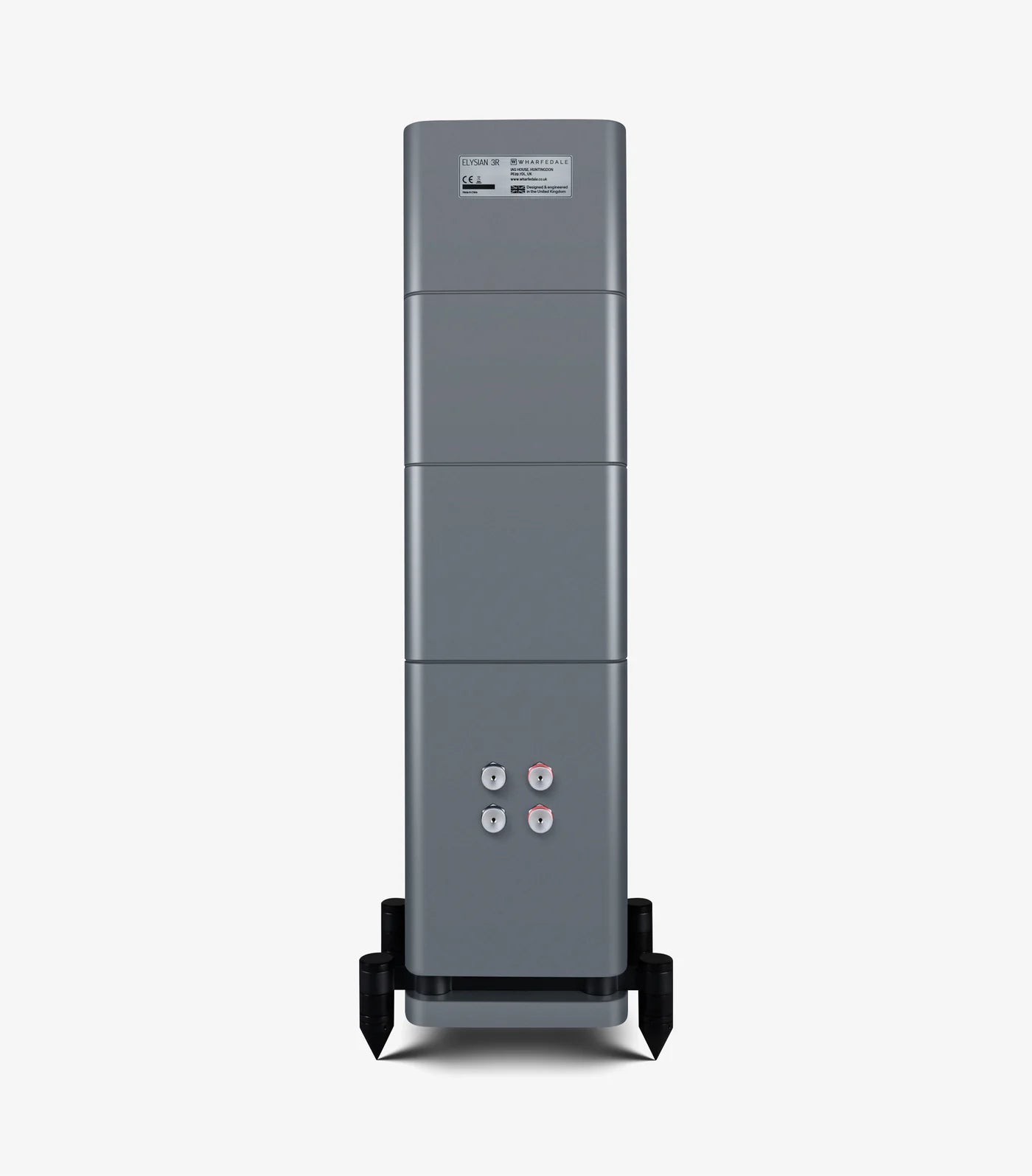

ELYSIAN 3R is available in Walnut High Gloss, Matte Black, and Lunar Grey, with stylish matte-black trim details.

TECHNINIAI DUOMENYS

Model    ELYSIAN 3R
General Description    3-way floorstanding speaker
Enclosure Type    Bass reflex
Transducer Complement    3-way
Low Frequency Driver    7" (180mm) coated glass fibre
matrix cone x 2
Midrange Driver    6" (150mm) coated glass fibre
matrix cone
High Frequency Driver    27 x 90mm AMT
Sensitivity (2.83V @ 1m)    89dB
Recommended Amplifier Power    30-200W
Peak SPL    108dB
Nominal Impedance    4Ω (compatible 8Ω)
Minimum Impedance    2.3Ω
Frequency Response (+/-3dB)    44Hz - 22kHz
Bass Extension (-6dB)    35Hz
Crossover Frequency    375Hz, 2.9kHz
Cabinet Volume (in litres)    9.4L, 35L
Dimensions (mm)
Height (on plinth)    1050mm
Width (on plinth)    263mm
Depth (with terminals)    (285+30)mm
Carton Size    425 x 415 x 1155mm
Net Weight    28.45kg/pcs
Gross Weight    35.37kg/ctn

DOKUMENTAI

Vartotojo vadovas (EN)
