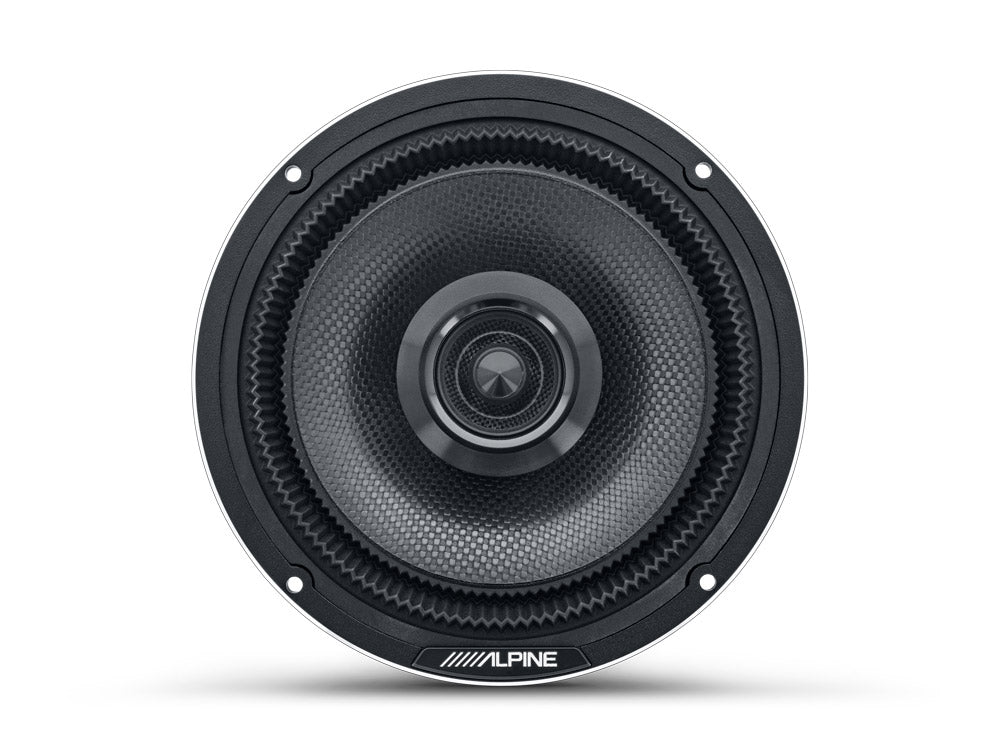

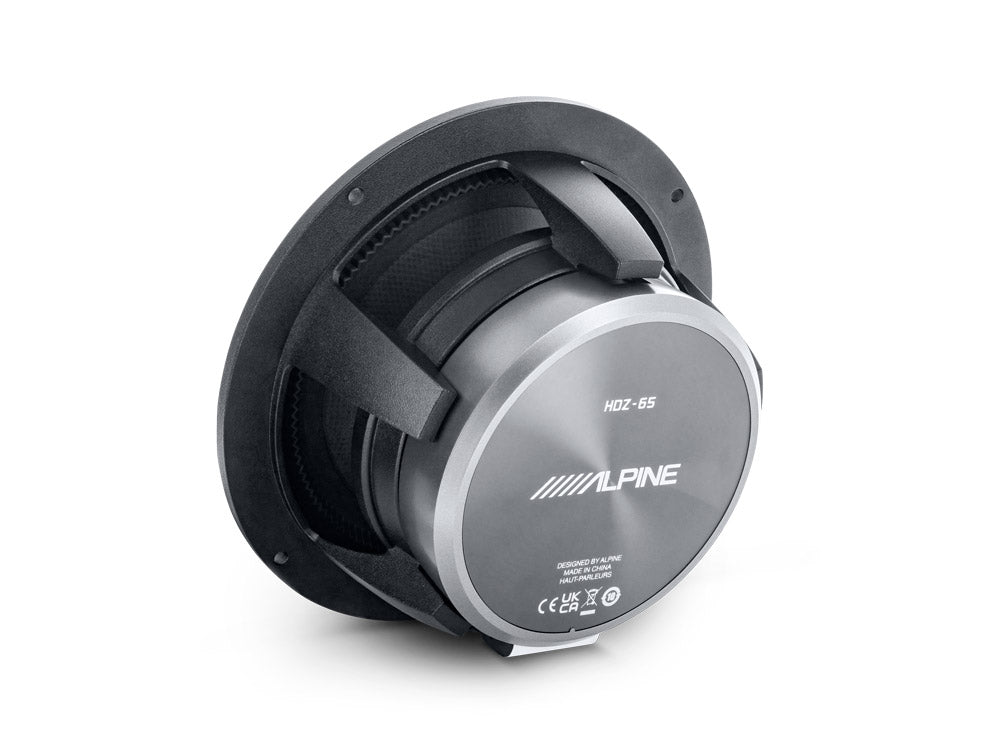

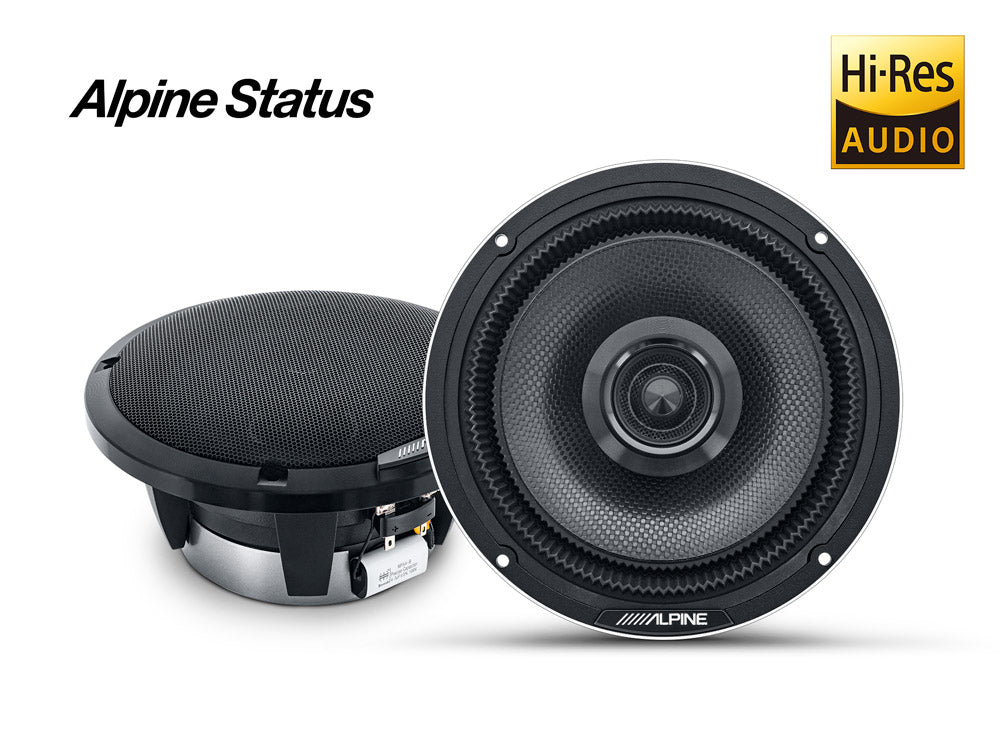

Alpine HDZ-65 car coaxial speaker
Alpine HDZ-65 car coaxial speaker is backordered and will ship as soon as it is back in stock.
▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.
Home delivery from €4.99
Home delivery from €4.99
Venipak courier within 1-2 working days.
Collect in store €0
Collect in store €0
Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00
Alpine HDZ-65 car coaxial speaker
- INFORMACIJA
- DESCRIPTION
- TECHNICAL DATA
- DOCUMENTS
Alpine Introduces All-New Alpine Status Sound System: Alpine developed the Alpine Status using the same engineering and design concepts used in the third-generation ultra-high-resolution AlpineF#1Status system to achieve high-resolution sound. at a more affordable price. In addition, the Alpine Status system is extremely flexible: all components can be purchased and used separately.
- Recommended amplifier power: 10 0-300W.
- Frequency band: 55Hz-40Hz.
- Sensitivity: (1W/1m): 88dB.
- Resistance: 4 Ω.
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Coaxial 2-Way Speaker System
Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver the highest audiophile sound quality up to 40kHz in your vehicle. The 2-way coaxial system consists of 170mm door woofers with integrated 40mm tweeters.
Carbon Fiber Cones
All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.
Alpine Status Full System
Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.
Double-Gathered Edge
Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.
40mm tweeter
The integrated 40mm Hi-Res Audio tweeters sound simply amazing and play up to 40kHz. They include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.
Studio Recording Spec
Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician's subtle interaction with an instrument. This capability not only reproduces music to the artist's original intention, but emulates the experience of a studio recording in the vehicle.
SPECIFICATIONS
Features
- Hi-Res Audio certified 2-Way coaxial speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts
- Woofer diameter: 170mm (177mm with attached grill)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge
- Included speaker grills
- Integrated Wave Guide on tweeters
Specifications
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz - 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
