Clearaudio

Clearaudio nano phono headphone V2, phono equalizer with headphone output

€490.00 EUR

Clearaudio nano phono headphone V2, phono equalizer with headphone output - Black / nano phono headphone V2 - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

The Clearaudio nano phono headphone V2 is a high-quality phono equalizer that ensures clean and detailed sound reproduction, regardless of external interference.

Handmade assembly in Germany using the highest quality SMD components.
Signal-to-noise ratio up to 84 dB, ensuring exceptional sound quality.
Changeable input impedance with connectors to allow use of both MM and MC.
Powerful headphone amplifier (with Nano Phono Headphone V2 version) that allows you to listen to music privately, with the highest sound quality.
Maximum output voltage – 10V eff. (1kHz) , adjustable from 0 to 10.
The housing is made of sturdy aluminum in silver and black, ensuring durability and resistance to external interference.

The nano phono V2 phono stage isn't ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.

Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.

The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminum housing for private listening at the highest fidelity.

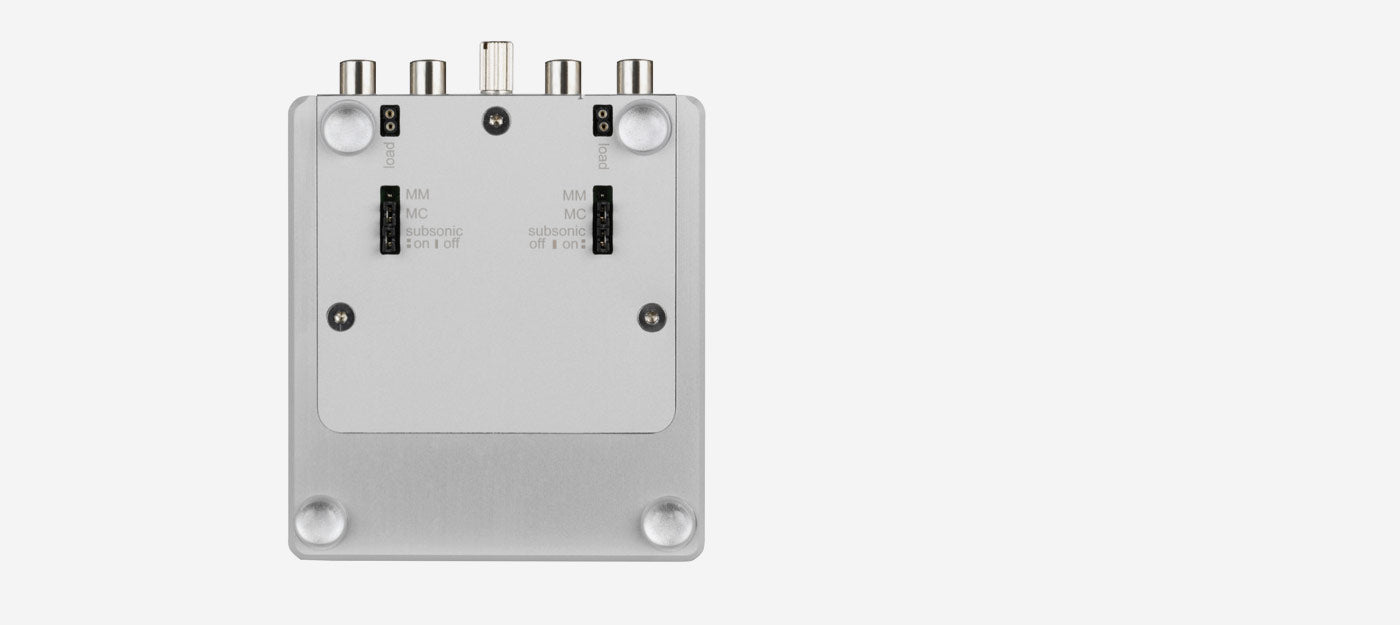

Mode: MM / MC switchable by jumpers (at bottom)
Subsonic filter switchable by jumpers (at bottom)
Amplification: 34dB (MM mode)
54dB (MC mode)
Input load: 47 kΩ/ 220pF / MM mode
User MC mode
RIAA accuracy: ± 0.4dB @ 20Hz - 50kHz
THD: < 0.04%
Signal to noise ratio: 81dB (A) (MM mode)
70dB (A) (MC mode)
Headroom: 18dB/MC
Max. output voltage: 10V eff (1 kHz)
RIAA: Nach RIAA (Zeitkonst.: 75µs / 318µs / 3180µs)
Channel separation: > 80dB @ 1kHz
Output impedance: 75Ω

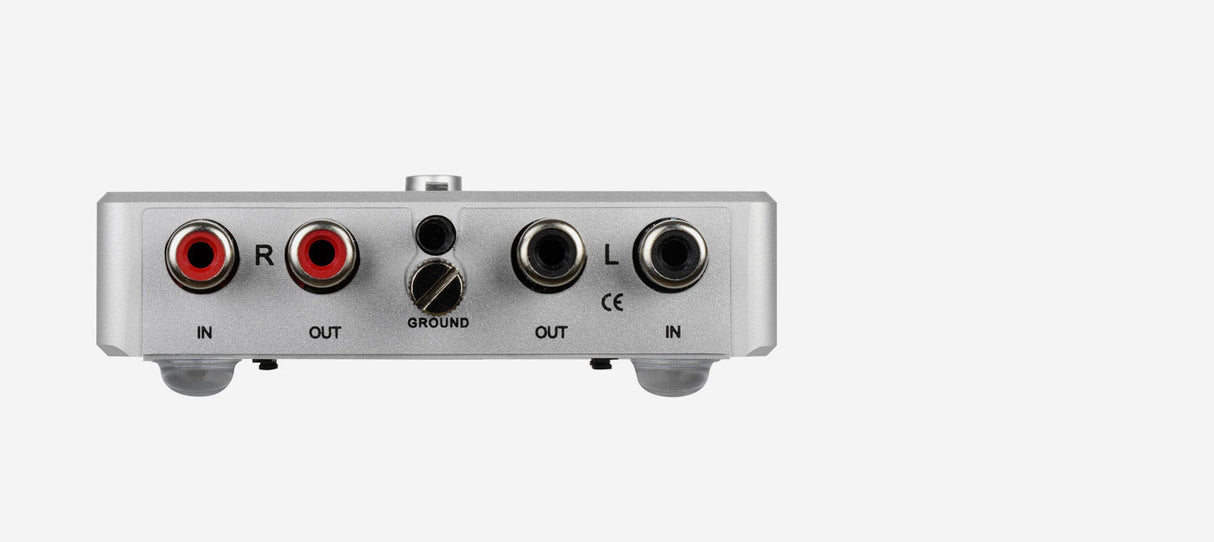

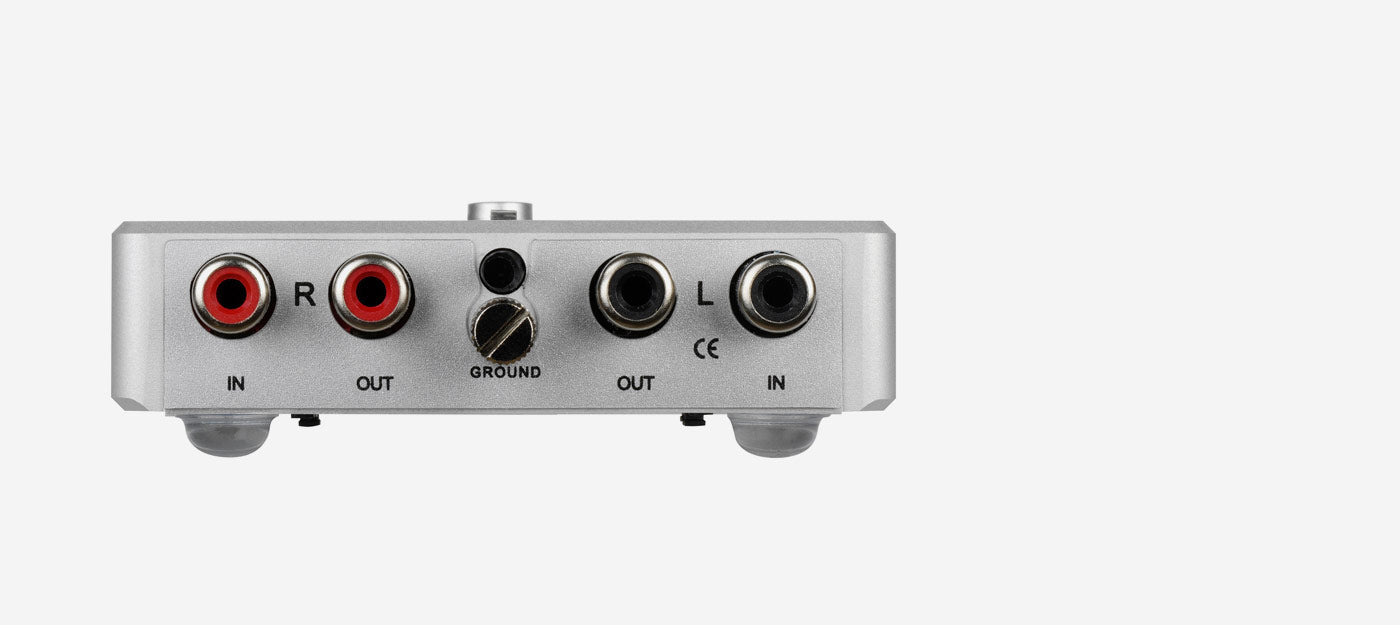

Inputs: unbalanced (RCA)
Outputs: unbalanced (RCA)
optional headphone output (Jack: 3.5mm)
Power consumption: Max. consumption: 2.3 Watt
In operation: 2.3 Watt
Standby mode: < 0.3 Watt
Off mode: 0.0 Watt
Power supply: ±18V DC / 300mA
(external power supply)
Total weight: Approx. 500g (Preamp and power supply)
Dimensions (W/D/H): Approx. 3.35 × 4.17 × 0.98 inches
Dimensions (W/D/H): Approx. 85×106×25mm

User manual (EN)
