Observation NTSC 1/3 inch Sony AHD, front camera

€224.00 EUR

Observation NTSC 1/3 inch Sony AHD, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

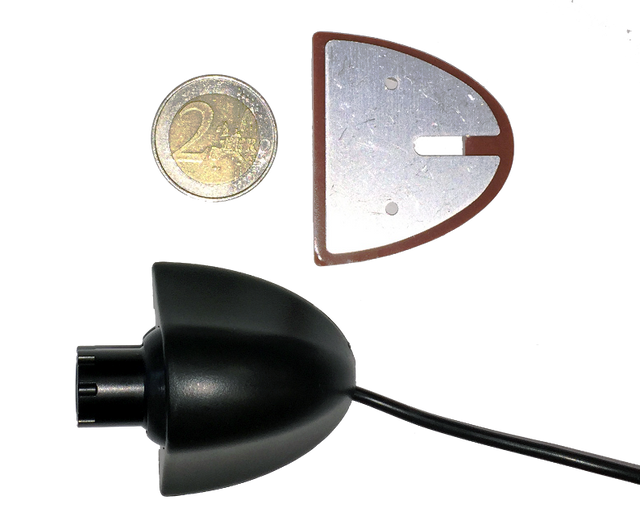

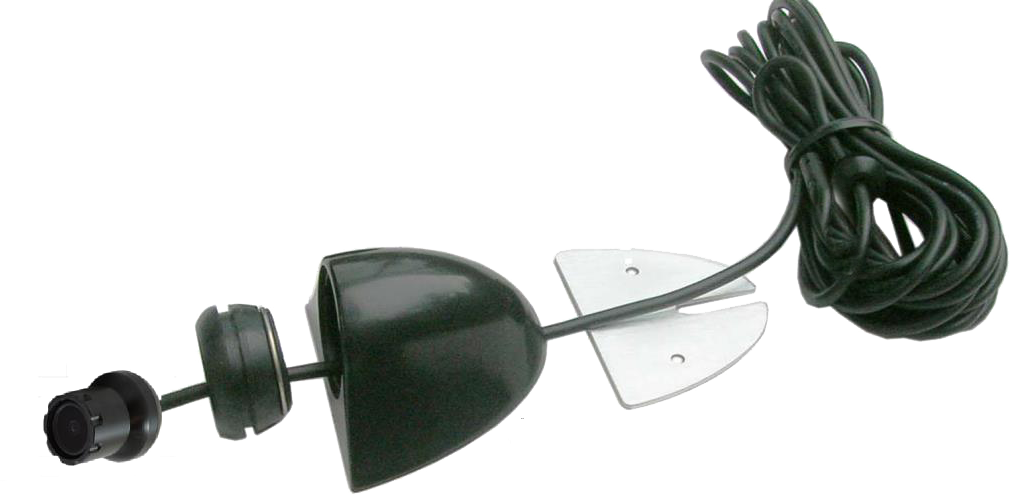

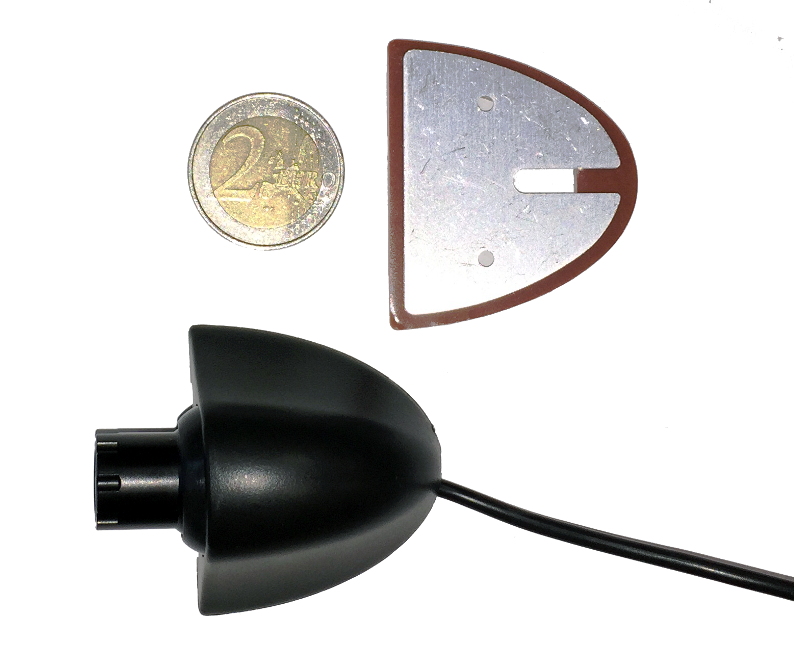

Front camera that can work in mirror mode. The camera can also be used as a rear camera.

  • Sensor: 1/3 inch Sony AHD.
  • Resolution: 1280x960.
  • Resistance standard IP 69K.
  • Cable length: 7.7 m.
  • Video RCA connector.


TECHNICAL DATA

Product features

  • Mini observation camera
  • Sensor type 1/3 inch Sony AHD sensor with narrow angle
  • Picture format NTSC color
  • Resolution 1280x960 Pixel
  • Angle horizontal 65°, diagonal 80°
  • Unmirrored picture (fixed)
  • Protection class IP69K
  • Suitable for permanent operation
  • Housing and camera color black
  • Total cable length about 7.70 m
  • Video-connector RCA male connector
  • System connector camera 4pin BM
  • Diameter camera connector 5mm

Specifications

Operating voltage 5V~15V
Current consumption 80mA
Weight incl. cable about 225 g
Operating temperature range -20°C to +65°C
Dimensions camera only 28 x 19 x 19mm (W x H x H)
Dimensions camera with housing
 54 x 47 x 28mm (W x H x H)
