Ortofon

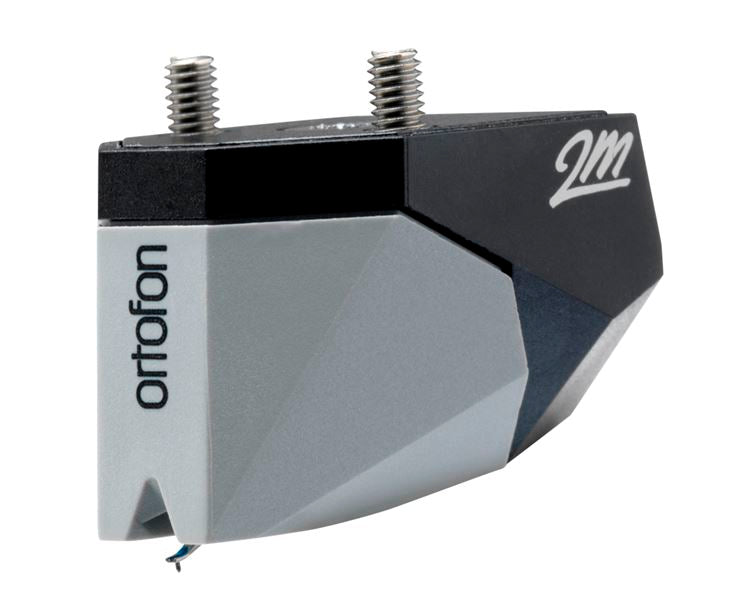

Ortofon 2M 78 Verso, turntable head

€177.45 EUR

Ortofon 2M 78 Verso, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Enter the exclusive world of the famous Ortofon moving coil sound!

  • Stylus type: Spherical .
  • Frequency band: 20-20.000 Hz + 3 / - 1 dB.
  • Pressure power: 1.6-2.0g (16-20 mN) .

2M 78

The 2M 78 features an improved engine , which provides a high level of sonic accuracy. The stylus' tip is a Spherical diamond that is perfect for playback of 78 rpm shellac records , which require a larger stylus profile. The cartridge body is manufactured from Hopelex, which ensures high rigidity while eliminating unwanted resonances.

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.


SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 4 mV
  • Frequency response - 20-20,000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 70 µm
  • Compliance, dynamic, lateral - 18 µm/mN
  • Stylus type - Spherical
  • Stylus tip radius - R 65 µm
  • Tracking force range - 1.6-2.0g (16-20 mN)
  • Tracking force, recommended - 1.8 g (18 mN)
  • Internal impedance, DC resistance - 700 Ohm
  • Internal inductance - 350 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Tracking angle - 20°
  • Cartridge color, body/stylus - Black/Grey
  • Cartridge weight without screws - 7.2 g
  • Premounted cartridge weight - 16.7 g

INSTRUCTIONS

User Manual (EN).
