Ortofon

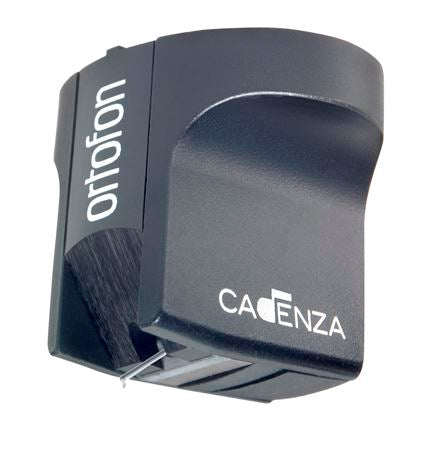

Ortofon MC Cadenza Black, turntable head

€3,673.95 EUR

Ortofon MC Cadenza Black, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The Cadenza Black is optimized to provide excellent tonal neutrality, dynamics and sound purity.

  • Stylus type: Nude Shibata on Boron cantilever
  • Frequency band: - 20 Hz - 20 kHz - +1.5/0 .
  • Pressure power: 2.0-2.5 g (20-25 mN) .

The Cadenza Black model uses a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminum.
It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression and MC A95 cartridges, controlling the high and low frequency damping separately.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Cadenza Black is high performing in areas like detail, consistency and sound staging.


SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.33 mV
  • Channel balance at 1 kHz - < 0.8 dB
  • Channel separation at 1 kHz - > 27 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency response 20 Hz - 20 kHz - +1.5/0
  • Tracking ability at 315Hz at recommended tracking force *) - 90 µm
  • Compliance, dynamic, lateral - 16 µm/mN
  • Stylus type - Nude Shibata on Boron cantilever
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 2.0-2.5 g (20-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
    *) Typical value
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 10 Ohm
  • Cartridge body material - Stainless steel Aluminum
  • Cartridge color - Black/Black
  • Cartridge weight - 10.7 grams

INSTRUCTIONS

User Manual (EN).
