Ortofon

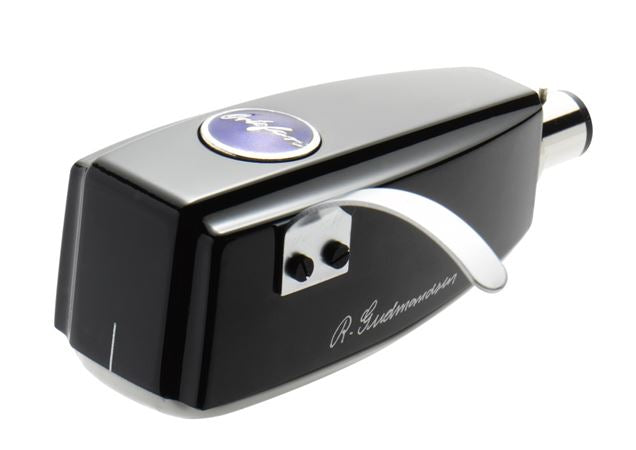

Ortofon SPU Meister Silver G MkII, turntable head

€2,098.95 EUR

Ortofon SPU Meister Silver G MkII, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The cartridge incorporates high-purity 6-nine silver wire (99.9999% purity) for a more open and revealing high-end sound.

  • Frequency range - 20 - 20,000 Hz +2/-1 dB .
  • Stylus type- Nude Elliptical .
  • The recommended tracking force is 3.0-5.0 g (30-50 mN) .
  • Tracking angle - 20°.

The SPU Meister Silver G MkII has been improved on coil winding material, stylus and magnet.

The cartridge has been outfitted with high purity multi-conductor 6-nines Silver wire (of a purity of 99.9999%) for a more open and revealing high end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.
The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.

SPECIFICATIONS

  • Output voltage at 1000 Hz 5cm/sec - 0.3 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency response 20 - 20,000 Hz +2/-1 dB
  • Tracking ability at 315 Hz at recommended tracking force *) > 70 μm
  • Compliance, dynamic, lateral - 8 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force recommended - 4.00 g (40 mN)
  • Tracking angle - 20º
  • *) Typical value
  • Internal impedance, DC resistance - 3 ohm
  • Recommended load impedance > 10 ohm
  • Coilwire material - Silver, 6-nines
  • Cartridge body material - Ground wood and resin composite
  • Cartridge color - Shiny black
  • Cartridge Weight - 28 grams

INSTRUCTIONS

User Manual (EN).
