Ortofon

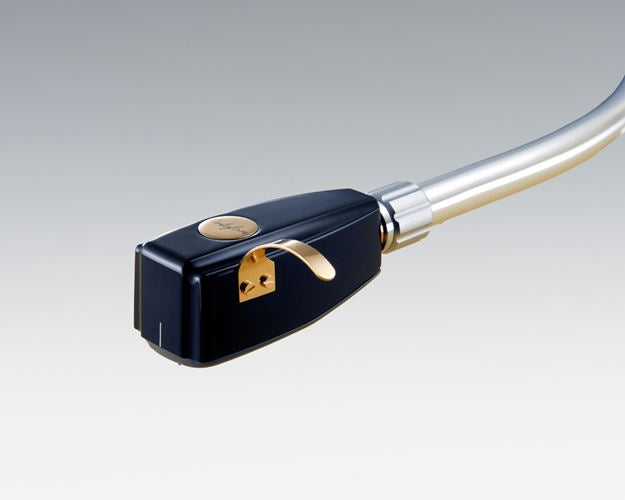

Ortofon SPU Synergy G, turntable head

€2,308.95 EUR

Ortofon SPU Synergy G, turntable head is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The SPU Synergy's body is made of wood and has a modified generator system that allows a maximum output of 0.5mV, eliminating the need for a high gain transformer or active preamplification systems.

  • Frequency range - 20-20,000 Hz ± 2 dB .
  • Stylus type- Nude Elliptical .
  • The recommended tracking force is 3.0-4.0 g (30-40 mN) .
  • Tracking angle - 20°.

The SPU Synergy G modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.5 mV
  • Channel balance at 1 kHz < 1.5 dB
  • Channel separation at 1 kHz > 23 dB
  • Channel separation at 15 kHz > 15 dB
  • Frequency response - 20-20,000 Hz ± 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 3.0-4.0 g (30-40 mN)
  • Tracking force, recommended - 3.5 g (35 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2 ohm
  • Recommended load impedance - 10 - 50 ohm
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge color - Shiny Black
  • Cartridge weight - 28 g

INSTRUCTIONS

User Manual (EN).
