Paradigm

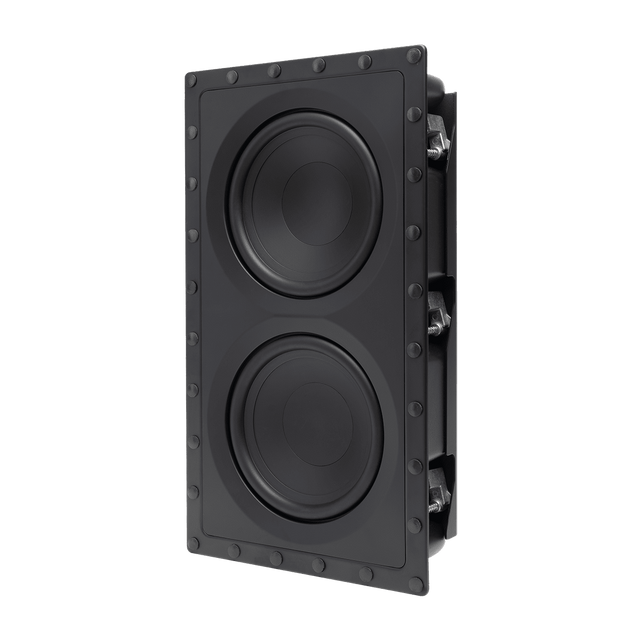

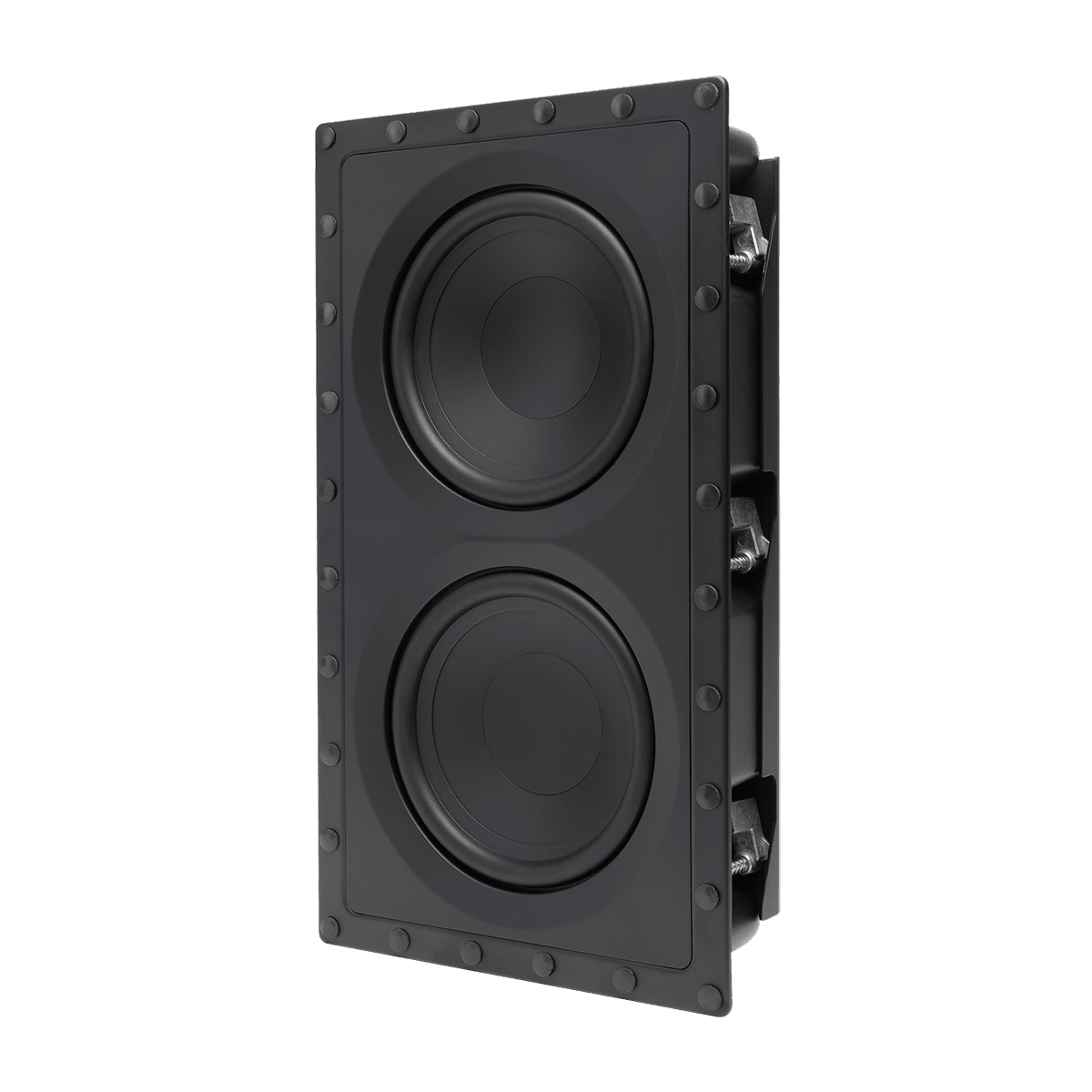

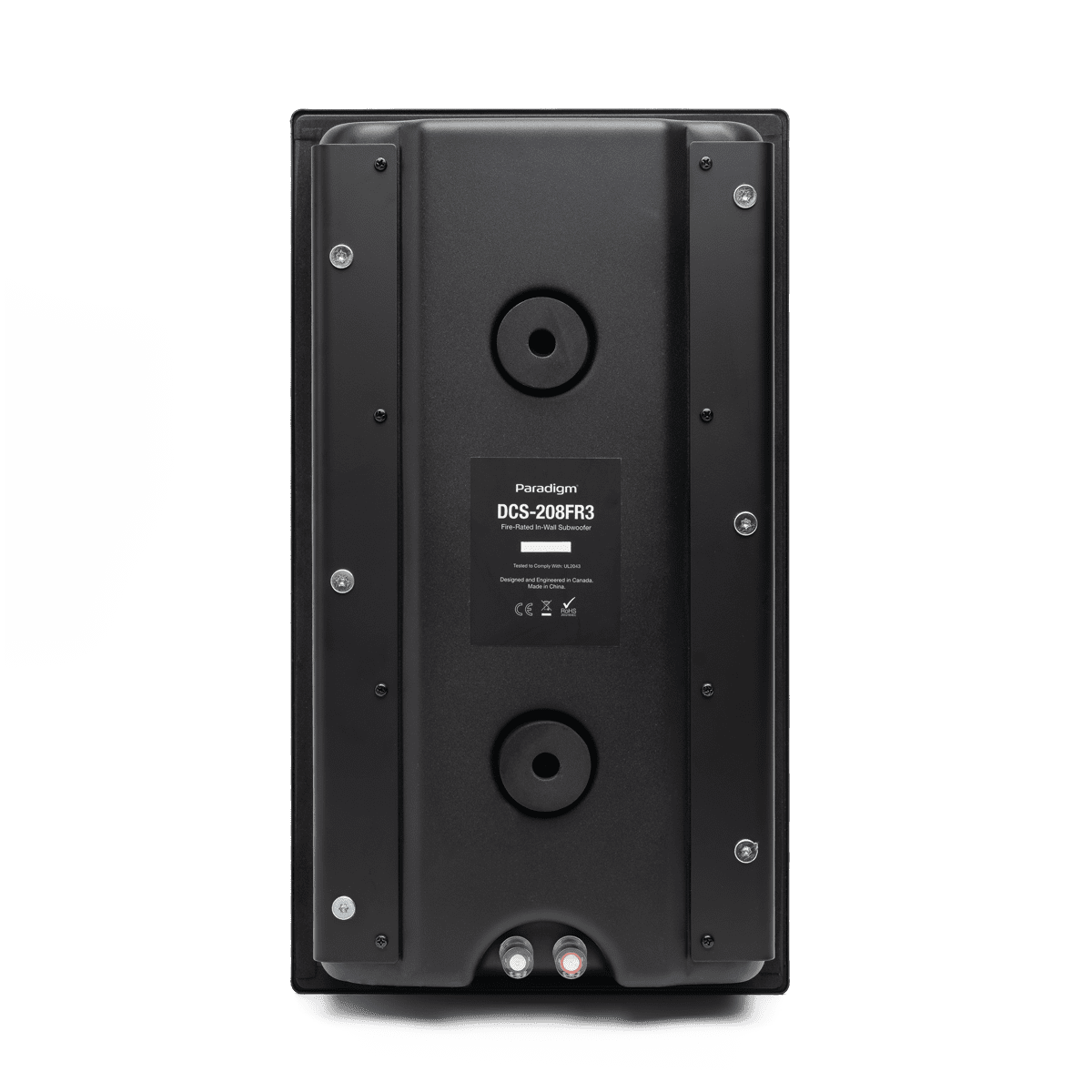

Paradigm DCS-208FR3, wall mounted speaker (installation depth: 9.8 cm.)

€1,017.45 EUR

Paradigm DCS-208FR3, wall mounted speaker (installation depth: 9.8 cm.) is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Paradigm's DCS-208FR3 is the perfect combination of performance and practicality. Powerful bass and zero footprint is the best of both worlds, so you can add bass to any room without taking up valuable floor space.

  • Recommended amplifier power: 50-600W.
  • Cutout dimensions: 45.7cm x 24.5cm .
  • Minimum installation depth: 9.8 cm.


Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.


Dual Directional Soundfield™


30°-Angled Guided Soundfield™

Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theater system.

Other Features:
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Rigid ABS clamps simplify and reduce installation time. ABS sandwiches and strengthens the area around the mounting hole, removing unwanted resonance and vibrations.
Available pre-construction brackets and square grille accessories provide the utmost installation flexibility.


Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.



Magnetically attached grills: neodymium magnets hold grilles firmly in place. Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC

Paradigm is partnered with Canada's world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.



SPECIFICATIONS


DESIGN Dual 8" high-excursion drivers, in-wall, GRIP™ chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.)
LOW FREQUENCY EXTENSION 35 Hz (DIN)*
LOW FREQUENCY DRIVER Two 210-mm (8 in) CFP™ carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR™ surrounds, 38-mm (1-1/2 in) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures
SUITABLE AMPLIFIER POWER RANGE 50-600 W
MAXIMUM INPUT POWER 300W
WEIGHT 26.7lbs (12.5kg)
FINISHES White, paintable
OVERALL DIMENSIONS 19-1/8” x 10-3/4” x 4.5” (48.5cm x 27.2cm x 11.5cm)
CUT-OUT DIMENSIONS 18” x 9-5/8” (45.7cm x 24.5cm)
MINIMUM MOUNTING DEPTH 3-7/8” (9.8cm)
RECOMMENDED AMPLIFIERS MDX-8, MDX-16, X-300
INTERNAL VOLUME 7.5L
FREQUENCY RESPONSE +/-3dB from 77->190 Hz




INSTRUCTIONS

User Manual (EN).
