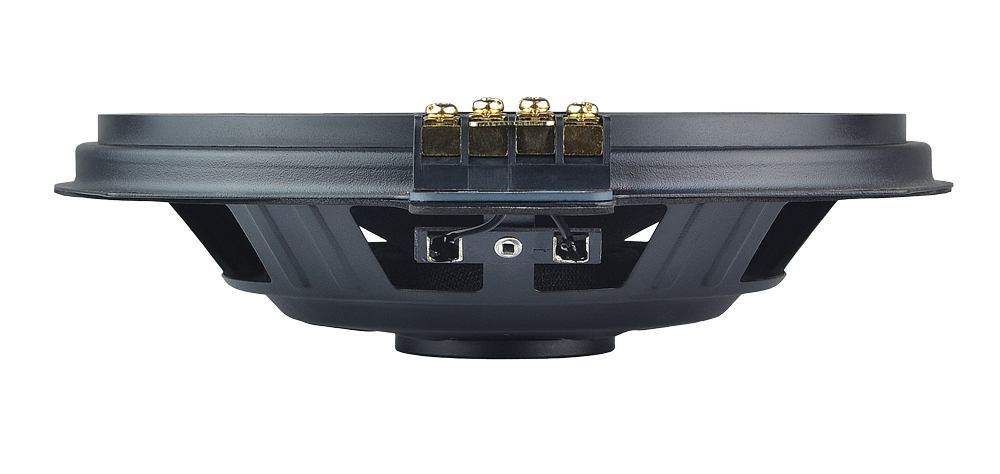

Helix Match MW 8BMW-D, 400W, 20cm žemų dažnių garsiakalbis
Helix Match MW 8BMW-D, 400W, 20cm žemų dažnių garsiakalbis is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Helix Match MW 8BMW-D, 400W, 20cm žemų dažnių garsiakalbis
Highlight title
Text to highlight a key feature of your product
Description
Description
Helix Match MW 8BMW-D, 20cm automobilinis žemo dažnio garsiakalbis yra ne tik idealus atnaujinimas tiems, kurie nepatenkinti savo BMW žemaisiais dažniais, bet ypač tiems, kurie nori įgyvendinti precedento neturinčias erdvę taupančias montavimo koncepcijas.
- Tinkantys visiems BMW modeliams kuriuose yra 20cm garsiakalbiai po sėdynėmis.
- Rekomenduojama naudot su DSP garso reguliavimu.
- Galia: RMS 200 / MAX 400W
- Varža: 2 x 2 Ω
- Jautrumas: 1 W / 1 m SPL 90 dB
TECHNINIAI DUOMENYS
| Power RMS / max. | P | 200 / 400 Watts | |
| Impedance | Z | 2 x 2 Ω | |
| DC resistance | Re | 3.4 Ω | |
| Resonance frequency | Fs | 46 Hz | |
| Mechanical Q factor | Qms | 4.45 | |
| Electrical Q factor | Qes | 0.59 | |
| Total Q factor | Qts | 0.52 | |
| Compliance | Cms | 272 µm/N | |
| Equivalent air volume | Vas | 17.3 L | |
| Force factor | B*I | 8.6 Tm | |
| Efficiency 1 W / 1 m | SPL | 90 dB | |
| Cone area | Sd | 214 cm² | |
| Moving mass | Mms | 44.2 g | |
| Cone material | Hand-scooped paper cone | ||
| Mechanical resistance | Rms | 0.74 kg/s | |
| Voice coil diameter | ø | 42.5 mm | |
| Voice coil winding height | 12.5 mm | ||
| Max. linear excursion | Xmax | +/- 4.0 mm | |
| Outer diameter | ø | 239 mm / 9.41" | |
| Installation diameter | ø | 175 mm / 6.89" | |
| Installation depth | 40 mm / 1.57" | ||
| Recommended enclosure volumes | |||
| Sealed box | |||
| Net volume | 3 L | ||
| Lower limiting frequency (-3dB) | 63 Hz | ||
| DSP settings | - Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz - Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz |
||
| Vented box | For one subwoofer | For two subwoofers | |
| Net volume | 12 L | 24 L | |
| Port diameter | ø | 60 mm / 2.36" | 80 mm / 3.15 |
| Port area | 28 cm² | 50 cm² | |
| Port length | 25 cm / 9.84" | 20 cm / 3.94" | |
| Port tuning frequency | Fb | 46 Hz | 46 Hz |
| Lower limiting frequency (-3dB) | 45 Hz | 45 Hz | |
| DSP settings | - Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 - Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz |
||
APRAŠYMAI
Instrukcija Match MW 8BMW
