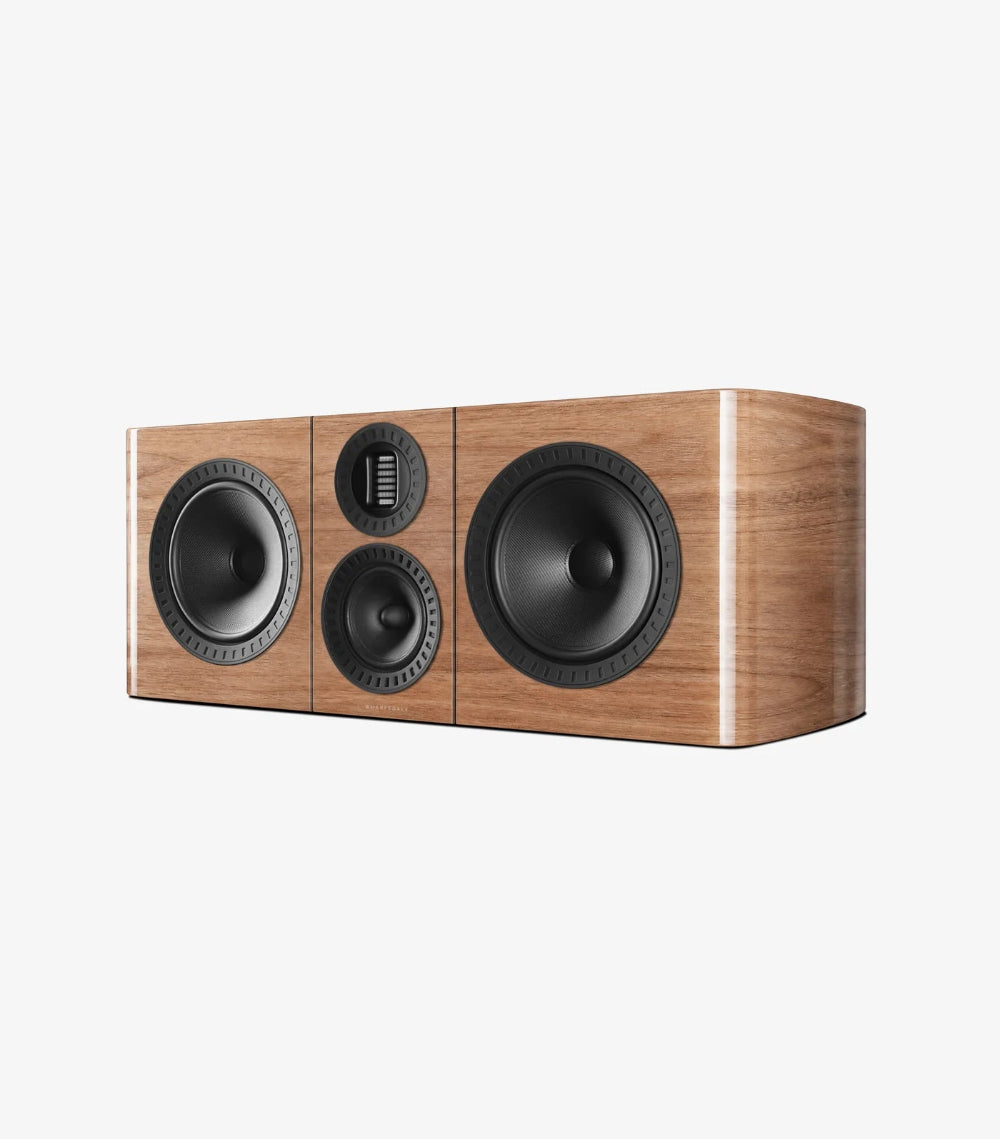

Wharfedale ELYSIAN CR, centrinė garso kolonėlė

INFORMACIJA

Wharfedale ELYSIAN CR - aukštos klasės centrinė garso kolonėlė, skirta ELYSIAN R serijos namų kino sistemoms. Trijų juostų konstrukcija su dviem 8,5 colio žemadažniais, 6 colių vidutinių dažnių garsiakalbiu ir AMT aukštadažniu užtikrina aiškius dialogus, natūralų vokalą ir puikų suderinamumą su kitais ELYSIAN serijos modeliais. Tai idealus pasirinkimas kuriant aukščiausios klasės namų kino sistemą.

Konstrukcija: 3 juostų centrinė garso kolonėlė (Bass Reflex)
Dažnių diapazonas: 35 Hz – 22 kHz (±3 dB)
Jautrumas: 91 dB (2.83 V / 1 m)
Rekomenduojama stiprintuvo galia: 25–250 W
Nominali varža: 6 Ω

Kaina nurodyta už 1 vnt.

APRAŠYMAS

The ELYSIAN CR is the dedicated centre-channel loudspeaker for the ELYSIAN R Series, engineered to deliver Wharfedale’s flagship sound to premium home cinema and multichannel music systems.

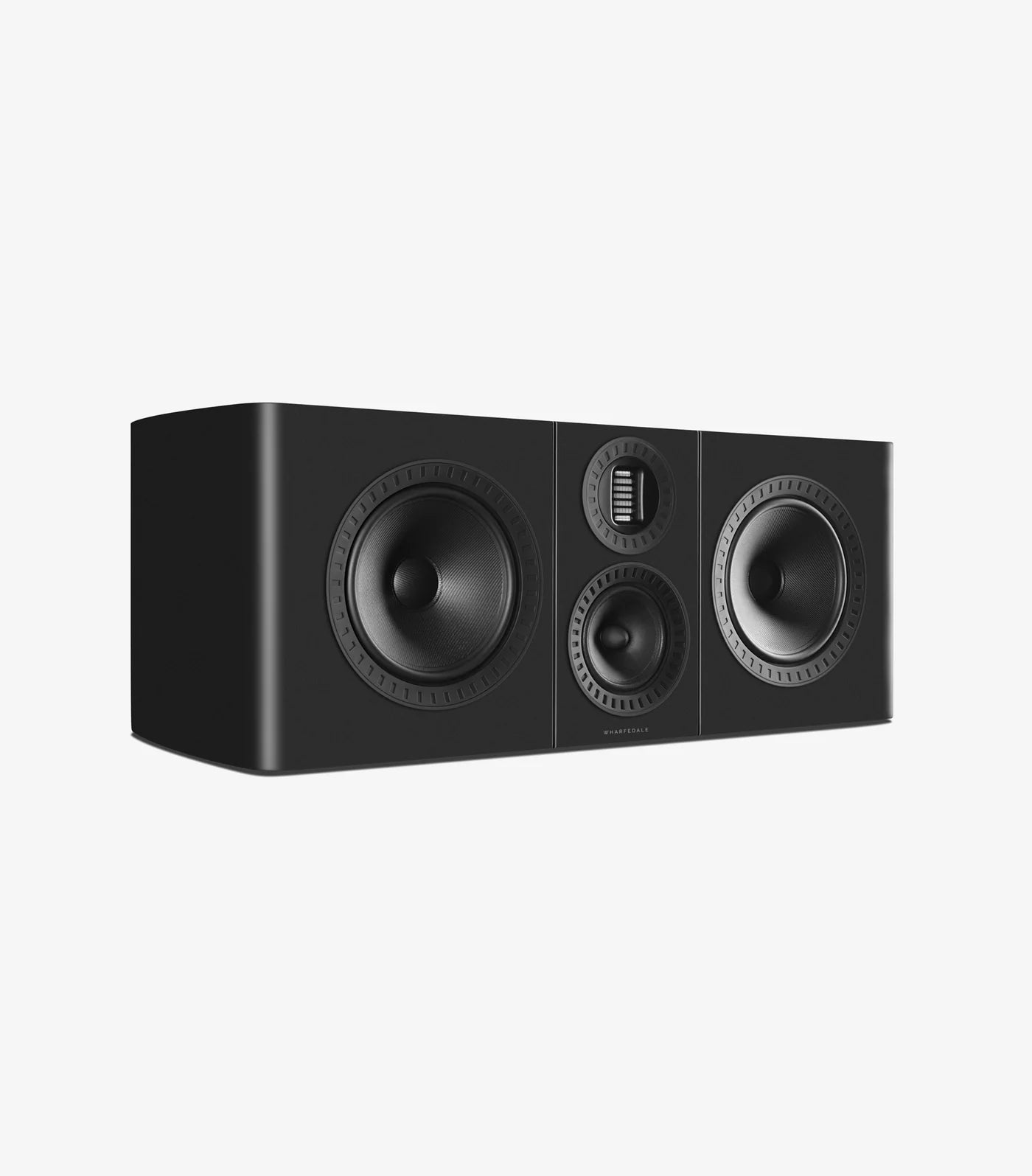

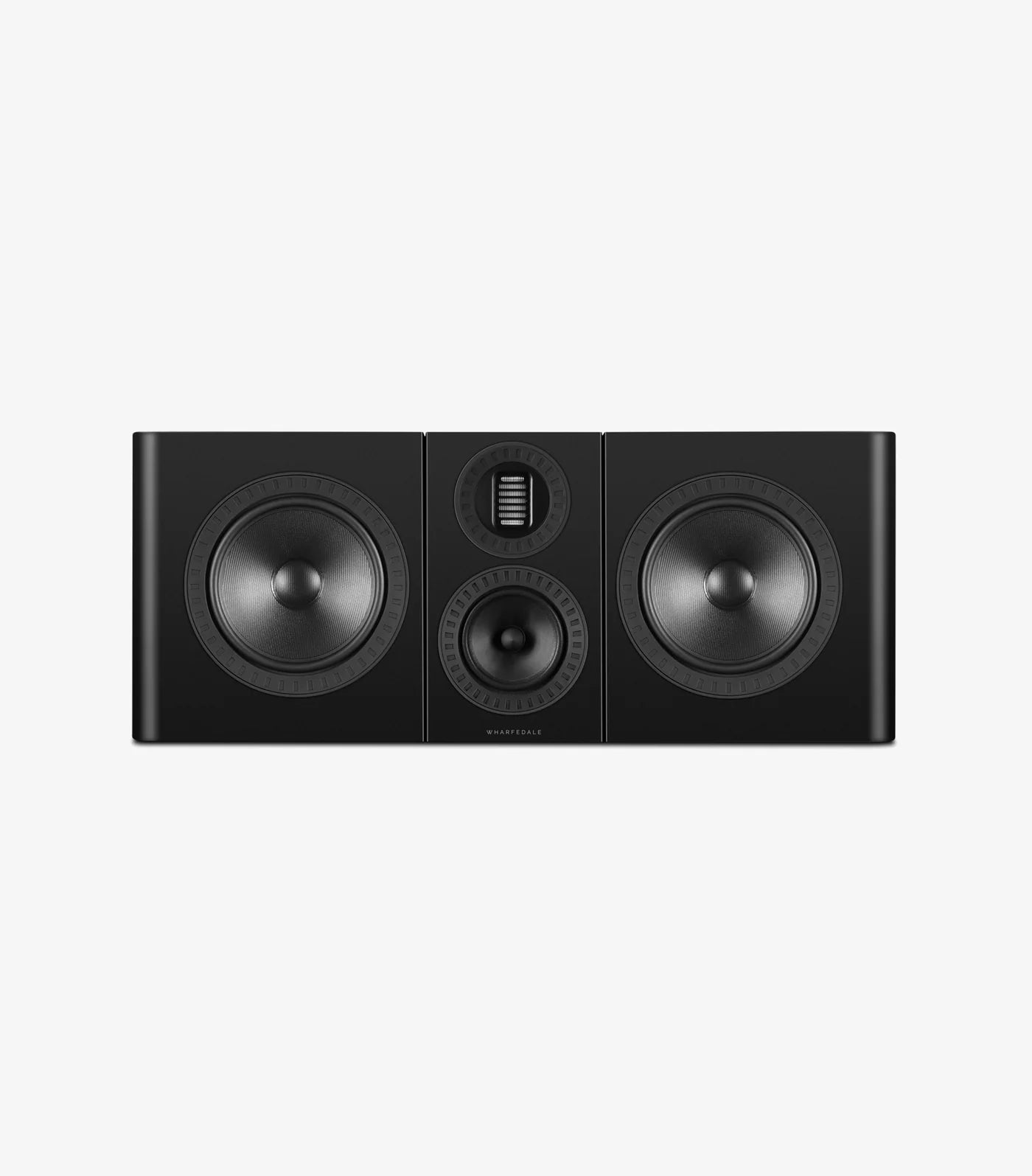

A true three-way centre speaker, ELYSIAN CR combines dual 8.5” coated glass fibre matrix bass drivers, a dedicated 6” coated glass fibre matrix midrange driver and a 27 x 45mm AMT high-frequency unit. It is designed to deliver dialogue with clarity and natural body, while preserving the scale, tonal balance and dynamic expression needed to match the wider ELYSIAN R system.

The story

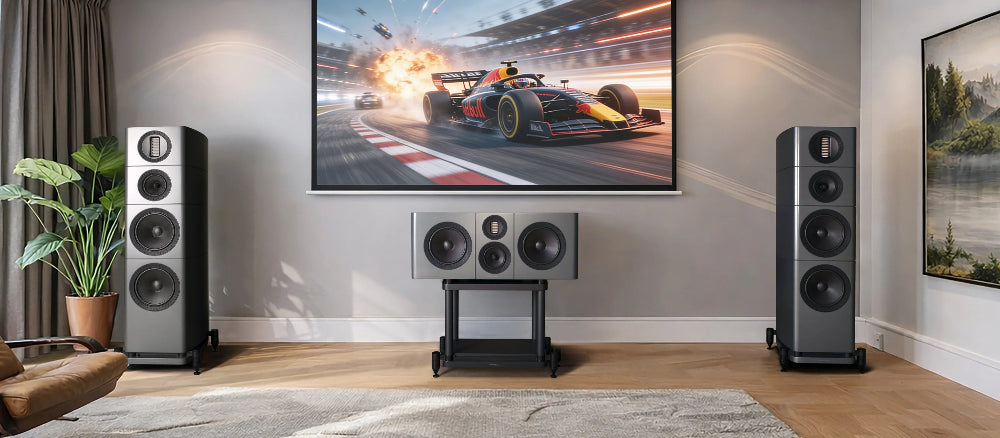

In a high-end home cinema system, the centre channel is critical. It carries dialogue, anchors the soundstage and connects the left and right speakers into a coherent front soundfield. For ELYSIAN R, that role demands more than a conventional centre speaker.
ELYSIAN CR uses a genuine three-way architecture, allowing the centre channel to reproduce voices and effects with the same clarity, authority and tonal refinement as the main ELYSIAN R models. The dedicated midrange driver ensures dialogue remains natural and intelligible, while the dual bass drivers provide weight and scale. The AMT treble unit delivers speed and openness, preserving fine detail without adding hardness.
Whether used with ELYSIAN 1R, 2R, 3R or 4R, ELYSIAN CR completes the system with a centre channel engineered to the same flagship standard.

True ELYSIAN R centre performance
Designed to match the tonal balance, refinement and dynamic character of the wider ELYSIAN R range.

Three-way driver architecture
Dedicated bass, midrange and treble sections help deliver clear dialogue, stable imaging and full-range authority.

Dual 8.5” bass drivers
Large coated glass fibre matrix bass drivers provide weight, depth and dynamic scale for film soundtracks and multichannel music.

Dedicated 6” midrange driver
The separate midrange unit ensures voices are presented with natural body, clarity and focus.
The bass and midrange drivers use coated glass fibre matrix cones, selected for their combination of strength, low mass and controlled damping. This helps deliver clean bass, natural midrange tone and low colouration.

AMT high-frequency unit
The 27 x 45mm AMT delivers speed, openness and fine detail from a centre-channel format.
The ELYSIAN R AMT is engineered for speed, openness and precision. Its pleated diaphragm moves air with exceptional efficiency, giving the loudspeaker a sense of effortless detail and natural high-frequency extension.

The R crossover
The ELYSIAN R crossover uses premium components, including high-silicon-iron-cored coils for bass, air-core coils for midrange and treble, Super Audiophile polypropylene capacitors and low-inductance resistors. Newly designed direct-path PCBs help preserve signal integrity.

SLPP bass management

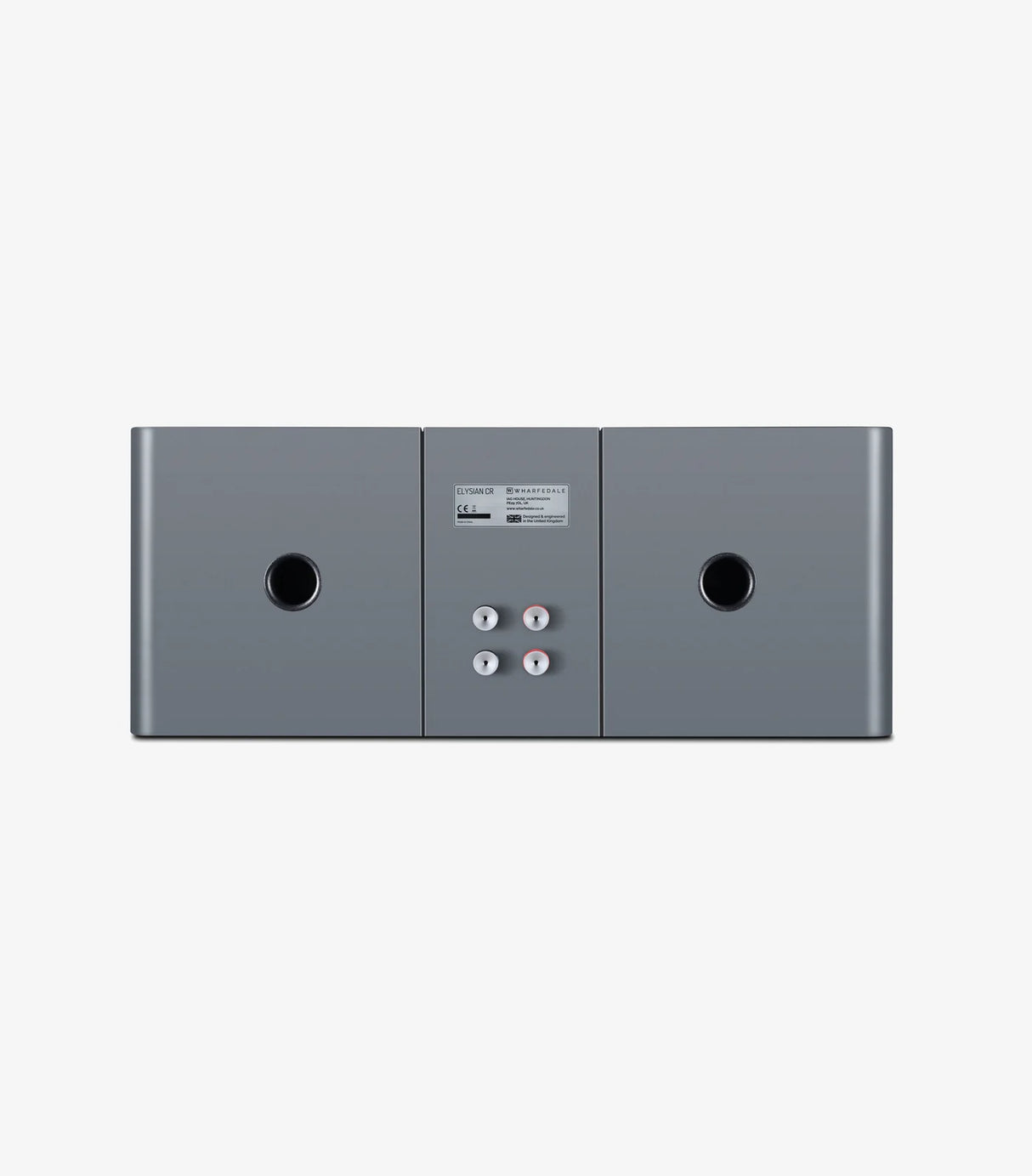

Wharfedale’s Slot-Loaded Profiled Port system improves bass extension and control while reducing turbulence and placement sensitivity. The result is bass that is powerful, fast and consistent in real listening rooms.

Luxury finishes

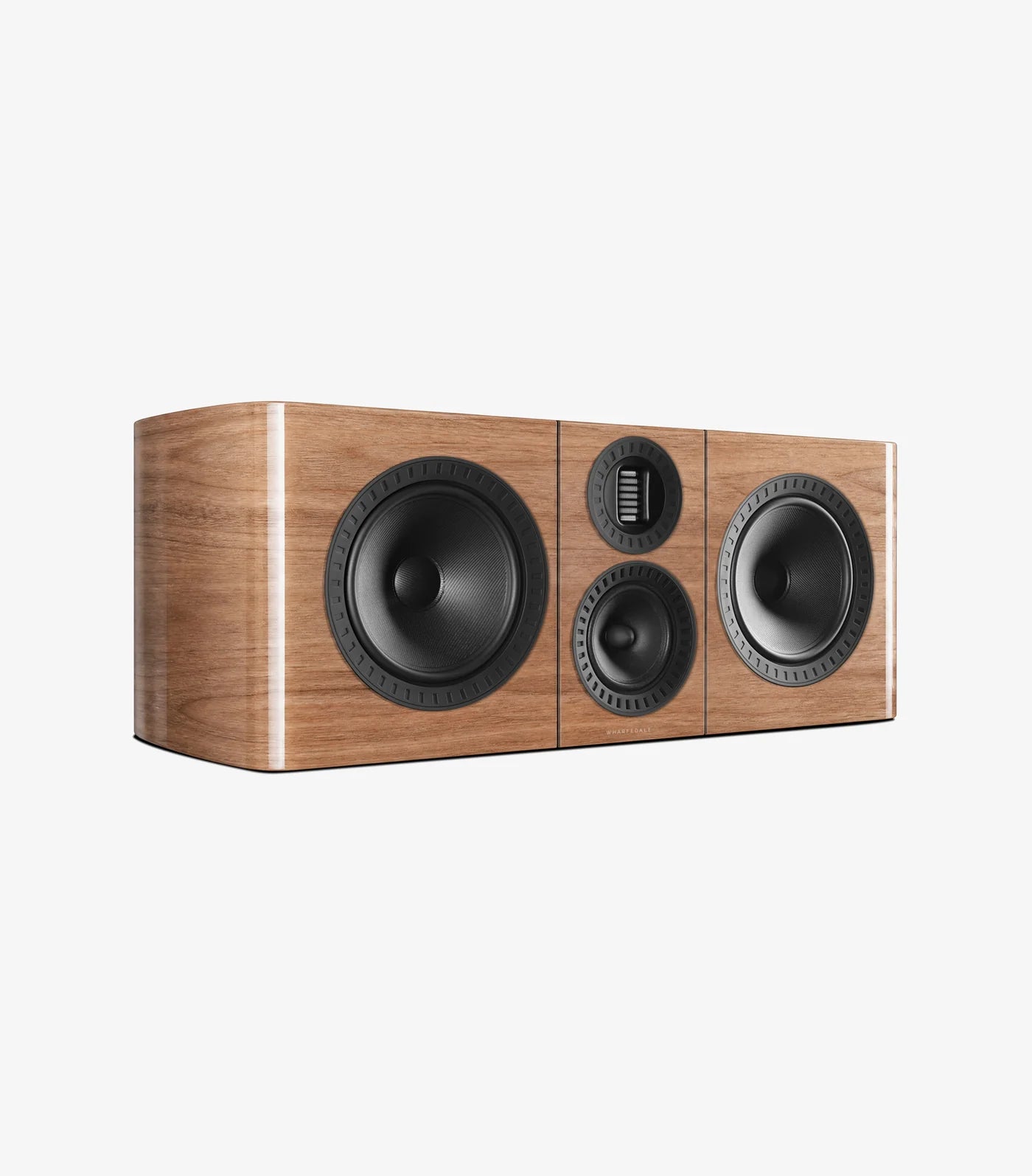

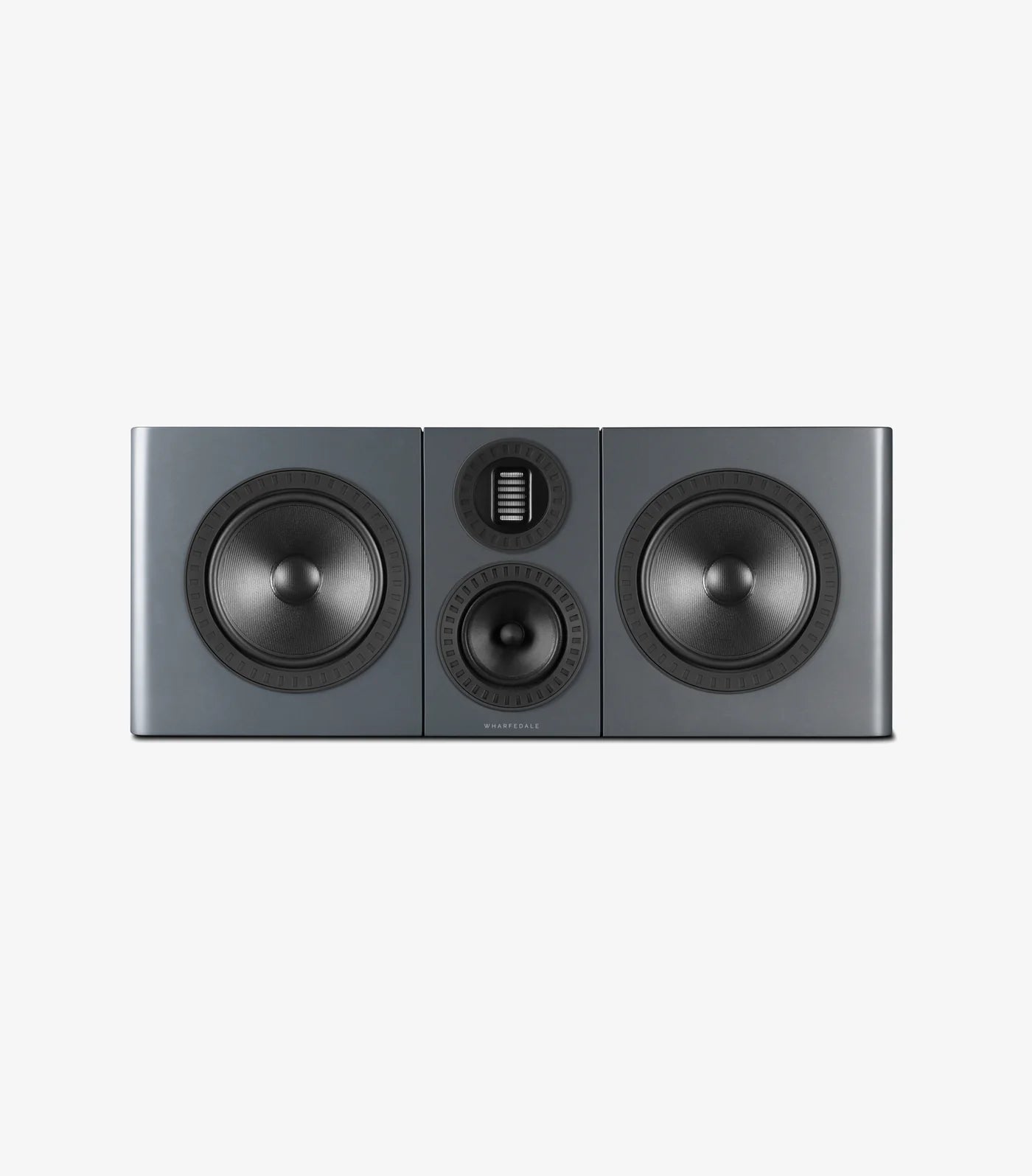

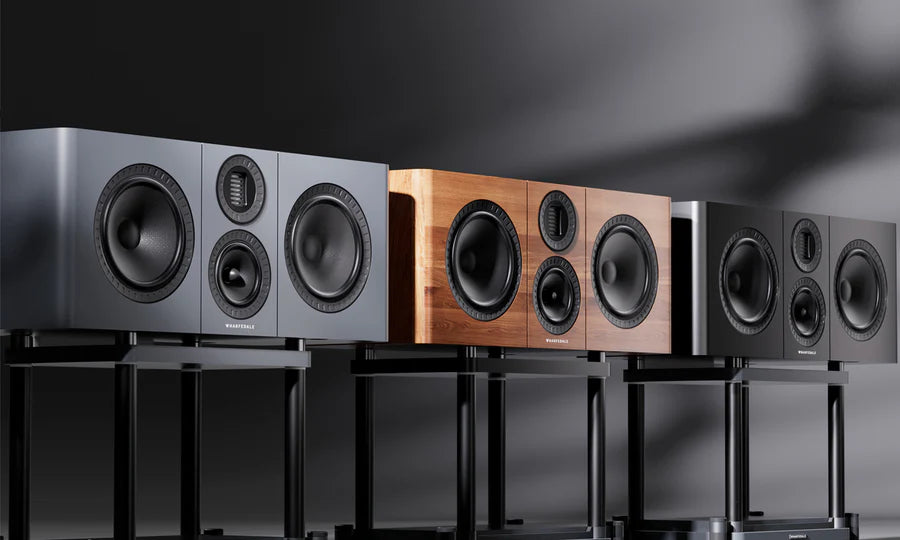

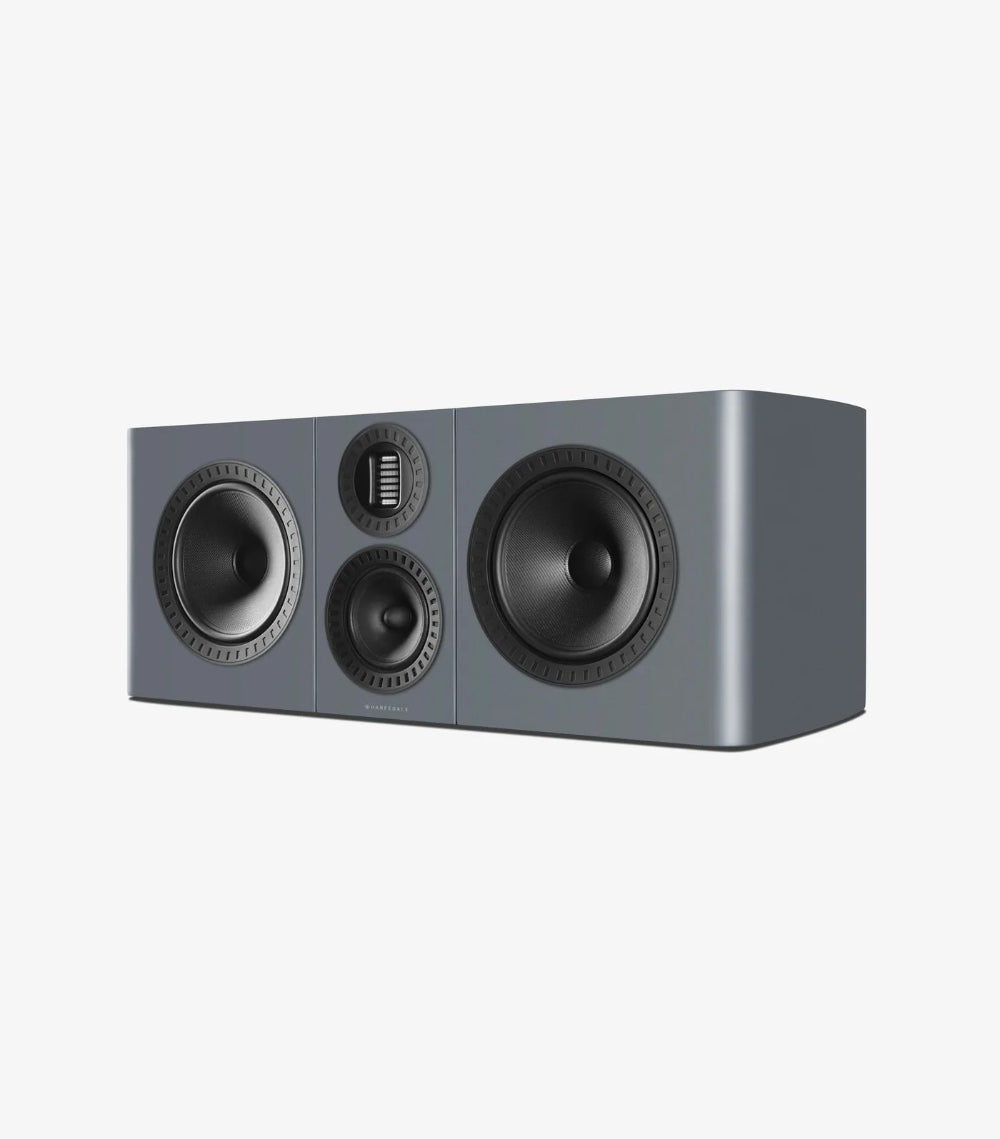

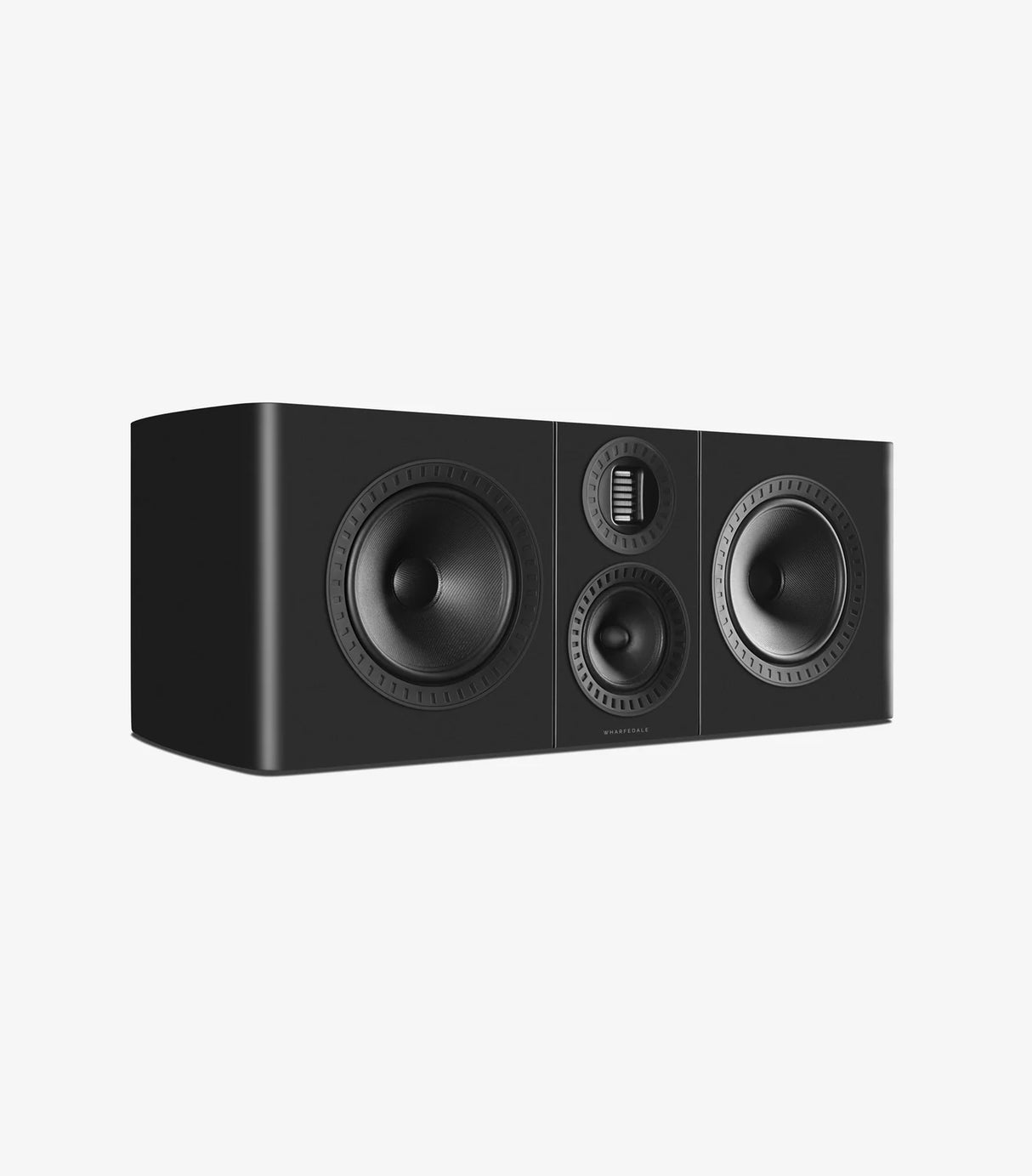

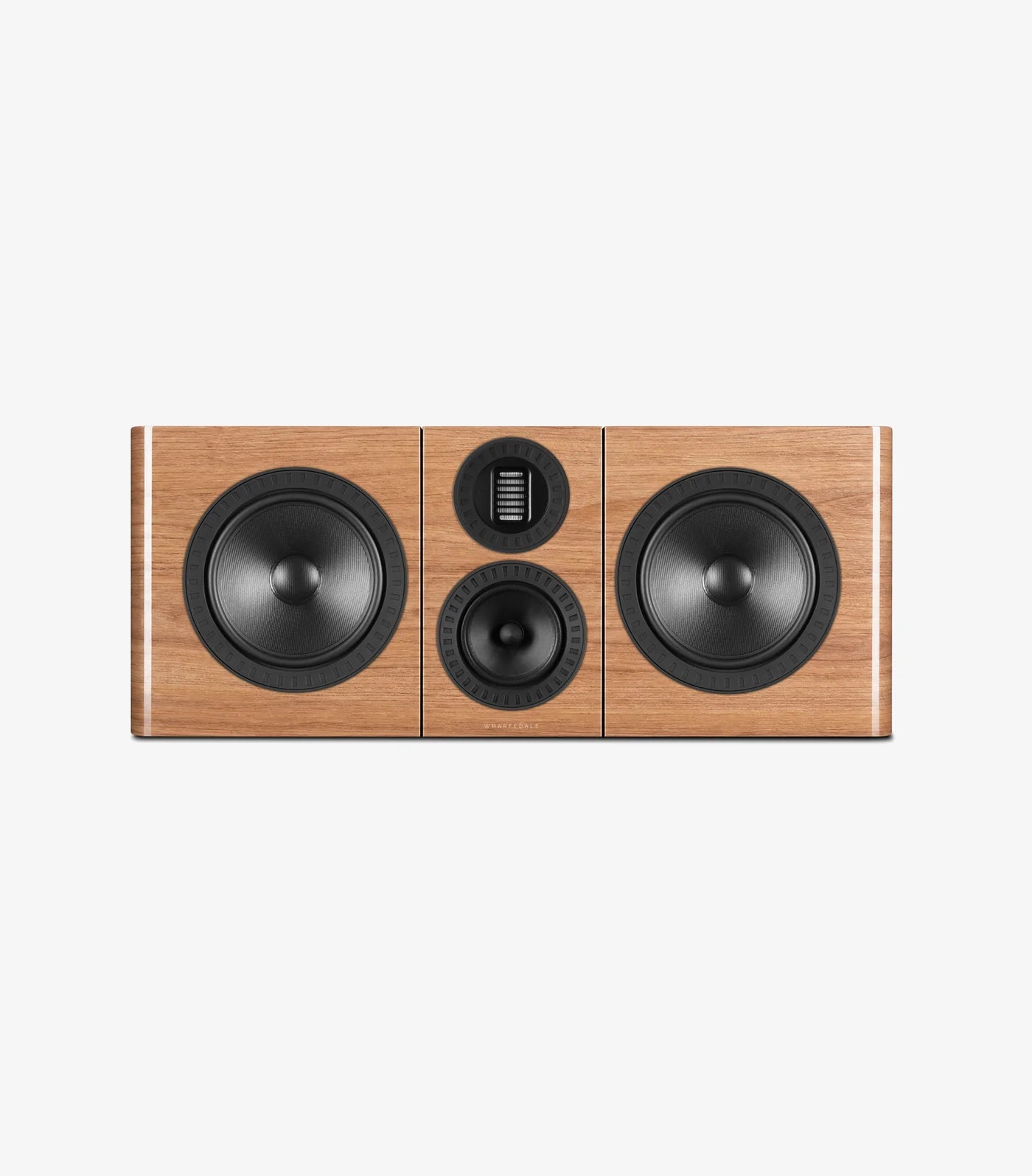

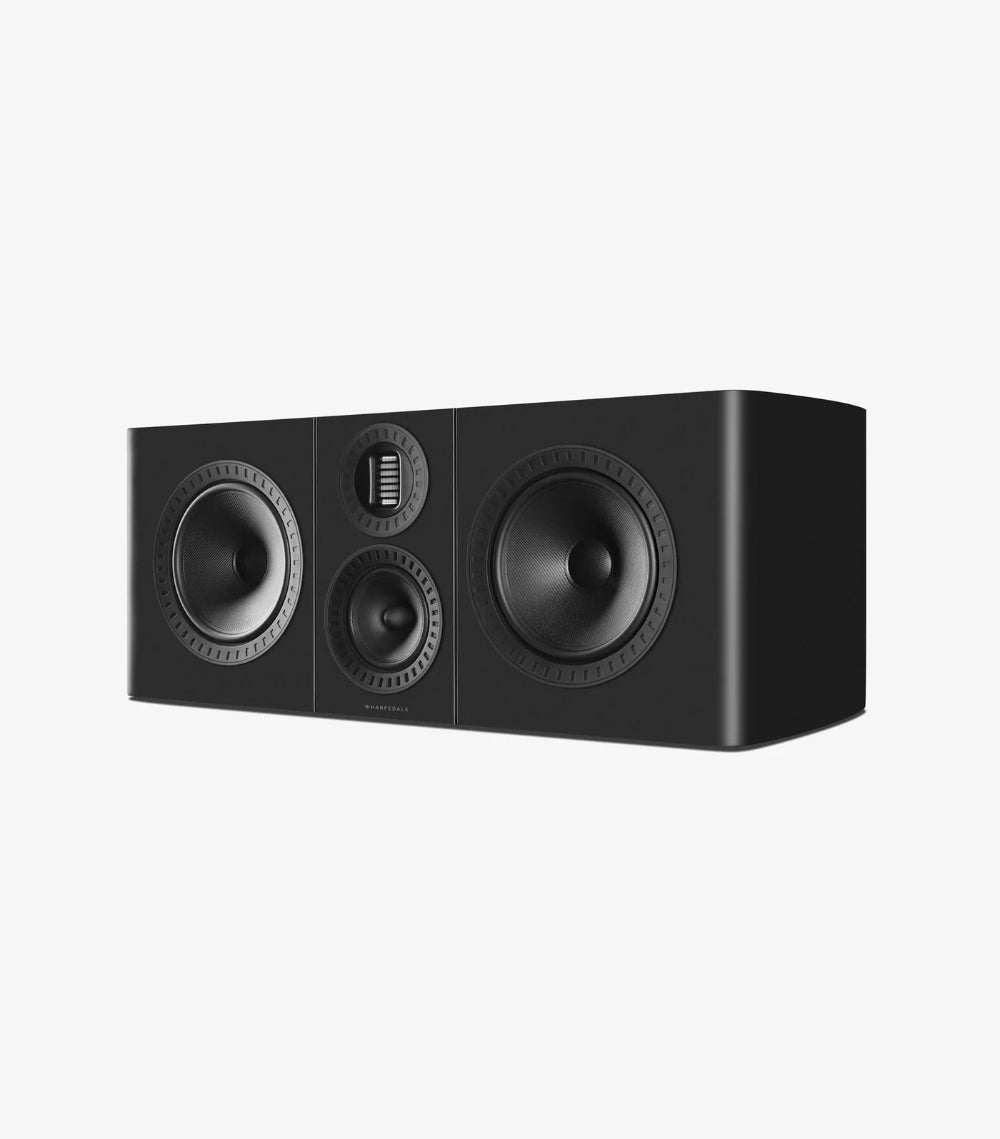

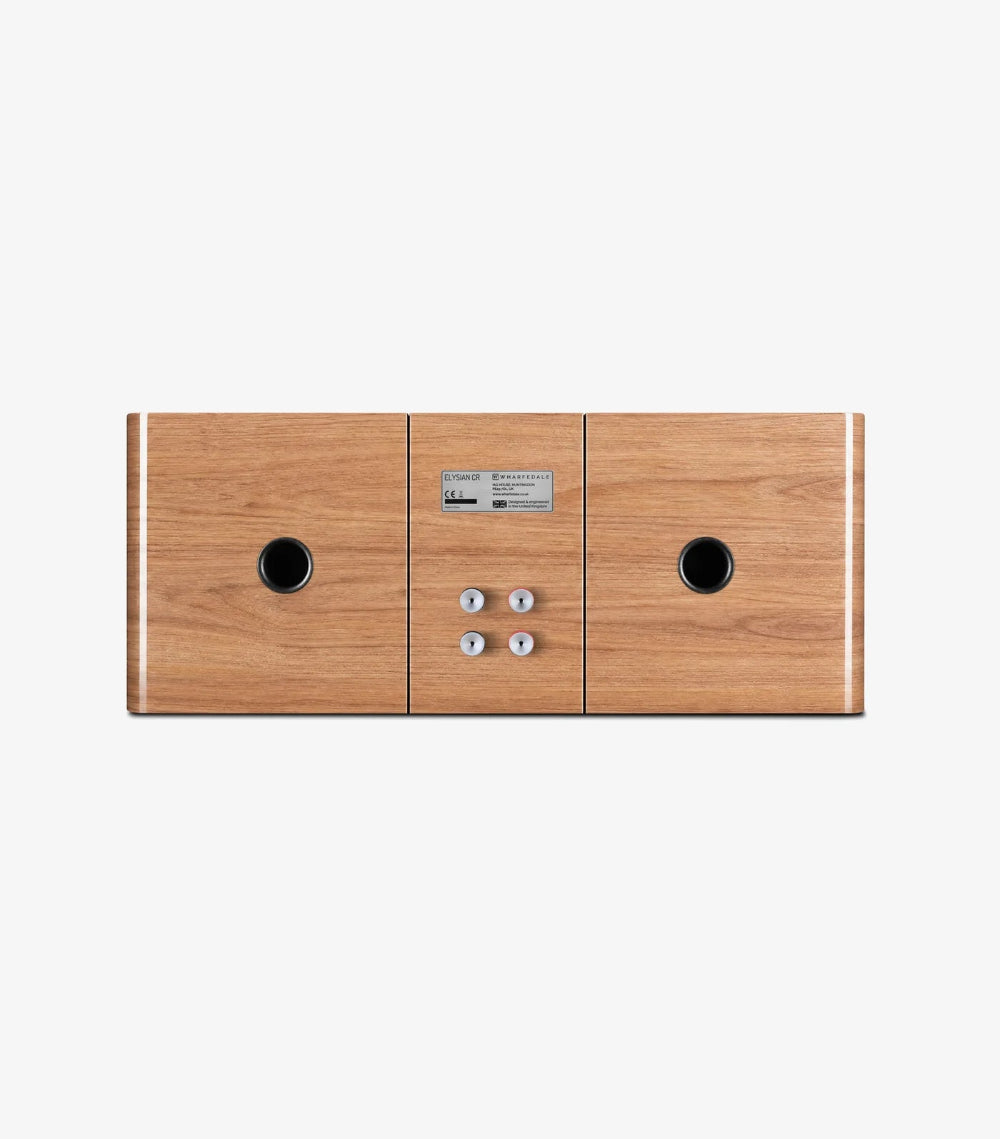

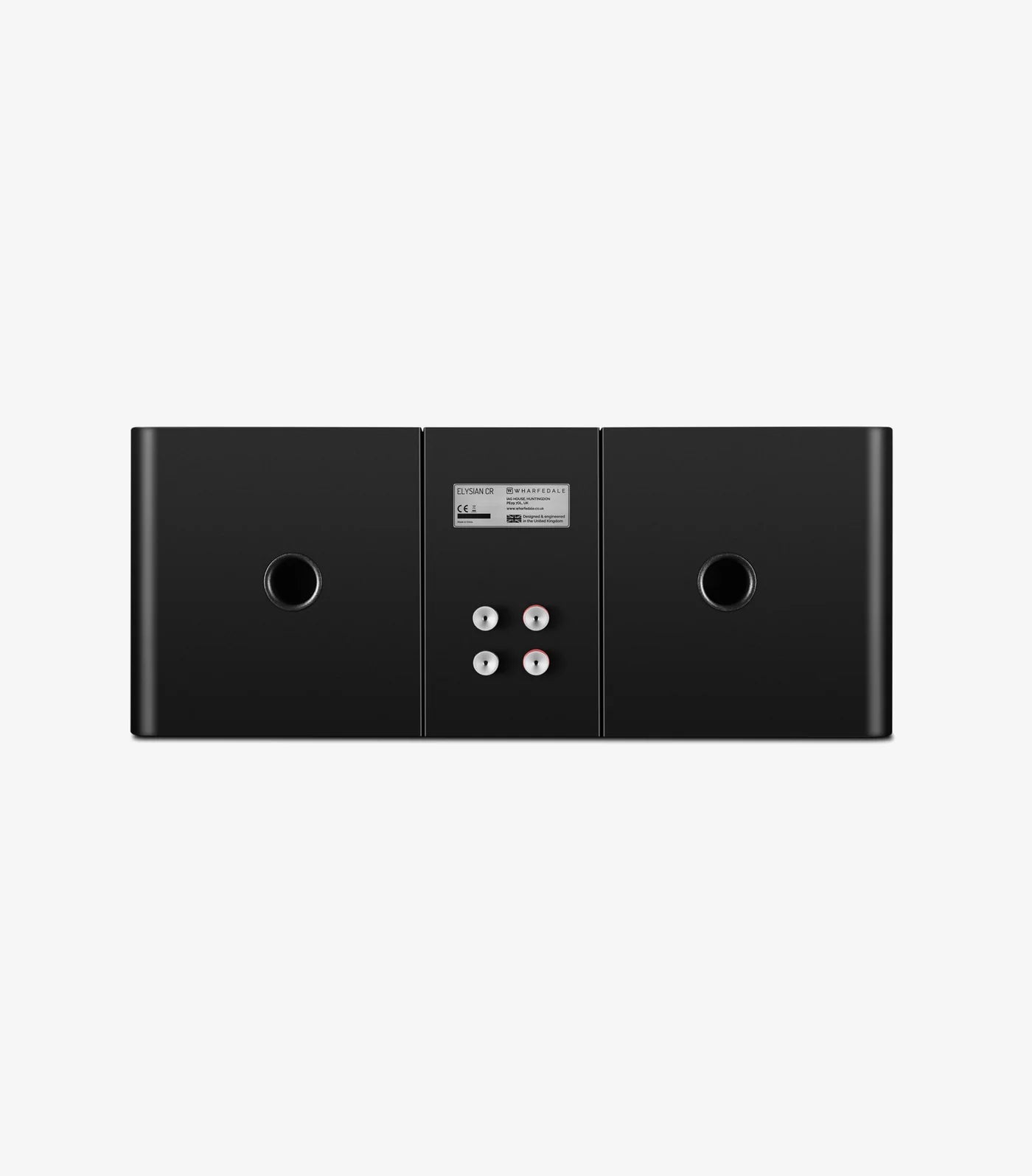

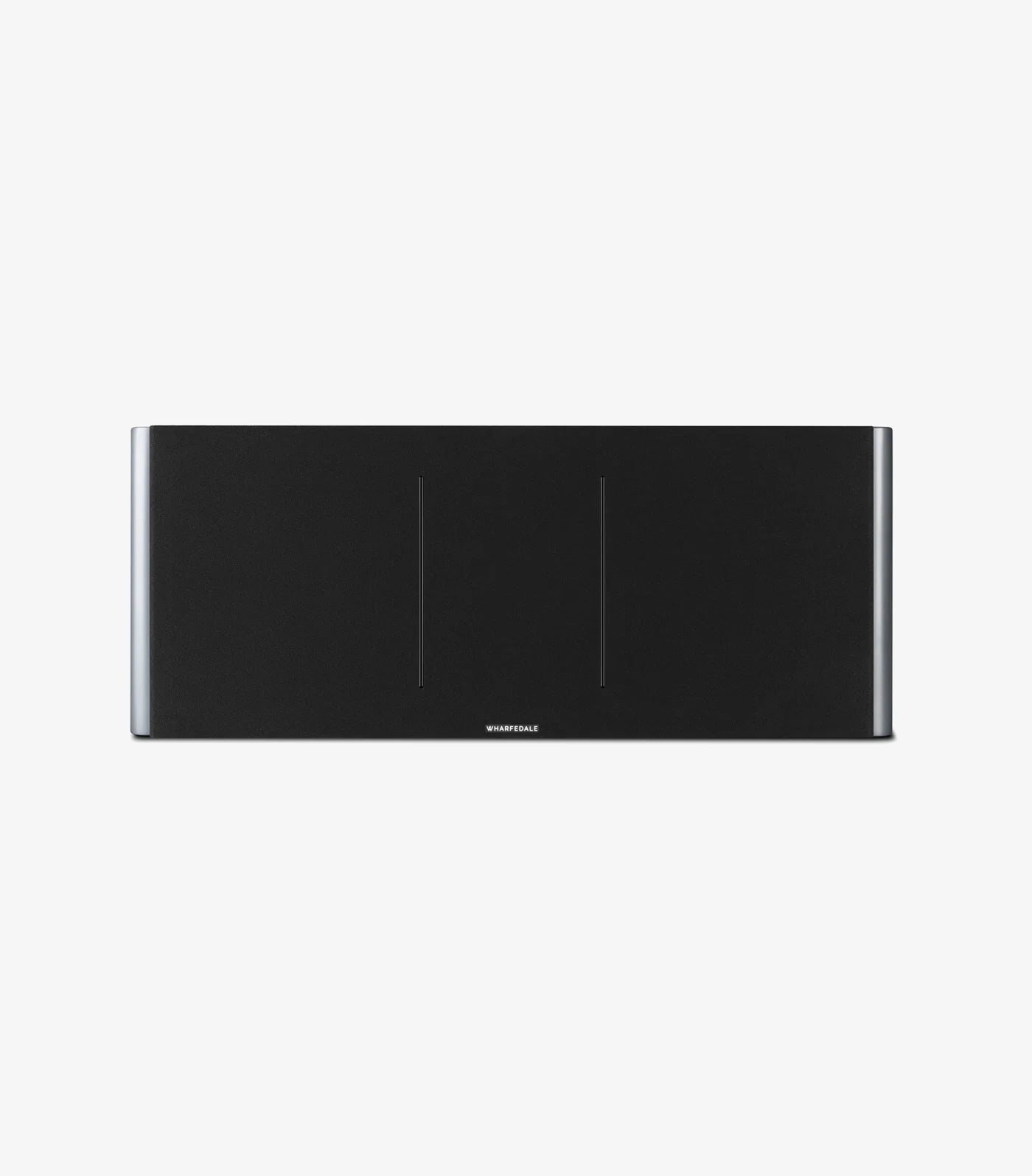

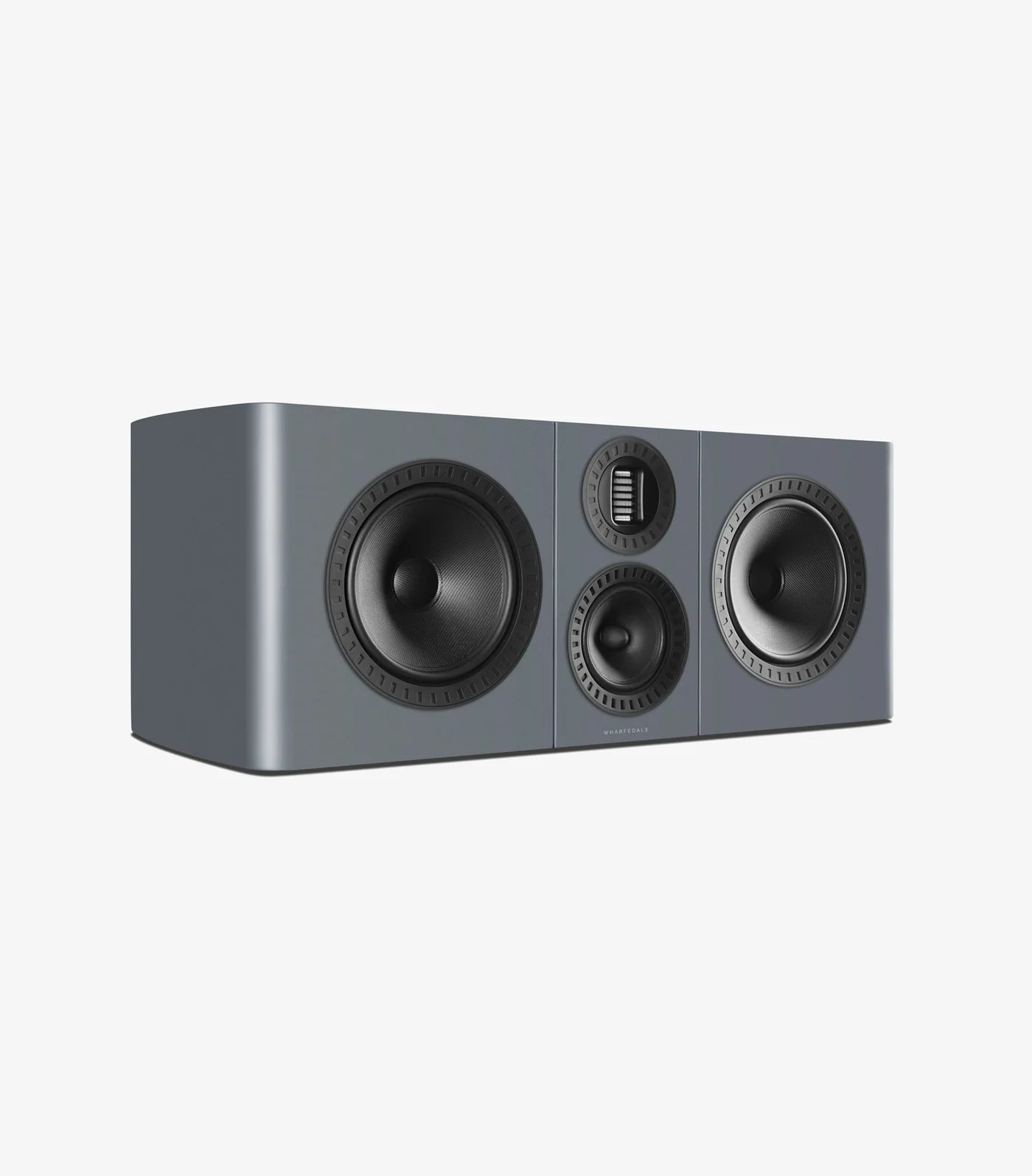

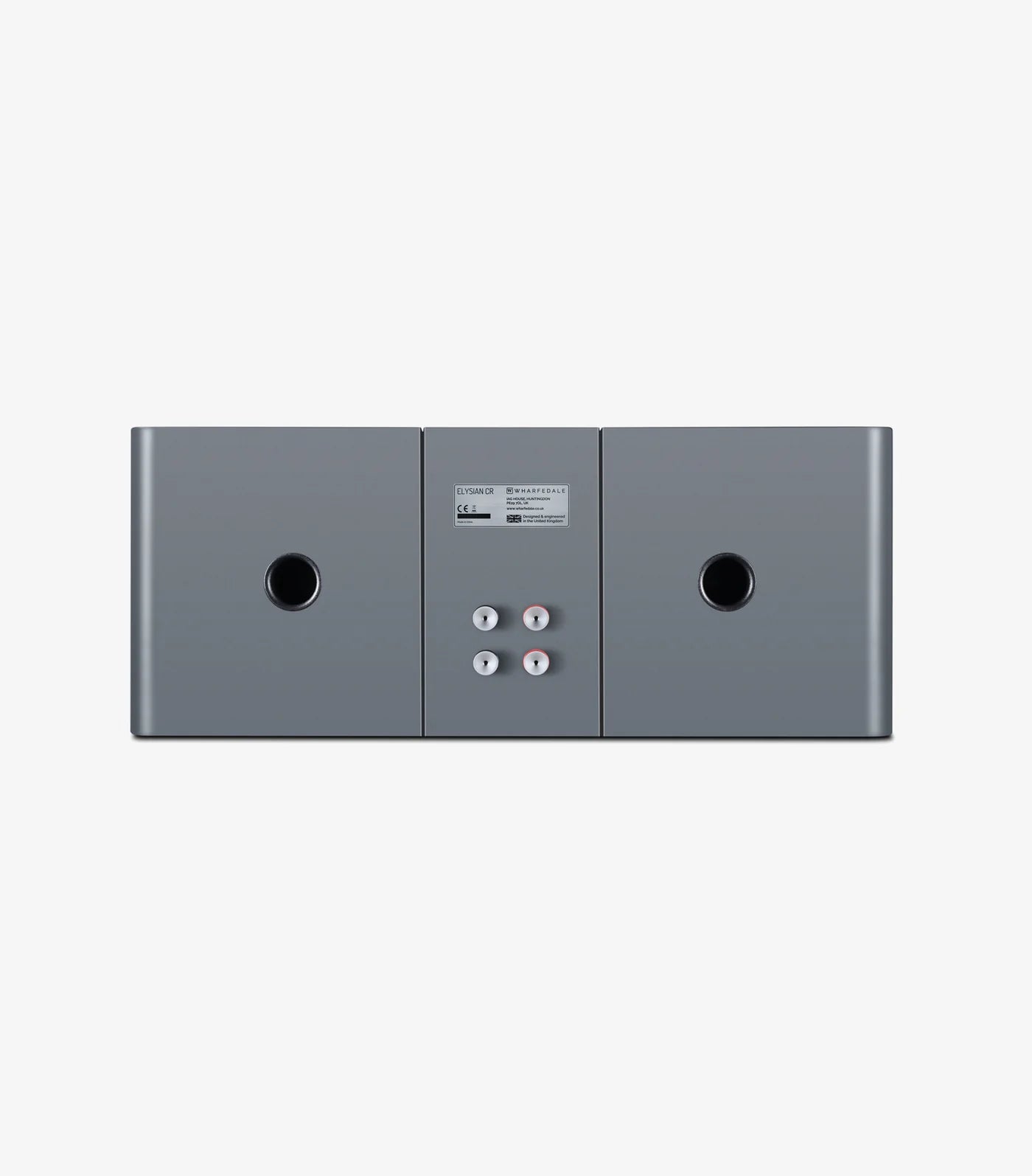

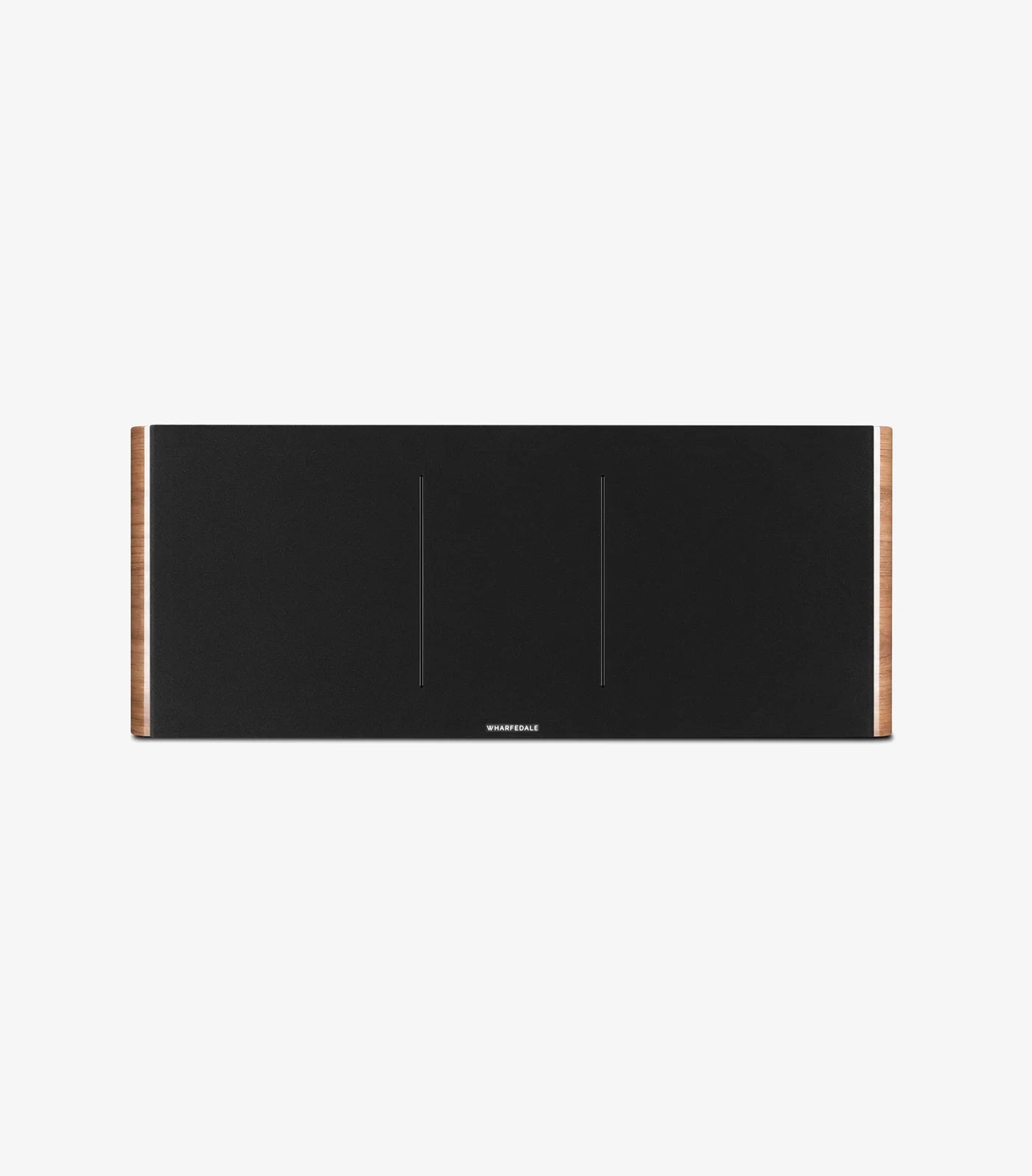

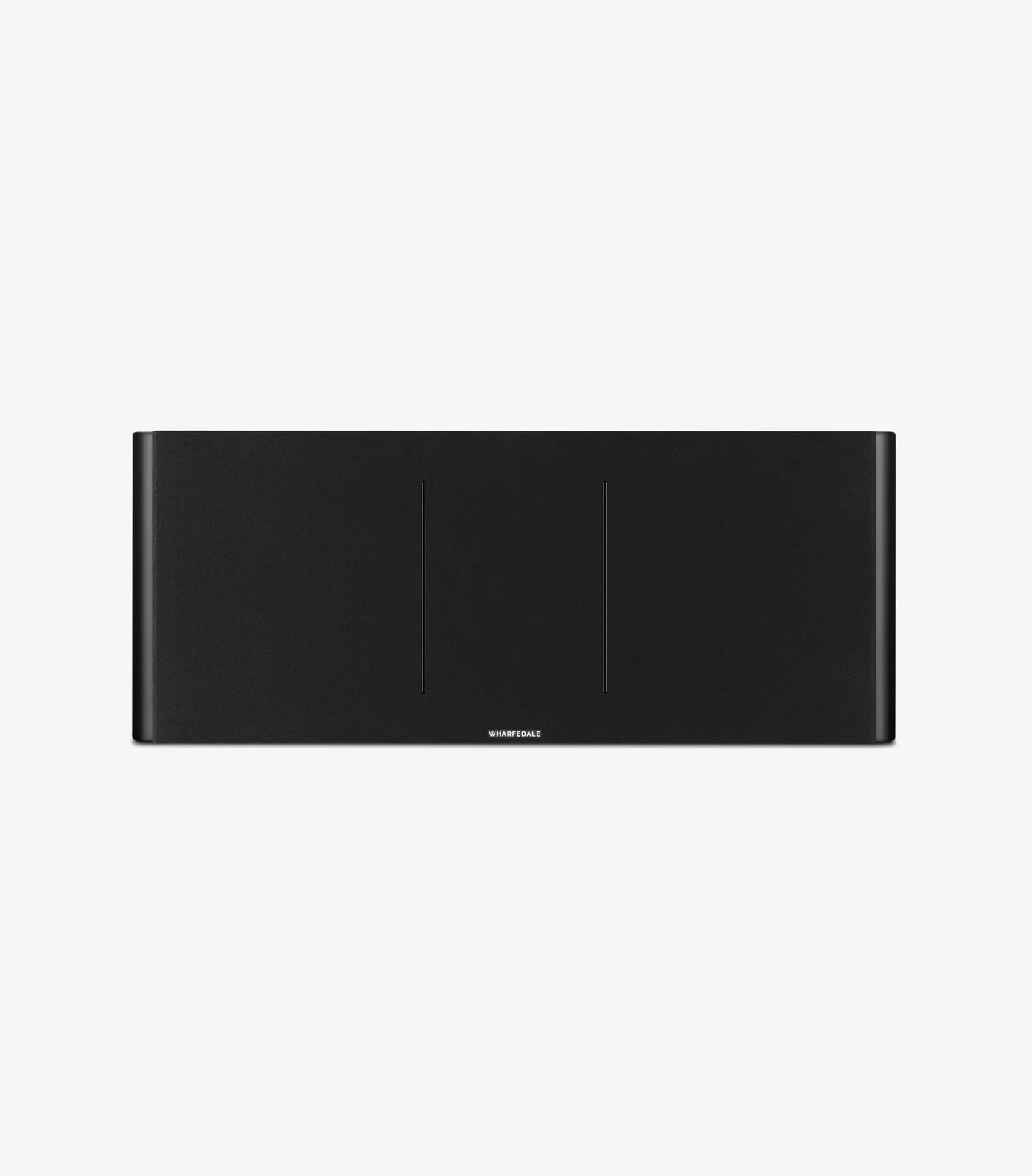

ELYSIAN CR is available in Walnut High Gloss, Matte Black and Lunar Grey, with refined matte-black trim detailing and matching stand option.

Stand and Be Counted

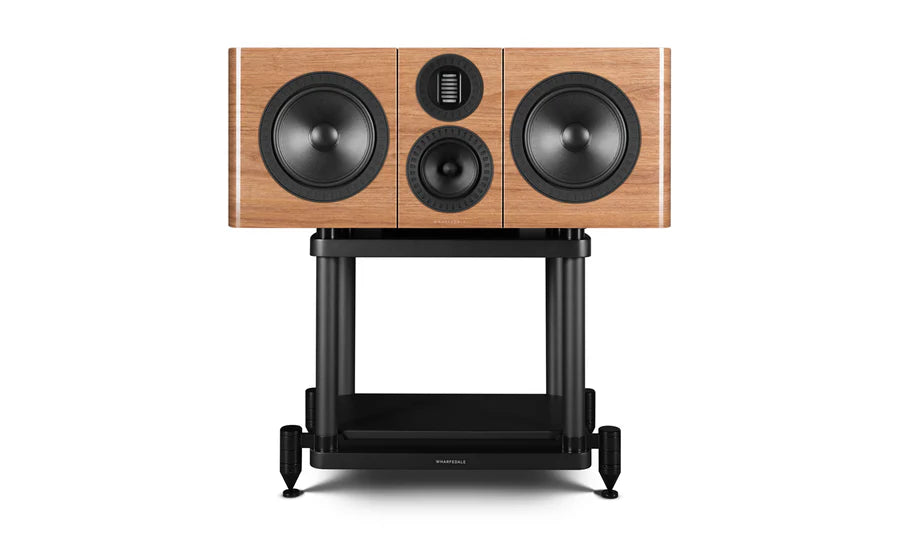

Matching ELYSIAN CR stands are available, featuring high-carbon-steel tube construction, high-carbon-steel top plates and hardened high-carbon-steel base spikes.

TECHNINIAI DUOMENYS

Model    ELYSIAN CR
General Description    3-way centre speaker
Enclosure Type    Bass reflex
Transducer Complement    3-way
Low Frequency    8.5" (220mm) coated glass fibre
matrix cone x2
Midrange Driver    6" (150mm) coated glass fibre
matrix cone
High Frequency Driver    27 x 45mm AMT
Sensitivity (2.83V @ 1m)    91dB
Recommended Amplifier Power    25-250W
Peak SPL    110dB
Nominal Impedance    6Ω (compatible 8Ω)
Minimum Impedance    3.5Ω
Frequency Response (+/-3dB)    35Hz - 22kHz
Bass Extension (-6dB)    27Hz
Crossover Frequency    360Hz, 2.9kHz
Cabinet Volume (in litres)    5.7L, 64.0L
Dimensions (mm)
Height (on plinth)    320mm
Width (on plinth)    830mm
Depth (with terminals)    (340+30)mm
Carton Size    965 x 495 x 455mm
Net Weight    30.2kg/pcs
Gross Weight    35.0kg/ctn

DOKUMENTAI

Vartotojo vadovas (EN)
