Car audio fuses are essential to protect your equipment from electrical overloads, short circuits and the risk of fire. They act as a "protective barrier" that cuts off the power supply if the current exceeds the permissible limit. Without them, expensive equipment such as amplifiers or speakers can be irreparably damaged and the car's electrical system can be damaged.
Key facts about fuses:
- Overload protection: Fuses stop the power supply when the current becomes too high.
- Fire prevention: They protect wires from overheating and possible fire.
- Equipment Protection: Ensures longer life of amplifiers and other components.
Proper fuse selection and installation is a necessary step to avoid high repair costs or dangerous situations. AUTOGARSAS.LT specialists recommend using quality components and following the manufacturer's instructions to ensure the system operates safely and reliably.
Basic functions of fuses in car audio systems
Fuses play an important role in protecting your car audio system from electrical overload, fire, and equipment damage. AUTOGARSAS.LT specialists emphasize that a properly designed fuse system acts as a multi-level protection, helping to prevent failures and ensuring the safe operation of the electrical network. Let's see how these functions contribute to comprehensive protection.
Electrical overload protection
Electrical overload is one of the most common causes of car audio system failures. If the amplifier draws too much current or a short circuit occurs, the fuse cuts off the power supply. This helps prevent overheating and internal damage to the equipment. Without such protection, excessive load can affect not only the audio system, but also other parts of the car, and repairs can be quite expensive. The fuse acts as a protective barrier, ensuring that the electrical network is isolated from dangerous loads.
Fire prevention
Another important aspect is the risk of fire due to overheating of the wiring. Fuses are the first line of defense here, as they trip before the wiring reaches a dangerous temperature. A properly installed fuse system reduces the likelihood of an electrical fault causing a fire, ensuring peace of mind for both the driver and passengers.
Equipment protection
Expensive audio equipment , such as amplifiers and speakers, requires reliable protection. Even a brief short circuit can damage not only the amplifier, but also the connected components. Fuses protect the entire audio system circuit - from the wiring to the most important devices. In professionally installed systems, fuses are often installed in several places: near the battery, near the amplifier, or even near individual speaker groups.
AUTOGARSAS.LT experts note that a high-quality fuse system not only extends the service life of the equipment, but also reduces repair costs. In addition, some manufacturers require the use of appropriate protective measures to maintain warranty conditions. Properly selected fuses are a guarantee not only of safety, but also of durability.
Types of fuses for car amplifier installation
Car amplifiers use various types of fuses, the choice of which depends on the amplifier power, installation location and electrical circuit requirements. According to AUTOGARSAS.LT specialists, a properly selected fuse not only ensures system safety, but also helps prevent possible failures. Each fuse type has its own advantages, so it is important to understand their features.
Blade fuses
Blade fuses are among the most popular due to their compact size and reliability. They come in three sizes – mini, standard and maxi – and can withstand currents from 2 A to 40 A. They are an ideal choice for amplifiers up to 500 W or additional audio system components.
These fuses are colour-coded (e.g. yellow for 20 A, red for 10 A, blue for 15 A) so their rated current is easy to identify. The plastic housing protects against moisture and corrosion, while the transparent top allows you to quickly assess the fuse status. In addition, blade fuses are easy to access and replace, making them extremely practical.
ANL and AGU fuses

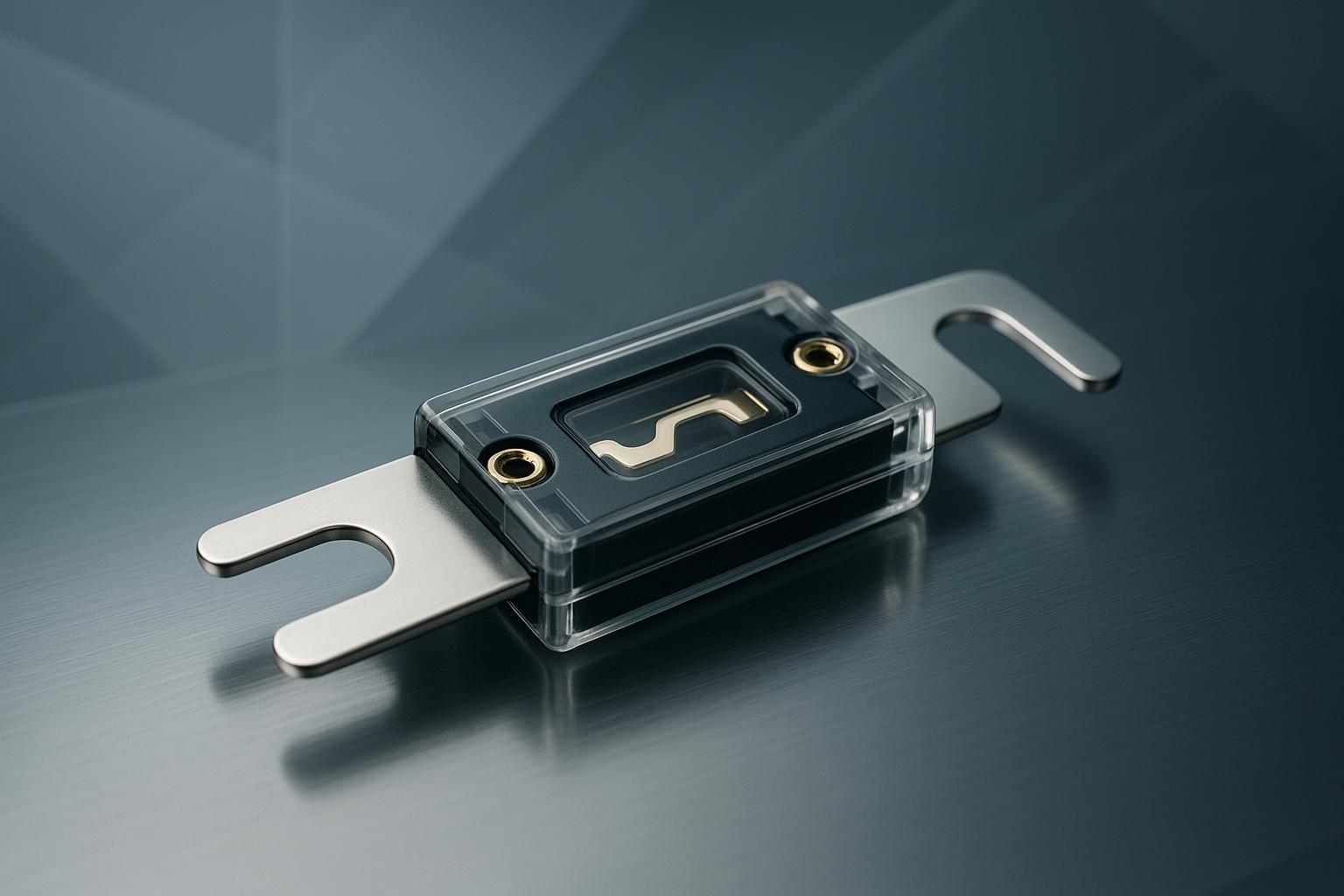

ANL (Automotive Nickel Link) and AGU (Automotive Glass Unit) fuses are designed for systems where higher current capacity is required. ANL fuses can withstand currents from 35 A to 750 A, making them ideal for high-power amplifiers with a power output of 1000 W or more. These fuses have a silver or copper connecting element, which reduces electrical resistance and dissipates heat more efficiently.
AGU fuses are distinguished by their glass bodies and metal heads, which allow you to see inside. They are more often used in professional installations, where precise current control is important. Meanwhile, ANL fuses, due to their plastic bodies, are more resistant to vibration and mechanical shock, so they are more suitable for automotive conditions.
Mini fuses
Mini fuses are the smallest version of blade fuses, measuring just 11 mm x 15 mm. They are ideal when you need to install fuses in limited space. These fuses are often used for additional audio system components such as remote control modules, LED lighting or signal processors, and can withstand currents from 2 A to 30 A.
Their small size allows mini fuses to be used to protect individual channels in multi-channel amplifiers, or when multiple fuses need to be neatly mounted in a compact space. They also provide additional protection for sensitive electronic components that require precise current control.
Fuse adjustment
To ensure the safety of the entire audio system, it is worth combining different types of fuses. For example, use ANL fuses for the main power cable, blade fuses for the amplifier branches, and mini fuses for smaller components. This solution helps to optimally protect the entire system and ensures its reliable operation.
How to choose and install the right fuse
Now that we have discussed the functions of fuses, it is time to find out how to correctly select and install a fuse. This is extremely important, because a properly selected and installed fuse not only protects the audio system, but also ensures overall safety. AUTOGARSAS.LT specialists warn that an incorrectly selected or installed fuse can cause serious problems - from equipment failures to dangerous situations.
How to calculate the required current
To determine what fuse rating you need, use this formula: power (W) ÷ voltage (V) = required current (A) . Remember to add 25% to your allowance. For example, if you have a 1000W amplifier connected to a 12V system, the calculation would look like this: 1000 ÷ 12 = 83.3 A. Adding 25% to your allowance, you get 104 A, so you should choose a 120 A fuse.
It is also important to consider the cable cross-section , as it determines how much current the cable can safely transmit:
- 4 mm² cable: up to 30 A
- 10 mm² cable: up to 80 A
- 25 mm² cable: up to 150 A
The fuse rating should never exceed the maximum current carrying capacity of the cable, as this may increase the risk of fire.
Where to install the fuse?
Once you know the required fuse rating, it is important to choose the right location for it. The fuse should be installed as close to the battery as possible – no further than 45 cm from its positive terminal. This ensures that in the event of a short circuit, the fuse will trip faster than the cable can overheat. In addition, the location should be protected from temperature fluctuations, humidity and mechanical damage.
It is important to know that it is not recommended to install the fuse inside the car interior unless it is additionally protected. If there is no other option, use a sealed housing and make sure that the fuse is easily accessible during maintenance.
The importance of quality fuse holders
The fuse holder is no less important than the fuse itself. A poor quality holder can cause contact resistance, which leads to heating, which can even cause a fire. The holders offered by AUTOGARSAS.LT meet high safety requirements and ensure reliable operation.
Choose holders with silver or gold-plated contacts - they protect against corrosion and reduce electrical resistance. When installing, it is necessary to ensure that the contacts are firmly tightened . Loose contacts can cause additional resistance, which causes the holder to heat up and poses a fire hazard. Use nuts of the correct size and regularly check their tightening torque - 8-10 Nm is recommended.
If the fuse holder will be installed in a location where moisture may accumulate, choose waterproof holders . Such holders have rubber gaskets and protective covers that prevent the ingress of water and dust. Regular inspection of the holders will help ensure long-term reliability of the system.
sbb-itb-02aace5
Maintenance and troubleshooting
After installing system protection, it is important to know how to recognize possible malfunctions and when it is worth contacting specialists.
Signs of fuse failure
Fuse failures often manifest themselves with the following symptoms:
- Power goes out completely – the radio or amplifier does not work, there is no sound, the screen does not work, although other components of the car function normally [1] [3] .
- Some components, such as the amplifier or control unit, may stop working due to a blown fuse [1] [2] .
- If the fuse blows continuously, this may indicate a short circuit - it is necessary to check the entire electrical installation [1] [2] .
- A situation where the fuse blows even after the equipment is turned off may indicate a short circuit between the fuse and the distribution block [2] .
- If the fuse blows only when the amplifier is turned on, the problem may be in the amplifier itself [2] .
- If the fuse only blows when the control unit is activated, it is likely that the fault lies in the control circuit [2] .
If you notice any of these signs, do not delay and consult a specialist.
When to contact specialists
If fuses blow repeatedly, even when using the correct rating, this may be a signal of more serious electrical system malfunctions, such as a short circuit. In such cases, it is necessary to contact qualified specialists. For example, the AUTOGARSAS.LT team can perform detailed diagnostics and ensure that the system operates safely. Timely detection of faults and properly performed work not only ensure the system's operation, but also help prevent major problems in the future.
Conclusions
Fuses play a very important role in a car amplifier installation - they protect not only the amplifier, but also the entire electrical system from short circuits, overloads, or even fire hazards [5] .
According to statistics, up to 30% of car fires related to audio systems could have been prevented by using properly selected fuses [4] . This once again shows how important it is to follow the manufacturer's recommendations and choose installation components responsibly. Incorrectly selected fuses can cause serious problems, so it is important to follow basic installation rules.
The main principles that must be followed are: the fuse should be installed as close as possible to the battery, only quality components should be used, and all parameters must comply with the manufacturer's instructions. Proper calculation and correct installation are essential to ensure the safety of the system.
If you have any doubts about the choice of fuse or its installation, AUTOGARSAS.LT specialists are ready to provide professional assistance and ensure high-quality installation. Investing in reliable fuses and professional work is not only a guarantee of the durability of your sound system, but also a priority for your safety.
FAQs
Why is it important to install fuses close to the car battery?
By installing fuses as close to the battery terminal as possible, you can ensure the best protection against short circuits and overloads , which can seriously damage the entire electrical system. In addition, such a solution helps to reduce current losses , so the electrical system operates more efficiently and reliably.
Properly installed fuses not only protect the car amplifier, but also the entire vehicle electrical system. This reduces the likelihood of failures and even prevents potential fire hazards.
How to choose the right fuse for a car audio amplifier?
When choosing a fuse for your car audio system, make sure it is rated for the current draw of the system and the load on the wiring. This is important for both system protection and longevity. The fuse rating should be matched to the amperage of your amplifier – typically between 3A and 30A.
There are various types of fuses on the market, but the most popular are plate and glass. High-quality fuses not only protect the system from overload, but also prevent short circuits. If you have any doubts about the right choice, it is worth consulting with specialists. You can also rely on AUTOGARSAS.LT - these are reliable experts to whom you can confidently entrust the safety of your car audio system .
How to recognize that the car amplifier fuse is faulty?
A blown fuse can show itself in several ways. One of the most common signs is that the fuse is tripping for no apparent reason or is happening too frequently. It's also worth paying attention to physical damage, such as if the fuse looks burnt out or cracked.
Another possible symptom is problems with the electrical system. These can include malfunctioning or poorly functioning electronic devices, such as the car's amplifier. If you notice such malfunctions, it is important to check the fuse without delay. If it is damaged, it is necessary to replace it to avoid more serious problems with the electrical system.
