ISKRA

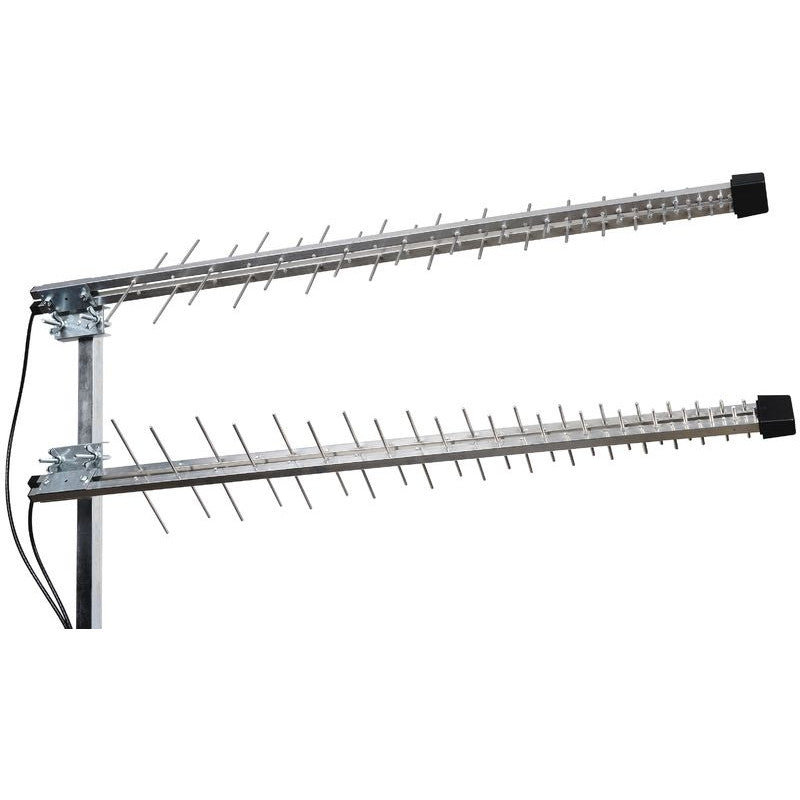

ISKRA U-MIMO 3G 4G LTE, antenna

€99.00 EUR

ISKRA U-MIMO 3G 4G LTE, antenna - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

High gain communication antenna.

  • Antenna frequency 700-2700 MHz.
  • SMA-Male connector (P-58-L700-10).
  • Double polarization.
  • Sets for 10 years length of cable.


SPECIFICATIONS

  • Antenna Gain: 9-11 dBi
  • Cable length: 10 m
  • Connector: SMA male
  • Impedance: 50 ohms
  • Max. power connection: 50 W
  • Antenna length: 1070 mm
  • Number of elements: 58
  • Polarization: 2 × 45 degrees
  • Front-back ratio: 23 dB
  • Beam width H/V: 54/46°
  • VSWR: <1.6

Frequencies:


  • LTE 700 & 800: 698-862MHz / 9.5 dBi
  • LTE 1800: 1710-1880MHz / 11 dBi
  • LTE 2600: 2500-2700MHz / 11 dBi
  • 3G 900: 880-960MHz / 10 dBi
  • 3G 2100: 1920-2170MHz / 11 dBi
  • Wi-Fi (WLAN): 2401-2495MHz / 11 dBi
