Goobay | Bar code: 4040849589676

Goobay HDMI™/4K2K 7.1, Audio signal extractor

Name: Goobay HDMI™/4K2K 7.1, Audio signal extractor
Brand: Goobay
SKU: 58967
Price: 59.99 EUR
Availability: InStock

€59.99 EUR

Goobay HDMI™/4K2K 7.1, Audio signal extractor - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

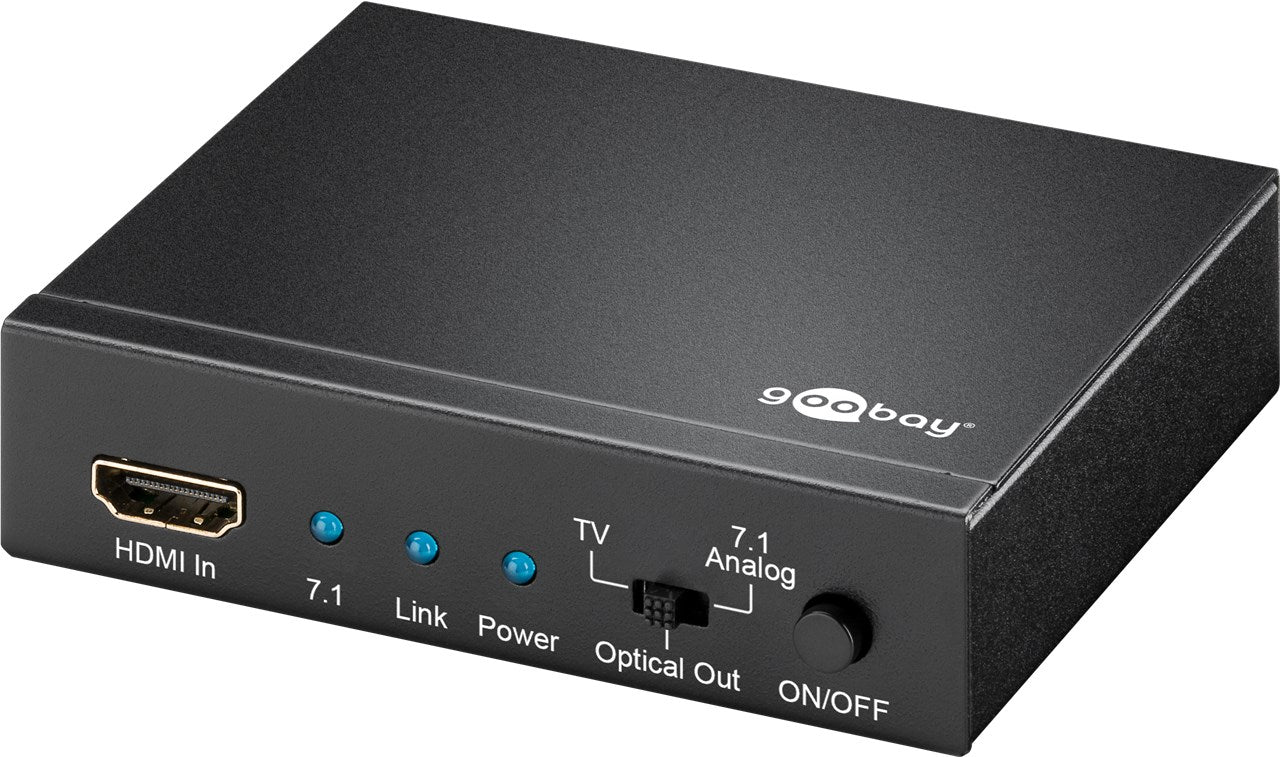

Audio signal extractor from Goobay

Compatible with HDMI™, HDCP 1.2.
Compatible with high-bit-rate (HBR) audio
Supports HDMI™ audio - 192 KHz.
Optical S/PDIF audio - 192 KHz is supported .
4K2K, 3D supported.

DESCRIPTION

extracts the audio signal from the HDMI™ source and provides it as a separate transmission

complies with HDMI™, HDCP 1.2
compatible with high-bit-rate (HBR) audio
supports HDMI™ audio sampling rates of up to 192 KHz
supports optical S/PDIF audio sampling rates of up to 192 KHz
supports 4K2K, 3D-capable
easy to install and use

TECHNICAL DATA

SPECIFICATIONS

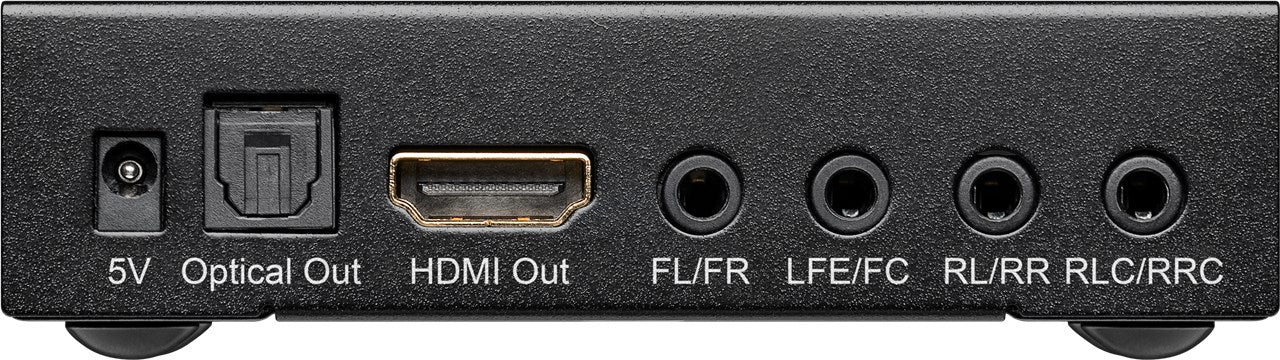

Connections

Connection, type HDMI™ female (Type A)
Connection 2, type Toslink male
Connection 3, type 3.5 mm female (3-pin, stereo)

Device connections

Input, type HDMI™ female (Type A)
Output, type 2.5 mm female (3-pin, stereo)
Output 2, type Toslink male
Output 3, type HDMI™ female (Type A)
number of inputs 1 pcs.
Number of outputs 4 ports

Signal transmission

max. resolution 4K Ultra HD 2160p (60 Hz)
supported audio standards Dolby Digital 5.1 (AC-3), Dolby Digital Plus, DTS-HD HR, 4K 3D, LPCM 2.0, LPCM 5.1, LPCM 7.1, DTS-HD MA

General

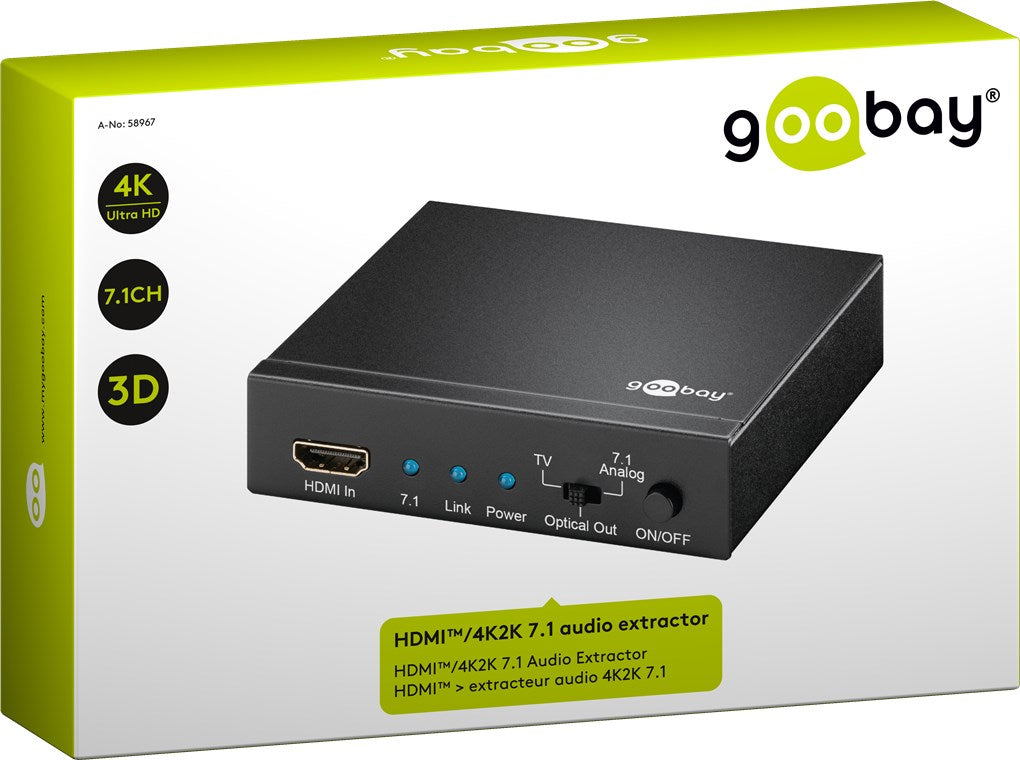

Packaging type Retail Box
Consumption Unit 1 pc. in cardboard box
Color black
Material metal
Markings CE, WEEE
Operating temperature from 0 °C
Operating temperature up to 40 °C
Length 95 mm
Width 82 mm
Height 24 mm
Weight 382 g

Scope of delivery

Scope of delivery manual, power supply
power Supply power supply

accessory - Power supply

Input voltage 100-240 V
Input AC frequency 50/60 Hz
Input current 0.4 A
Output voltage 5 V
Output current 2 A
Output power 10 W
No-load power consumption 0.09 W
Average active efficiency 79%
Efficiency at low load (10%) 72.9%
Dimensions 60.9x27.1x72.6
Cable length 1.4 mm
Weight 77.5 g

SPECIFICATIONS

Connections

Connection, type HDMI™ female (Type A)
Connection 2, type Toslink male
Connection 3, type 3.5 mm female (3-pin, stereo)

Device connections

Input, type HDMI™ female (Type A)
Output, type 2.5 mm female (3-pin, stereo)
Output 2, type Toslink male
Output 3, type HDMI™ female (Type A)
number of inputs 1 pcs.
Number of outputs 4 ports

Signal transmission

max. resolution 4K Ultra HD 2160p (60 Hz)
supported audio standards Dolby Digital 5.1 (AC-3), Dolby Digital Plus, DTS-HD HR, 4K 3D, LPCM 2.0, LPCM 5.1, LPCM 7.1, DTS-HD MA

General

Packaging type Retail Box
Consumption Unit 1 pc. in cardboard box
Color black
Material metal
Markings CE, WEEE
Operating temperature from 0 °C
Operating temperature up to 40 °C
Length 95 mm
Width 82 mm
Height 24 mm
Weight 382 g

Scope of delivery

Scope of delivery manual, power supply
power Supply power supply

accessory - Power supply

Input voltage 100-240 V
Input AC frequency 50/60 Hz
Input current 0.4 A
Output voltage 5 V
Output current 2 A
Output power 10 W
No-load power consumption 0.09 W
Average active efficiency 79%
Efficiency at low load (10%) 72.9%
Dimensions 60.9x27.1x72.6
Cable length 1.4 mm
Weight 77.5 g
