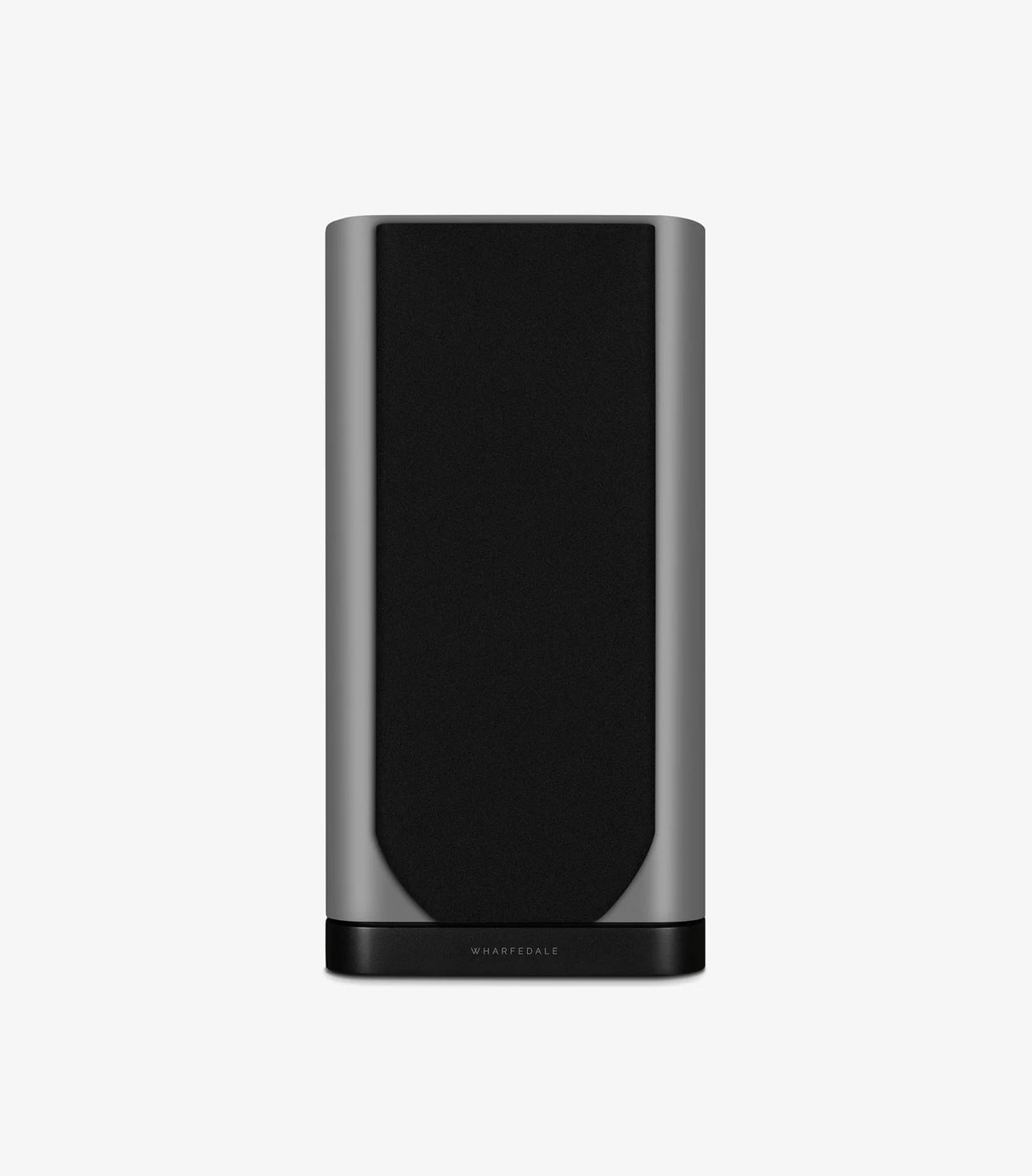

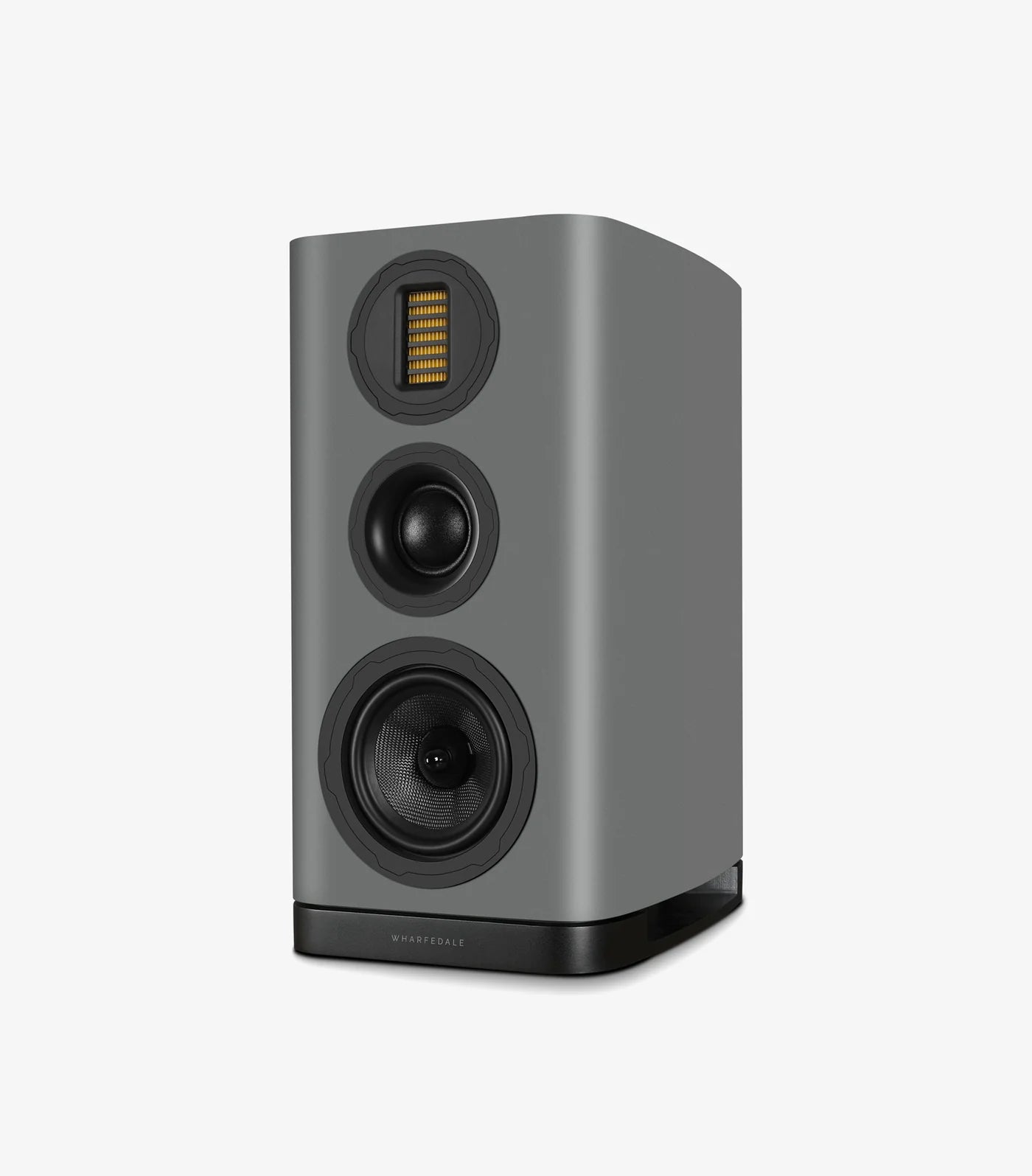

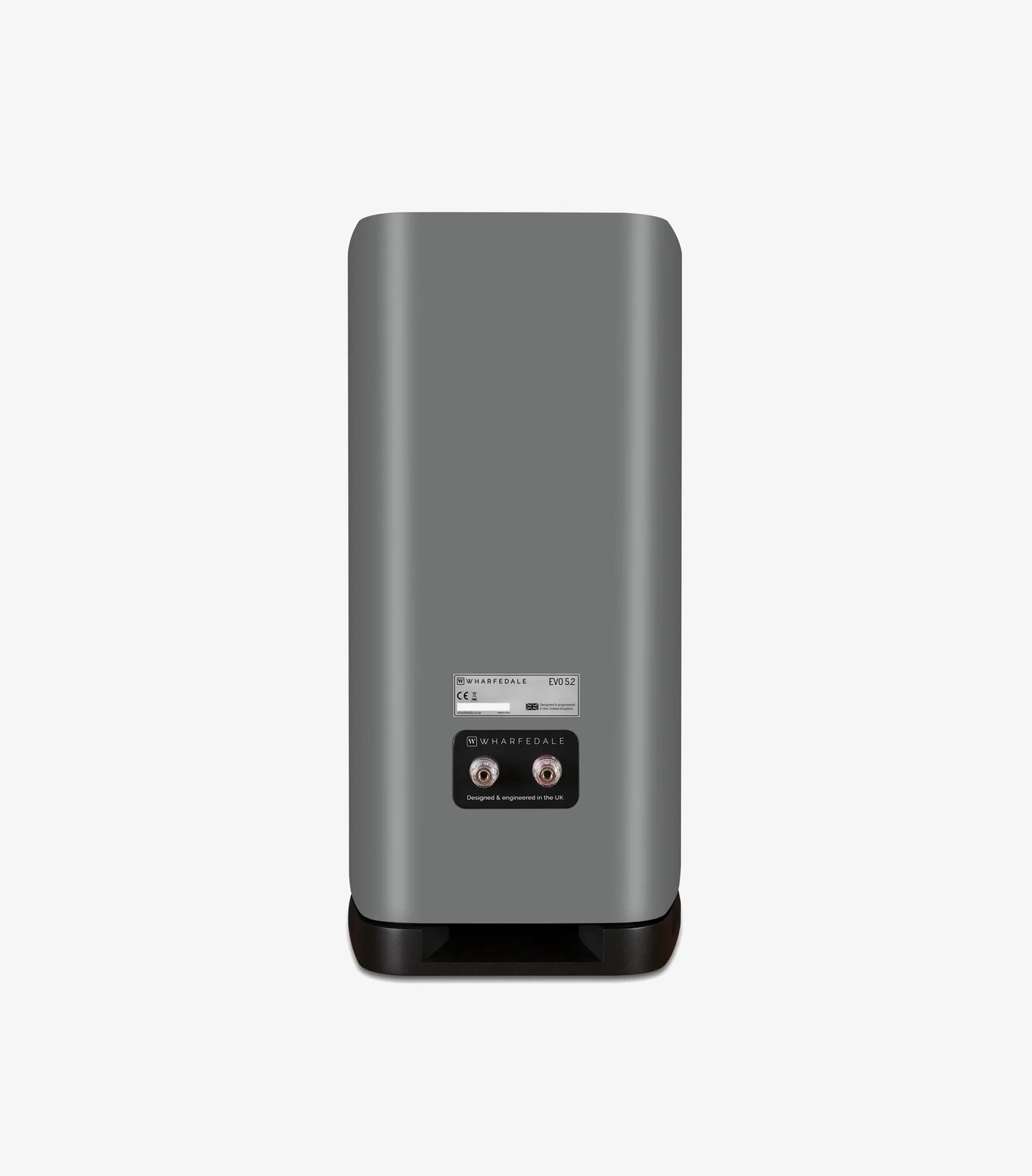

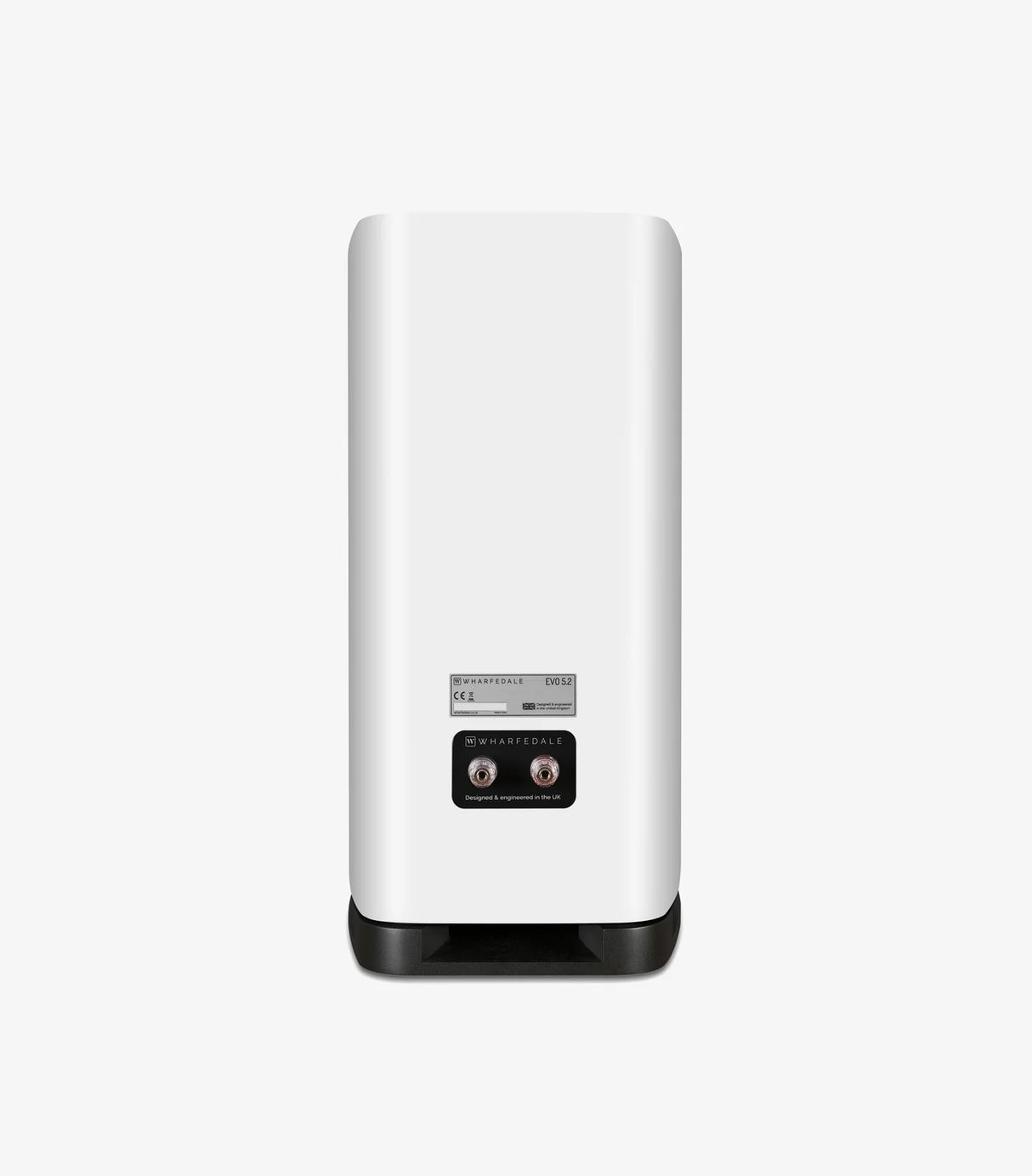

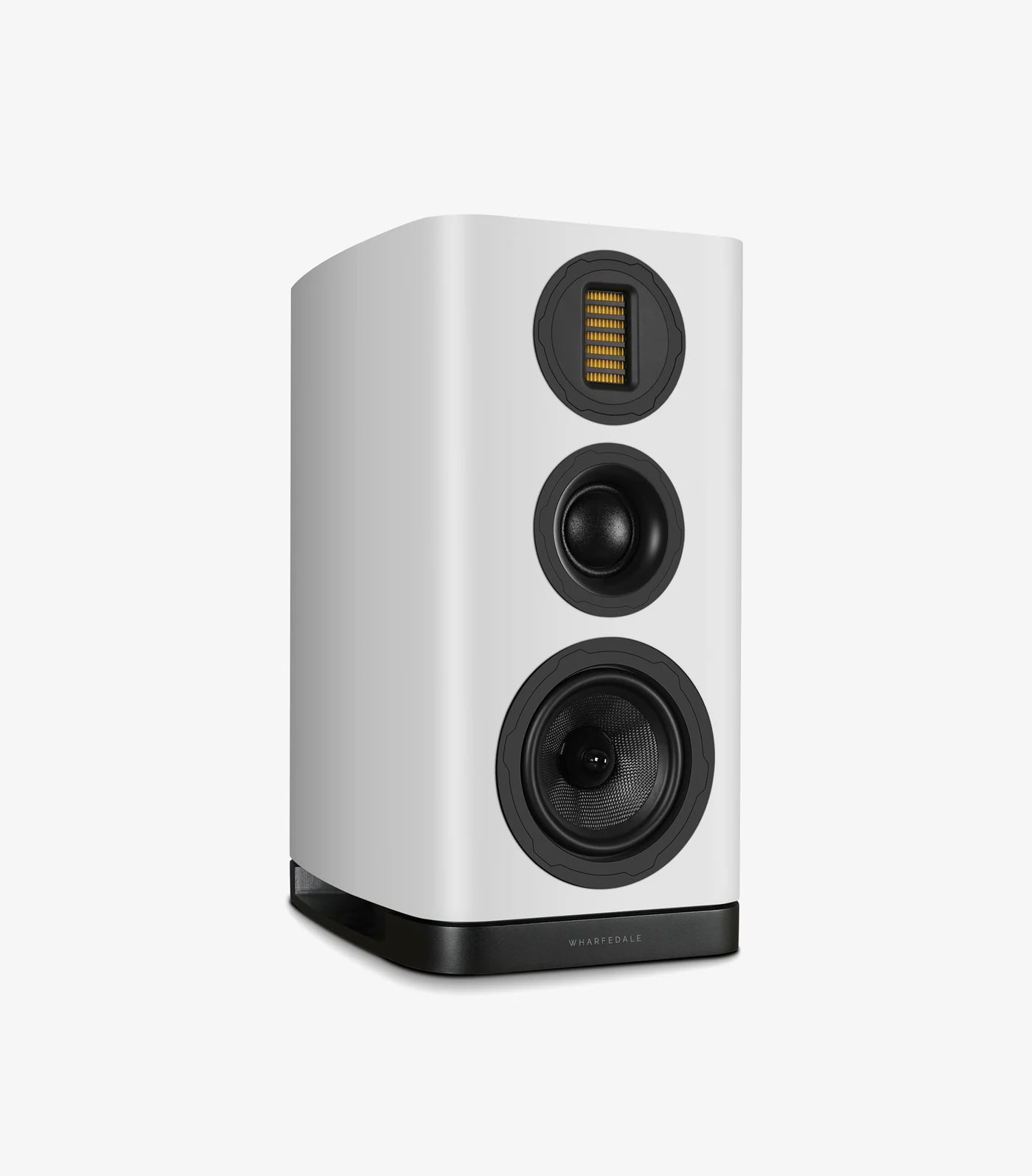

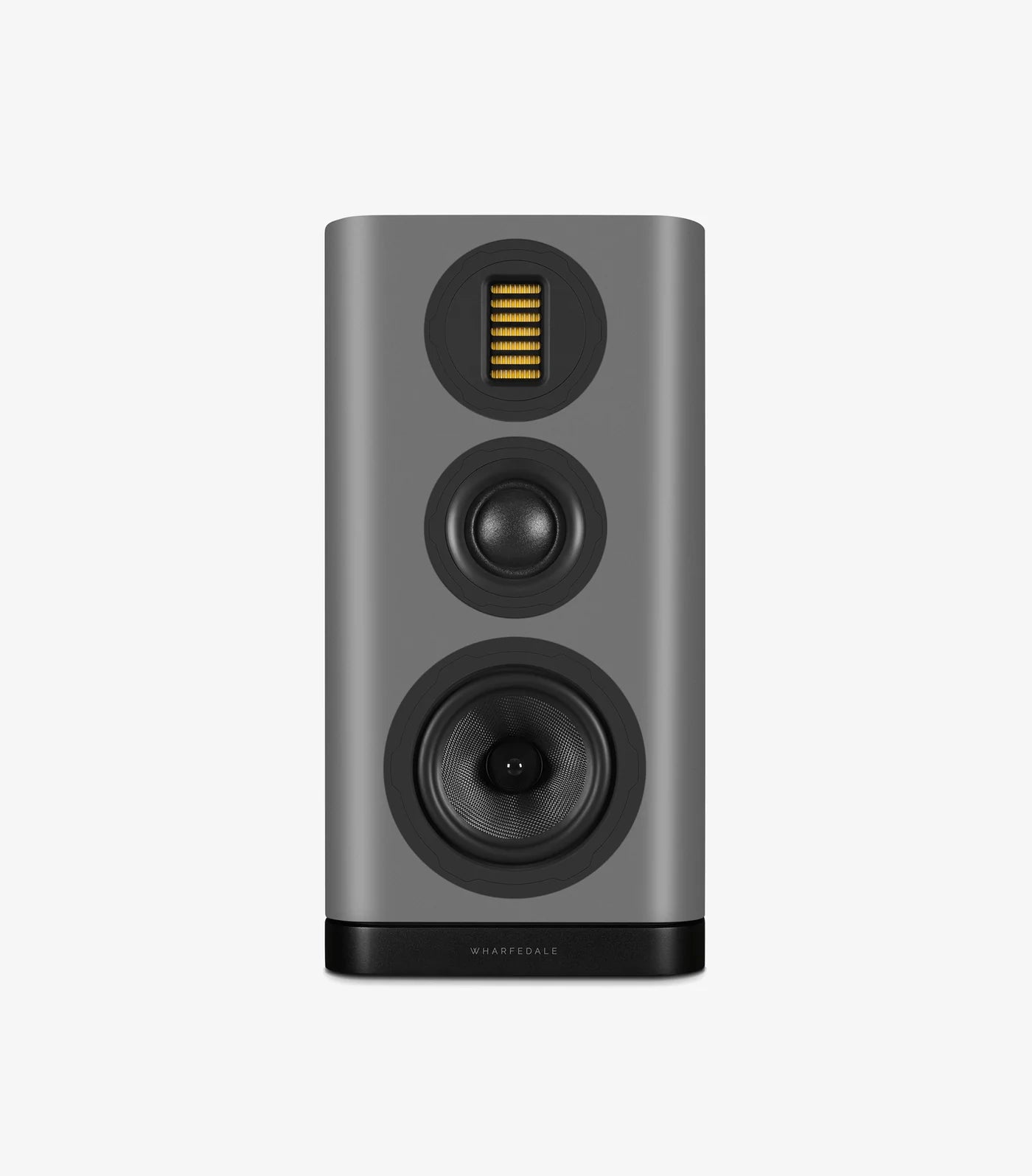

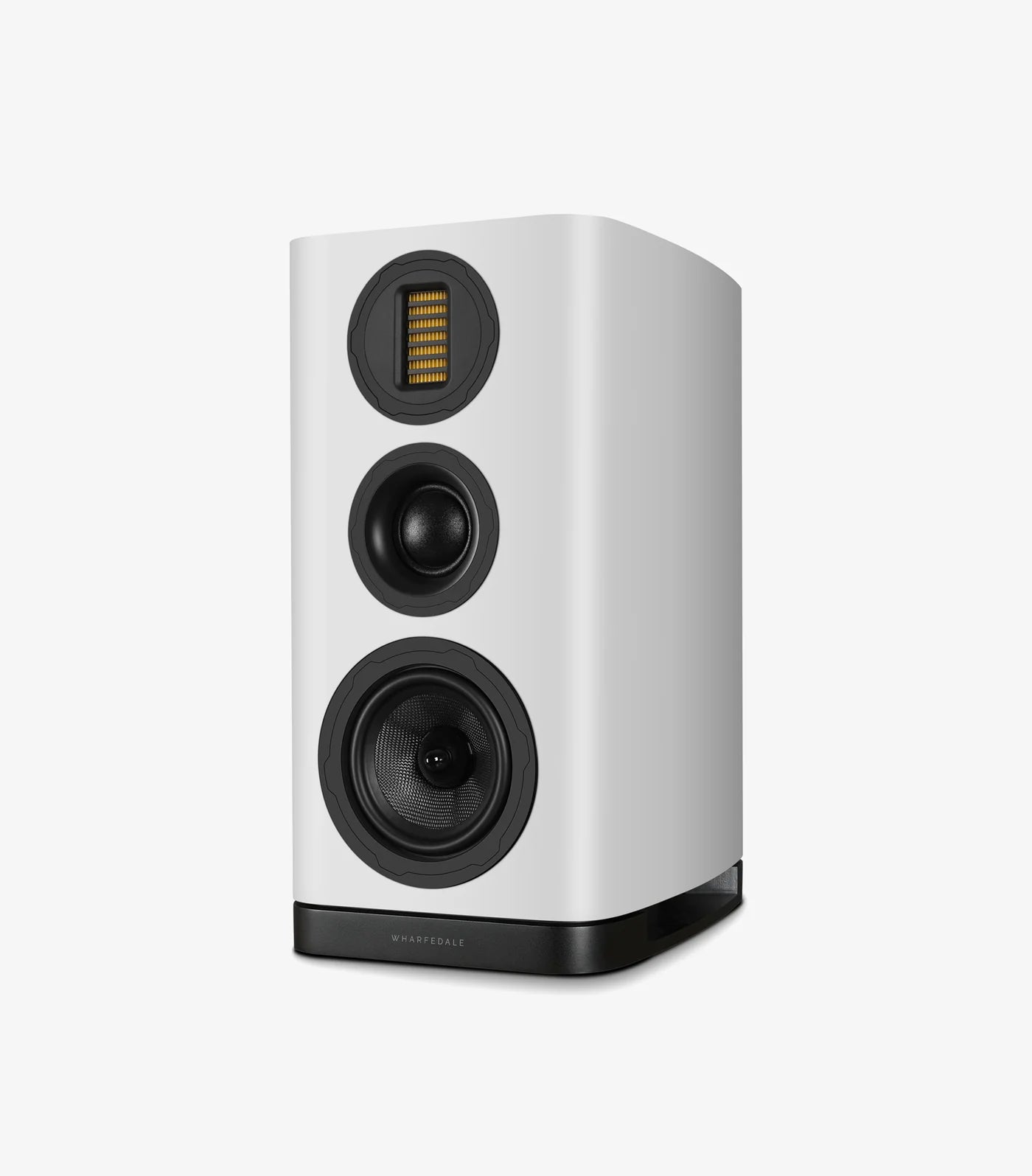

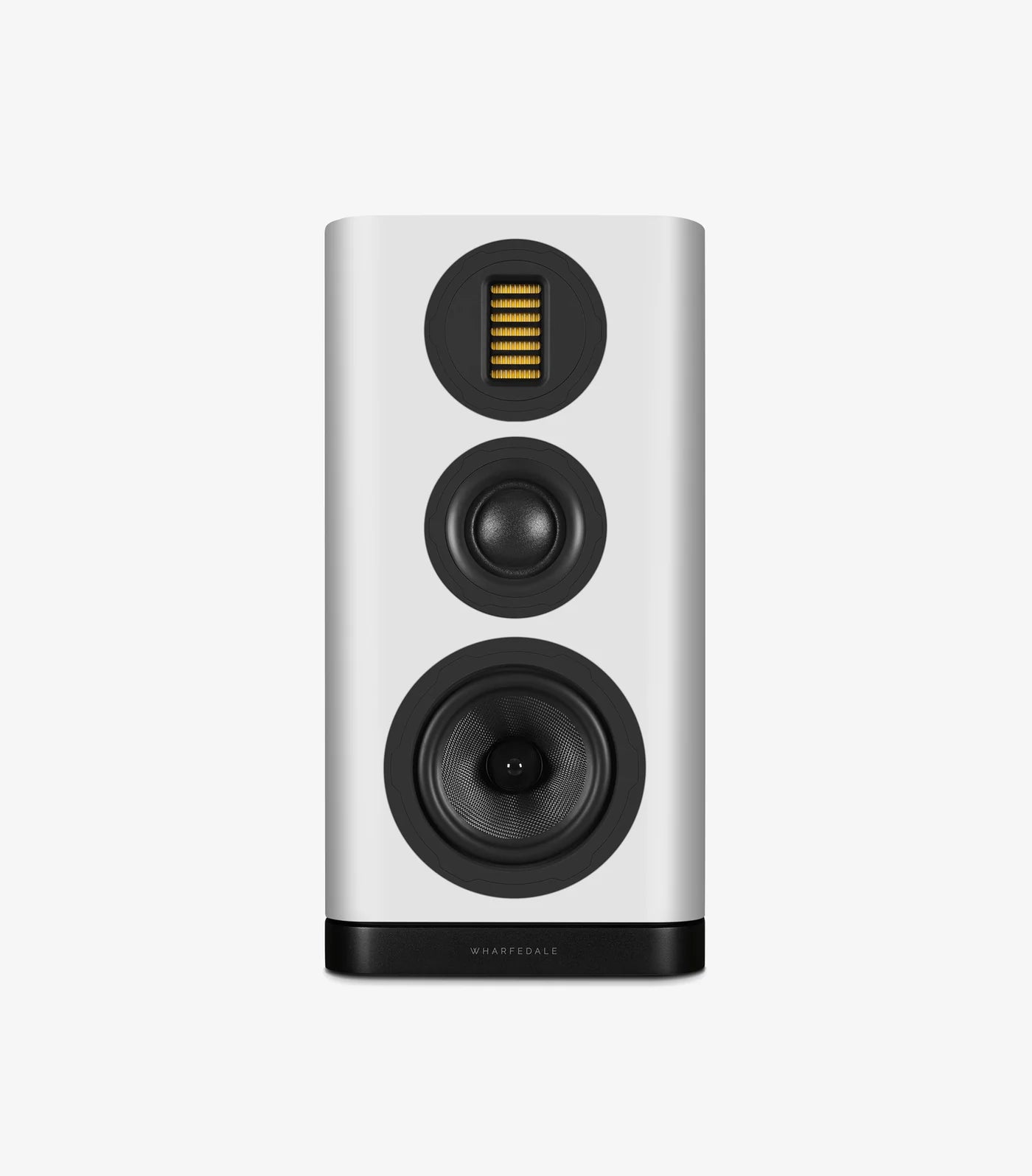

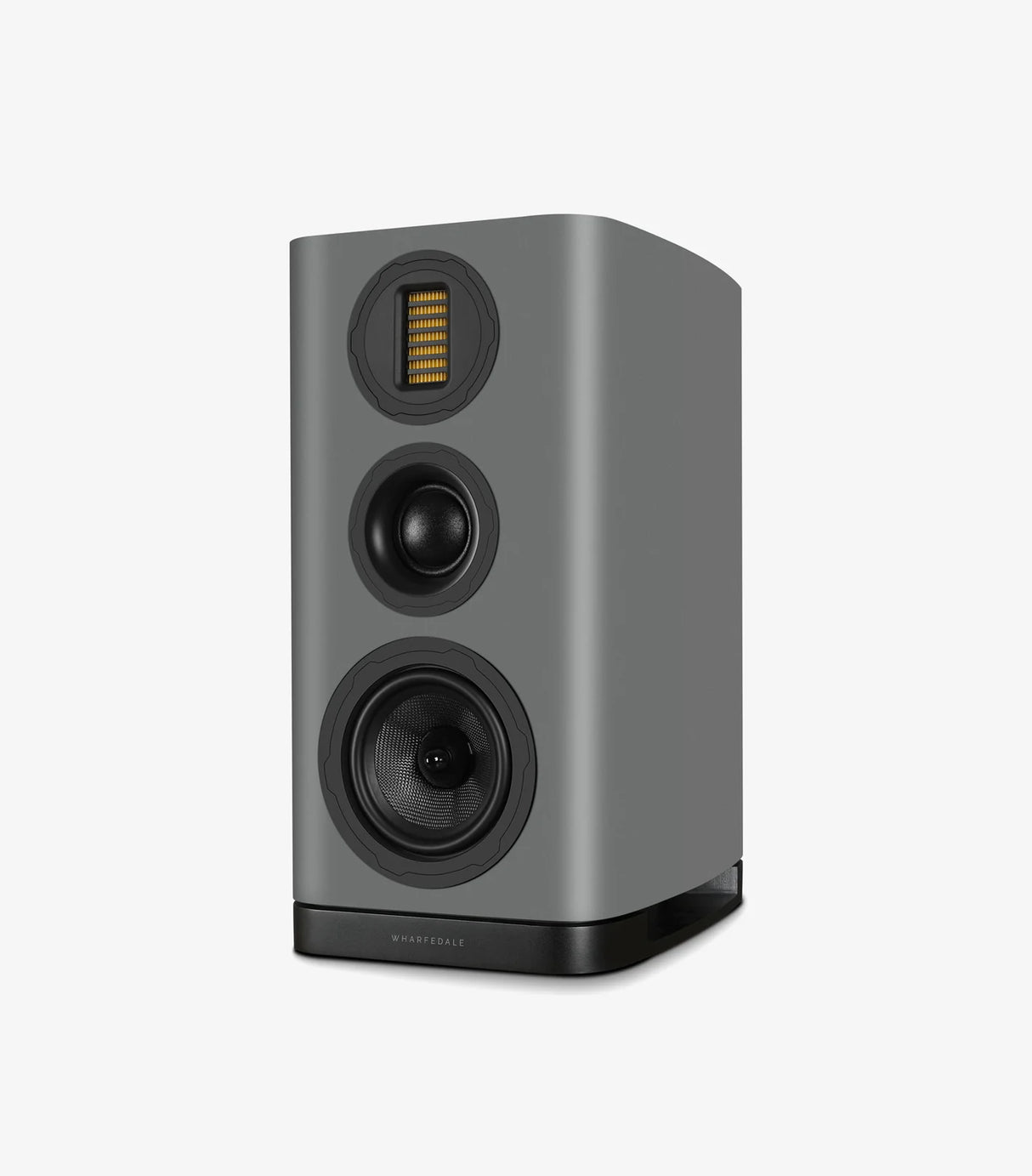

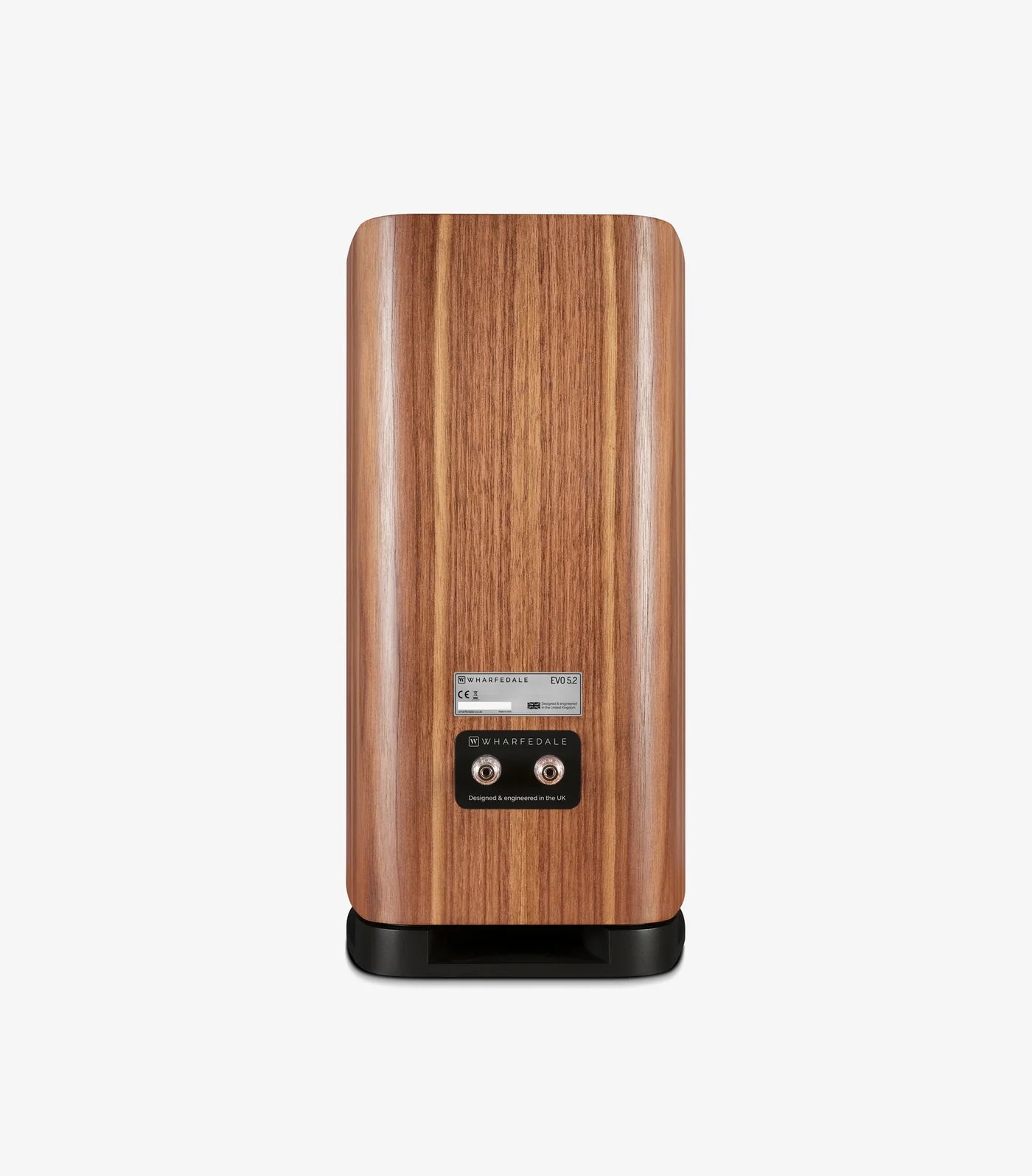

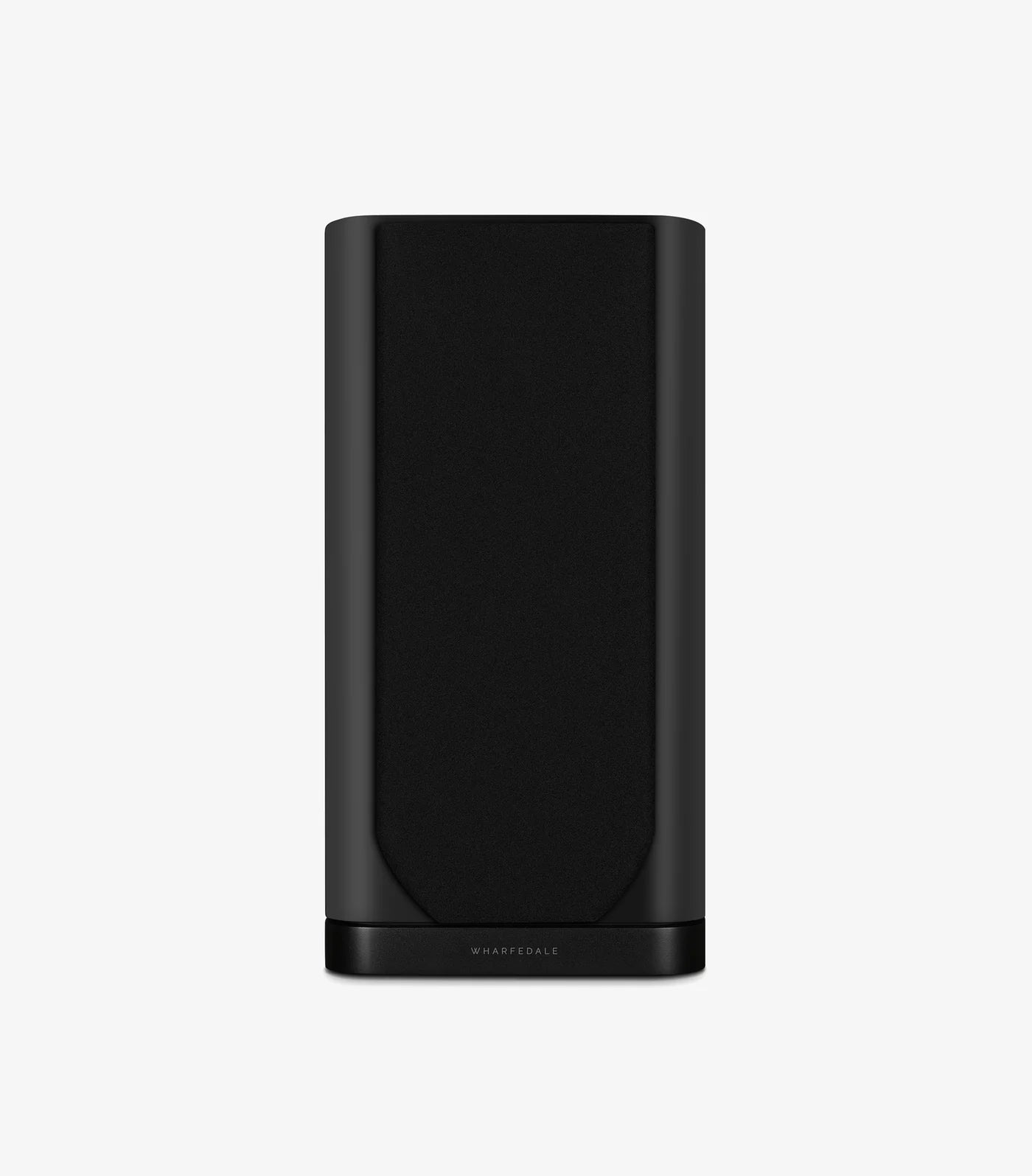

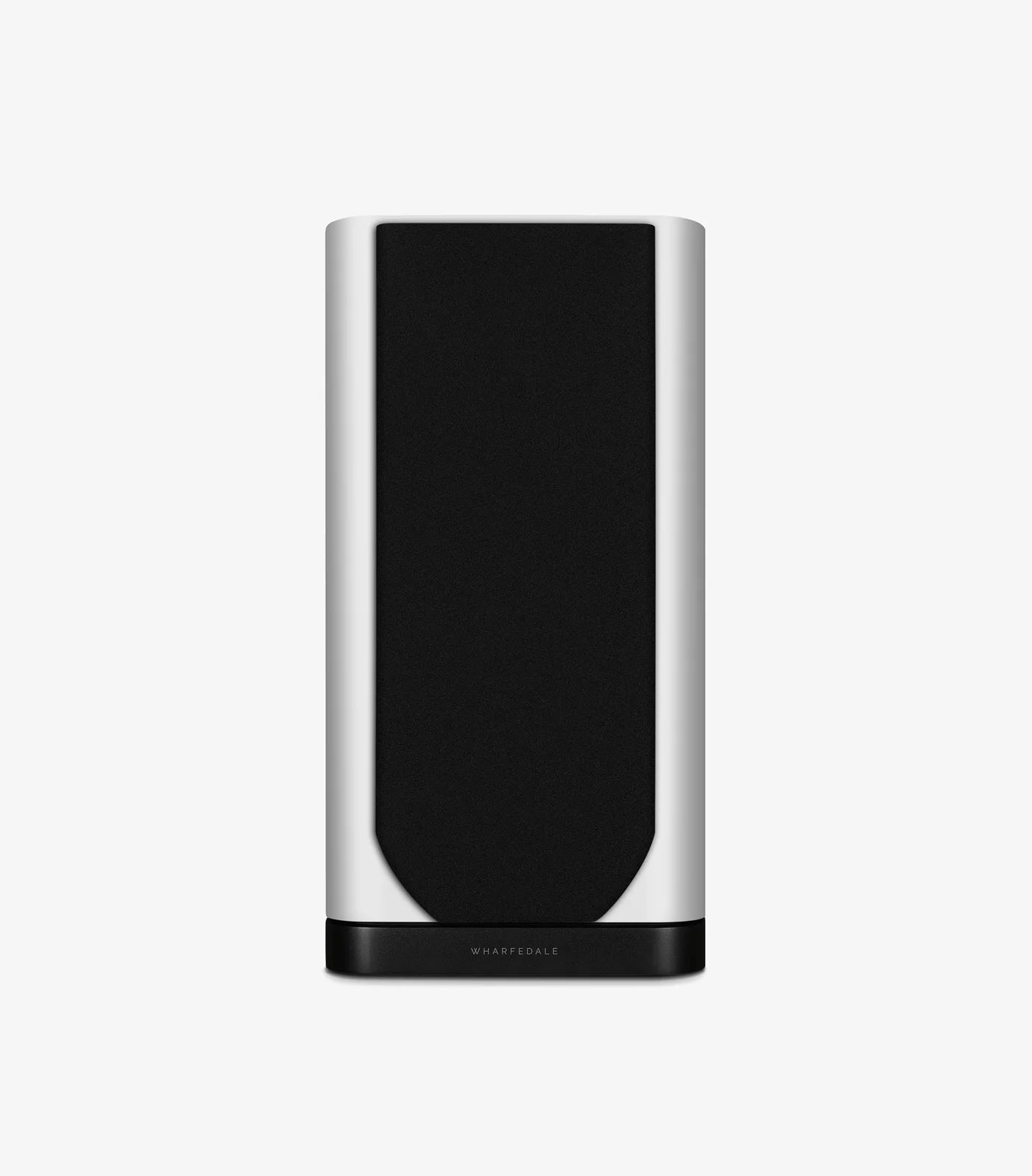

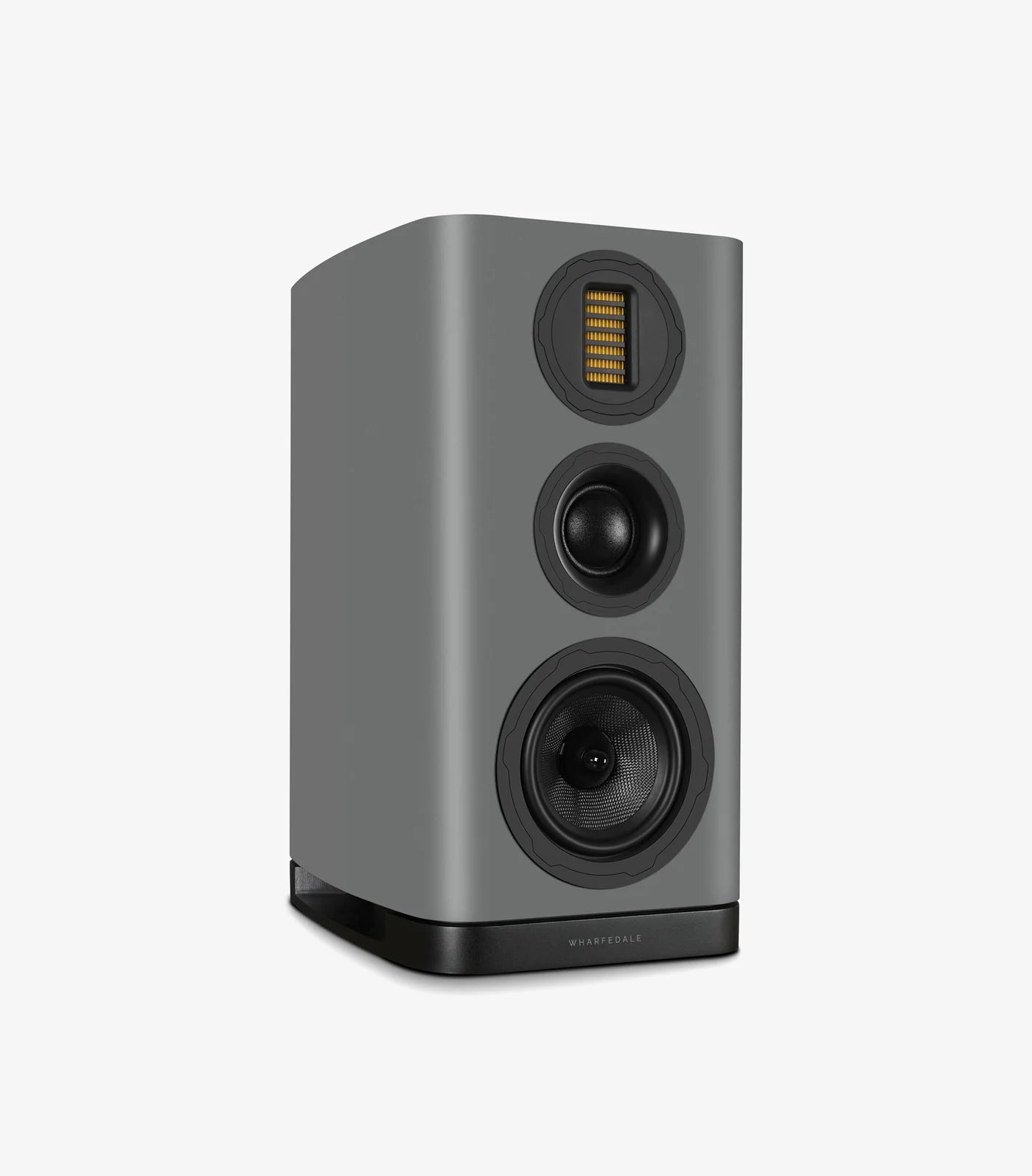

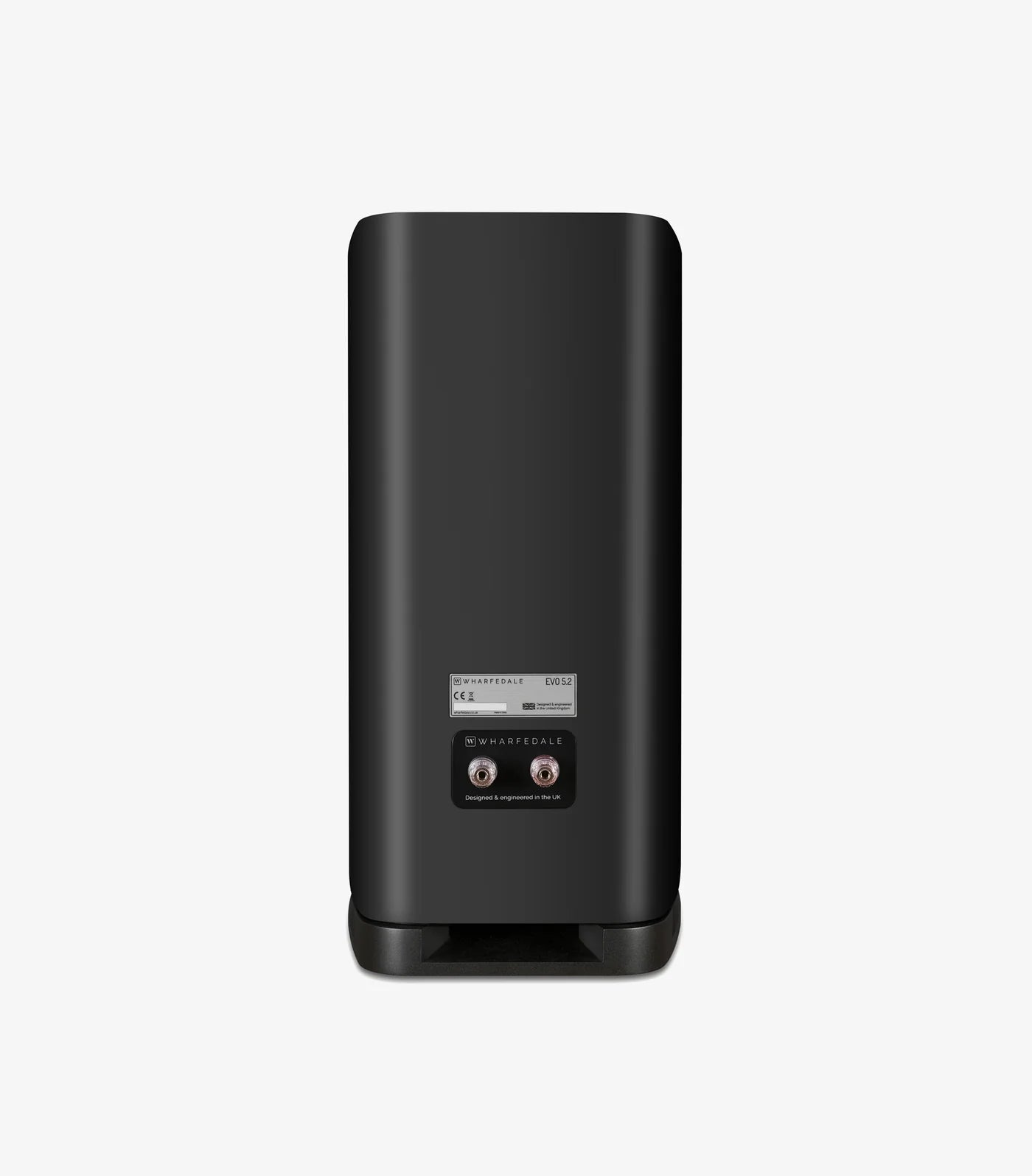

Wharfedale EVO 5.2, bookshelf speakers

The Wharfedale EVO 5.2 is a bookshelf speaker that represents the most advanced technological breakthrough from the renowned British manufacturer. Built on the research and engineering of the high-end Elysian series, the EVO 5.2 combines sophisticated design with advanced sound reproduction technology.

Sensitivity: 88 dB
Recommended amplifier power: 25-120 W
Nominal impedance: 4 Ω (8 Ω compatible)
Frequency range: 44 Hz - 24 kHz (±3 dB)
Crossover frequency: 800 Hz / 4.3 kHz

The EVO 5 Series represents a bold step forward for Wharfedale - taking everything that makes the EVO4 a showroom-staple and multi-award winning loudspeaker series but blending luxurious design updates with technical evolution further to enhance the appeal of a price-bracket-defying loudspeaker offering.

Whether an audiophile seeking nuanced musical expression or a casual listener desiring clarity and depth, the EVO 5 speakers promise an immersive, high-fidelity experience that rivals far more expensive high-end audio offerings.

High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterized Wharfedale's flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.

A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.

Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energized, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and efficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.

The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound coloration inside the speaker. This material, a combination of cotton and felt fiber, was specially developed for the EVO 5 series.

All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver's front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.

These Internal Acoustic enhancements minimize unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.

Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labeled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimizes midrange frequency response, allowing vocals to sound richer, more natural Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproductionl, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.

Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.

The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet's details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that the sound remains clean and uncoloured, free from external resonance artifacts.

EVO 5 Stands
For the EVO 5.1 and EVO 5.2 loudspeakers, specially designed stands are offered to ensure the perfect synergy between form and function. Crafted from high-carbon steel, these stands provide exceptional strength and stability while effectively minimizing unwanted vibrations and interactions with floor surfaces that could compromise sound quality.

Engineered with precision, they position the loudspeakers at the ideal listening height, ensuring an immersive and well-balanced audio experience across various seating positions. Their understated yet elegant design seamlessly complements the aesthetic of the EVO 5 series, maintaining the refined and sophisticated appeal of the speakers themselves.

Model EVO 5.2
General description 3-way bookshelf speaker
Design philosophy and core technology
Enclosure type bass reflex
Transducer complement 3-way
ABR
Bass driver 6.0"(165mm) Black Woven Kevlar Cone
Midrange driver 2"(50mm) Soft Dome
Treble driver 35 x 70mm AMT
Full-range driver
AV shield No
Sensitivity (2.83V @ 1m) 88dB
Recommended amplifier power 25-120W
Peak power handling
Peak SPL 105dB
Nominal impedance 4Ω (8Ω compatible)
Minimum impedance 3.2Ω
Frequency response (+/-3dB) 44Hz - 24kHz
Bass extension (-6dB) 38Hz
Crossover frequency 800Hz, 4.3kHz
Cabinet Volume (in liters) 27.2L
Dimensions (mm)
Height (on plinth) 497mm
Width 260mm
Depth (with grille+terminal) (350 + 40)mm
Carton size 480 * 375 * 610mm
Net weight 15.0kg/pcs
Gross weight 16.5kg/ctn

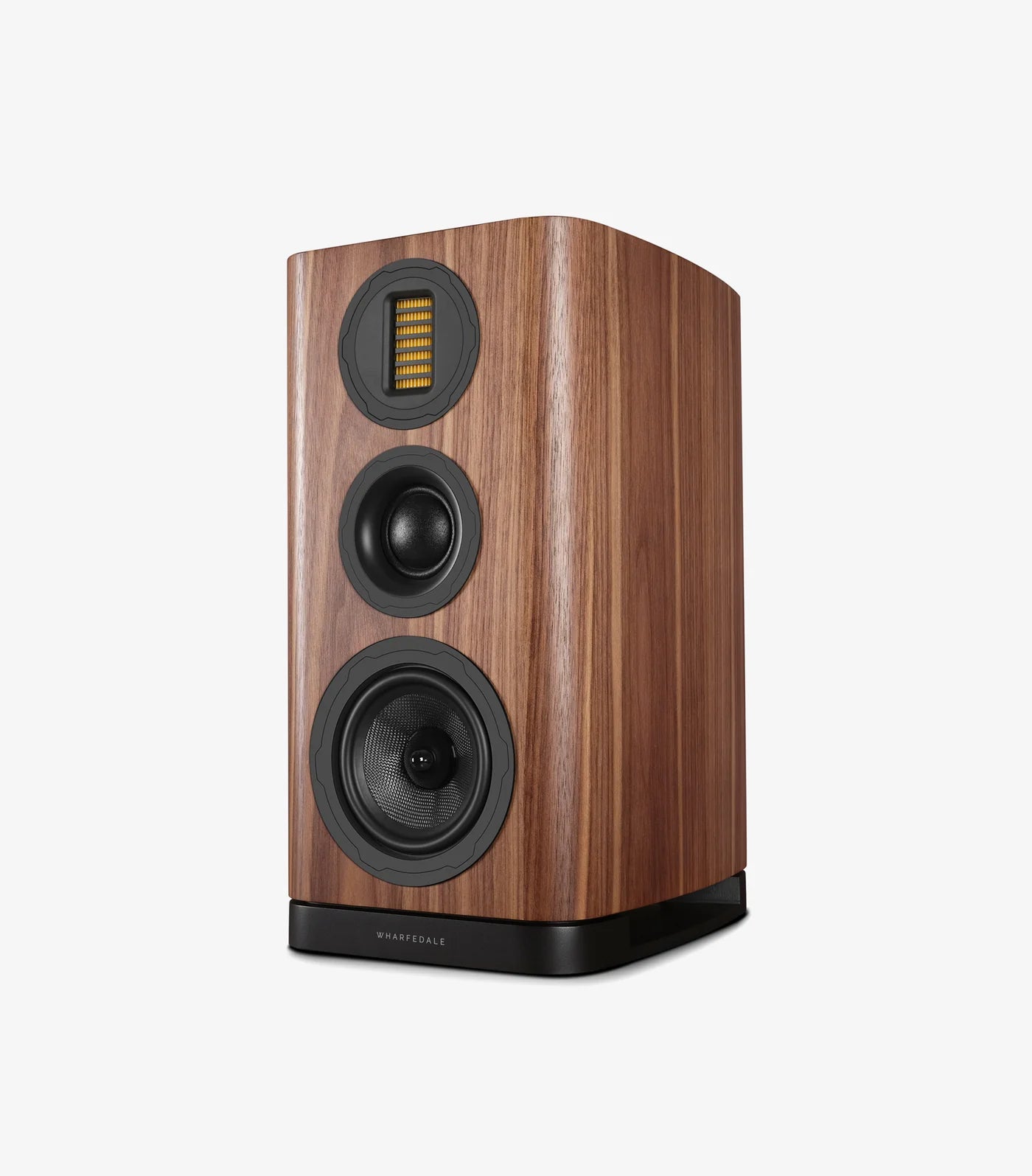

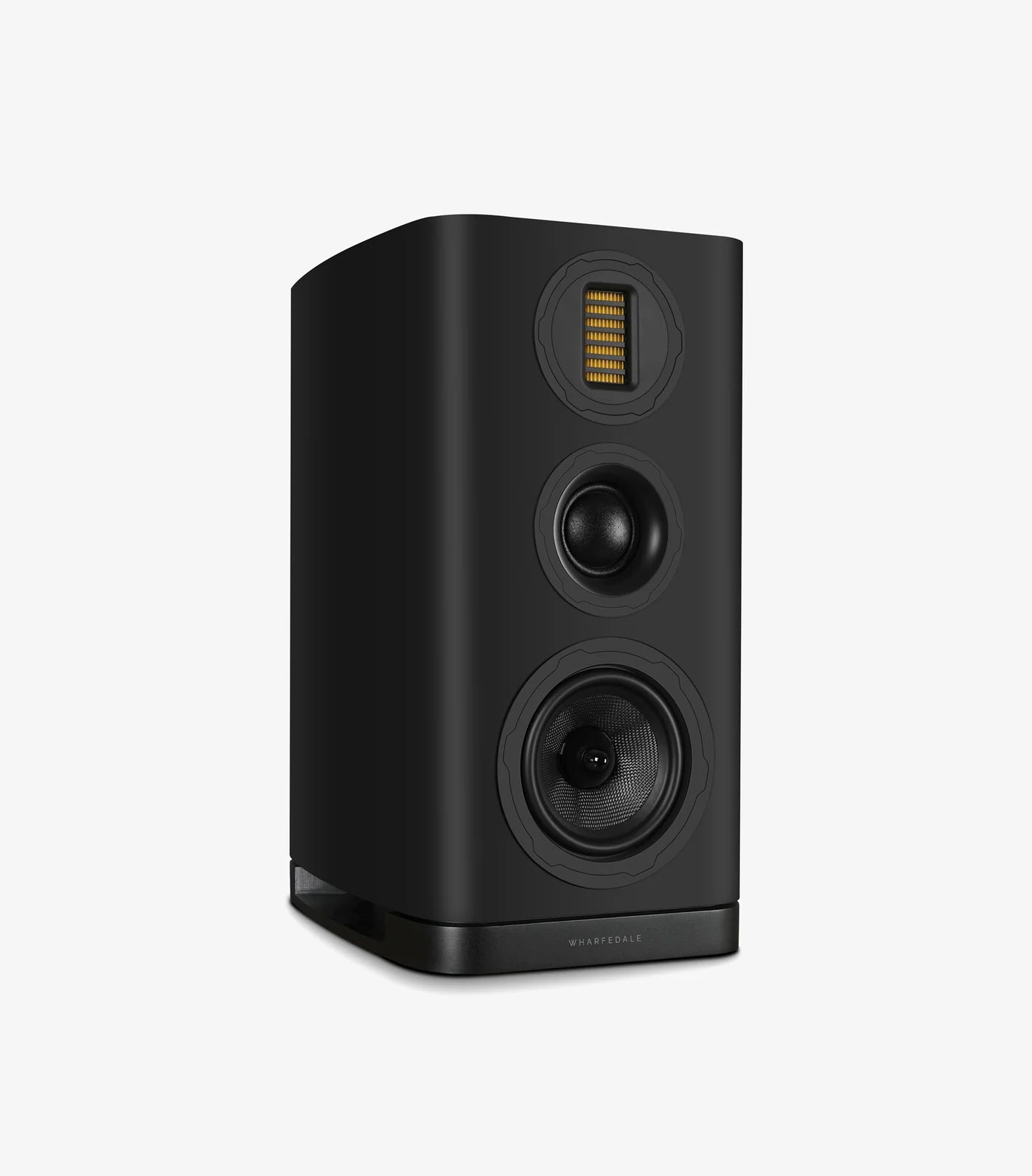

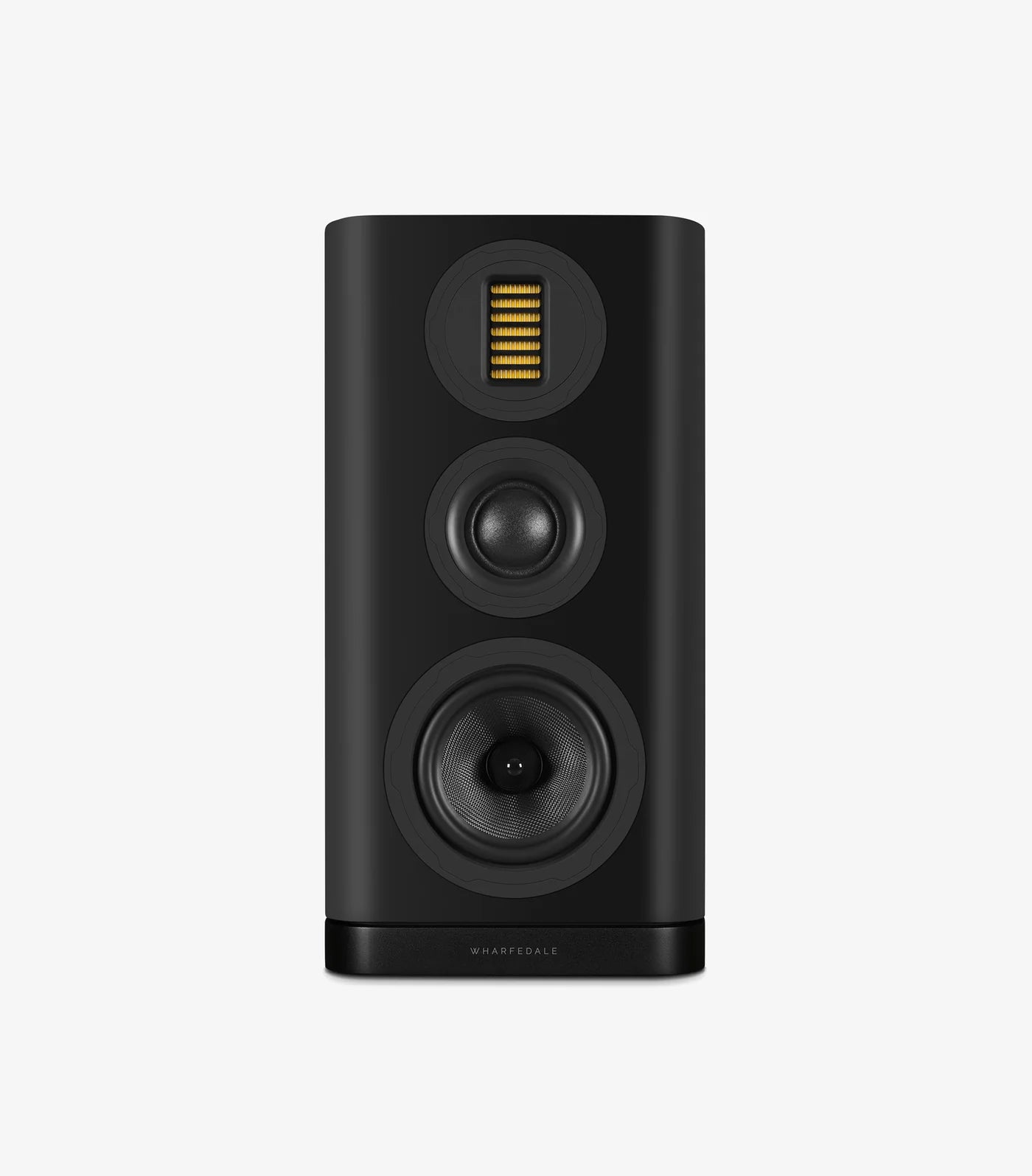

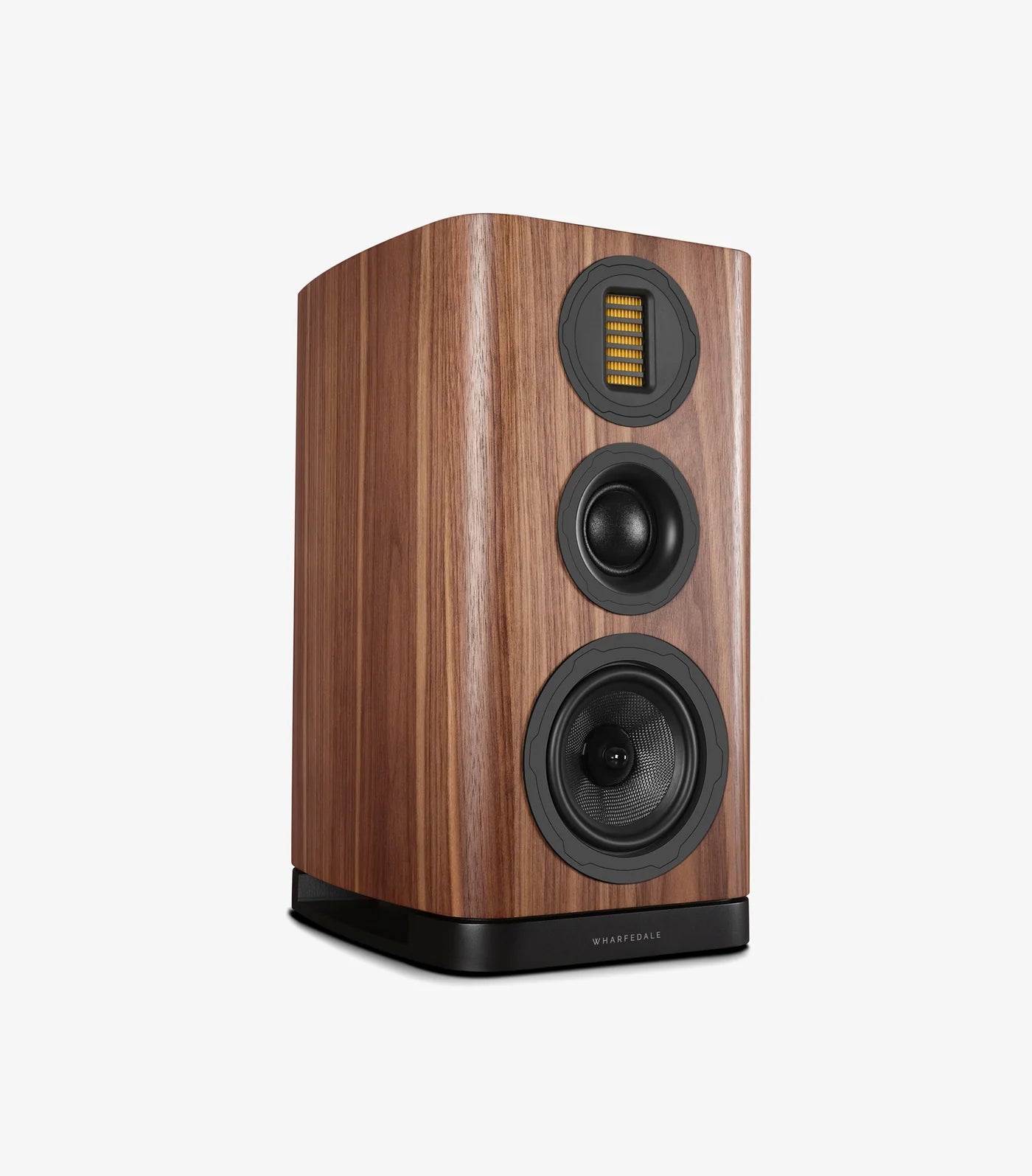

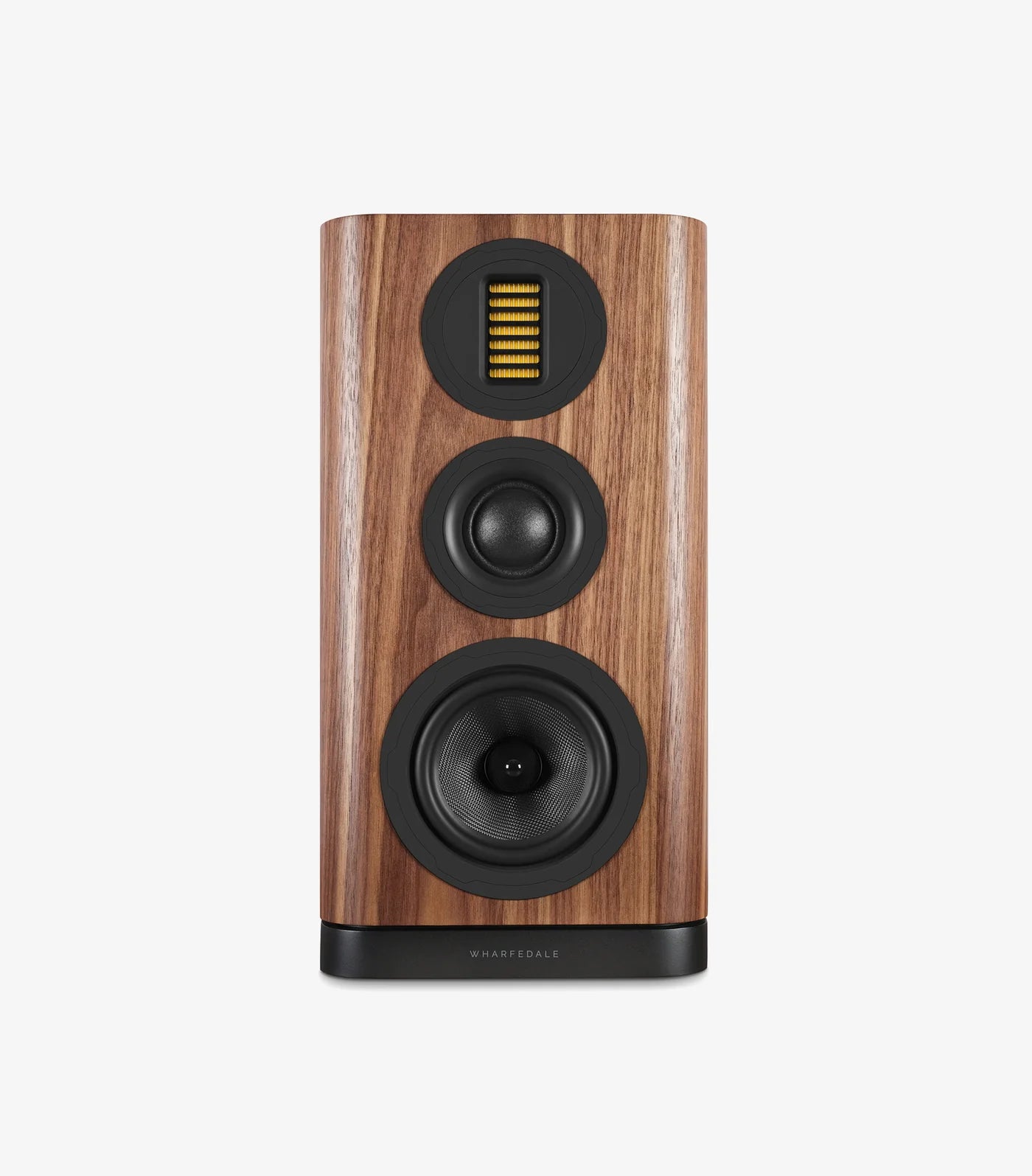

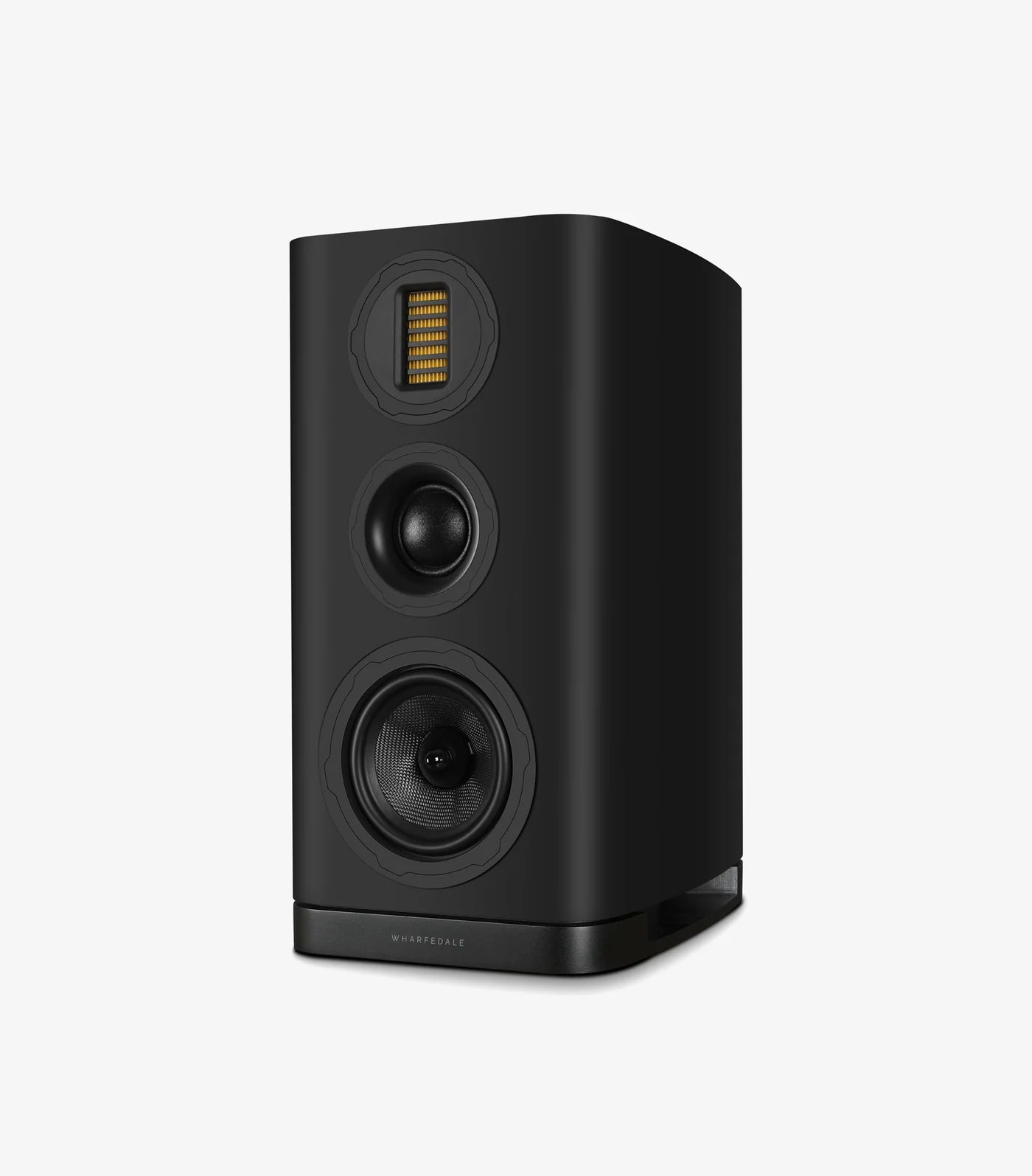

Finish Walnut/Black Oak Veneer
Standard accessories rubber feet

User manual (EN)
