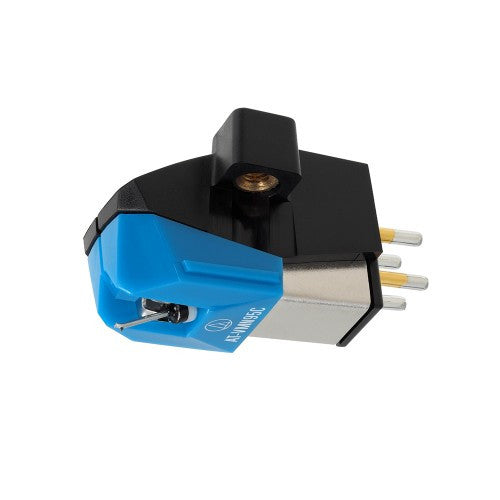

Audio-Technica AT-VM95C kartridžas

34.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

VM95 serijos konikalinis stereo kartridžas (su dvigubu magnetu).

  • Dažnių juosta: 20 - 20.000 Hz.
  • Kantileveris: Aliuminis.
  • Kanalų atskirtis: 18 dB (1 kHz).
  • VM tipo kartridžas.



The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL

Also the AT-VM95C is a “budget” cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.

  • Aluminium cantilever
  • 4.0mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • Replacement for AT91, AT91R and CN5625AL


    SPECIFIKACIJOS

    Model AT-VM95C
    Type VM Stereo Dual Magnet
    Mounting 1/2” centres
    Frequency Response 20 - 20,000 Hz
    Channel Separation 18 dB (1 kHz)
    Output Channel Balance 2.5 dB (1 kHz)
    Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec)
    Vertical Tracking Angle 23°
    Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g)
    Stylus Shape Conical
    Stylus Size 0.6 mil
    Stylus Construction Bonded Round Shank
    Cantilever Aluminium Pipe
    Coil Impedance 3.3 kΩ (1 kHz)
    Coil Inductance 550 mH (1 kHz)
    DC Resistance 485 Ω
    Static Compliance 17 x 10 – 6 cm / dyne
    Dynamic Compliance 6.5 x 10 – 6 cm / dyne (100 Hz)
    Wire Used for Coil T.P. Copper
    Recommended Load Impedance 47,000 Ω
    Recommended Load Capacitance 100-200 pF
    Cartridge Weight 6.1g
    Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
    Replacement Stylus AT-VMN95C
    Accessories Included Two 11 mm installation screws;
    Two 8 mm installation screws;
    Two washers
