AudioQuest PowerQuest 707, maitinimo filtras
Naujieji "PowerQuest 303, 505 ir 707" maitinimo kondicionieriai, pasižymintys išskirtinėmis "AudioQuest" charakteristikomis.
- PQ-716: "ZERO-Tech", užtikrinanti nesuspaustus srovės pereinamuosius procesus, ir "RF/ND-Tech", užtikrinanti precedento neturintį triukšmo sklaidymą, šiame 2 m ilgio RF triukšmą sklaidančiame kabelyje su pusiau kietais koncentriniais laidininkais, kuriuose naudojamas ilgagrandis varis (10 amperų @ 240 V).
- Apsauga nuo viršįtampių.
- Diferencinis režimas: PQ-505); 8 kHz-1 GHz (PQ-707); Bendrasis režimas: 30 kHz-1 GHz (PQ-505); 8 kHz-1 GHz (PQ-707): 30kHz-100MHz (abu modeliai)
- Linijinis triukšmo skaidymas daugiau nei -22 dB.
Matching outstanding AudioQuest performance with non-sacrificial surge protection, the new PowerQuest 303, 505, and 707 power conditioners create excellent foundations for stereo systems, multichannel home theaters, and custom installations.
Performance: All models take AudioQuest's comprehensive approach to AC power conditioning, addressing noise linearly to provide class-leading, wide-bandwidth noise reduction.
Protection: All models feature Non-Sacrificial Surge Protection and Extreme-Voltage Automatic Shutdown at 140VAC. Set and forget.

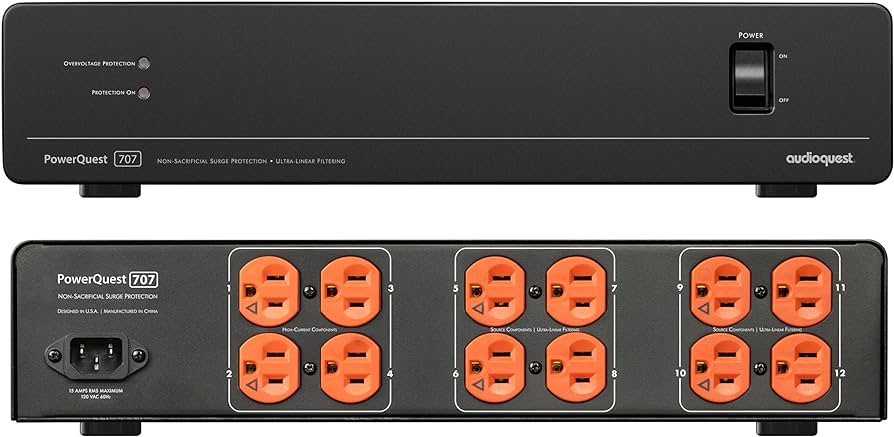

Power: All models provide 12 total AC outlets: 4 High-Current outlets for amplification devices and 8 Linear-Filtered outlets for source devices.
In addition to its wide-bandwidth Ultra-Linear Noise-Dissipation, the PQ 707 includes Transient Power Correction.
Transient Power Correction provides a current reservoir of up to 45 amps peak on-demand power for any amplifier (up to 25mS), supplying the low-impedance current the amp needs to produce thrilling dynamic contrasts, bass extension, and control.
All models come with optional 2RU rack ears and a detachable 2m PowerQuest power cable with a flat-to-wall plug. For installers, this means each PowerQuest unit is ready to go from the box to the rack in just minutes.
SPECIFIKACIJOS
PQ-715 POWER CABLE WITH FLAT-TO-WALL PLUG
PQ-716: ZERO-Tech for uncompressed current transients and RF/ND-Tech for unprecedented Noise-Dissipation in this 2m RF-Noise Dissipating cable with Semi-Solid Concentric Conductors using Long-Grain Copper (10amps @240V)
ULTRA-LINEAR NOISE-DISSIPATION (MORE THAN -22DB)
Differential-Mode: 30kHz-1GHz (PQ-505); 8kHz-1GHz (PQ-707); Common-Mode: 30kHz-100MHz (both models)
NON-SACRIFICIAL SURGE PROTECTION
Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.
EXTREME VOLTAGE SHUTDOWN
140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.
45-Amp Transient Power Correction with Current Reservoir
Provides a current reservoir for any power amplifier (45 amps peak; up to 25mS)
OPTIMIZED OUTLETS
8x Linear-Filtered for Source / Constant-Current components (TVs, media streaming devices, etc.); 4x High-Current for Variable-Current components (amplifiers, powered speakers & subwoofers)
RACK-MOUNTABLE
2RU rack ears included
Dimensions: 43cm W x 38cm D x 8.6cm H (9.4cm w/ feet attached)
Weight: 7.6 kg
