Audison

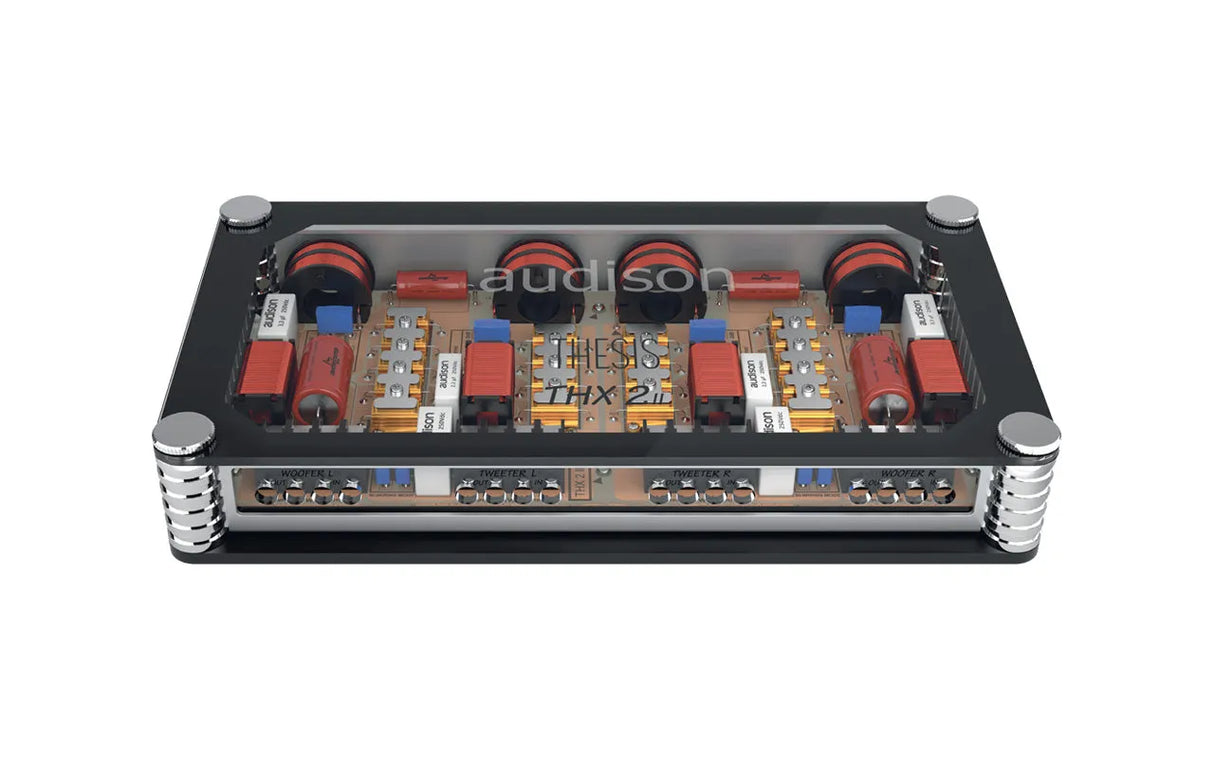

Audison THX 2 II, perėjimo blokas

1,832.00 €

Audison THX 2 II, perėjimo blokas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Perėjimo blokas sukurtas aukštos klasės komponentais.

  • Tinka: 300W galios sistemoms.
  • Lo-Pass filtras: Lo-pass 1,35 kHz @ 6 dB/Oct.
  • Hi Pass filtras: Hi-pass 2,8 kHz @ 12 dB/Oct. Q=0,48.



For the enthusiasts who prefer to use a passive filter, the R&D team has created THX 2 II, a crossover engineered without compromise with the use of high quality resistors, capacitors and inductors. The filter, for both woofer and tweeter, has special compensation networks that optimize the load seen by the amplifier. The filtering configuration originates from the active Best Envelopment configuration and allows the following fine-tuning options to improve the performance in the passenger compartment:

• 4 emission levels for the tweeter ( -4, -2 , 0, +1,5 dB), designed with L-Pad technique

• mid-frequency level control ( -4 / -2 / 0 / +1,5 dB) centered at 900 Hz to vary the sound character from the analytical one obtained from professional monitors to the softer one typical of the most sophisticated home systems.

• possibility of bi-amplification

SPECIFIKACIJOS

Comp 2-way Passive Crossover for TH 1.5 II + TH 6.5 II
Size mm (in.) 348 x 190 x 66,5 (13.7 x 7.48 x 2.62)
Power Handling W peak 300
W continuos 150
Filters   Woofer cut-off  Lo-pass 1,35 kHz @ 6 dB/Oct.
Tweeter cut-off   Hi-pass 2,8 kHz @ 12 dB/Oct. Q=0,48
Filters – Adjustment Contour @ 1 kHz  -3 / -1,5 / 0 dB
Tweeter level  -4 / -2 / 0 / +1,5 dB
Weight of one component kg (lb)   3,6 (7)

INSTRUKCIJOS

User Manual (EN).

Kategorijos

Audison THX 2 II, perėjimo blokas
Audison

Audison THX 2 II, perėjimo blokas

1,832.00 €

Perėjimo blokas sukurtas aukštos klasės komponentais.



APRAŠYMAS

For the enthusiasts who prefer to use a passive filter, the R&D team has created THX 2 II, a crossover engineered without compromise with the use of high quality resistors, capacitors and inductors. The filter, for both woofer and tweeter, has special compensation networks that optimize the load seen by the amplifier. The filtering configuration originates from the active Best Envelopment configuration and allows the following fine-tuning options to improve the performance in the passenger compartment:

• 4 emission levels for the tweeter ( -4, -2 , 0, +1,5 dB), designed with L-Pad technique

• mid-frequency level control ( -4 / -2 / 0 / +1,5 dB) centered at 900 Hz to vary the sound character from the analytical one obtained from professional monitors to the softer one typical of the most sophisticated home systems.

• possibility of bi-amplification

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Comp 2-way Passive Crossover for TH 1.5 II + TH 6.5 II
Size mm (in.) 348 x 190 x 66,5 (13.7 x 7.48 x 2.62)
Power Handling W peak 300
W continuos 150
Filters   Woofer cut-off  Lo-pass 1,35 kHz @ 6 dB/Oct.
Tweeter cut-off   Hi-pass 2,8 kHz @ 12 dB/Oct. Q=0,48
Filters – Adjustment Contour @ 1 kHz  -3 / -1,5 / 0 dB
Tweeter level  -4 / -2 / 0 / +1,5 dB
Weight of one component kg (lb)   3,6 (7)


DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
