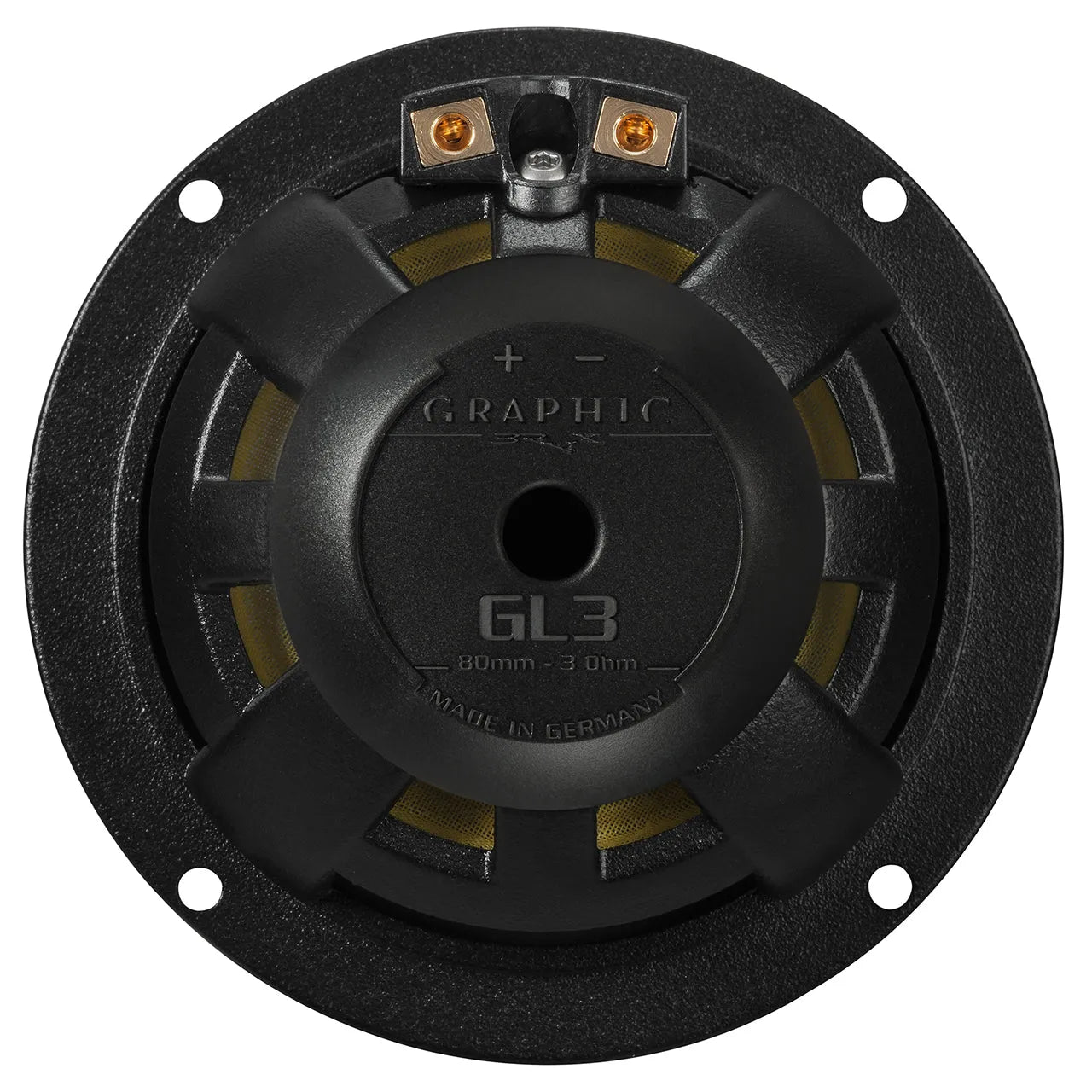

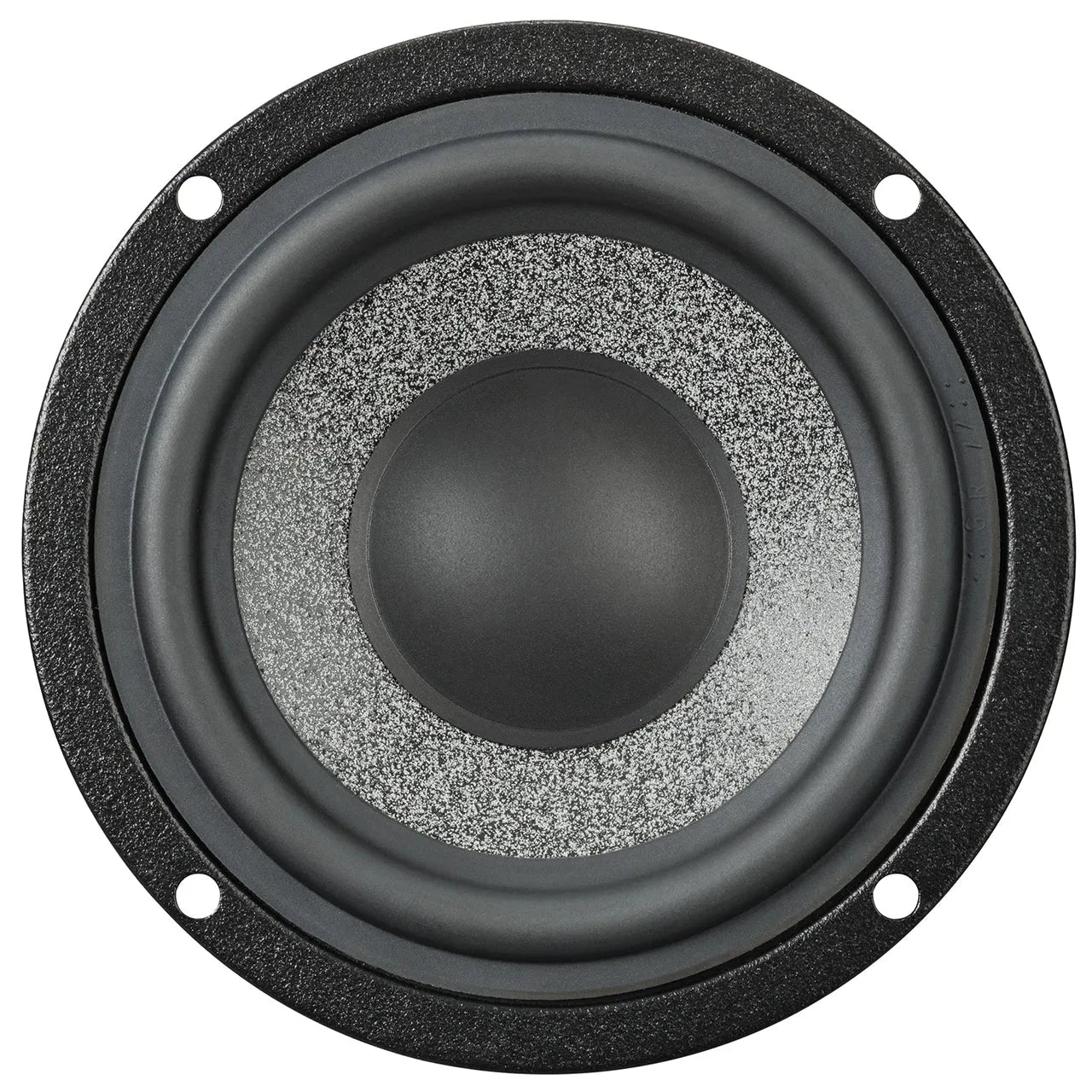

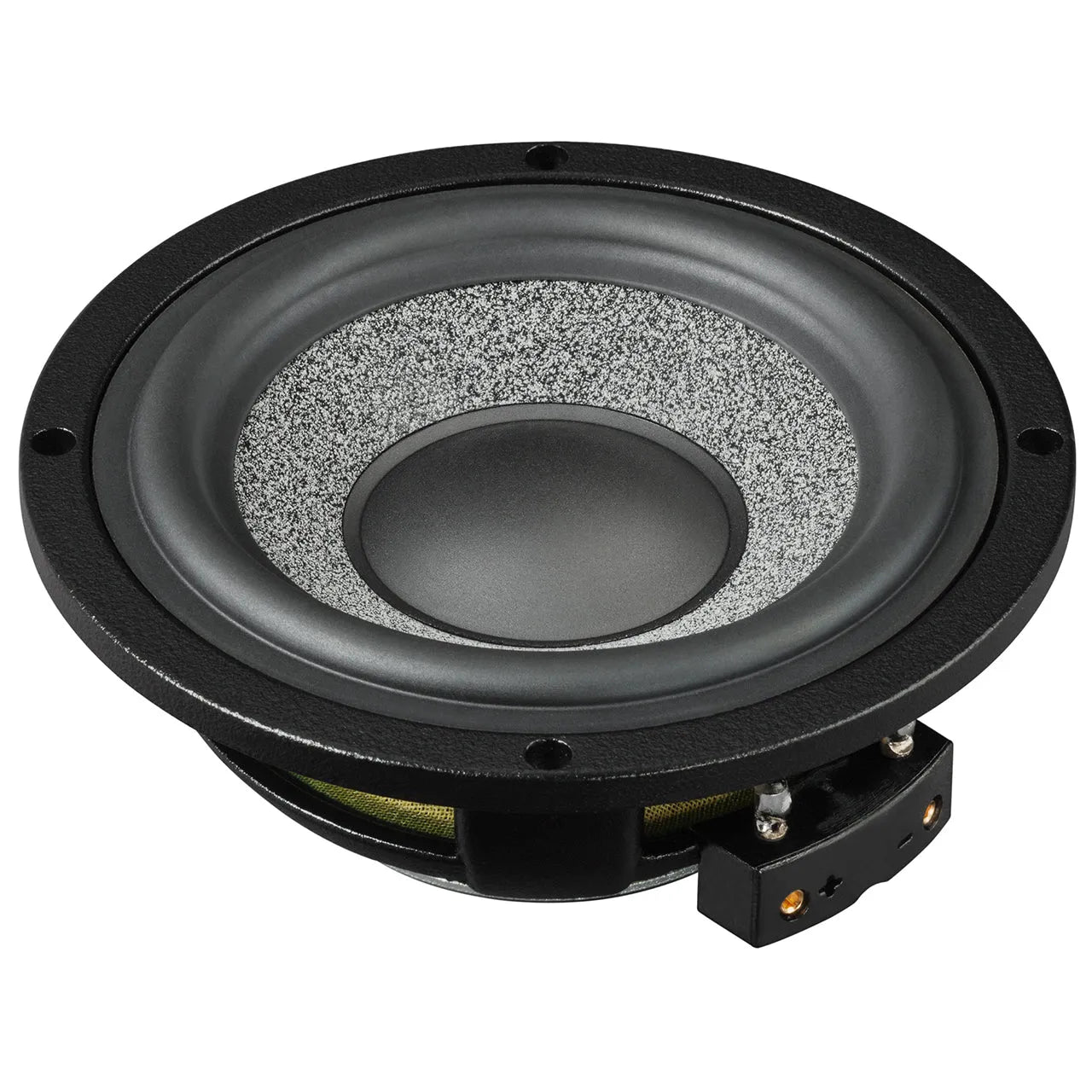

BRAX GRAPHIC GL3 MK2, vidutinių dažnių garsiakalbis

€99.00 EUR

BRAX GRAPHIC GL3 MK2, vidutinių dažnių garsiakalbis - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

BRAX GRAPHIC serija, tai Išskirtiniai komponentai ir neprilygstamas meistriškumas - gaminama tik Vokietijoje!

  • Rekomend. stiprintuvo galia; 100 / 150 W.
  • Dažnių juosta: 250 Hz - 8.000 Hz.
  • Jautrumas: 91 dB @ 2.83V.
  • Varža: 3 Ω.

BRAX GRAPHIC GL3 MK2

It all started with the vision of the passionate music lover and entrepreneur Heinz Fischer, to transfer the sound experience of legendary high-end audio components into an automobile environment without making any compromises in terms of design, technology and sound. following In line to this, our engineers focussed on exceptional sound quality and once again pushed the technological limits when they designed our BRAX GRAPHIC speaker series. Outstanding components and unparalleled craftsmanship – solely made in Germany!

Progression in Perfection

In line with BRAX's typical self-conception and commitment, the constant pursuit of perfection is a must, resulting in continuous detailed improvements. The new GL3 MK2 now features a new dust cap made of exceptionally soft polyurethane, ensuring an even more balanced frequency response in the upper midrange and thus achieving maximum tonal neutrality.

A perfect team with maximum tonal harmony

The high-end midrange driver GL3 is, in combination with the GL1 MK2 tweeter and GL6 MK2 mid-woofer, the ideal complement for exceptional three-way constellations in our BRAX GRAPHIC speaker series. Its lively, dynamic sound characteristics and particularly wide frequency range predestine the GL3 MK2 ideal for an extraordinary acoustical experience.

MicroSphere – the material for maximum acoustic precision

The centerpiece of this midrange is its particularly light paper cone with a modified "MicroSphere" coating. Its extremely precise and detailed reproduction harmonizes perfectly with the other speakers in the GRAPHIC series. This patented technology embeds ceramic micro hollow spheres with a mere diameter of 75 µm in a polyamide layer that is applied to the cone.

State-of-the-art technology

The cone is driven by a particularly linear push-pull neodymium magnet system, which is integrated into the aerodynamically sophisticated die-cast aluminum basket. The perfect ventilation of the long-stroke voice coil not only ensures excellent thermal stability, but also prevents compression effects right from the start. The soft rubber surround ensures an extremely low resonance frequency and thus the possibility of a low crossover frequency, ideally in fully active systems.

Details thought through

The love for every single detail manifests the GL3 MK2 as a BRAX transducer at reference level, which meets the highest tonal demands of any music lover. Typically for BRAX, each pair of speakers is given its own serial number and recorded in a service database. This high-end product – Made in Germany – is made perfect by the packaging in an elegant wooden box, which once again underlines the uncompromising philosophy of the BRAX brand.

Features

  • Very stiff lightweight paper cone with unique “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
  • Low-reflection rubber surround for smooth high frequency roll-off
  • Aerodynamically shaped aluminum diecast basket with optimized voice coil ventilation
  • Polyurethane dustcap for optimization of the frequency response in the upper midrange area
  • Ultra-precise machined, vented neodymium magnet system for highest magnetic flux linearity
  • Solid stainless steel ring BRAX MR3 optionally available, which can either be used as mounting ring or grille support ring depending on mounting position

SPECIFIKACIJOS

Power handling RMS / max.  P 100 / 150 Watts
(highpass > 300 Hz at 24 dB/Oct.)
Impedance  Z 3 Ω
DC resistance  Re 2.9 Ω
Frequency response   250 Hz - 8.000 Hz
Resonance frequency  Fs 80 Hz
Mechanical Q factor  Qms 2.90
Electrical Q factor  Qes 0.29
Total Q factor Qts 0.26
Compliance Cms 1180 μm/N
Equivalent air volume Vas 1.95 L
Force factor  B*I 4.1 Tm
Sensitivity SPL 91 dB @ 2.83V
87 dB @ 1W / 1m
Cone area  Sd 35 cm²
Moving mass  Mms 3.4 g
Cone material   Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
Mechanical resistance  Rms 0.62 kg/s
Voice coil diameter ø 25 mm / 1"
Voice coil winding height   6 mm / 0.2"
Max. linear excursion  Xmax +/- 1.5 mm
Outer diameter ø 92 mm / 3.6"
Installation diameter ø 76 mm / 3.0"
Installation depth   35.5 mm / 1.4"

Recommended enclosure volumes
Sealed box with minimum 250 ml net volume

Net volumes  Recommended DSP / amplifier settings
0.4 liter (System resonance: 200 Hz)  Crossover frequency: 350 Hz
Min. filter slope: 12 dB/Oct.
0.8 liter (System resonance: 155 Hz)  Crossover frequency: 300 Hz
Min. filter slope: 12 dB/Oct.
1.2 liter (System resonance: 140 Hz)  Crossover frequency: 250 Hz
Min. filter slope: 24 dB/Oct.

Note: The enclosure should always be filled with appropriate damping material.


INSTRUKCIJOS

User Manual (EN).
