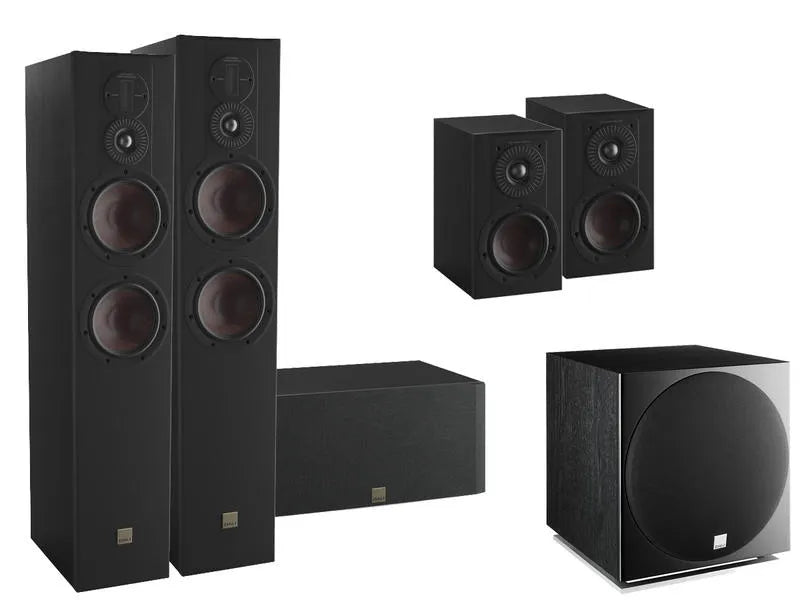

Dali OPTICON 6 MK2 5.1, Namų kino garsiakalbių komplektas

OPTICON MK2 garsiakalbių diapazonas yra aiškus, neiškraipytas, malonus ir nuoseklus, puikiai papildantis muzikos, radijo, srautinio transliavimo, TV ar filmų šaltinius.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 3,974.00 €
Kaina: 3,974.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Dali OPTICON 6 MK2 5.1, Namų kino garsiakalbių komplektas

OPTICON MK2 garsiakalbių diapazonas yra aiškus, neiškraipytas, malonus ir nuoseklus, puikiai papildantis muzikos, radijo, srautinio transliavimo, TV ar filmų šaltinius.

  • 2 x OPTICON 6 MK2 Grindinė kolonėlė.
  • 2 x OPTICON 1 MK2 Lentyninė kolonėlė.
  • 1 x OPTICON VOKAL MK2 Centrinė kolonėlė.
  • 1 x SUB E-12 F Žemų dažnių kolonėlė.

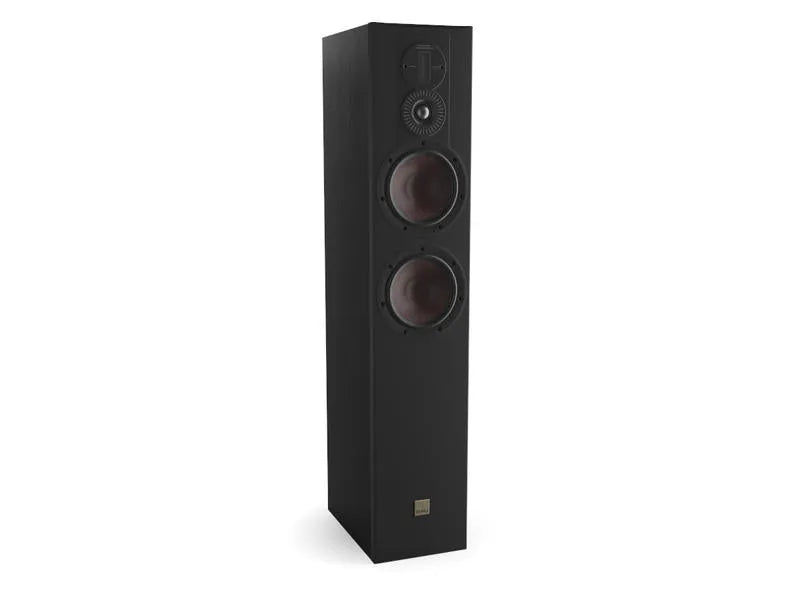

OPTICON 6 MK2

The slim, floor-standing OPTICON 6 MK2 is the entry point in the OPTICON MK2 series for the renowned DALI hybrid soft dome and ribbon tweeter. The hybrid tweeter offers a significant advance in high frequency resolution and has been improved for OPTICON MK2 by incorporating the CALLISTO derived 29mm dome alongside a 17mm x 45mm ribbon element in a re-engineered, cast aluminium faceplate. OPTICON 6 MK2 low frequencies and midrange are handled by twin 6½” Wood Fibre diaphragm, SMC magnet bass/midrange drivers, the lower one of which is gradually attenuated into the midrange band. The OPTICON 6 MK2 offers optional bi-wiring to enable its bass/midrange and high frequency sections to be connected independently. Twin bass drivers, Dual Flare reflex loading, and the increased internal volume provided by its floor standing enclosure enable the OPTICON 6 MK2 to achieve significantly greater low frequency extension and bass volume level than the stand mount OPTICON MK2 systems. And it combines that bass performance with brilliant, midrange clarity and the sparkling high frequencies that are characteristic of the DALI hybrid tweeter.

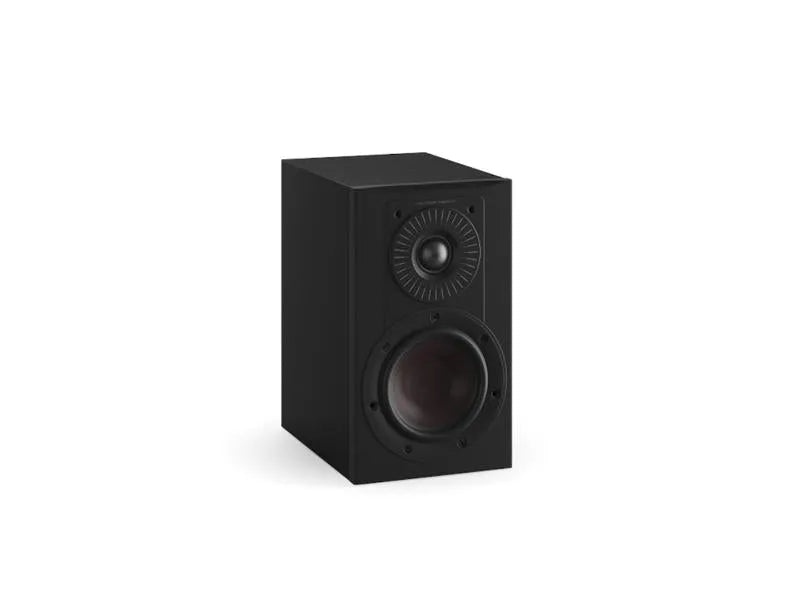

OPTICON 1 MK2

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries or wall mounted in modest listening spaces. Its drivers comprise a 4¾” Wood Fibre diaphragm, SMC magnet bass/midrange unit and a newly designed 29mm soft dome tweeter derived from that employed in the CALLISTO series. The Dual Flare reflex loaded 5 Litre enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers. The OPTICON 1 MK2 is supplied with a simple keyhole slot wall mounting bracket.

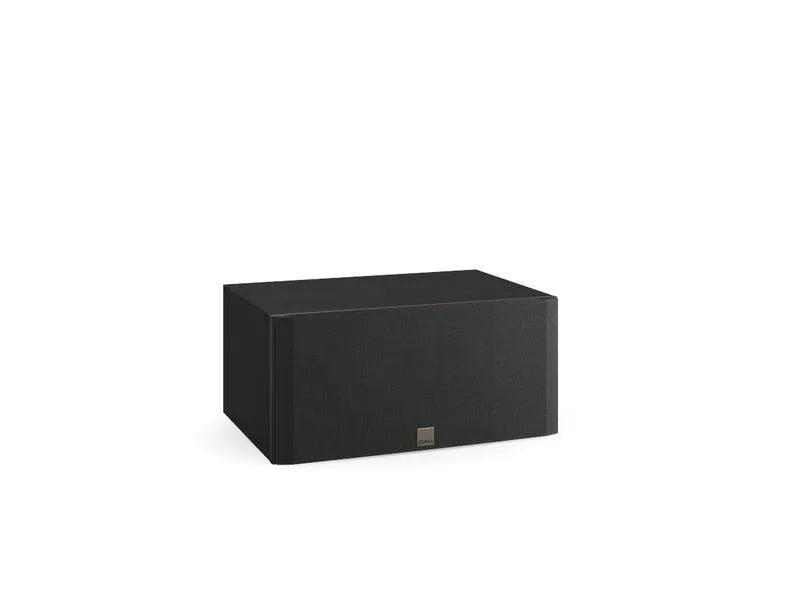

OPTICON VOKAL MK2

The OPTICON VOKAL MK2 brings a 6½” Wood Fibre diaphragm, SMC magnet bass/midrange driver and the DALI hybrid tweeter together in an enclosure format designed specifically for centre channel applications in multi-channel audio-visual systems. The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.









SPECIFIKACIJOS

OPTIKON 6 MKII Specifikacijos

  • Frequency range (+/-3 dB) [Hz] 49 - 30.000
  • Sensitivity (2.83V/1m) [dB] 88
  • Nominal Impedance [ohm] 4
  • Maximum SPL [dB] 110
  • Recommended Amplifier Power [Watt] 25-200
  • Crossover frequency [Hz] 800 / 2,200 / 14,000
  • Crossover principle 2½+½-way
  • High frequency driver 1 x 29 mm soft dome + 1 x 17 x 45 mm ribbon
  • Low Frequency / mid-range Driver(s) 2 x 6½”
  • Enclosure type Bass reflex
  • Bass Reflex Tuning Frequency [Hz] 43.5
  • Connection Input(s) Bi-wire / Bi-amp
  • Recommended placement Floor
  • Recommended distance from rear wall to speaker’s rear panel [cm] 20 - 100
  • Dimensions (H x W x D) [mm] 1001 x 195 x 330
  • Dimensions (H x W x D) [inches] 39.4 x 7.7 x 13.0
  • Weight [kg/lb] 19.3 / 42.5
  • Included accessories Spike set, rubber feet, manual
  • produkto matmenys: 195 x 330 x 1001 mm
  • svoris neto: 19.30 kg
  • minimalus kiekis: 2 vnt.
  •

    OPTIKON 1 MKII Specifikacijos

    • Frequency range (+/-3 dB) [Hz] 62 - 25.000
    • Sensitivity (2.83V/1m) [dB] 85
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 105
    • Recommended Amplifier Power [Watt] 25-100
    • Crossover frequency [Hz] 3.000
    • Crossover principle 2-way
    • High frequency driver 1 x 29 mm soft dome
    • Low Frequency / mid-range Driver(s) 1 x 4¾”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 60
    • Connection Input(s) Single
    • Recommended placement Stand/Shelf/Wall
    • Recommended distance from rear wall to speaker’s rear panel [cm] lut.80
    • Dimensions (H x W x D) [mm] 261 x 152 x 231
    • Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
    • Weight [kg/lb] 4.9/ 10.8
    • Included accessories Rubber feet, manual
  • produkto matmenys: 152 x 231 x 261 mm
  • minimalus kiekis: 2 vnt.
  •

    OPTIKON VOKAL MKII Specifikacijos

    • Frequency range (+/-3 dB) [Hz] 47 - 30.000
    • Sensitivity (2.83V/1m) [dB] 88
    • Nominal Impedance [ohm] 4
    • Maximum SPL [dB] 109
    • Recommended Amplifier Power [Watt] 30-150
    • Crossover frequency [Hz] 2.400 / 14.000
    • Crossover principle 2+½-way
    • High frequency driver 1 x 29 mm soft dome+ 1 x 17 x 45 mm ribbon
    • Low Frequency / mid-range Driver(s) 1 x 6½”
    • Enclosure type Bass reflex
    • Bass Reflex Tuning Frequency [Hz] 44
    • Connection Input(s) Single
    • Recommended placement Shelf
    • Recommended distance from rear wall to speaker’s rear panel [cm] 0 - 30
    • Dimensions (H x W x D) [mm] 201 x 435 x 312
    • Dimensions (H x W x D) [inches] 7.9 x 17.1 x 12.3
    • Weight [kg/lb] 10.6/ 23.4
    • Included accessories Rubber feet, manual
  • produkto matmenys: 435 x 312 x 201 mm
  • svoris neto: 10.60 kg
  • minimalus kiekis: 1 vnt.
  •

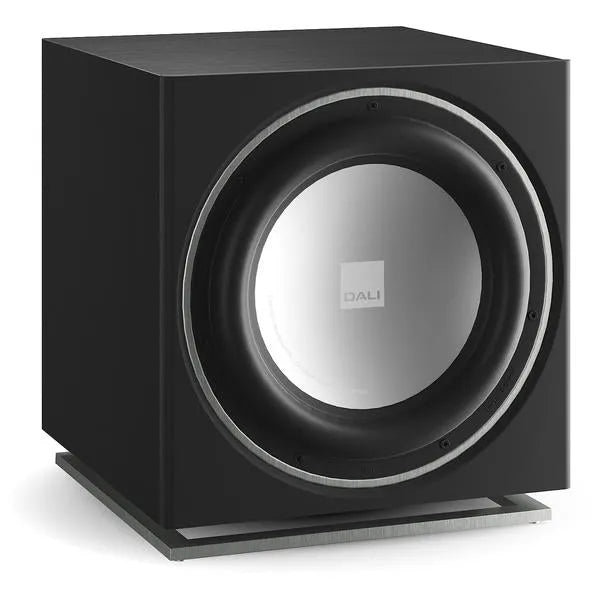

    OPTIKON SUB E-12 F Specifikacijos

    • Aktyvus žemų dažnių garsiakalbis
    • Dažnių juosta: +/- 3dB : 28 - 190 Hz
    • Masimalus jautrumas: 112 dB
    • Filtro dažnis: 40 - 120 Hz
    • Žemų dažnių garsiakalbis: 1 x 304 mm polymer aluminum membrana, aktyvus
    • Bass reflex dažnis: 36 Hz
    • Max. Stiprintuvo galia: 220 W
    • Pastovi IEC galia: 170 W
    • Įėjimo varža: 25k Omai
    • Įvestis: Mono line level (LFE), RCA, Stereo line level (low-pass filtered)
    • Funkcijos: reguliuojamas filtro dažnis, budėjimo režime ON/OFF jungiklis, fazės reguliavimas, garso lygio reguliavimas
    • Rekomenduotina statymo vieta: Grindis
    • Rekomenduotinas atstumas nuo sienos: >5 cm
    • Maks. Energijos suvartojimas: 650 W
    • Matmenys (AxPxG) [mm] 370 x 340 x 380
    • Svoris: 14.7 kg.
    • Komplektacijoje: vartotojo instrukcija, amortizatorinės gumos, smaigtys M6
  • produkto matmenys: 340 x 370 x 380 mm
  • svoris neto: 14.70 kg
  • minimalus kiekis: 1 vnt.
  •
