- HELIX AAC.3 HP, išmanusis aktyvus analoginis konverteris

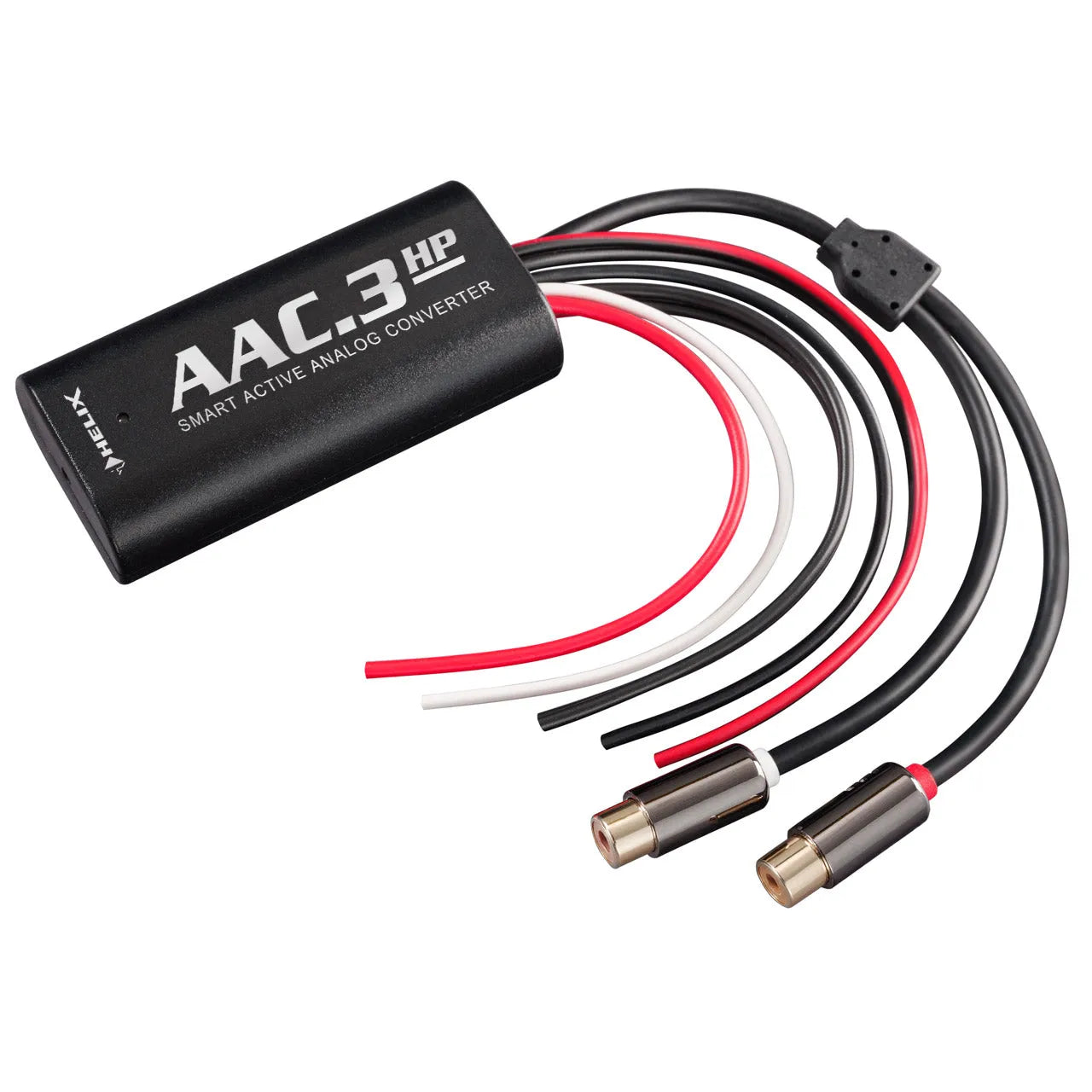

HELIX AAC.3 HP, išmanus ir aktyvus analoginis High/Low adapteris be transformatorių
Išmanusis aktyvus analoginis konverteris iš Helix.
HELIX AAC.3 HP, išmanus ir aktyvus analoginis High/Low adapteris be transformatorių - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.
▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.
Pristatymas
Pristatymas
Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.
Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.
Prekių atsiėmimas parduotuvėje
Prekių atsiėmimas parduotuvėje
Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.
Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000
Darbo laikas: I-V 9:00-18:00
INFORMACIJA
. Kokybiškas veikimas garantuotas!- Dažnių juosta: 18 Hz - 80,000 Hz.
- Maksimalus garsiakalbio įvesties lygis: 25 V (= 155 W / 4 Omai).
- Varža: 13 Omų.
APRAŠYMAS
The integration of car hifi components into existing OEM sound systems with an external amplifier becomes more and more challenging as today's lack of preamplifier outputs or incorporate intelligent speaker diagnosis features. That's where the new HELIX AAC.3 HP comes into play.
Recommendation
The smartest high-low converter in its class
Forget about error messages or loss of features (e.g. the fader) – the integrated ADEP.3P circuit cleverly "bypasses" the speaker diagnosis in factory car radios. Distorted sounds and increased THD which may occur with conventional high-low converters are prevented as well. Additionally it doesn't load the car radio's amp unnecessarily and therefore reduces its current draw by up to 70 %.
Smart signal detection
Its “Double Activation Circuit” generates a +12 V remote signal for turning on connected aftermarket power amplifiers in two different manners. Either it detects the DC offset on the speaker outputs of the OE amplifier or it utilizes an integrated, switchable signal detection with variable sensitivity.
Furthermore the AAC.3 HP incorporates Audiotec Fischers proprietary "Power Save Mode", which turns off the remote output if no music signal is present for more than 2 minutes. That's really a great advantage as many cars with "CAN" or similar bus architectures keep the sound system invisibly "alive" for up to 15 min. even if you have already left the car meanwhile.
High Resolution-ready
The AAC.3 HP generates a high-quality preamplifier signal out of the speaker output signal of a factory amplifier and thus allows the easy connection of additional aftermarket power amplifiers. Its wide frequency response of 18 Hz up to 80,000 Hz warrants excellent sound quality and makes this high-low converter ready for High-Res audio reproduction.
For OEM sound systems without a factory assembled amplifier, we recommend using the AAC.3. This is specially developed for the direct connection to the speaker outputs of the factory radio.
Features
- Allows a simple connection of additional amplifiers to your factory sound system
- Suitable for all car radios – even those with factory-installed amps
- “ADEP.3P circuit” for bypassing radio diagnostic systems
- Microcontroller-controlled monitoring of the music signal and generation of the remote signal
- “Power Save Mode” – significantly reduces the power consumption of connected amplifiers when no input signal is present (after 2 min.)
- “Double Activation Circuit” – generates a +12 V remote signal in two different ways to turn on connected amplifiers
- Excellent sound quality thanks to very wide frequency response (18 Hz - 80 kHz)
- High-quality, sealed and gold plated RCA / Cinch connectors for lossless signal transmission
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
| Max. speaker input level | 25 Volts (= 155 Watts / 4 Ohms) |
| Input impedance | 13 Ohms |
| Max. output level | 4.0 Volts |
| Frequency response | 18 Hz - 80,000 Hz |
| Max. current for remote output | 200 mA |
| Operating voltage | 7 - 18 Volts |
| Dimensions (H x W x D) | 77 x 37 x 20 mm / 3.03 x 1.46 x 0.79" |
Compatibility
Pakuotėje?
1 x Signal converter AAC.3
DOKUMENTAI
INSTRUKCIJOS
HELIX AAC.3 HP, išmanus ir aktyvus analoginis High/Low adapteris be...
- INFORMACIJA
- APRAŠYMAS
- TECHNINIAI DUOMENYS
- DOKUMENTAI
Išmanusis aktyvus analoginis konverteris iš Helix. Kokybiškas veikimas garantuotas!
- Dažnių juosta: 18 Hz - 80,000 Hz.
- Maksimalus garsiakalbio įvesties lygis: 25 V (= 155 W / 4 Omai).
- Varža: 13 Omų.
The integration of car hifi components into existing OEM sound systems with an external amplifier becomes more and more challenging as today's lack of preamplifier outputs or incorporate intelligent speaker diagnosis features. That's where the new HELIX AAC.3 HP comes into play.
Recommendation
The smartest high-low converter in its class
Forget about error messages or loss of features (e.g. the fader) – the integrated ADEP.3P circuit cleverly "bypasses" the speaker diagnosis in factory car radios. Distorted sounds and increased THD which may occur with conventional high-low converters are prevented as well. Additionally it doesn't load the car radio's amp unnecessarily and therefore reduces its current draw by up to 70 %.
Smart signal detection
Its “Double Activation Circuit” generates a +12 V remote signal for turning on connected aftermarket power amplifiers in two different manners. Either it detects the DC offset on the speaker outputs of the OE amplifier or it utilizes an integrated, switchable signal detection with variable sensitivity.
Furthermore the AAC.3 HP incorporates Audiotec Fischers proprietary "Power Save Mode", which turns off the remote output if no music signal is present for more than 2 minutes. That's really a great advantage as many cars with "CAN" or similar bus architectures keep the sound system invisibly "alive" for up to 15 min. even if you have already left the car meanwhile.
High Resolution-ready
The AAC.3 HP generates a high-quality preamplifier signal out of the speaker output signal of a factory amplifier and thus allows the easy connection of additional aftermarket power amplifiers. Its wide frequency response of 18 Hz up to 80,000 Hz warrants excellent sound quality and makes this high-low converter ready for High-Res audio reproduction.
For OEM sound systems without a factory assembled amplifier, we recommend using the AAC.3. This is specially developed for the direct connection to the speaker outputs of the factory radio.
Features
- Allows a simple connection of additional amplifiers to your factory sound system
- Suitable for all car radios – even those with factory-installed amps
- “ADEP.3P circuit” for bypassing radio diagnostic systems
- Microcontroller-controlled monitoring of the music signal and generation of the remote signal
- “Power Save Mode” – significantly reduces the power consumption of connected amplifiers when no input signal is present (after 2 min.)
- “Double Activation Circuit” – generates a +12 V remote signal in two different ways to turn on connected amplifiers
- Excellent sound quality thanks to very wide frequency response (18 Hz - 80 kHz)
- High-quality, sealed and gold plated RCA / Cinch connectors for lossless signal transmission
SPECIFIKACIJOS
| Max. speaker input level | 25 Volts (= 155 Watts / 4 Ohms) |
| Input impedance | 13 Ohms |
| Max. output level | 4.0 Volts |
| Frequency response | 18 Hz - 80,000 Hz |
| Max. current for remote output | 200 mA |
| Operating voltage | 7 - 18 Volts |
| Dimensions (H x W x D) | 77 x 37 x 20 mm / 3.03 x 1.46 x 0.79" |
Compatibility
Für alle OEM-Soundsysteme mit separatem Verstärker und bis zu 155 Watt max. Ausgangsleistung geeignetPakuotėje?
1 x Signal converter AAC.3
