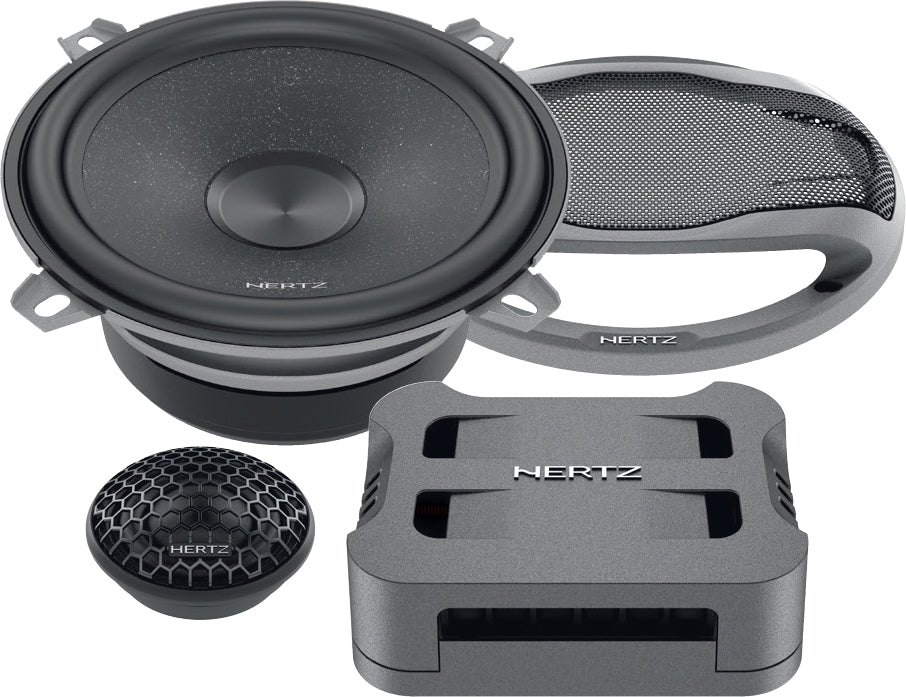

Hertz CK 130, automobilinė garsiakalbių sistema

177.00 €

Hertz CK 130, automobilinė garsiakalbių sistema yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Automobilinė garsiakalbių sistema, kuri pasižymi nemenka galia bei ypatinga surinkimo kokybe!

  • Galia: 210 W.
  • Dažnių juosta: 65 ÷ 22.5k Hz.
  • Jautrumas; 92.5 dB.
  • SPP-M technologija.
  • Neodimio magnetas



Two-way systems Cento CK 130 features the new C 26 tweeter featuring a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity. Much time was invested in the research of the perfect material for the C 130 woofer cones: through a long process of customization of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity. The result is an excellent balance between lightness and damping, essential for a powerful and controlled emission. The oversized ferrite magnet provides excellent control even at higher excursions. The ultra compact CCX 2 crossover featuring tweeter emission level control (0, +3 dB) uses selected components for a full and engaging sound. The CG 100 grilles included in the Cento systems brighten up the car interior with their sophisticated design. Made of high resistance ABS with metal mesh, they offer a high degree of protection within a compact size, ideal for in-car installation.

  • SPP-M

    SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.
  • Features

    1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.

    2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.

    3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.

    4. 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.

    5. 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.

    6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.

    7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.

    8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.


    SPP-M

    SPP-M (Semi Pressed Paper-Mica) cone enhanced with Mica powder for an excellent balance between lightness and damping.



SPECIFIKACIJOS

Power Handling - Peak W 210
Power Handling - Continuous W 70
Impedance  4
Frequency response Hz 65 ÷ 22,5k
Sensitivity dB SPL 92,5
Voice coil Ø mm (in.) 25 (1)
Woofer size mm (in.) 130 (5)
Tweeter size mm (in.) 26 (1)
Woofer magnet High density flux ferrite
Tweeter magnet Neodymium
Woofer cone Semi Pressed Paper-Mica
Tweeter dome Tetolon®
Crossover type 2 Way Passive Crossover
Crossover cut off 2,5 kHz @ 12 dB Oct.

INSTRUKCIJOS

User Manual (EN).
