Hertz

Hertz S8 DSP, procesorius

Itin kompaktiškas S8 DSP yra puikus sprendimas bet kokiam OEM šaltiniui integruoti į automobilių, motociklų ir laivų garso atnaujinimo projektą!

  • "Hi-Res" garsas (96 kHz/24 bitų gimtoji raiška) - neprilygstama garso kokybė.
€510.00 EUR

Hertz S8 DSP, procesorius - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

.
  • 6 kanalų SPEAKER IN (2,5-21 Vrms) specialiame lizde su įmontuotu USS.
  • SPDIF koaksialinė įvestis (iki 24bit/96KHz).
  • 8 kanalų / 4 Vrms galintys veikti RCA išėjimai.
  • Aktyvusis signalo išvesties ribotuvas apsaugo nuo apkarpymo.
  • IOS / "Android" valdymo programėlės (Bluetooth 5.0).
  • DRC valdymas per programėlę iš "iOS" / "Android" įrenginių.

    • APRAŠYMAS

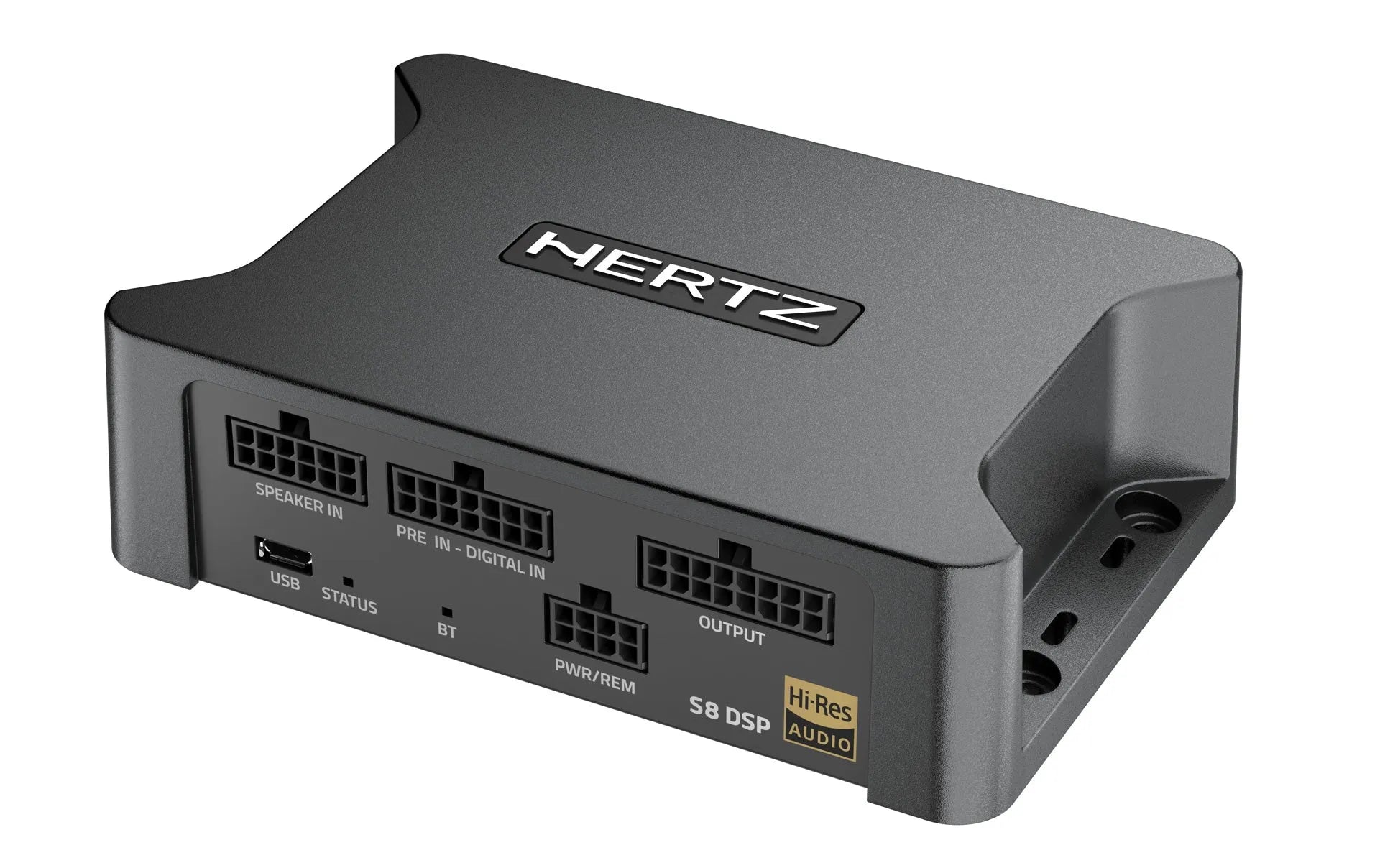

    The ultra-compact S8 DSP is the perfect solution for integrating any OEM source into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.


    S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.


    The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.

    S8 DSP

    1. Small and weatherproof – perfect for motorcycles

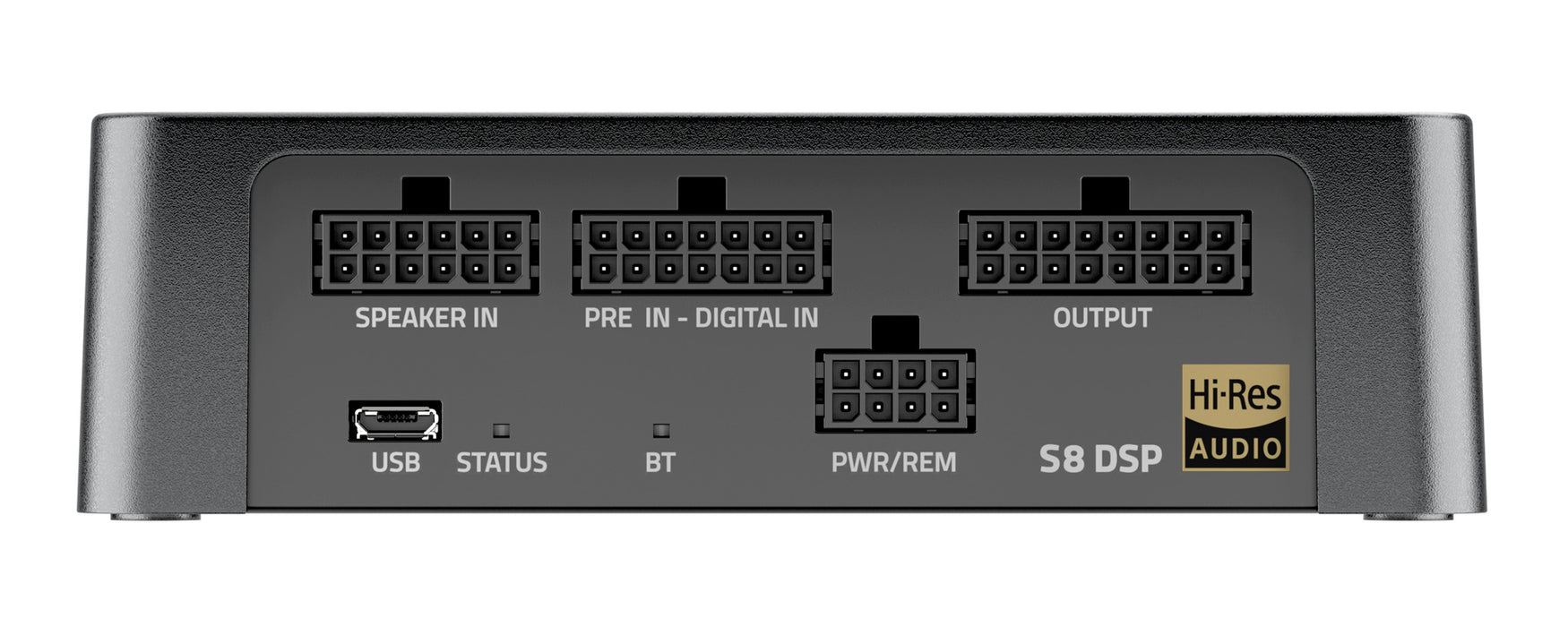

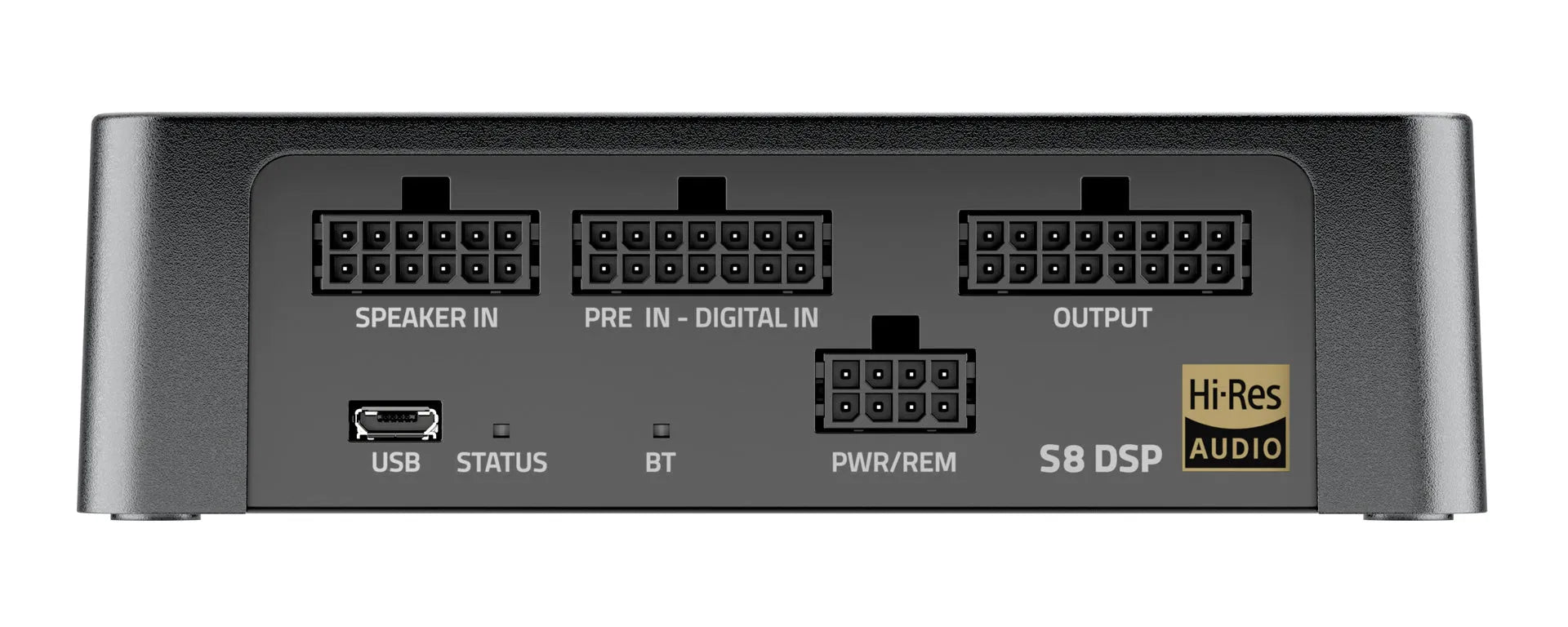

    • Compact size featuring all connections on one side to be installed anywhere

    • Anti-corrosion-treated PCB to ensure years of listening pleasure in open nature

    • Three different application setups: Car, Motorcycle, Free placement (boat, van, pick-up)

    • Party & Ride presets, to optimize the sound performance in all conditions

    2. Configurable with a PC, a Mac, an Android device, or an iOS device

    • IOS/Android control APPs (Bluetooth 5.0)

    • DRC control over app from iOS/Android devices

    3. Powerful DSP with the excellent sound quality you expect from Hertz

    • Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality

    • 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS

    (Universal Speakers Simulator)

    • SPDIF coaxial input (up to 24bit/96KHz)

    • 8-channel / 4Vrms-capable RCA outputs

    • Signal Output Active Limiter prevents clipping



    TECHNINIAI DUOMENYS

    SPECIFIKACIJOS

    General Specifications
    POWER SUPPLY
    Nominal Power supply voltage / fuse: 7 ÷ 20 VDC / 1A
    Pulse operating voltage: 5 ÷ 24 VDC
    Idling current: 0.34 A
    OFF current (ART= OFF): <80 uA
    OFF current (ART= ON): <80 uA
    Remote IN 6 ÷ 20 VDC (10 mA)
    Remote OUT 4 ÷ 20 VDC (150 mA)
    ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 ÷ 7 VDC
    Input Stage

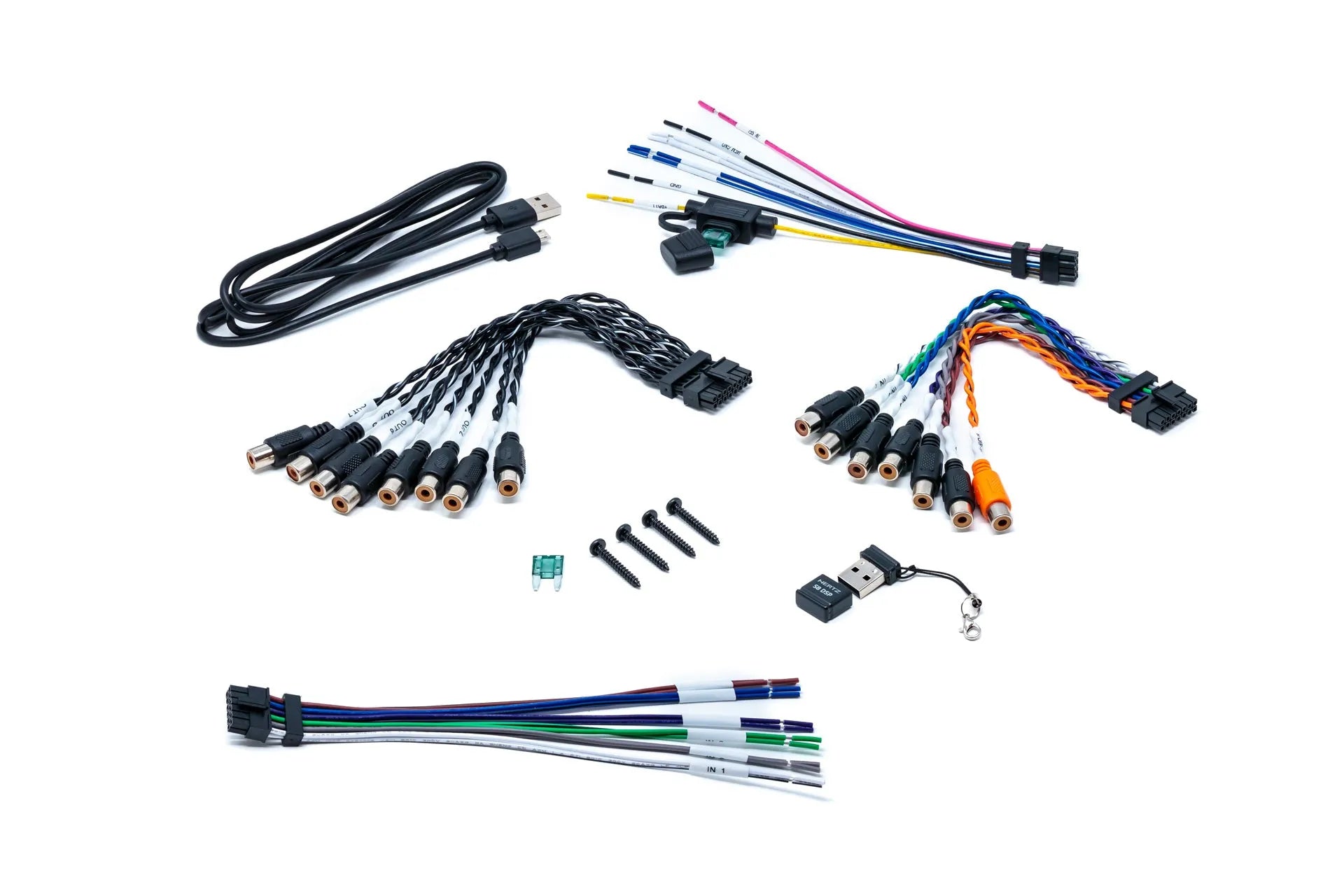

    Analog low level Inputs 6 ch. (Differential input) (Molex microfit to RCAs)
    Analog high level Inputs 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)
    Digital inputs Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
    Input sensitivity (low level) 0.8V – 6V RMS
    Input sensitivity (high level) 2.5V – 21V RMS
    Analog inputs management Audio input routing matrix type
    Analog inputs eq 7 bands paragraphic for each input channel
    ART Automatic Remote Turn-On/Off with Speaker-In
    Output Stage
    Analog outputs (rca) 8 channels
    Max output level (rms) @ 0.05% THD 4V
    95dBAAnalog outputs management The DSP controls each output channel: gain, crossover, EQ, delay, polarity
    Bandwidth 10Hz – 40KHz (+/-3db)
    Signal to noise ratio (A weighted) 105dBA (Analog Input) 112dBA (Digital Input)
    THD+N (@ 1Vrms out, @ 1Khz) <0.005%
    Crosstalk (channel separation) @ 1KHz >95dBA
    Digital Signal Processor
    Sample rate 96KHz
    Bit depth 24
    Output equalizer 15 bands per channel w/ adjustable Q and Frequency
    Equalizer resolution 1/10th dB per step +12dB / -12dB
    Time alignment (distance) 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
    Time alignment (time) 0 ÷ 13.5ms
    Time alignment (step) 0,08 ms; 2,8 cm / 1.1 inch
    Time alignment (fine set) 0,02 ms; 0,7 cm / 0.27 inch
    Crossovers AP/HP/LP/BP all channels
    Crossover type Butterworth, Linkwitz-Riley, Bessel (All Channels)
    Crossover slope From 6dB/oct. until 30dB/oct. (6dB step)
    Crossover steps 120 steps 20Hz-20KHz
    Mute function I can mute every channel separately or all together.
    Presets 4 presets
    Presets selection 2 specific wires to control the 4 presets selection by extarnal switches.
    Input selection by wire One specific wire to select the desired input between Analog or Digital.
    Audio signal compressor on output stage Yes (enable/disable)
    DSP chipset Analog Device: ADAU1451
    DSP management by bt app (iOS/ Android) 1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.
    Setup file sharing via bt Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode.
    DSP management by pc / mac / ios / android Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)
