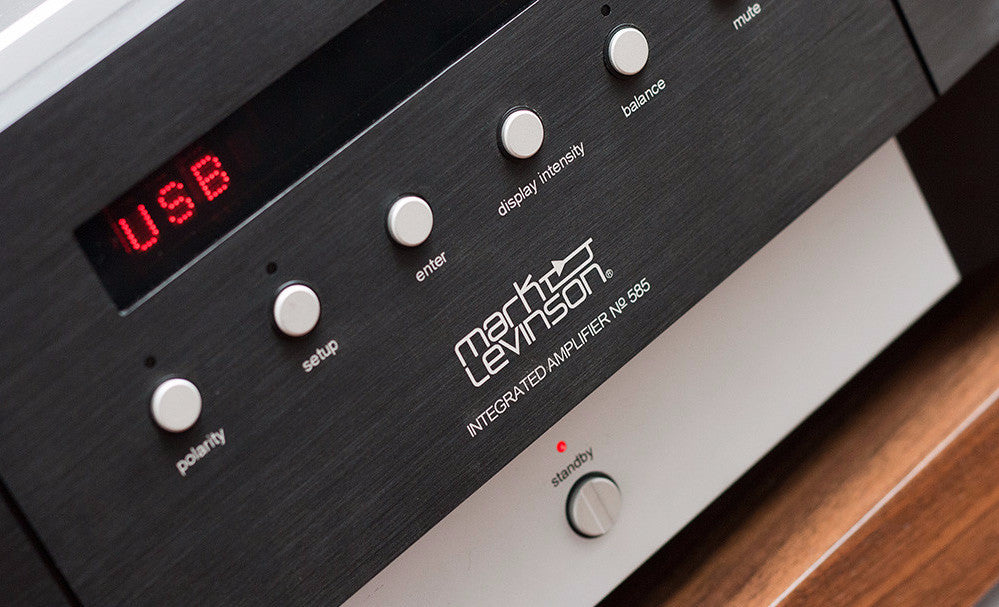

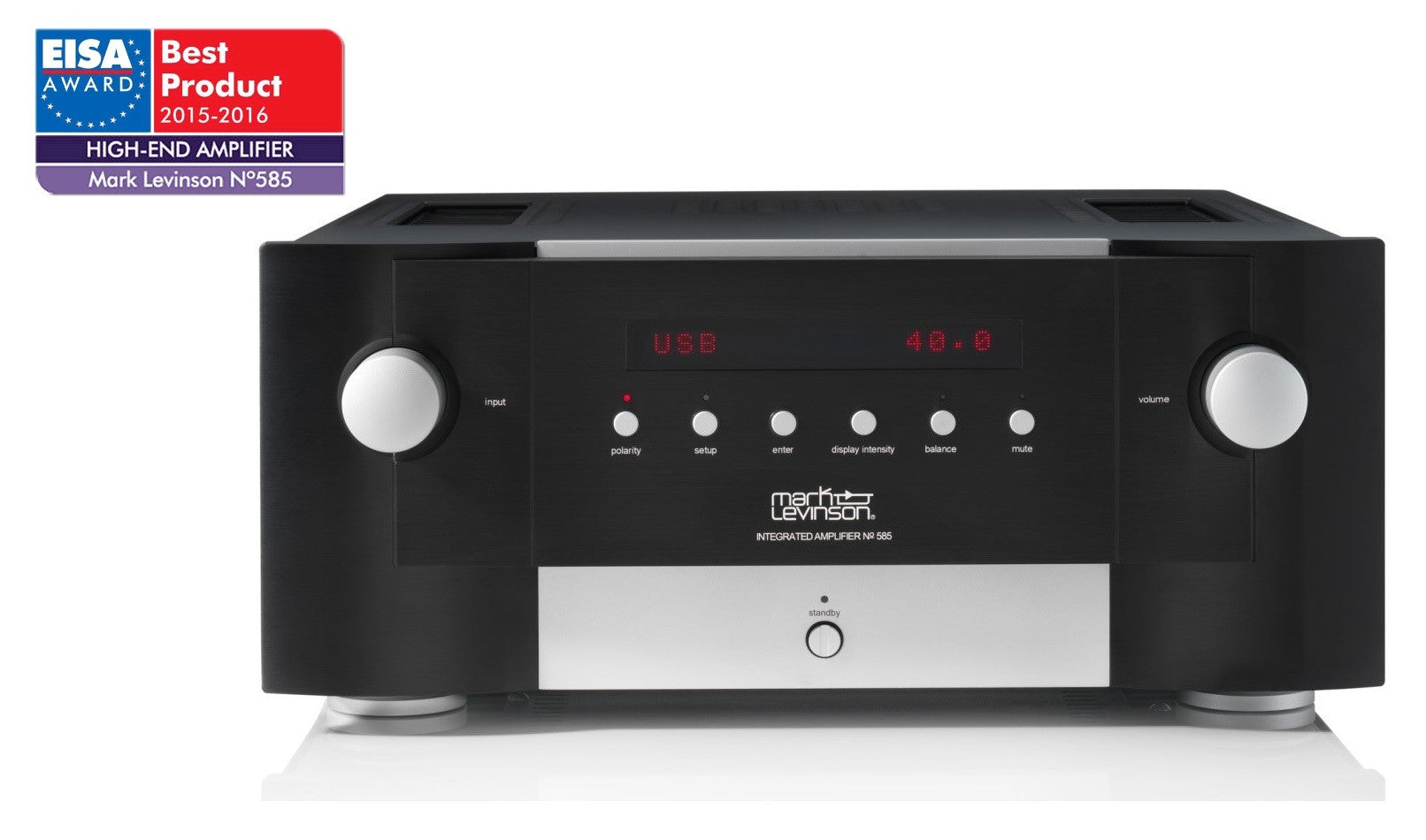

Integruotas stereo resyveris Mark Levinson Nº 585

• Galia RMS: 200W per kanalą @ 8 Ω
• Damping Faktorius: >400
• Dažnių diapazonas: 20Hz – 20kHz
• Aukštos raiškos 192kHz/ iki 32-bit; DSD
• USB jungtis
• Matmenys: 175 x 438 x 507 mm  /  Svoris: 32.6kg

VIDEO

APRAŠYMAS

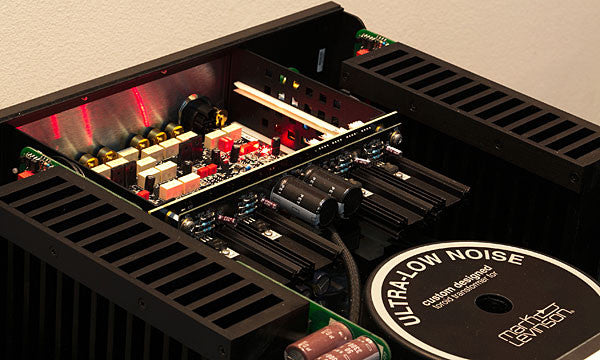

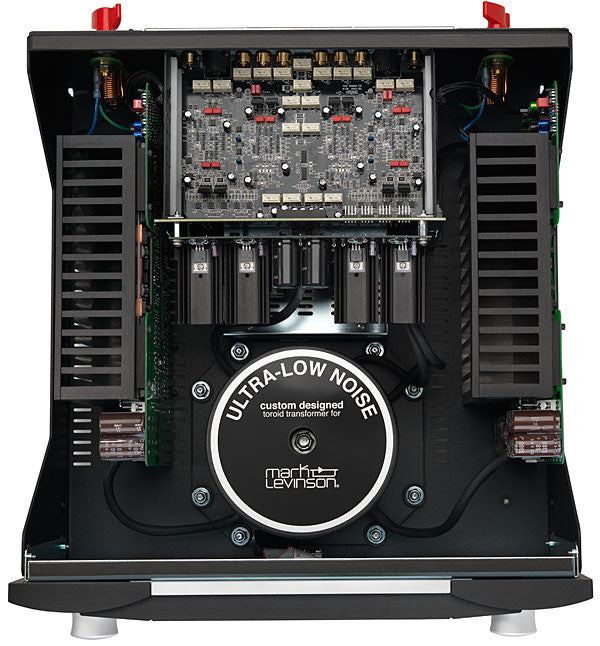

The foundation of the No585 is its fully discrete, mirror-imaged, dual-monaural analog circuitry featuring individual signal switching relays for each of its four stereo inputs: one XLR and three RCA. Volume controls use discrete 15-bit R-2R ladders and low-noise analog switches for the widest possible bandwidth and maximum signal integrity. The fully-differential Class AB power stage includes an oversized 900VA toroidal transformer with individual secondary windings for the left and right channels. Each elegantly simple amplifier channel utilizes twelve output transistors and multiple smaller local capacitors that allow them to be placed physically closer to the amplifiers for greater transient response when power is needed immediately. This robust architecture results in a conservative power rating of 200W per channel with stability into 2 ohms. System integration and expansion are possible using the stereo RCA preouts which can operate full-range or with an included switchable, second-order, 80Hz crossover filter allowing for seamless integration into 2.1-channel systems with powered subwoofers.

TECHNINIAI DUOMENYS

• Signal-to-Noise Ratio: >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting
• Voltage Gain: 40.7dB (maximum volume setting)
• Total Harmonic Distortion: <0.01% @ 1kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω

• Input Impedance: >45k Ω (RCA & XLR)
• Input Overload: >5.5V RMS (RCA & XLR)
• PREAMPLIFIER SECTION: DIGITAL
• Sample Rates/Bit Depth: PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz/up to 32-bit; DSD: Native, single- and double-speed

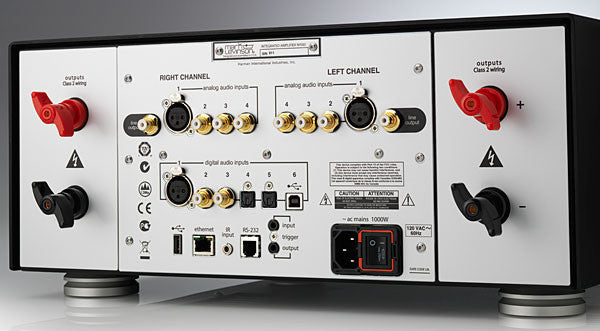

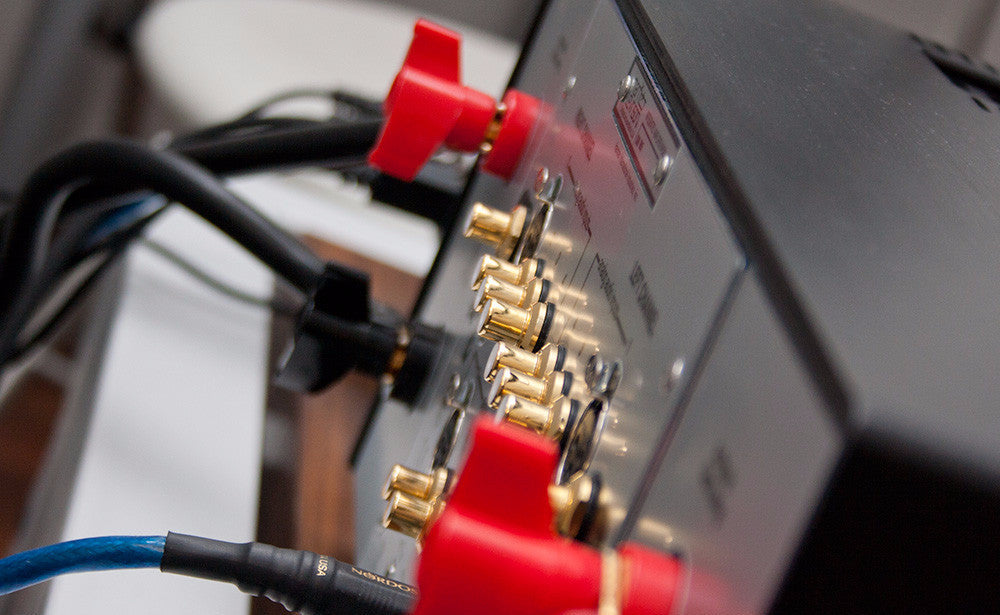

• Analog Audio Connectors: 3 pairs single-ended inputs (RCA); 1 pair balanced inputs (XLR); 1 pair single-ended line outputs (RCA); 1 pair loudspeaker outputs ("Hurricane" binding posts w/banana sockets that accept spade lugs with 1/4" (6.3mm) spacing up to 1/8" (3mm) thick)
• Digital Audio Connectors: 1 balanced AES/EBU input (XLR); 2 coaxial S/PDIF inputs (RCA); 2 optical inputs (Tos-Link); 1 asynchronous USB input (USB-B)
• Control Connectors: 1 RS-232 port (RJ-12 connector); 1 IR input (1/8" phone jack); 1 programmable 12V DC trigger output (1/8" phone jack), 100mA maximum; 1 programmable 12 DC trigger input (1/8" phone jack); 1 Ethernet port (RJ-45 connector)
• Mains Voltage: 100V AC, 115V AC, or 230V AC (factory-set)
• Power Consumption: Maximum 1000W (power on)

SĄVYBĖS

• Versatility and flexibility
• Restores information lost during compression resulting in fuller more dynamic sound
• Ease of use
• Iconic Mark Levinson industrial design complements any decor
• Heightened realism
• Reliability
• Unsurpassed power and performance
• Variety and convenience
• Protects your investment

FUNKCIJOS

• Modular circuit design provides isolation of critical audio circuitry subsections
• High-resolution 32-bit/192kHz D/A converter with asynchronous USB input
• Patented Clari-Fi™ signal processing for compressed audio formats
• Fully-differential, Class A/B amplifier rated at 200W into 8 ohms
• Four analog audio inputs: One balanced (XLR) and three single-ended (RCA) stereo pairs
• Six digital audio inputs: One USB, one AES/EBU, two coaxial and two optical
• Analog preouts with selectable 80Hz crossover filter for 2.1-channel capability
• System controls: Ethernet, RS-232, IR input, and 12V trigger input and output

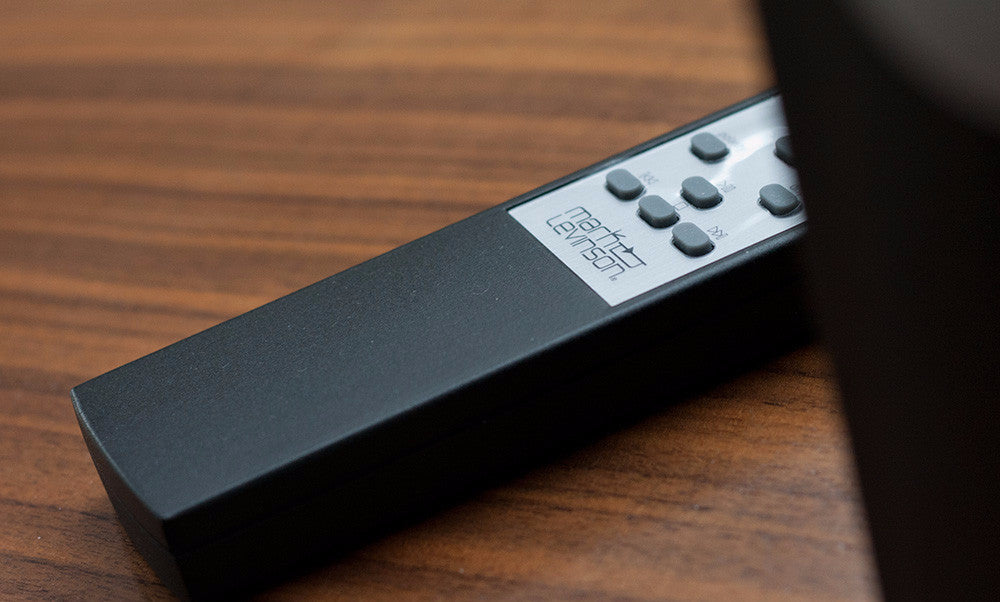

• IR remote control
• Software update via USB flash drive or Ethernet
