JVC KW-Z1000W, automobilinė multimedija

Išmani automobilinė multimedija su populiariausių servisų palaikymų. Mėgaukitės naujausiomis technologijomis savo automobilyje!

• Android Auto ir Apple CarPlay palaikymas.
• Bluetooth palaikymas.
• Hi-Res garso standartas

VIDEO

APRAŠYMAS

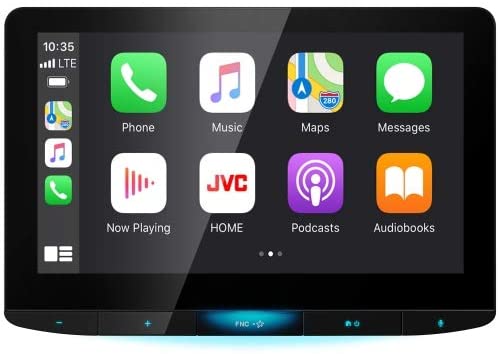

Double DIN - 10.1" High Definition Multimedia Receiver (KW-Z1000W)

Digital Media Receiver featuring 10.1" HD Screen / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth / 13-Band EQ

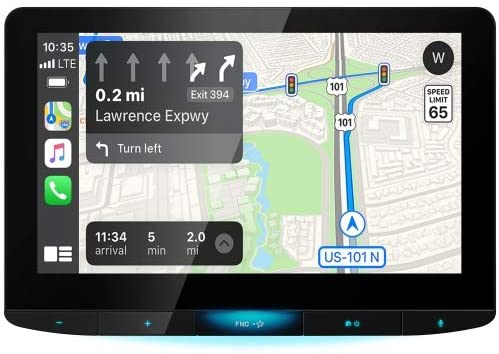

Apple CarPlay – Connect Wirelessly or via USB A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. Some features, applications, and services are not available in all areas.	Android Auto – Connect Wirelessly or via USB Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road. Some Features, applications, and services are not available in all areas.	Wireless Mirroring for Android Phones Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices. *Selected models only	HDMI Mirroring for Smartphones Display your smartphone screen on the KW-Z1000W’s display via an HDMI cable and third party adapter. *KS-U60, optional HDMI cable and smartphone specific third party adapter are required (sold separately).

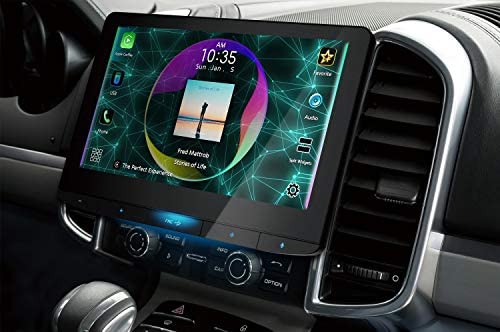

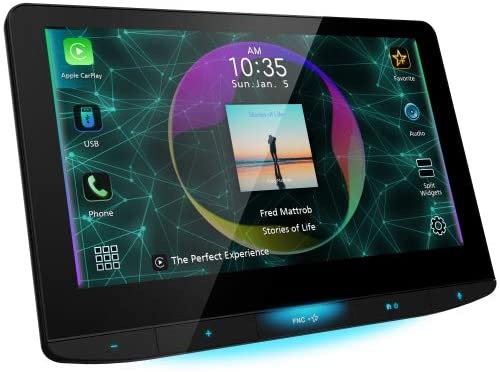

Dynamic GUI Various information including time, photos, album art images, or iDatalink Maestro and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.	Live Wallpaper Synchronize background visual and color with music.	Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.

Adjustable 3-Way Display Position

Height Adjustment 4 height adjustments available: 0, 33/64, 1-1/32 and 1-17/32 inch Fully adjustable display allows you to change the height, angle, and depth for easy vehicle fitment.	Tilt Adjustment Change the angle from 10˚ to +45˚	Depth Adjustment 2 depth adjustment available: 0. and 25/32 inch

Large & High Definition Display (1280 x 720)

The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro – Advanced Vehicle Integration

iDatalink Maestro RR (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).

iDatalink Maestro RR2 Compatible

KW-Z1000W is compatible with iDatalink Maestro RR2 (sold separately)*. The RR2 provides seamless retention of factory safety and camera systems, steering wheel controls and adds performance gauges in most modern vehicles. In addition, the RR2 provides three programmable outputs that can be used to activate things like a winch or a light bar from the KW-Z1000W’s on-screen controls. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT radar detector system (sold separately).

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

KW-Z1000W

Monitor

High Definition Monitor

Yes

Screen Size

10.1"W HD Screen

Touch Panel

Capacitive / Bonding

Monitor Touch Control

Yes

Customizable GUI

Yes

Key Illumination Color

Variable

Dimmer

Yes

Multilingual Display

Yes[4]

Wallpaper Capture

Yes

Live Wallpaper

Yes

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB( Up to192kHz/24bit )

DSD Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

AVI/MKV Compatible

USB

JPEG File Playback

USB

PNG File Playback

USB

BMP File Playback

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Version 5.0, Wired-Mic included)

Hands Free Call

Yes (HFP1.7 Wideband Speech)

2 Phones Full-Time Connection

Yes

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

LDAC / AAC / SBC

5 BT-Audio Connection

Yes

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Auto Pairing for iPhone/Android

Yes

Wi-Fi Control

Built-in Wi-Fi

Yes

Android Control

Android Auto[2]

Yes (via Wi-Fi or USB)

Mirroring for Android

Yes (via Wi-Fi or HDMI)

Android Music Playback

Yes (via Bluetooth(R))

Pandora Control

Yes (Android Auto / Mirroring)

iHeartRadio Control

Yes (Android Auto / Mirroring)

Spotify Control

Yes (Android Auto / Mirroring)

iPod/iPhone Control

CarPlay[3]

Yes (via Wi-Fi or USB)

Mirroring for iPhone

Yes (via HDMI)

iPod/iPhone Music Playback

Yes (via USB or Bluetooth(R))

Pandora Control

Yes (CarPlay / Mirroring)

iHeartRadio Control

Yes (CarPlay / Mirroring)

Spotify Control

Yes (CarPlay / Mirroring)

USB

USB Port

x 2 (High Speed)

Position

Rear

USB Power Supply

Yes (1.5A High Current Charging)

Drive Change Mode for Mass Storage Class (selectable from internal/external memory)

Yes

Radio Tuner

SiriusXM Ready

Yes *SiriusXM 360L Ready

Radio Broadcast Data System (RBDS)

Yes

Preset Stations

20(FM:15ch, AM:5ch)

Automatic Presetting (Strong Station Sequential Memory)

Yes

FM

Frequency Range

87.9 - 107.9MHz

AM

Frequency Range

530-1,700kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (8Preset + 4user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

3-Way X'over

Yes

High-Resolution Audio

Yes

K2 Technology

Yes

Space Enhancement

Yes

Sound Response

Yes

Sound Lift

Yes

Volume Link EQ

Yes

Time Alignment

Yes

Dual-Zone Function

Yes

Inputs and Outputs

AV Input

mini jack + RCA Video(AV-IN or CAM4 switchable)

Video Out

RCA

Rear view camera Input

Yes

Front view camera Input

Yes

3rd Camera Input

Yes

Line Output Terminals

3 Pairs (Front + Rear + Subwoofer)

Pre-output Level/Impedance

5.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

iDatalink Maestro Ready

Yes

Remote Control Application

Yes

Back Up Memory

Yes

Face Type

Viewing Angle Adjustment

Yes (0 - 20 degree, default : 0 degree) 4 steps

Wireless Remote Control

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

Learning Direct OEM Remote

Yes

Dimensions (W x H x D)

Installation Size

7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)

Weight

7.28 lbs. (3.25kg)

[1]Available functions depend on mobile phone.
[2]Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. The service may not be available in certain countries.
[3]Apple CarPlay is available with iPhone 7, iPhone 7 Plus, iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone SE, iPhone 5s, iPhone 5c or iPhone 5 with iOS 7.1 or newer. The service may not be available in certain countries.
[4]Multilingual (English / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Chinese (Simplified) /Chinese (Traditional) / Thai / Turkish / Arabic / Persian / Hebrew / Greece / Malaysia / Indonesia / Polish / Czech / Hungarian)

DOKUMENTAI

INSTRUKCIJOS

 User Manual (EN).
