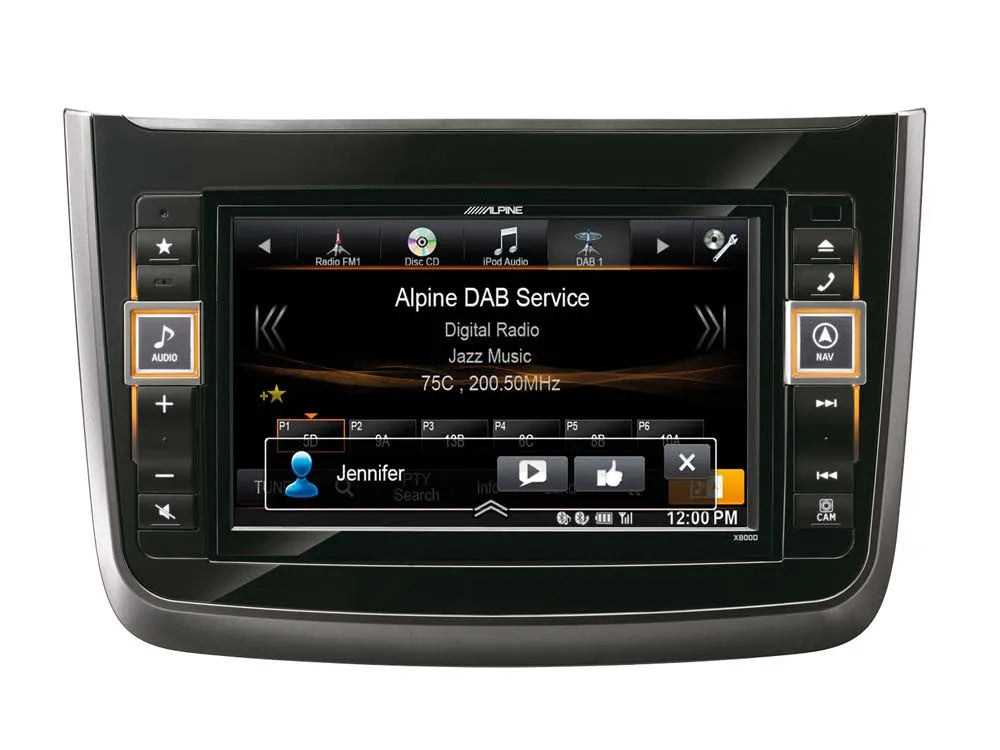

Navigacinė sistema Alpine X800D-V, skirta Benz Vito V639 ir Viano W639

Aukštos klasės Alpine X800D-V sistema, skirta tik Benz Vito V639 ir Viano W639. Su pažangia navigacijos ir garso technologija, sparčiu maršruto apskaičiavimu. Aukštos raiškos jutiklinis ekranas, daugybė garso ir navigacijos funkcijų. Integruotas Bluetooth ryšys, laisvų rankų funkcija bei DAB/DAB+. Galimybė naudotis TuneIt app programėle.

• Galia: 4x50W
• Jutiklinis 8" WVGA aukštos raiškos ekranas
• AUX-Out: 1 A/V AUX Output
  AUX-In: 2 A/V AUX Input
• Nuotolinio valdymo funkcija ant Vairo
• Suderinamumas su kameromis bei parkavimo davikliais
• Pritaikytas automobiliams su variklio Start-Stop sistema
• Apsaugos kodas nuo vagysčių
• CAN ryšio sąsaja
• DAB skaitmeninė radija
• Matmenys: 178 x 100 x 164 mm

20cm High Resolution Touch Screen

The 8-inch (20.3 cm) high-resolution display is 60% larger than the original V-Class display and features the latest video technology for outstanding picture clarity, contrast and resolution. This allows navigation maps to be displayed in stunning detail, while movies or video clips become a real cinematic experience. It also contributes to driving safety: navigation map details are easier to see and destination input keys appear larger and are easier to operate.

DAB Digital Radio

The built-in DAB/DAB+/DMB tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. DAB also offers many other advantages over traditional FM radio: select from a much wider range of radio stations and after an initial station scan you can easily select your desired channels from an alphabetic and genre list of available stations.

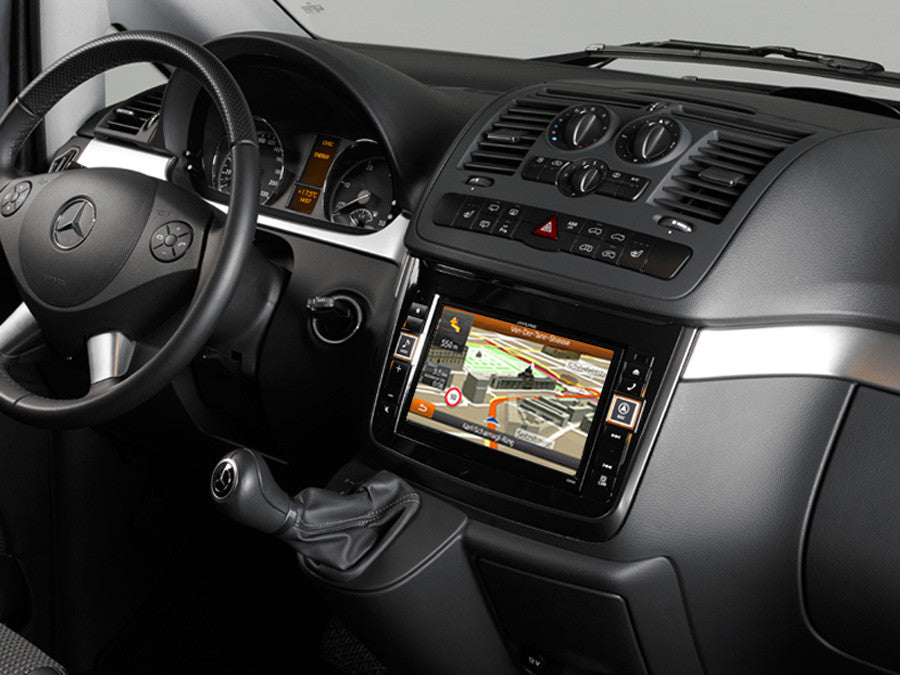

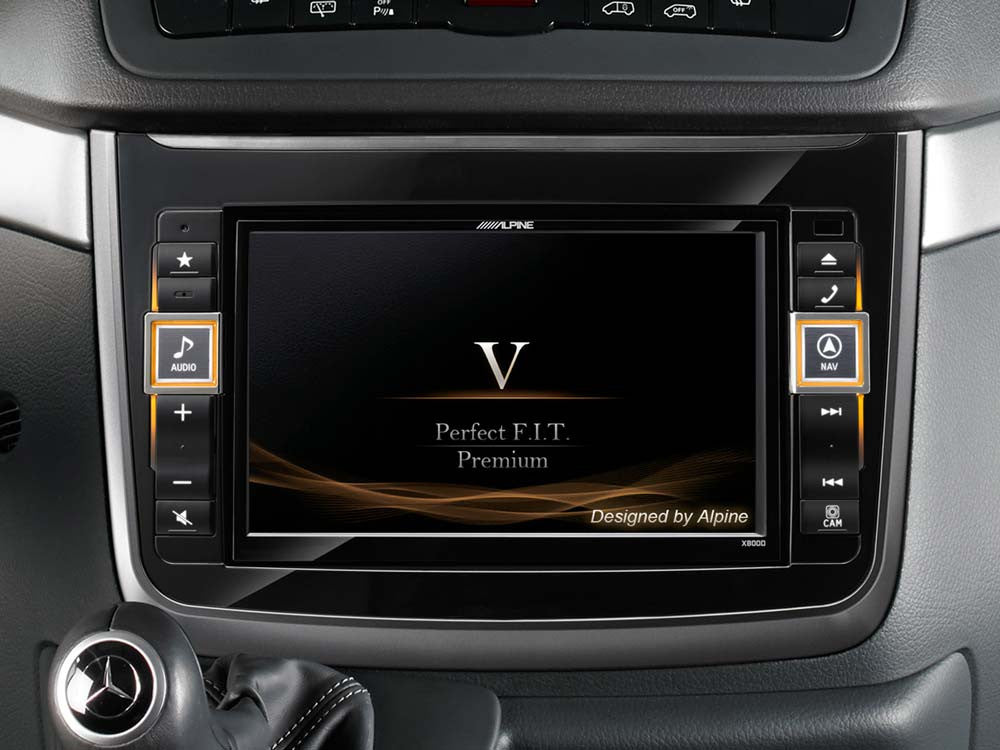

Perfect System Integration

It requires extensive research and detailed understanding of the vehicle to design a Head Unit that perfectly integrates with the vehicle's electronic systems. The X800D-V is fully compatible with the V-Class steering wheel control buttons and the multi-information display in the instrument cluster to maintain all important vehicle functions. The system also automatically “wakes” when the driver unlocks the doors.

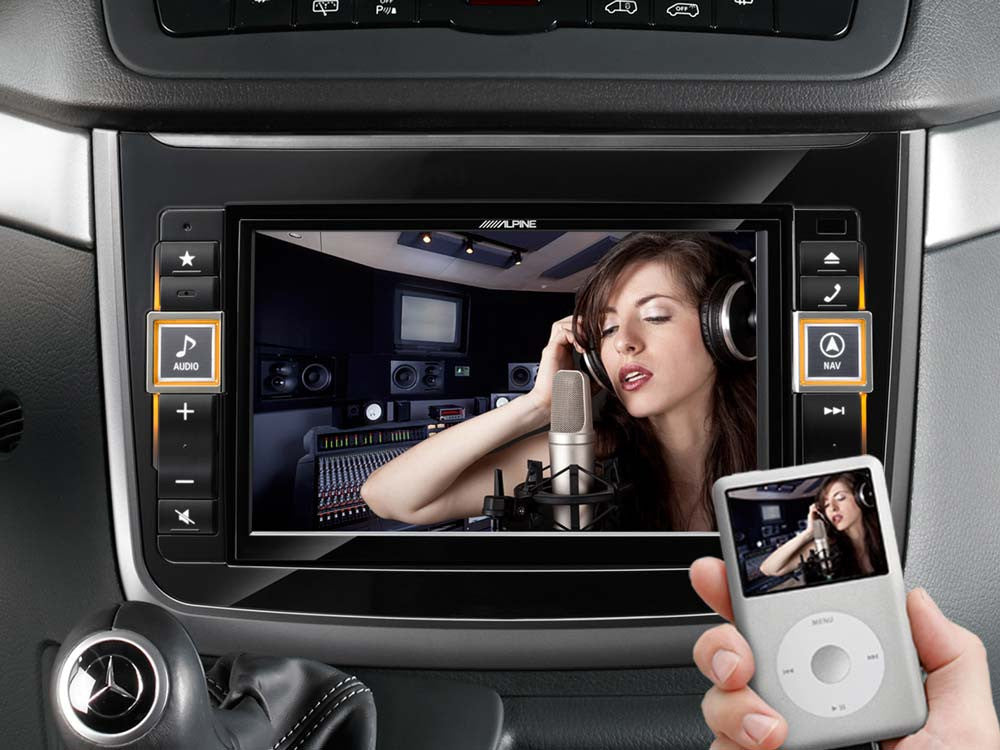

Video Playback

The X800D-V allows you to enjoy movies, music videos or TV shows from many different sources, such as DVDs from the built-in optical drive, USB sticks, latest smartphones with HDMI output or portable video devices connected to the A/V connector (optional cables may be required). You can also connect your iPod or iPhone to enjoy your video content on the large 8-inch display. For driving safety the video playback feature is only available if the vehicle is not in motion.

HDMI Connection

Connect your HDMI enabled smartphone or portable media player via HDMI connection to enjoy all your video content on the X800D-V’s high-resolution display. Full digital data transfer and the WVGA display ensure excellent image quality. An optional HDMI cable (KCU-610HD for iPhone, Sony Xperia ACRO and Motorola, etc or KCU-610MH for HTC ONE, Samsung Galaxy S4, Sony Xperia Z, etc) is required.

Alpine TuneIt App for Tuning and Keeping in Touch

The X800D-V works with Alpine’s cool and convenient Alpine TuneIt App to bring you custom sound tuning features right from your smartphone.
You can upload your sound settings to the Alpine Cloud Server to share them with other Alpine fans, and see their settings. The app also displays Facebook messages, lets you “Like” them and even reads them to you!
Download Alpine TuneIt App with TTS from the Apple App Store or Google Play.

Bass Engine SQ

The X800D-V puts the power of advanced sound processing in your car with BASS ENGINE SQ to maximise bass sound and overall tone balance, plus lots of custom tuning functions like Digital Time Correction and 9-Band Parametric EQ. Best of all, you can control them easily from your smartphone with the Alpine TuneIt App.

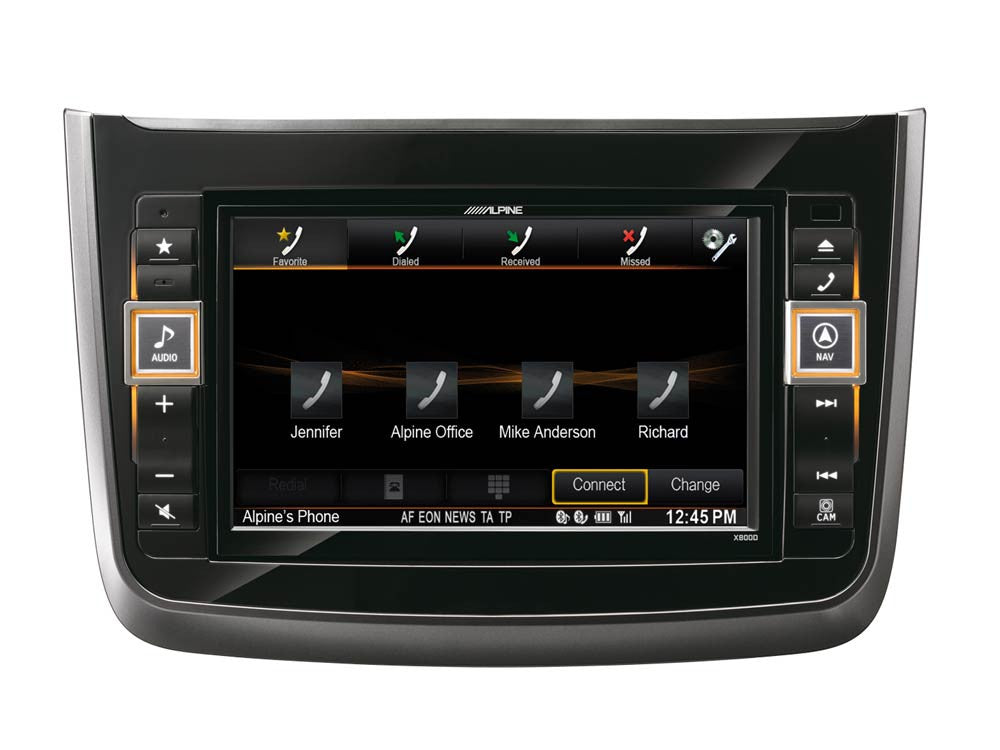

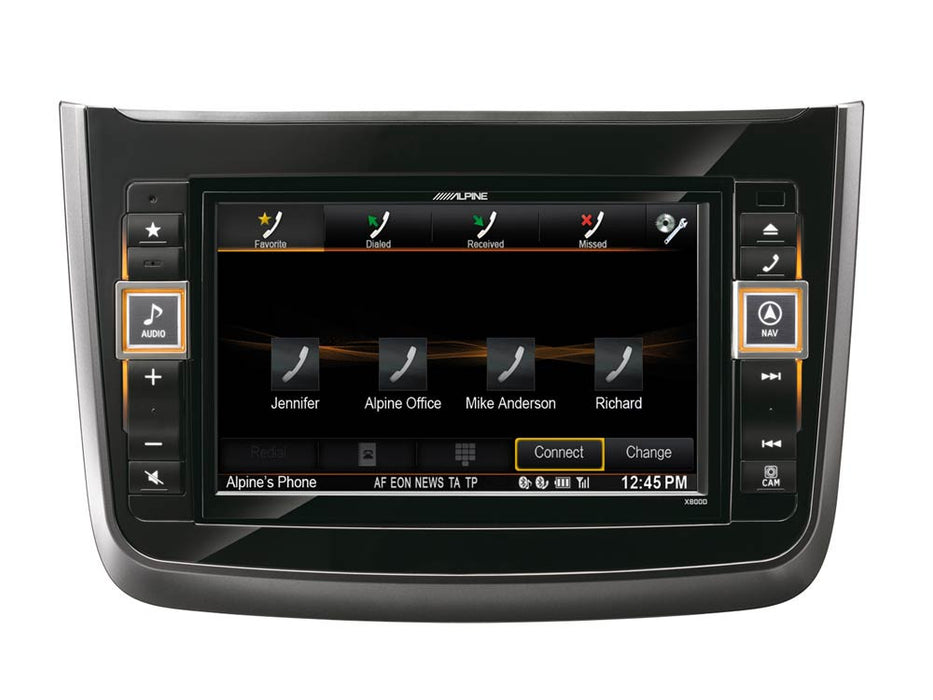

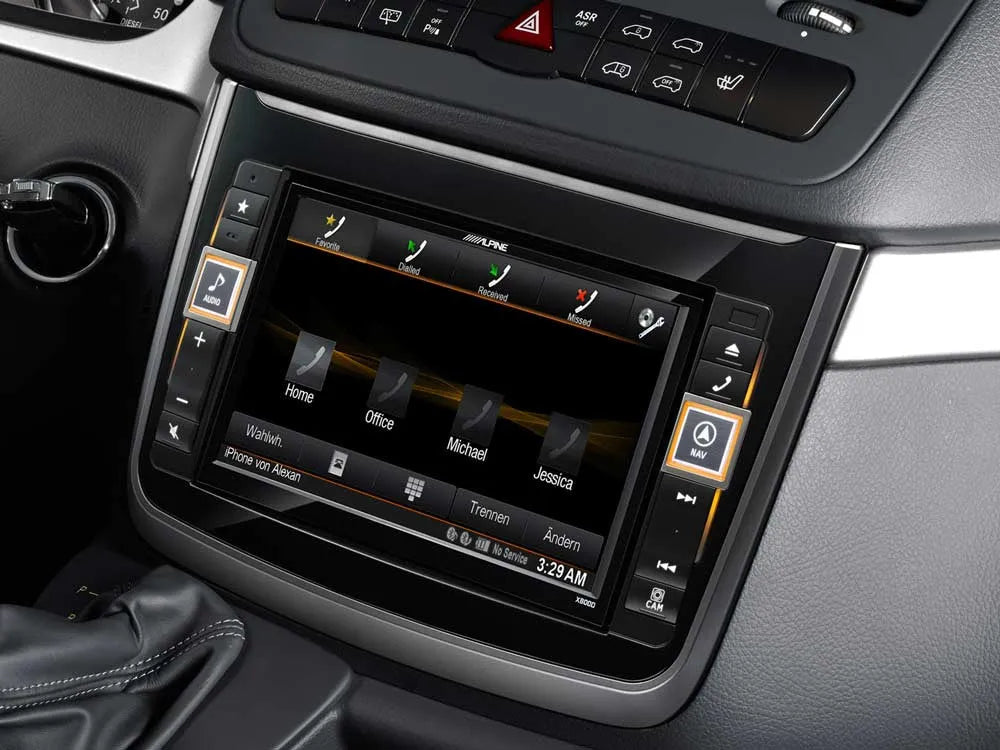

Built-in Bluetooth® Technology

The built-in Bluetooth® module allows wireless connection of a mobile phone for hands-free communication, while frequent software updates ensure full compatibility with the latest phones. A very intuitive user interface makes it very easy to operate and also includes a speed dial function for the most frequently called numbers. Bluetooth® also enables audio streaming from the phone: audio content or even internet radio can be wirelessly transferred to the X800D-V.

High-end Sound Quality

Alpine is known worldwide for excellent sound quality. Our audio specialists engineered the X800D-V with greatest attention to detail - from selection of high-grade components to extensive audio tuning - to deliver a high-end sound experience for the V-Class. The system also offers many sound adjustment functions such as digital time correction and professional equalisation to allow users to adjust the system to their own preferences.

Extra Convenience for Two Users

If you and your spouse or another person frequently drive the car, you can both save your own user profile. When you enter the car, Bluetooth automatically connects the phone and initiates your profile. The profile includes the basic operating screen as well as favourites, phonebook, radio presets and camera view. You don’t have to manually input settings each time, saving time and making your whole system more convenient to use.

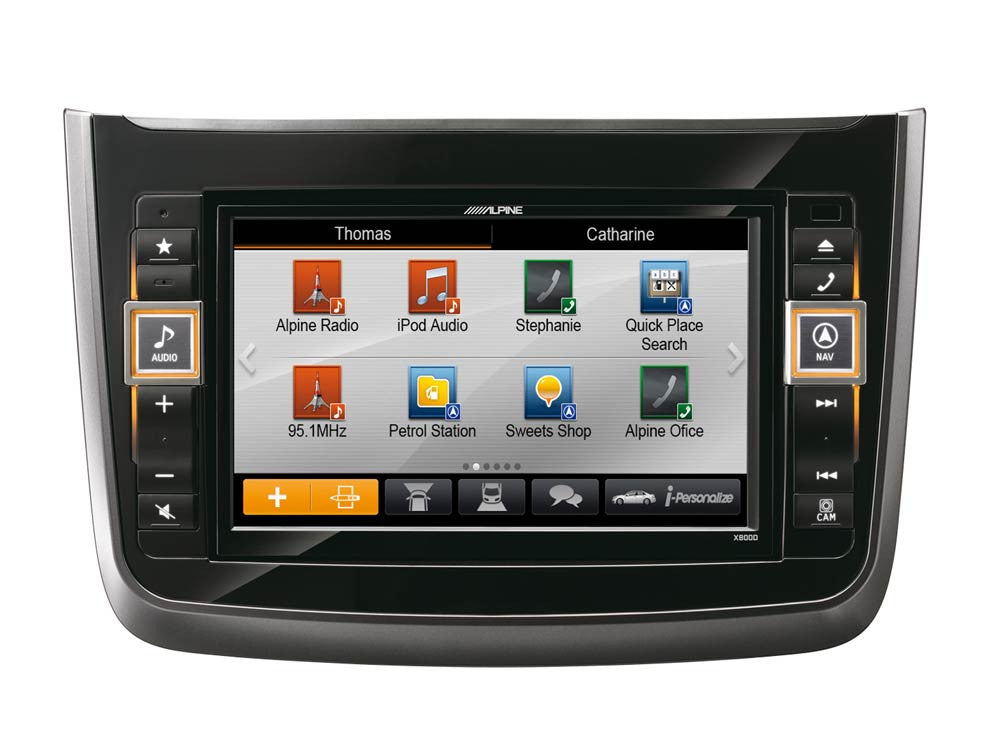

Customise Your Unit for Personal Use

My Favourites lets you put three pages with each eight frequent actions on one screen for one-touch selection, and arrange the layout the way you want it by dragging icons. Tune in your favourite radio stations, search your favourite POI categories, or call your favourite people without scrolling through the phone book. You can also select the background colour and match audio settings to your car model. And all this works for two people, based on Bluetooth phone recognition.

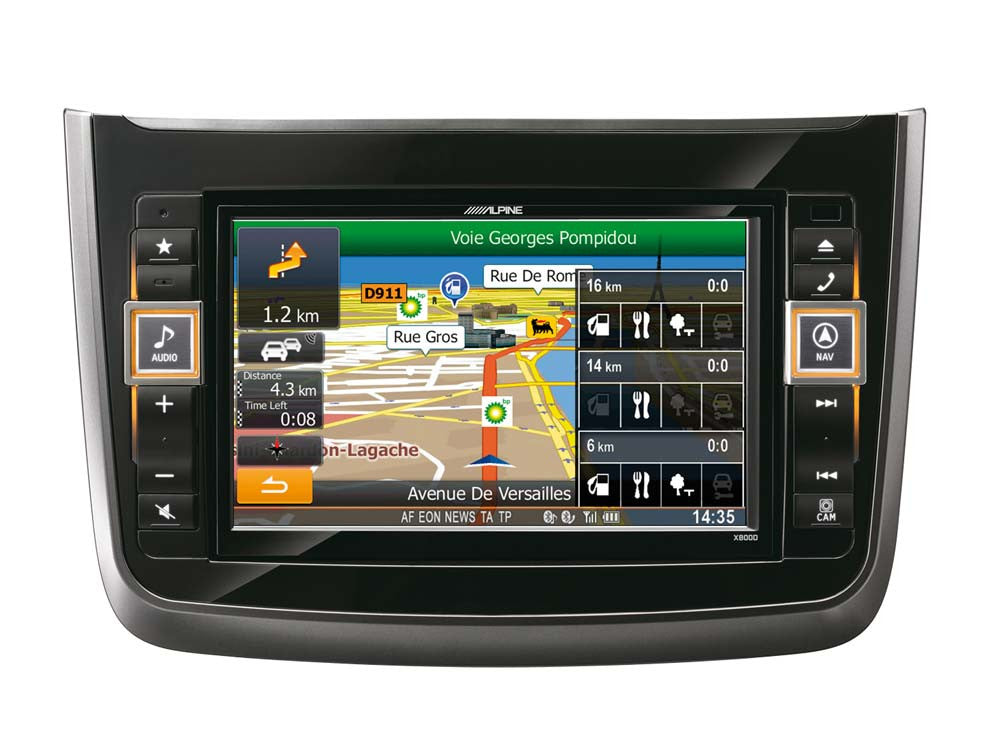

The integrated premium navigation system is the perfect co-pilot, whether for a long vacation journey, a business trip to another city or simply a family weekend to the countryside.
With many convenient functions to make driving easier, you'll arrive at your destination feeling fresh and relaxed.

Free map update within 30 days after first usage

Within 30 days after the installed unit’s first GPS fix, you can go to www.naviextras.com to check if there is a map update available and download it free of charge. This ensures that you have the latest map data after purchase.

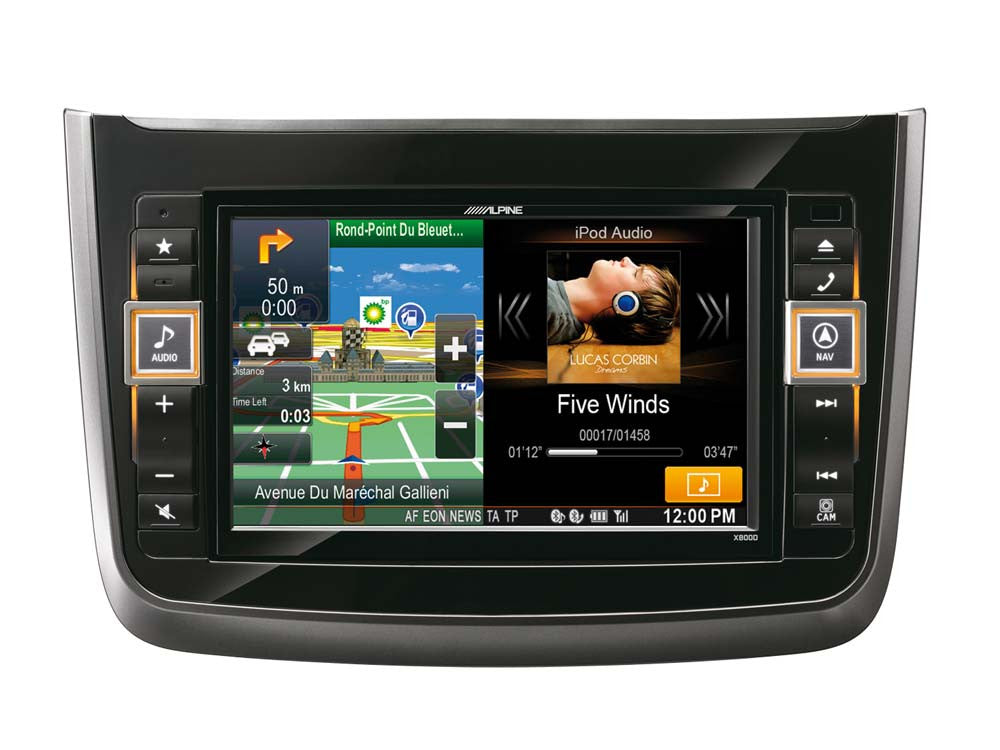

One Look Display

Our innovative “One Look” split-screen technology allows the driver to view the navigation map and audio playback information at one glance. This eliminates the need to switch between different applications. The user can switch from regular to One Look view with just the touch of a button. This function is especially useful on long highway trips.

Navigation maps and audio playback information can be displayed by innovative split-screen technology.

Packed with Advanced Features for More Enjoyable Driving

This Advanced Navi Station has everything you need, no matter what countries you travel in. It covers 47 Western and Eastern European countries with 29 languages for voice guidance and Text-To-Speech in 15 languages.Its enhanced POI database makes it easy to find your favourite places and to explore new areas you have never been to.

Lane Guidance lets the driver know which is the best lane to be in, while Dynamic TMC Route Guidance provides live traffic information to avoid traffic jams.

Easy personalization of driver preferences. For example, see information on camping grounds and trailer restrictions.

Easy input of destinations and POIs such as gas stations, restaurants, etc. by category and by distance.

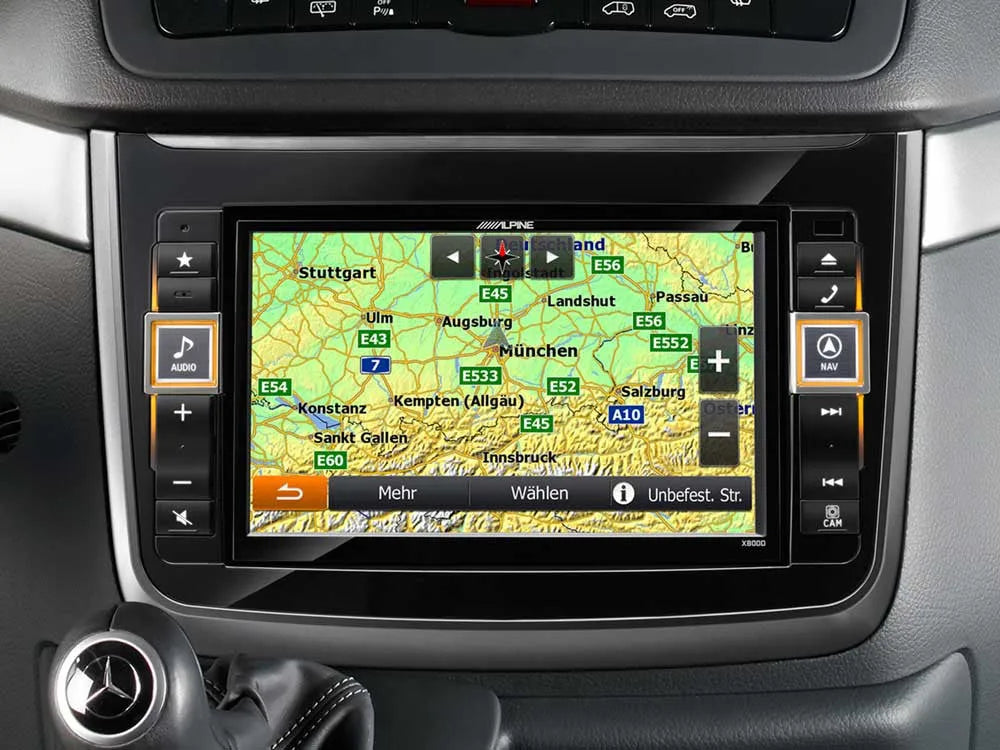

Maps with 3D Landmarks

3D maps give you a much more realistic view of the area where you are driving. The maps provide hundreds of 3D landmarks and the city maps show 3D buildings, making navigating much easier.

Highway Mode

In addition to a view of the map, this mode gives you various detailed information such as upcoming rest stops, restaurants and petrol stations. You can see the distance and estimate arrival time for more efficient route planning.

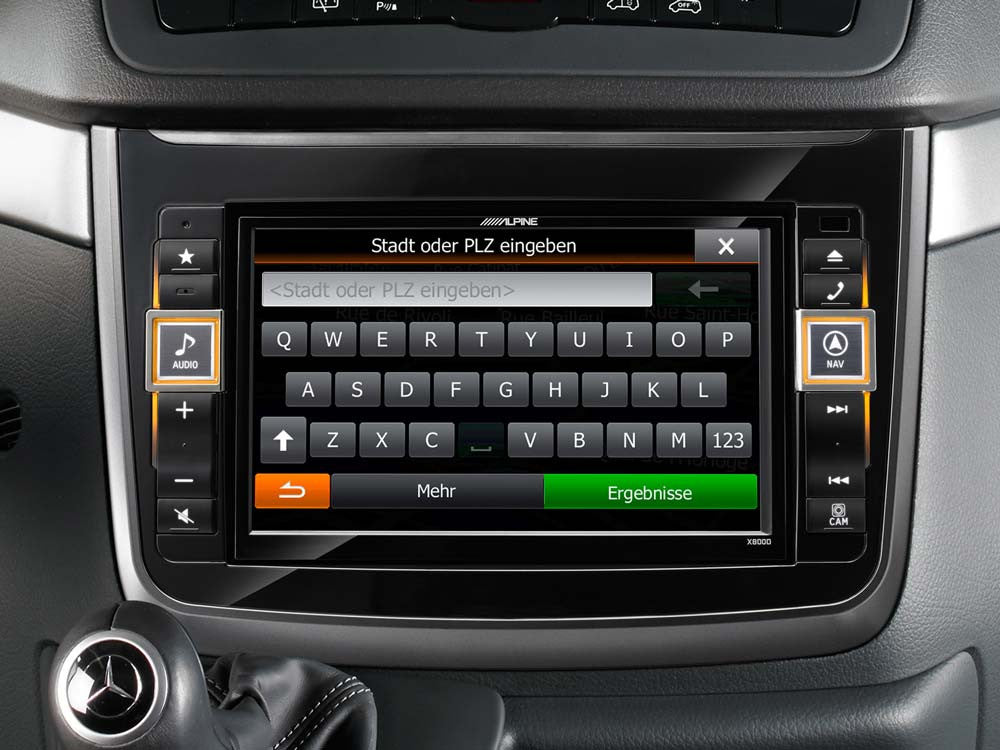

Advanced Address Input

You can input postal codes for all European countries, including 7-digit UK codes, which makes searching for addresses quicker. The system even reads partial addresses. Select your own language from 33 different keypads, including Cyrillic and Greek.

• Memory Presets: Preset Stations (FM: 18 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

• RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT

• DAB Tuner Built-in
• DAB+/DMB Supported
• Service Preset: 18 Preset Memory (6 services for each band, DAB 1/2/3)
• Auto Ensemble/Service Memory
• RDS Fallback (where available)
• Service Search Function
• PTY Search Function
• Antenna Power Supply Selection
• DAB Antenna included

• Built-in BLUETOOTH® Module
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.4 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable
• Microphone Included

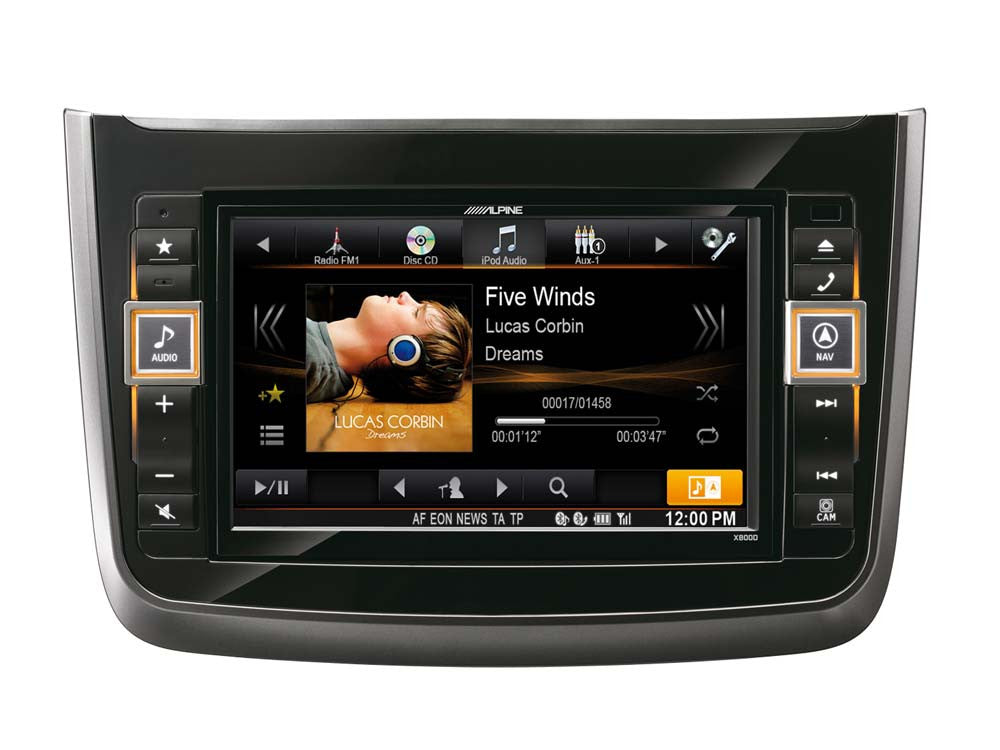

• Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone5S,iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
• Connection: KCU-461iV Required (Sold separately)
• Music & Video Playback Compatible
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/RW
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• CD Text Name Search
• DAC: 24 Bit DAC

• Map Coverage: 47 Countries (Western and Eastern Europe)
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Free Form Search
• Partial Name Search
• Advanced POI Functions
• Smart Routes: Smart Routes using historic traffic patterns
• Advanced Route Planning
• Eco Route Search
• 7 Alternative Route Recommendation
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D City Mode: 3D Building/Icon Display
• Elevation Map Display: 3D maps with elevation mode
• 3D Motorway Junction View: Junction View with Sign Post
• Drive Lane Suggestion
• Tunnel Mode
• Highway Mode
• Voice Guidance Mixing
• Text-to-Speech
• Direct Phone Call from POI data
• 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse

• USB Connection: USB Extension Cable Included
• Music & Video Playback Compatible
• Music Playback: MP3/WMA/AAC Playback
• Video Playback: DivX Playback
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

• Bass Engine SQ
• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 4V High Voltage PreOut

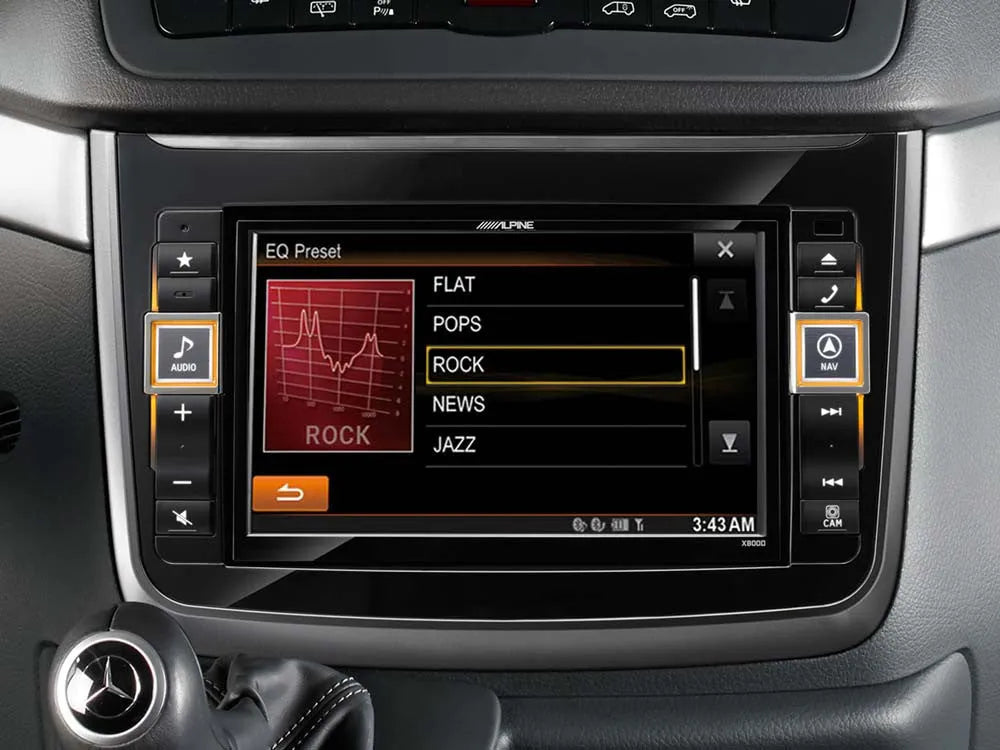

• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• 9-band Parametric Equalizer
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander
• Application Volume Level Setting
• Sound Setting Data Download
• Easy, Step-by-Step Sound Customization
• Alpine TuneIt App ready

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 8′′ WVGA High Resolution Display
• White LED Backlighting System
• 50/50 Split Screen: Left / Right Position Changeable
• Motorized Display Operation
• Control Type: Touch, Drag, Flick
• My Favorites Function
• Automatic Setting Change for 2 Users
• Display Colour Setting: Mercedes Design - Amber
• High Grade Audiophile Design
• PreOut: 3 PreOuts (4V, Front / Rear / Subwoofer)
• AUX-Out: 1 A/V AUX Output
• AUX-In: 2 A/V AUX Input
• Steering Wheel Remote Control Ready
• OEM Sub-display Ready
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Camers
• Camera Guide Line preinstalled
• Rearview Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Power Antenna Lead
• Remote Turn-On
• Optical Output
• HDMI Input (Alpine Special HDMI connector required)
• Start-Stop Engine unaffected
• Can Connection Interface Included

• Online Map Update

• Includes installation brackets, wiring harness, antenna adapter, CAN bus interface and DAB antenna for complete installation.

• Screen Size: 8 inch Wide
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

• Max Power Output: 4 x 50 W

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

• Frequency Response: 5 -20k Hz ±1 dB
• Channel Separation (at 1kHz): 85 dB
• DynamicRange(at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.008%
• Wow & Flutter (%WRMS): B.M.L.
• Signal-to-Noise Ratio: 100 dB
• Horizontal Resolution: 500 lines or greater
• Video Output Level: 1 Vp-p (75 ohms)
• Signal-to-Noise Ratio (Video): DVD: 60 dB

• USB Requirements: USB 1.1/2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 12/16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• DivX Decoding: ′′.divx′′, ′′.avi′′ file
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

• GPS Antenna Type: Micro-strip Planar Aerial
• Reception Frequency: 1575.42 ±1 MHz
• Reception Sensitivity: -130 dB Maximum
• Reception Method: Parallel 12 Channels

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Parametric Equalizer (Band 1): 20 - 100 Hz
• Parametric Equalizer (Band 2): 63 - 315 Hz
• Parametric Equalizer (Band 3): 125 - 500 Hz
• Parametric Equalizer (Band 4): 250 - 1k Hz
• Parametric Equalizer (Band 5): 500 - 2k Hz
• Parametric Equalizer (Band 6): 1k - 4k Hz
• Parametric Equalizer (Band 7): 2k - 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k - 12k Hz
• Parametric Equalizer (Band 9): 9k - 20k Hz
• Parametric Equalizer (Gain): -7 to +7
• Application Volume Level Setting: -14 to +14

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°
• Weight: 2.9 kg

• Fits for Mercedes Vito (V639) and Viano (W639)
• Chassis Size (W x H x D) mm: 178 x 100 x 164 mm
