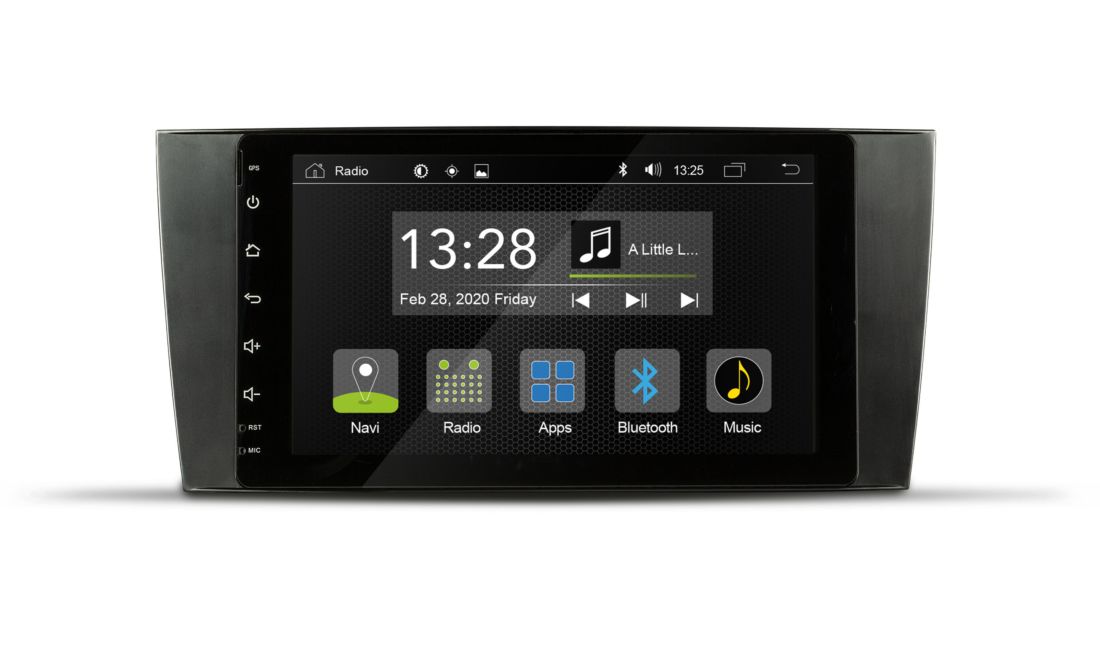

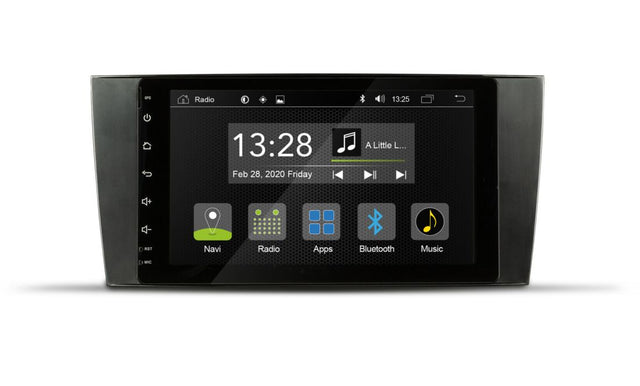

Radical R-C11MB1, Android multimedija Mercedes C-Class (W203, CL203, S203) automobiliams

419.00 €

Radical R-C11MB1, Android multimedija Mercedes C-Class (W203, CL203, S203) automobiliams - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Android automobilinė multimedija skirta Mercedes C-Class W203, CL203, S203 modeliams pagamintiems nuo 2004 > 2007 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 8" / 20.4 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Information and entertainment plus multimedia for your C-Class

Listening to the radio, enjoying music and videos from USB or mobile phones, surfing the internet via WiFi, making convenient phone calls or streaming music via Bluetooth – this media center for Mercedes is well equipped for the infotainment part. But that's not all: The R-C11MB1 is an Android system, so you can install your Android apps directly on the multimedia system. Thus, the range of functions of the RADICAL can be expanded continuously. The integrated WiFi module also offers you the option of setting up mobile web access in your vehicle via smartphone hotspot. So you can use web-based apps like Spotify, YouTube or internet radio comfortably.
car radio R-C11MB1 Mercedes C-Class mountain day interior side view
  RADICAL highlights –
multimedia and infotainment
android 9.0 Android operating system The Android system enables a direct offline installation of Android smartphone apps on the Mercedes car radio wifi WLAN – web access in your cockpit The integrated WiFi module gives you mobile internet access – perfect for Spotify, internet radio or YouTube smartphone EasyConnection mirroring EasyConnection mirrors the display contents / apps of Android mobile phones or Apple iPhones to the RADICAL moniceiver bluetooth_audio Phone calls & music streaming via Bluetooth Built-in Bluetooth system for hands-free calling and wireless A2DP audio streaming from mobile phones directions_car Integrated digital radio The built-in DAB+ tuner ensures clear digital radio reception in your Mercedes near_me Retrofit to navigation Available as an accessory: The pre-installed OSM navi package R-MAPC10 can be activated with a license code

Open for Androids – RADICAL's car radio for Mercedes C-Class

Thanks to its Android 9.0-based operating system, you can install all certified Android apps directly on the multimedia system – including your navigation apps. So you can choose all the features you want to use in your Mercedes and operate them on the large 8" / 20.3 cm capacitive touchscreen just as conveniently as on your mobile phone. With 16 GB flash memory, there's enough capacity for your apps. The 1.3 GHz Octa Core processor with 2 GB RAM guarantees smooth performance and a fast system start.

car radio R-C11MB1 Mercedes C-Class navigation system navigation app

Navigation system for Mercedes C-Class

The R-C11MB1 offers you a wide variety of navigation options. You are able to install an Android navigation app directly on the media center or mirror one of your nav apps on the infotainer. And if you look for an impressive offline navigation, optimally adapted to the device, you can use the navigation package R-MAPC10. The software is pre-installed on the internal flash memory and can be easily activated with an optionally available license code.

Great reception: FM and DAB+ radio

A powerful FM RDS tuner ensures the reception of conventional analog radio stations. With the integrated DAB+ tuner you can enjoy digital radio – including comfort features such as MOT slideshow, station list and DLS text.
car radio R-C11MB1 Mercedes C-Klasse digital radio front view side view
car radio R-C11MB1 Mercedes C-Class connection smarphone easy connection

EasyConnection for your mobile phone

With EasyConnection, you can also mirror the screen contents of your Android smartphone on the infotainer's display and operate them via touchscreen. A useful function for apps like YouTube, which you want to use quickly in-between. Apple iPhones are also supported – the only restriction is that you have to operate the mirrored apps from your iPhone.

Fits perfectly in the Mercedes C-Class

The RADICAL multimedia system integrates optically and technically into the Mercedes C-Class Sedan (W203), the Sportcoupé (CL203), the Edition / Edition+ (W203) and the Station Wagon T-Model (S203). A CAN bus interface is included in the scope of delivery, which is responsible for networking with the steering wheel remote control, multifunctional display, electromagnetic park sensors (EPS), reversing control, handbrake control, and vehicle illumination status.


COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration





BRAND/TYPE/MODEL/YEAR
  • Mercedes-Benz C-Class Sedan W203 2004 > 2007
  • Mercedes-Benz C-Class Sportcoupé CL203 2004 > 2007
  • Mercedes-Benz C-Class Edition / Edition+ W203 2005 > 2007
  • Mercedes-Benz C-Class Station Wagon T-Model S203 2004 > 2007

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Mercedes-Benz C-Class W203, CL203, S203
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 8” / 20.3 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic park sensors (EPS), reversing control, handbrake control, vehicle illumination status

CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes


Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)


FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms


WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm


OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi

General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V


HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition


Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p

Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

    Kas pakuotėje?

    Infotainer R-C11MB1

    car radio R-C11MB1 Mercedes C-Class scope of delivery

    Connection accessories

    car radio R-C11MB1 Mercedes C-Class connection accessoires

    INSTRUKCIJOS

    User Manual.
