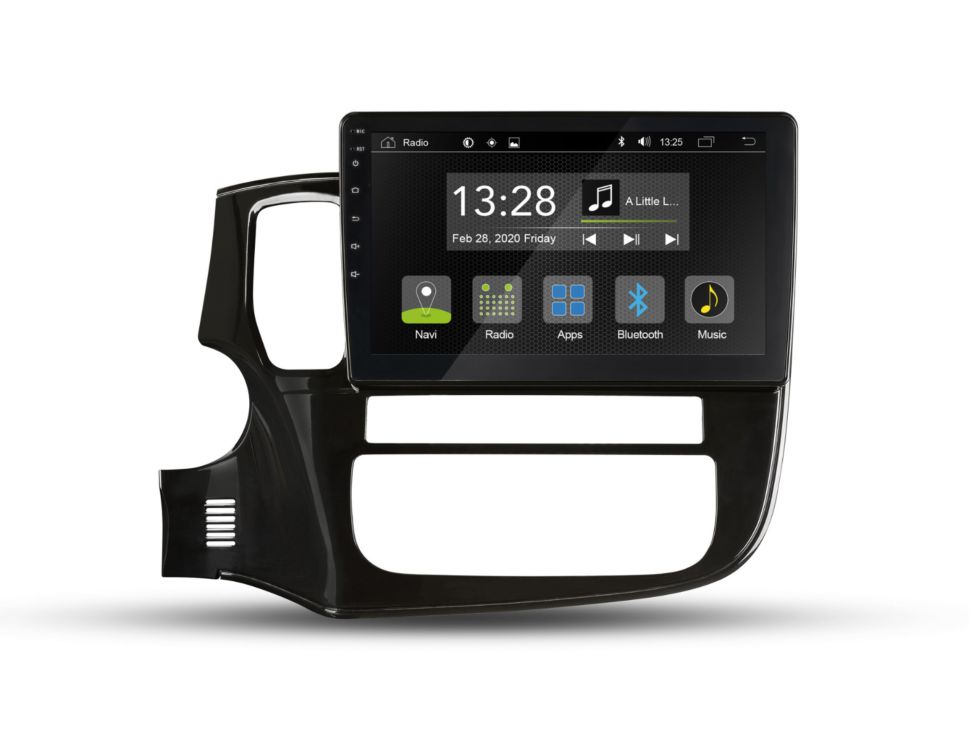

Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui

Android automobilinė multimedija skirta Mitsubishi Outlander modeliams pagamintiems nuo 2013 metų. Multimediją apjungią populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui
Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui

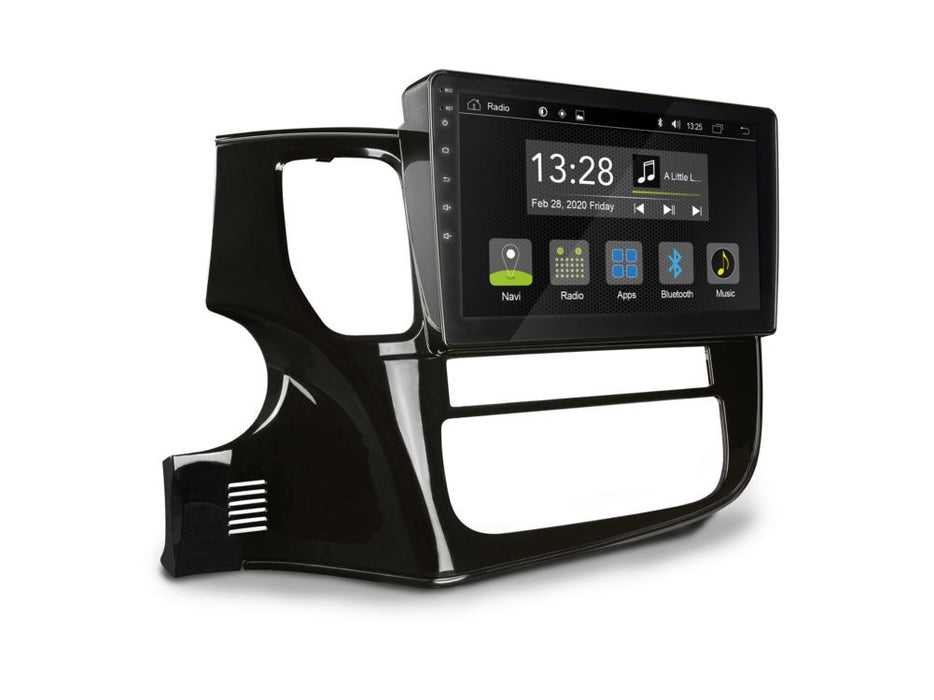

Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui - šonas
Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui - šonas
Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui
check_circle_outline
Užsakoma prekė
Nuolaida: 399.00 €
Kaina: 399.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Radical R-C11MT2, Android multimedija Mitsubishi Outlander automobiliui

Android automobilinė multimedija skirta Mitsubishi Outlander modeliams pagamintiems nuo 2013 metų. Multimediją apjungią populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • TFT LCD Ekranas, kurio raiška: 1024 x 600 px.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA bei  AUX jungtys.



Multimedia and infotainment for your Mitsubishi Outlander

The R-C11MT2 is a vehicle-specific multimedia system with a capacitive 10.1" /25.6 cm touchscreen monitor, DAB+ and FM radio, two USB ports and an integrated Bluetooth system for telephony and A2DP music streaming. With this RADICAL Android car radio you can access the internet via WiFi, stream movies and music from the web, use Spotify or listen to internet radio. But the R-C11MT2 can do even more: Designed as an Android OS, you can install Android apps of your choice directly on the media center – you decide which mobile phone tools you want to use in your car. Car radio R-C11MT2 Mitsubishi Outlander front view cockpit day sun

Any app you like – RADICAL's Android car radio for Mitsubishi Outlander

You can extend the range of functions of the RADICAL media center almost infinitely and adjust it to your wishes. The media receiver uses an operating system based on Android 9.0. Therefore you can easily transfer all Android apps you want to use in your Mitsubishi to the moniceiver and operate them via touchscreen. Thanks to the 1.3 GHz Octa Core processor with 2 GB RAM, the Android car radio R-C110MT2 impresses with its smooth performance. 16 GB flash memory provide enough space for your apps.

 Car radio R-C11MT2 Mitsubishi Outlander cockpit interior street house driving front view

Multimedia and infotainment functions
– the highlights

 android 9.0 Android operating system Allows Android smartphone apps to be installed directly on the R-C11MT2 and used offline directions_car Digital radio on board The integrated DAB+ tuner is easy to use and ensures optimal reception near_me Retrofit to navigation Available as an accessory: The R-MAPC10 navigation package expands the R-C101MT2 into a sat nav system bluetooth_audio Hands-free calling & audio streaming via Bluetooth With the integrated Bluetooth system you can make phone calls and stream music wirelessly from your mobile phone via A2DP wifi Via WLAN / WiFi to the web The integrated WiFi module makes it easy to go to the internet – ideal for Spotify, internet radio, YouTube, navigation functions smartphone Smartphone mirroring via EasyConnection EasyConnection mirrors the screen contents of Android mobile phones and Apple iPhones to the RADICAL's display Car radio R-C11MT2 Mitsubishi Outlander navigation navigation app

Navigation system for Mitsubishi Outlander

The R-C11MT2 offers a wide range of navigation options: You can mirror a navigation app to the media center or install your Android navigation apps directly using the APK installer. You can also expand the moniceiver to a sat nav: The Open Street Map navigation R-MAPC10 is already pre-installed on the device – you just have to activate it with an optional license code.

Noise-free through the night: FM and digital radio

A powerful FM RDS tuner ensures the transmission of conventional analog radio programs. The built-in DAB+ tuner offers you many additional features such as MOT slideshow, DLS text or station list and stands for clear digital radio reception. Car radio R-C11MT2 Mitsubishi Outlander digital radio front view Car radio R-C11MT2 Mitsubishi Outlander connection smartphone easy connection

EasyConnection for mobile phones

You want to use an app like YouTube quickly in-between? With EasyConnection you can mirror your apps on the infotainer's display. If you mirror an app from an Android phone, you can even control it from the R-C11MT2's touchscreen. EasyConnection also supports iOs based smartphones – but you have to control the mirrored apps from your iPhone.

Fits perfectly into the Mitsubishi Outlander

The RADICAL multimedia system is perfectly integrated both visually and technically into the Mitsubishi Outlander from model year 2013 onwards. Connected with the vehicle electronics via CAN bus, comfort functions such as connection to the steering wheel remote control, vehicle status, electromagnetic park sensors (EPS), reversing control, handbrake control, A/C status or vehicle illumination statusare supported – a CAN bus interface is included in the scope of delivery.

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Mitsubishi Outlander
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 10.1” / 25.6 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, vehicle status, electromagnetic park sensors (EPS), reversing control, handbrake control, A/C status, vehicle illumination status
CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes

Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)

FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms

WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm

OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi
General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)

Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings

Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V

HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition

Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p
Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

     Kas pakuotėje?

    Infotainer R-C11MT2

    Car radio R-C11MT2 Mitsubishi Outlander scope of delivery

    Connection accessories

    Car radio R-C11MT2 Mitsubishi Outlander connection accessoires



    INSTRUKCIJOS

    User Manual.
