Radical R-C11OP2, Android multimedija Opel Antara, Astra, Corsa, Zafira automobiliams

Android automobilinė multimedija skirta Opel Antara, Astra, Corsa, Zafira modeliams pagamintiems nuo 2006 > 2015 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

check_circle_outline
Užsakoma prekė
Translation missing: lt.product.general.sku_html
Nuolaida: 419.00 €
Kaina: 419.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Radical R-C11OP2, Android multimedija Opel Antara, Astra, Corsa, Zafira automobiliams

Android automobilinė multimedija skirta Opel Antara, Astra, Corsa, Zafira modeliams pagamintiems nuo 2006 > 2015 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 7" / 17.8 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Information + entertainment for your OPEL

So you want to make full use of your smartphone functions in your Opel, on a large 7 inch / 17.8 cm touchscreen? No problem. The Android radio R-C11OP2 allows to connect your phone and head unit easily. You can install your Android apps directly on the RADICAL media center, you can stream songs and videos from the web via WLAN, you can listen to internet radio or use Spotify. But the R-C11OP2 can do a lot more: Two USB ports, DAB+ and FM tuners, and the extensive Bluetooth system offer you limitless multimedia and infotainment functions.

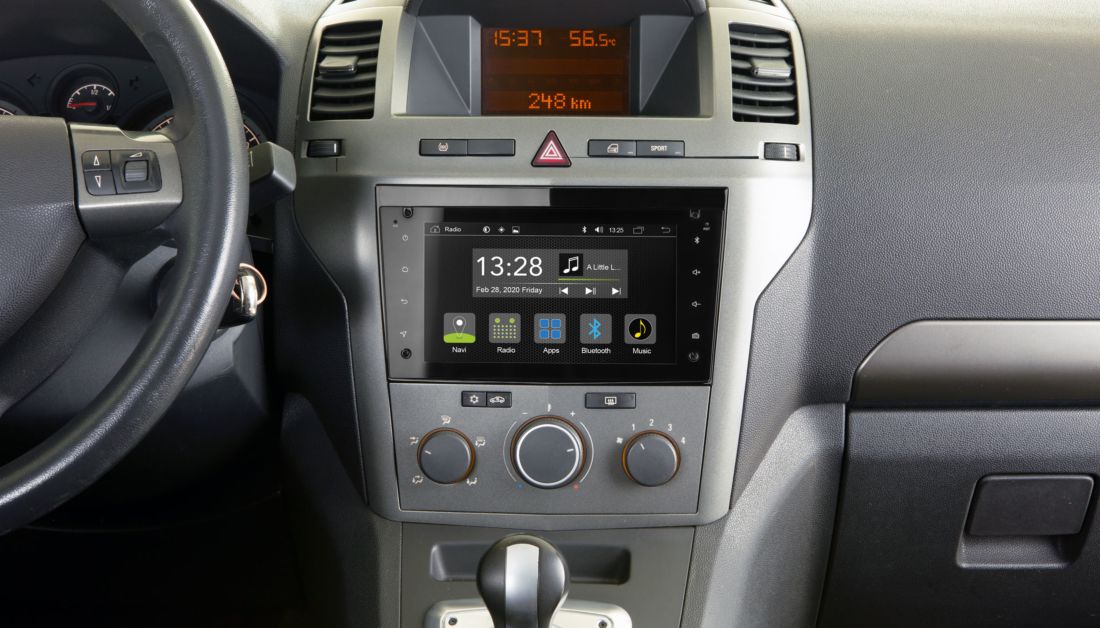

Car radio R-C11OP2 Opel Antara Astra Corsa Zafira interior day

Versatile car radio — the RADICAL media center for OPEL

Thanks to its Android 9.0-based operating system, all certified Android apps can be installed directly on the multimedia system. Of course, this also applies to your navigation apps. The RADICAL has very powerful hardware: an Allwinner T8 CPU with an Octa Core processor. As a result of the 2 GB RAM, all apps and background processes run smoothly, the internal 16 GB flash memory offers you enough space to install an almost infinite number of apps on the device.

Be colorful
be radical
be you.

Boost your car with RADICAL's unique infotainment systems. Thanks to Android and internet access, you'll experience limitless possibilities.



Perfect-fit for various Opel models

The RADICAL media center integrates optically and technically into the Opel Astra, Opel Antara, Opel Corsa and Opel Zafira. A CAN bus interface, included in the scope of delivery of the multimedia system, provides the connection to the steering wheel remote control, multifunctional display, reversing control, handbrake control, vehicle illumination status, and board computer.

radical image photo
RADICAL highlights
– multimedia and infotainment
android 9.0 Android OS operating system Thamks to the Android OS, you manage to install your Android apps directly on the R-C11OP2 using the APK installer wifi WLAN – the web in your Opel
With WiFi and WLAN, the R-C11OP2 gives you the fast internet access to applications like YouTube, internet radio and Spotify
smartphone EasyConnection – mirror your apps With EasyConnection, the screen contents of Apple iPhones and Android mobile phones can be transferred to the display of the Opel car radio bluetooth_audio Bluetooth – phone calls & music streaming Integrated Bluetooth system for hands-free calling in the car and wireless A2DP audio streaming from your mobile directions_car Top digital radio reception A DAB+ tuner is integrated – enjoy your digital radio programs while driving near_me Upgrade to navigation system The R-MAPC10 navigation package is available as an accessory – it is pre-installed on the R-C11OP2 and simply activated by a license code
Car radio R-C11OP2 Opel Antara Astra Corsa Zafira navigation system navigation app

Navigation for Opel

The car radio R-C11OP2 is constructed as an Android system, therefore you can install your Android navigation apps directly on the moniceiver and use them as you are accustomed to from your smartphone. If you want to navigate offline, the RADICAL device can be easily expanded to a naviceiver. The OSM navigation R-MAPC10 is pre-installed on the R-C11OP2 – simply activate it with a separately available license code.

Go digital: FM and DAB+ radio tuners

The integrated DAB+ tuner with station list, MOT slideshow and DLS text ensures clear digital radio reception. With the built-in FM RDS tuner you can receive analog FM radio stations.

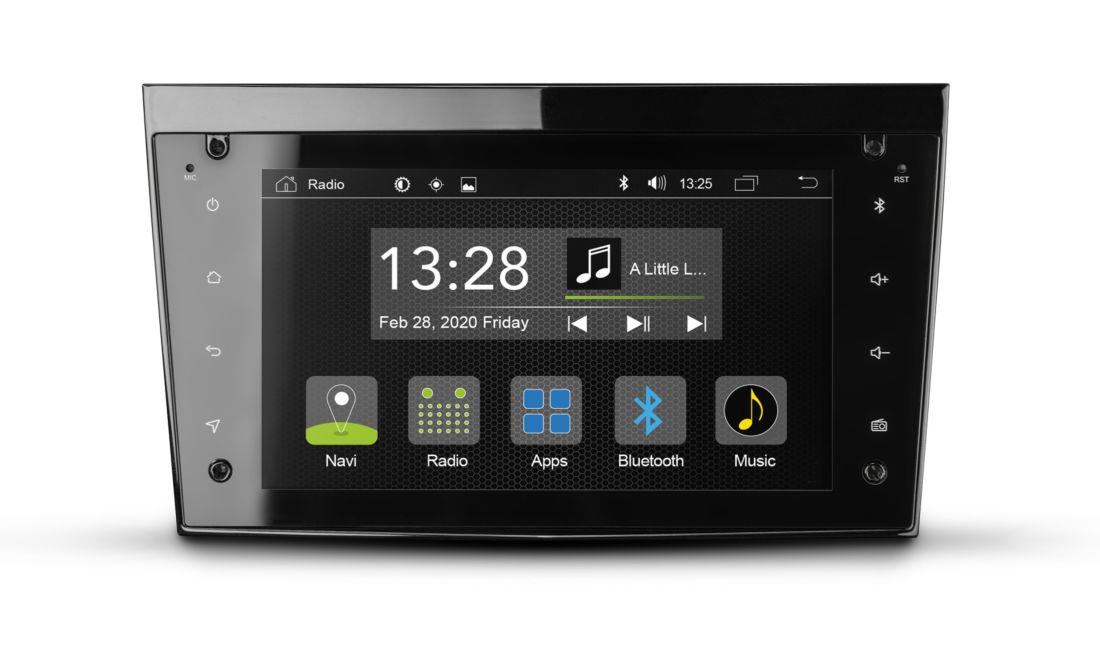

Car radio R-C11OP2 Opel Antara Astra Corsa Zafira digital radio front view
Car radio R-C11OP2 Opel Antara Astra Corsa Zafiraconnection smartphone easy connection

Smart mirroring – EasyConnection

Mirroring via EasyConnection allows you to transfer your mobile phone display on the monitor of the Opel car radio. So you can use navigation apps or apps like YouTube spontaneously. With compatible Android smartphones, the mirrored contents can be operated directly via the touchscreen of the R-C11OP2. With iPhones, you can control the apps from the Apple screen.

COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration



BRAND/TYPE/MODEL/YEAR
  • OPEL Corsa D 2006 > 2014
  • OPEL Zafira B 2008 > 2012
  • OPEL Astra H 2007 > 2010
  • OPEL Antara N.A. 2007 > 2015

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for OPEL Astra H, Zafira B, Corsa D, Antara
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 7” / 17.8 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, reversing control, handbrake control, vehicle illumination status, board computer

CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes
Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)
FM Tuner Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms
WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm
OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi
General Audio + Multimedia
  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)
Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings
Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V
HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition
Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p
Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

    Kas pakuotėje?





    Infotainer R-C11OP2

    Connection accessories




    INSTRUKCIJOS

    User Manual.
