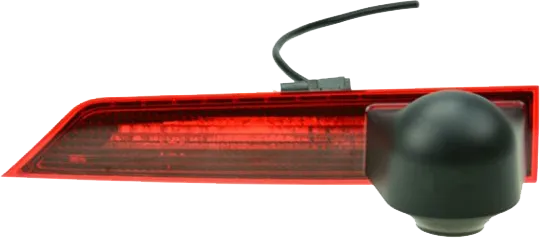

RVC NTSC CMOS 170°, galinė kamera

145.00 €

RVC NTSC CMOS 170°, galinė kamera yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

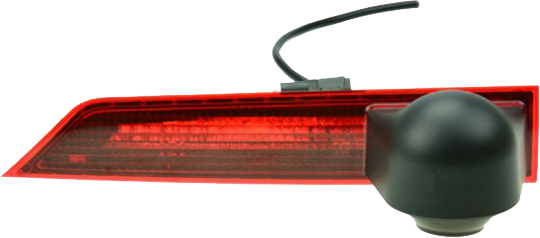

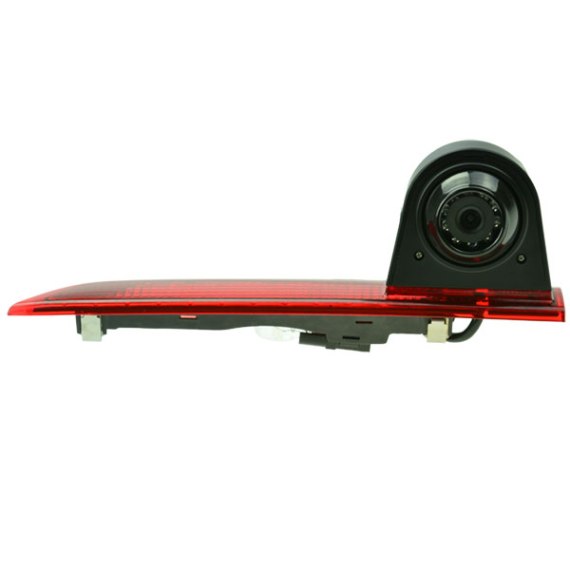

Galinė kamera įmontuota į stabdžių žibintą. Tinka Ford Transit nuo 2012.

  • Sensorius: 1/4inch CMOS.
  • Atparumo standartas IP 69K.
  • Rezoliucija: 500 x 582.
  • Kabelio iligis: 10 m.


Vehicle-specific exchange brake light illumination-glass with rear-view camera and integrated LED break light. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNINIAI DUOMENYS

  • Camera with vehicle-specific exchange brake light illumination-glass and LED break light
  • Sensor-type 1/4inch CMOS
  • NTSC format (700 TV lines)
  • Resolution: 480i (500 x 582 pixel)
  • 2mm focal length
  • Min illumination: 0 LUX (IR on)
  • 9 IR night vision LEDs
  • Adjustable camera ball
  • Angle horizontal 82°, vertical 79°, diagonal 99°
  • Mirroring (fixed)
  • Protection class IP 69K
  • Camera colour: black
  • 10m extension cable (4pin-KO)




Compatibility


Brand Model
Ford Transit Custom since MY2012
For vehicles with double door only (not for hatchback)





Specifications


Operating voltage 12V DC (10~15V)
Current consumption 140mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C



RVC RVC NTSC CMOS 170°, galinė kamera
RVC

RVC NTSC CMOS 170°, galinė kamera

145.00 €

Galinė kamera įmontuota į stabdžių žibintą. Tinka Ford Transit nuo 2012.


APRAŠYMAS

Vehicle-specific exchange brake light illumination-glass with rear-view camera and integrated LED break light. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNINIAI DUOMENYS

TECHNINIAI DUOMENYS




Compatibility


Brand Model
Ford Transit Custom since MY2012
For vehicles with double door only (not for hatchback)





Specifications


Operating voltage 12V DC (10~15V)
Current consumption 140mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C



Žiūrėti produktą

Galinė kamera įmontuota į stabdžių žibintą. Tinka Ford Transit nuo 2012.

  • Sensorius: 1/4inch CMOS.
  • Atparumo standartas IP 69K.
  • Rezoliucija: 500 x 582.
  • Kabelio iligis: 10 m.


Vehicle-specific exchange brake light illumination-glass with rear-view camera and integrated LED break light. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNINIAI DUOMENYS

  • Camera with vehicle-specific exchange brake light illumination-glass and LED break light
  • Sensor-type 1/4inch CMOS
  • NTSC format (700 TV lines)
  • Resolution: 480i (500 x 582 pixel)
  • 2mm focal length
  • Min illumination: 0 LUX (IR on)
  • 9 IR night vision LEDs
  • Adjustable camera ball
  • Angle horizontal 82°, vertical 79°, diagonal 99°
  • Mirroring (fixed)
  • Protection class IP 69K
  • Camera colour: black
  • 10m extension cable (4pin-KO)




Compatibility


Brand Model
Ford Transit Custom since MY2012
For vehicles with double door only (not for hatchback)





Specifications


Operating voltage 12V DC (10~15V)
Current consumption 140mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C
