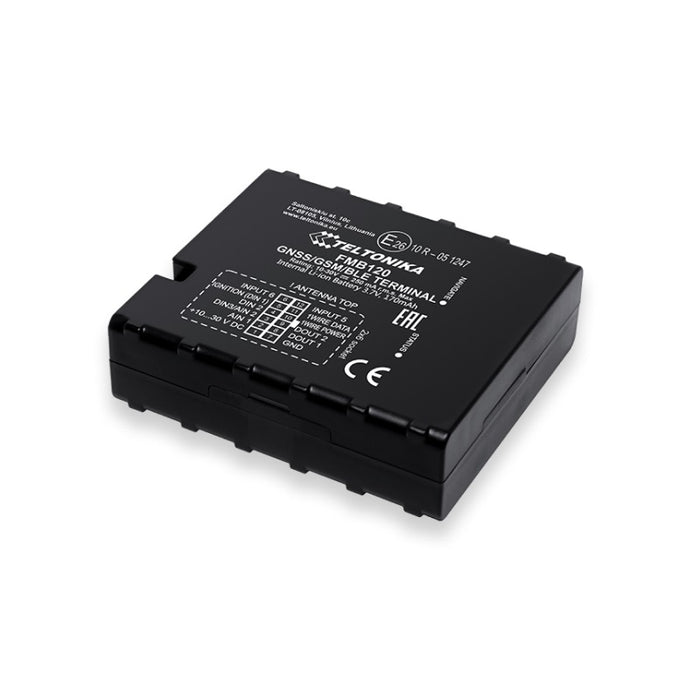

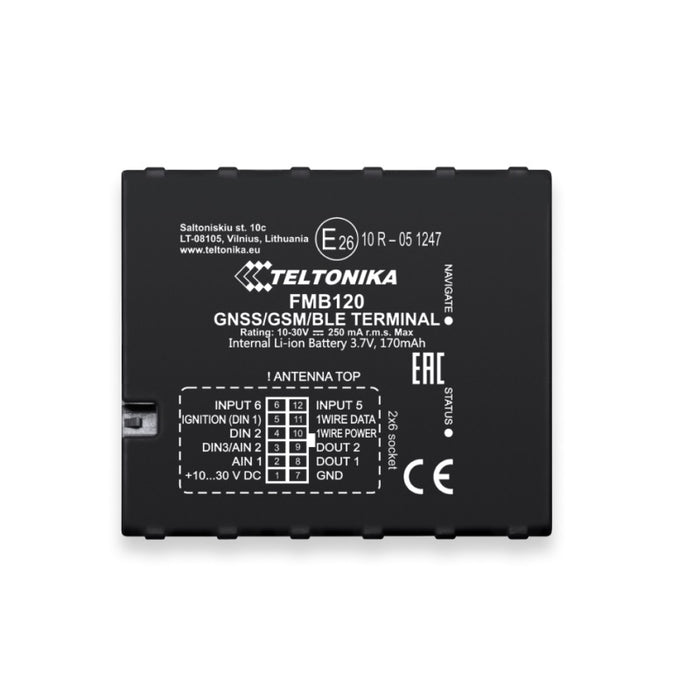

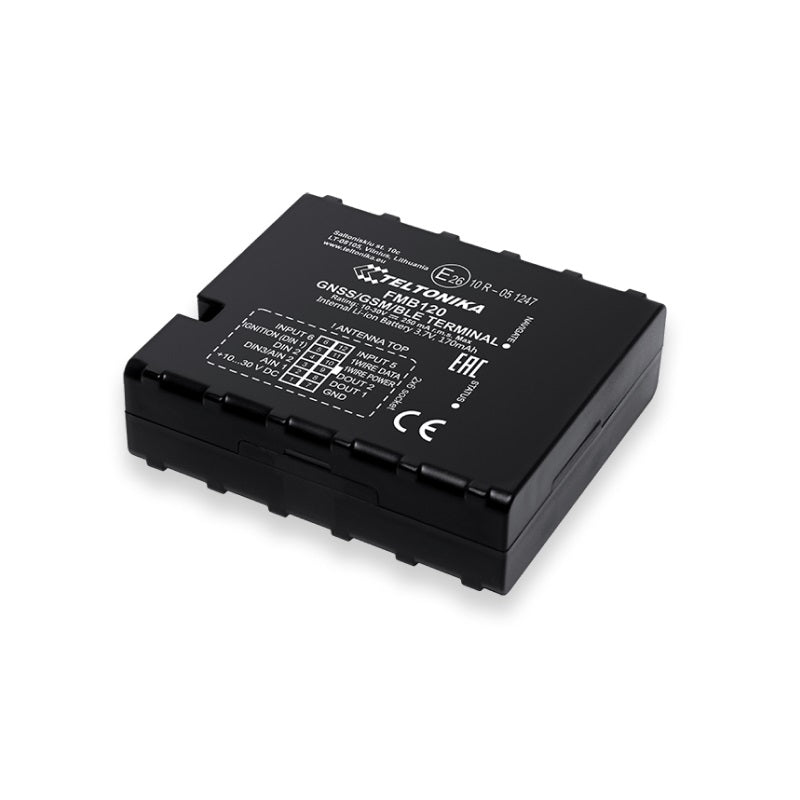

TELTONIKA FMB120 GNSS/GSM/Bluetooth, sekiklis

Profesionalus sekiklis su vidinėmis didelio stiprumo GSM ir GNSS antenomis, galinčiomis rinkti įrenginio koordinates ir kitus naudingus duomenis bei perduoti juos per GSM tinklą į serverį.



• Bluetooth.
• Vidinės GNSS/GSM antenos.
• VIdinė baterija.
• „1-Wire®“ sąsaja temperatūros duomenims

VIDEO



APRAŠYMAS

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

 Savybės

• Sensors: Accelerometer
• Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, Debug
• Time Synchronization: GPS, NITZ, NTP
• Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle
• Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

Sertifikatai

• Regulatory: CE/RED, E-Mark, EAC, RoHS, REACH

TECHNINIAI DUOMENYS

Specifikacijos

Module

• Name: TM2500
• Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: 33 channel
• Tracking sensitivity: -165 dBM
• Accuracy: < 3 m
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular

• Technology: GSM
• 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
• Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
• Data support: SMS (text/data)

Power

• Input voltage range: 10 - 30 V DC with overvoltage protection
• Back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption:

•    At 12V < 6 mA (Ultra Deep Sleep)
•    At 12V < 8 mA (Deep Sleep)
•    At 12V < 11 mA (Online Sleep)
•    At 12V < 20 mA (GPS Sleep)
•    At 12V < 35 mA (nominal)

Bluetooth

• Specification: 4.0 + LE
• Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

Interface

• Digital Inputs: 3
• Digital Outputs: 2
• Analog Inputs: 2
• CAN Adapter inputs: 1
• 1-Wire: 1
• GNSS antenna: Internal High Gain
• GSM antenna: Internal High Gain
• USB: 2.0 Micro-USB
• LED indication: 2 status LED lights
• SIM: Micro-SIM + eSIM
• Memory: 128MB internal flash memory

Physical specification

• Dimensions: 65 x 56,6 x 18,9 mm (L x W x H)
• Weight: 55 g

Operating environment

• Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery): -40 °C to +85 °C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP41
• Battery charge temperature: -0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:

•    -20 °C to +45 °C for 1 month
•    -20 °C to +35 °C for 6 months
