Teltonika QuWireless QuSpot, Antena skirta Teltonika RUTX11 maršrutizatoriui

Teltonika QuWireless QuSpot, Antena skirta Teltonika RUTX11 maršrutizatoriui

Teltonika RUTX11 maršrutizatoriui skirta Antena „QuSpot omni LTE“. Antena yra puikus sprendimas skirtas mobiliesiems ir stacionariems įrenginiams, tokiems kaip pramoniniai objektai, vaizdo stebėjimo sistemos, Wi-Fi karštųjų taškų punktai ir t.t.

• Bluetooth palaikymas.
• IP67 patvarumo standartas.
• Medžiagos:  ABS plastikas, aliuminis, PTFE.
• Varža: 50 Ω.

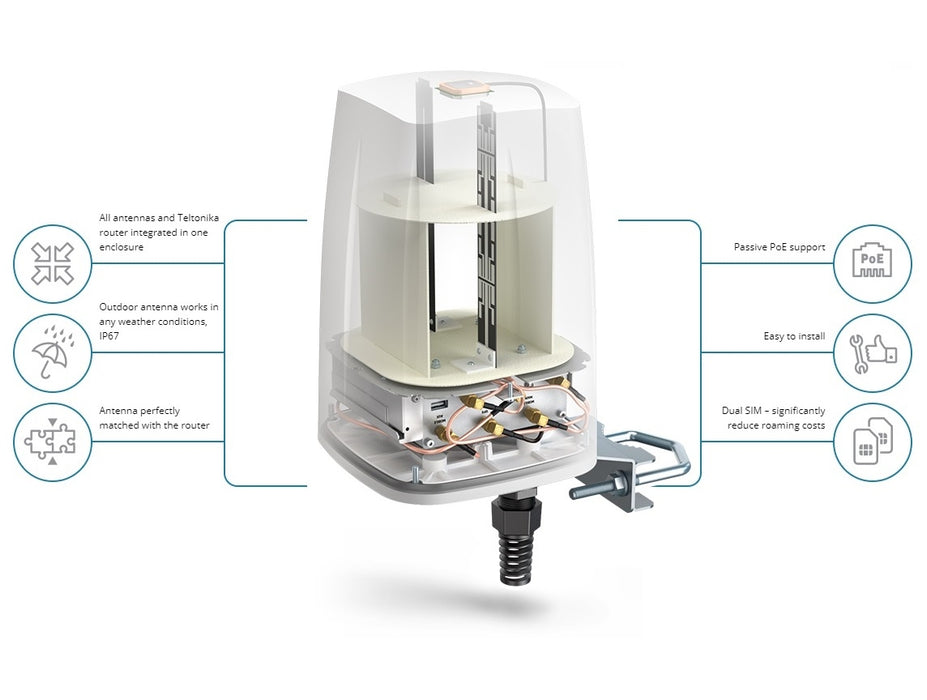

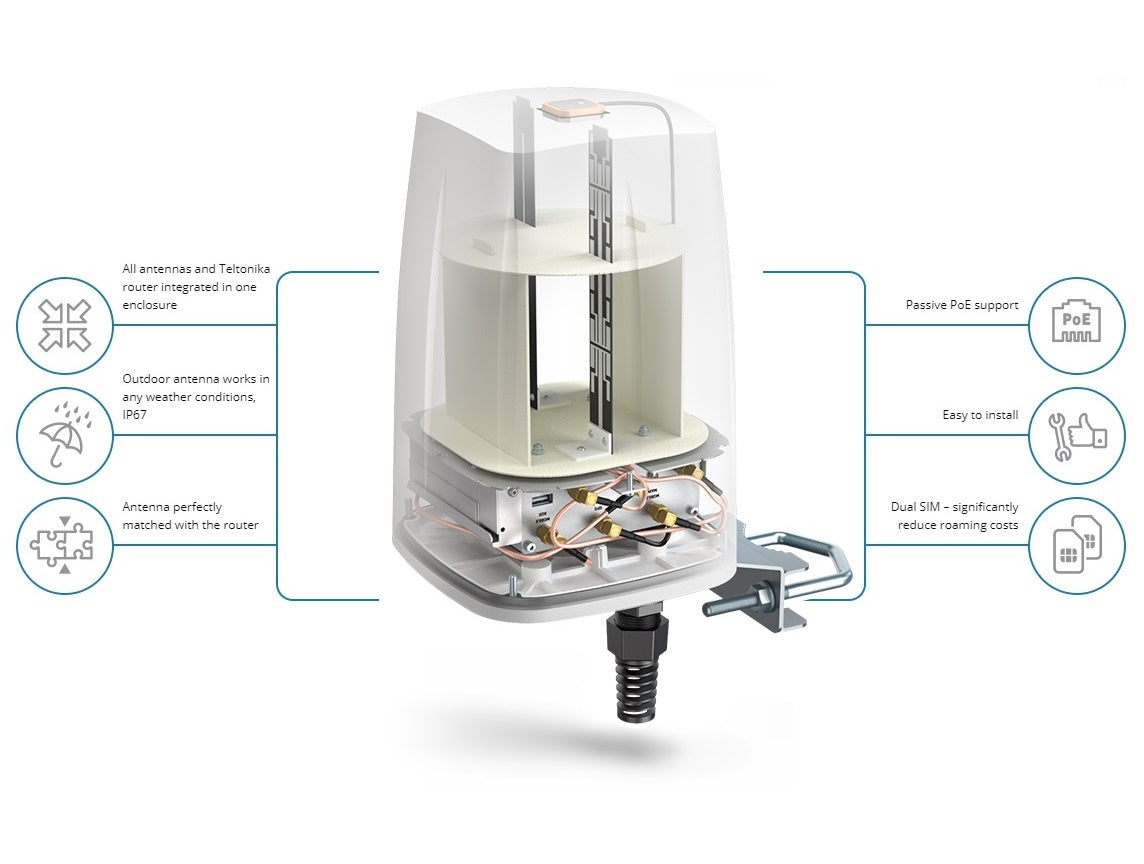

QuSpot omni LTE antenna for Teltonika RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specifikacijos

LTE Specifications:
• Frequency:
     * 0.694-0.96 GHz;
     * 1.7 - 2.2 GHz;
     * 2.2 - 2.7 GHz;
• Gain:
     * 2 dBi;
     * 2 dBi;
     * 4 dBi;
• VSWR:
     * <1.70, max <2.00;
     * <1.60, max <2.00;
     * <1.60, max <2.00;
• Beamwidth:
     * 360°/35° +/- 5°;
     * 360°/35° +/- 5°;
     * 360°/35° +/- 5°;
• Polarization: Vertical;
• Impedence: 50 Ω.

Wi-Fi Specifications:
• Frequency:
     * 2.40-2.50 GHz;
     * 4.70 - 6.00 GHz;
• Gain:
     * 6 dBi;
     * 7 dBi;
• VSWR:
     * <1.70, max <2.00;
     * <1.70, max <2.00;
• Beamwidth:
     * 360°/25° +/- 5°;
     * 360°/25° +/- 5°;
• Polarization: Vertical;
• Impedance: 50 Ω.

Mechanical Specification:
• Materials: ABS, aluminum, PTFE;
• Ingress Protection: IP67;
• Dimensions: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch);
• Weight: 1.5 kg (3.31 lbs);
• Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).

Naudotojo Instrukcija / User Manual.
