Šis 7.2-kanalų tinklinis AV resyveris su integruotu Bluetooth, HDCP2.2, 4K ULTRA HD per HDMI. Palaiko tokias programas kaip Spotify, Airplay bei MusicCast kuri leidžia mėgautis visais muzikos šaltiniais betkur jūsų namuose naudojantis nemokama programėle (app) išmaniuoju telefonu belaidžiu būdu.
- Dinaminė galia per kanalą: 8 / 6 / 4 / 2 omai - - / 120 / 140 / 170W
- Palaiko programas: MusicCast, Spotify, AirPlay, Juke, Pandora
- HDMI (6 įėjimai / 2 išėjimai)
- Integruota: Wi-Fi, Bluetooth
- DSD 2.8MHz/5.6MHz, FLAC/WAV/AIFF 192kHz/24bit, Apple Lossless 96kHz / 24-bit atkūrimas
- YPAO™ R.S.C. garso optimizavimas
- 192kHz/24-bit DACs visiems kanalams
- Zone B funkcija
- Matmenys: 435 x 161 x 315 mm / Svoris 8.1 kg
MusicCast padidina galimybes
Bluetooth palaikymas naujausių technologijų
4K Ultra HD pilnas palaikymas su 4K/60p, HDCP2.2, ir BT.2020
Integruotas Wi-Fi
Tinklo funkcijos
Zone B
- MusicCast for audio enjoyment in every room
- 7-channel powerful surround sound
- --- 80 W per channel (6 ohms, 20Hz-20kHz, 0.09 % THD, 2 ch driven)
- --- 115 W per channel (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
- --- 135 W per channel (6 ohms, 1kHz, 10% THD, 1ch driven)
- Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
- Bluetooth for wireless music streaming and Compressed Music Enhancer for Bluetooth
- AirPlay, Spotify®*, Pandora®*, JUKE* music streaming service and AV Controller app
- *Music service availability varies by region.
- DSD 2.8MHz/5.6MHz, FLAC/WAV/AIFF 192kHz/24bit, Apple Lossless 96kHz / 24-bit playback
- Gapless playback compatibility allows play without interruption
- HDMI (6 in/1 out) with HDCP2.2 (1 in/1 out), 3D and Audio Return Channel
- Front panel USB Digital Connection for iPod/iPhone and USB thumbdrives
- YPAO sound optimisation for automatic speaker setup
- Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
- Extra Bass enriches powerful bass sound even with small speakers
- Assignable amplifiers for bi-amp connection and Speaker Zone B Function
- Multi language colour OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
- New-design remote control features large buttons for enhanced ease of use
- ECO mode operation for about 20% less power consumption
Amplifier Section
- Channel 7.2
- Rated Output Power (1kHz, 1ch driven) 115 W (6ohms, 0.9% THD)
- Rated Output Power (20Hz-20kHz, 2ch driven) 80 W (6ohms, 0.09% THD)
- Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 135 W (6ohms, 10% THD)
- Dynamic Power per Channel (8/6/4/2 ohms) - / 120 / 140 / 170 W
Surround Sound Processing
- CINEMA DSP Yes (3D)
- DSP Programs 17
- Virtual Presence Speaker Yes
- Virtual Surround Back Speaker Yes
- SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
- Dolby TrueHD Yes
- Dolby Digital Plus Yes
- Dolby Pro Logic IIx Yes
- DTS-HD Master Audio Yes
Audio Features
- Compressed Music Enhancer Yes (incl. enhancer for Bluetooth)
- YPAO sound optimization Yes
- Adaptive DRC (Dynamic Range Control) Yes
- Initial Volume & Maximum Volume Setting Yes
- Bi-amp capability Yes
- Audio Delay Yes (0-500 ms)
- 192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features
- 4K Ultra HD Pass-through Yes
- HDMI 3D passthrough Yes
- HDMI Audio Return Channel Yes
- Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes

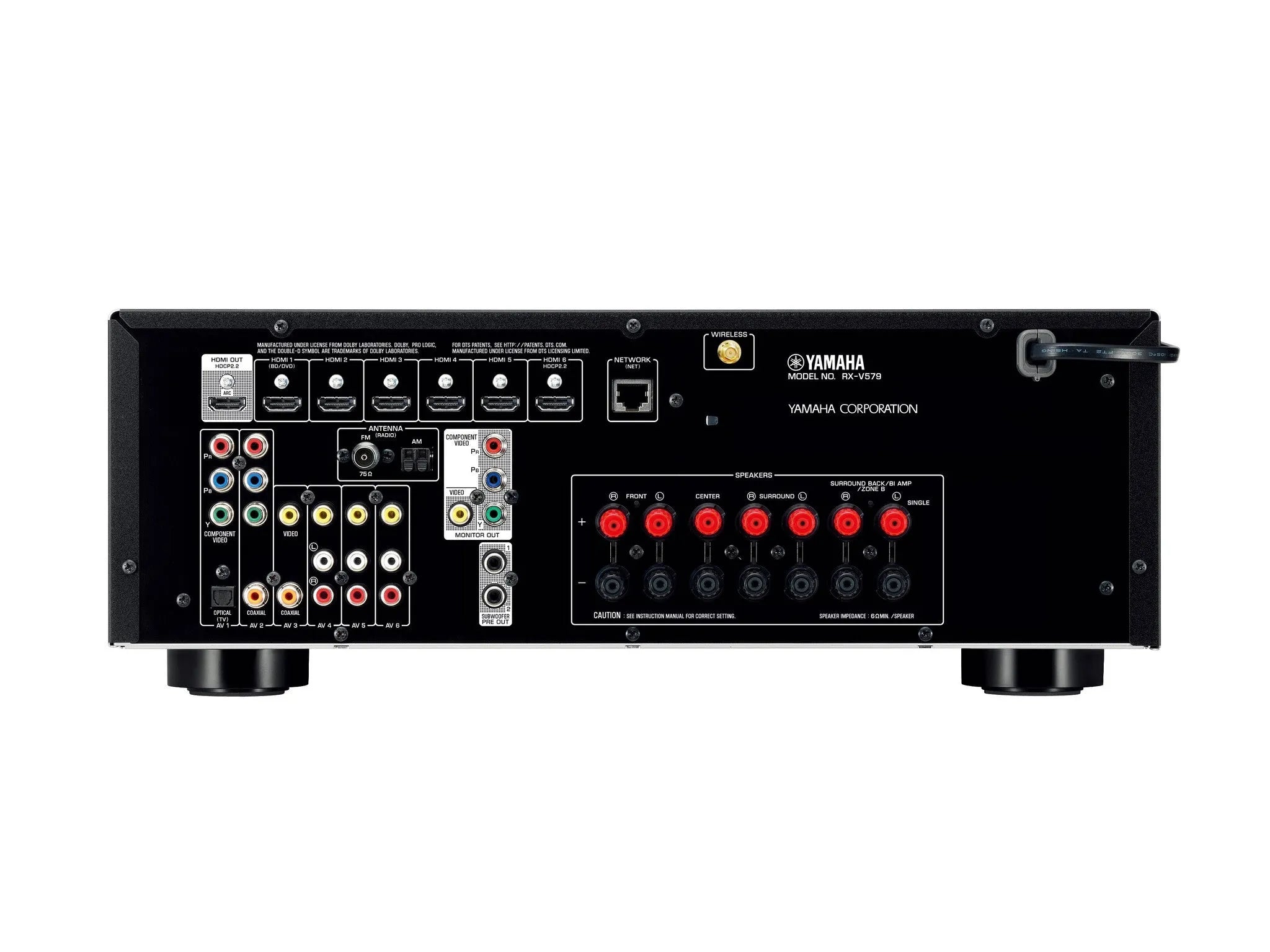

Connectivity
- HDMI Input/Output 6 (HDMI6:HDCP2.2 compatible) / 1 (HDCP2.2 compatible)
- HDMI CEC Yes
- USB Input iPod / iPhone, USB Memory, Portable Audio Player
- Network Port Yes
- Wi-Fi Yes (with Wireless Direct)
- AirPlay Yes
- Bluetooth Yes (SBC/AAC)
- Front AV Input USB / Mini Jack
- Digital Audio Input/Output: Optical 1 / 0
- Digital Audio Input/Output: Coaxial 2 / 0
- Analog Audio Input/Output 4 (front 1) / 0
- Component Video Input/Output 2 / 1
- Composite Video Input/Output 4 / 1
- Preout Subwoofer (2 x mono)
- Headphone Output 1
Tuner Section
User Interface
- On-screen display Yes (colour OSD)
- SCENE SCENE (4 sets)

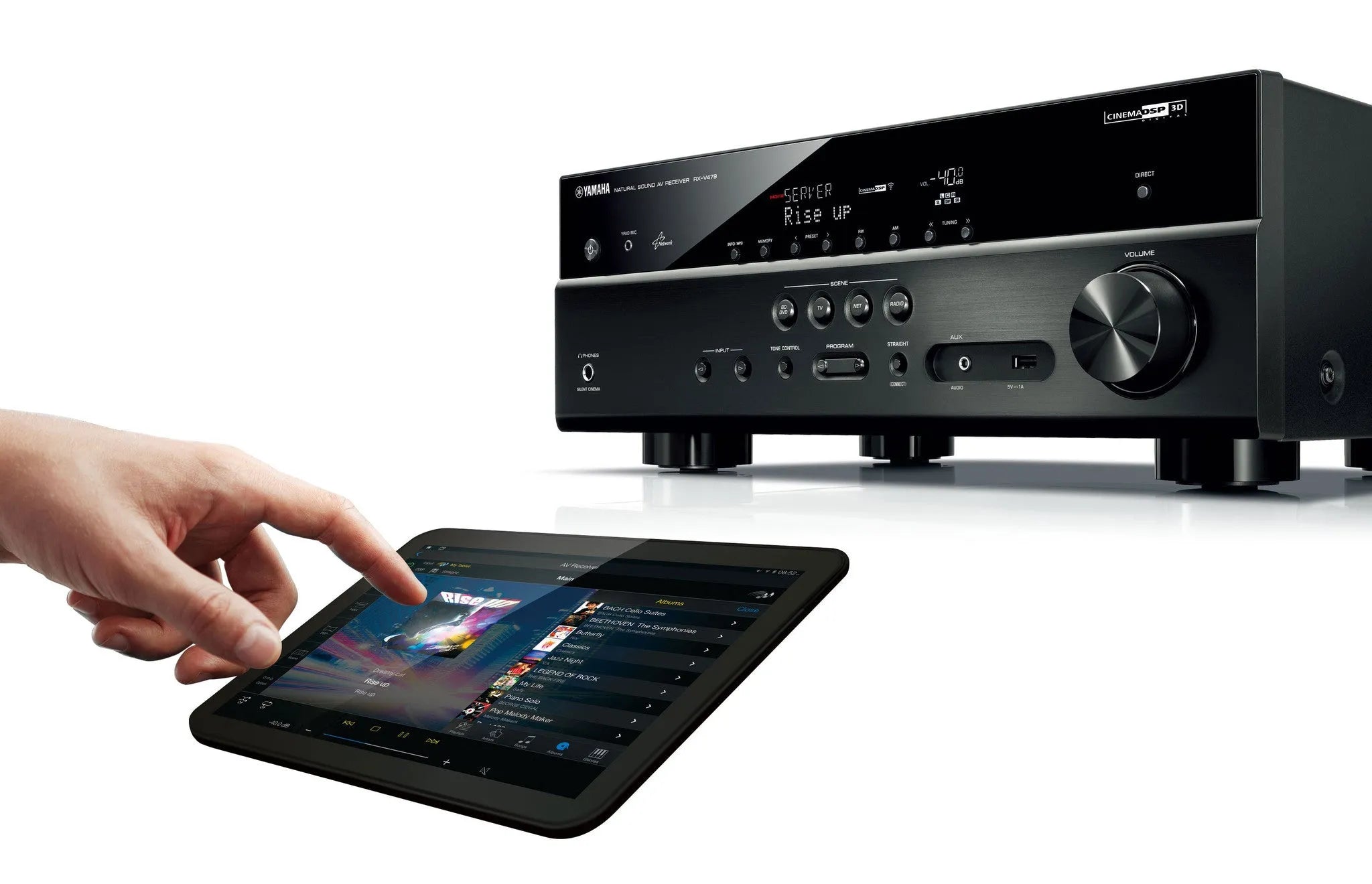

- App Control Yes (iPhone / iPad / Android phone / tablet)
- Remote Control Unit Yes
General
- Standby Power Consumption (IR only) ≤0.1W
- Auto Power Standby Yes
- ECO mode Yes
- Dimensions (W x H x D) 435 x 161 x 315 mm (with antenna: 435 x 221 x 327 mm); 17-1/8” x 6-3/8” x 12-3/8” (with antenna: 17-1/8” x 8-3/4” x 12-7/8”)
- Weight 8.1 kg; 17.9 lbs.
