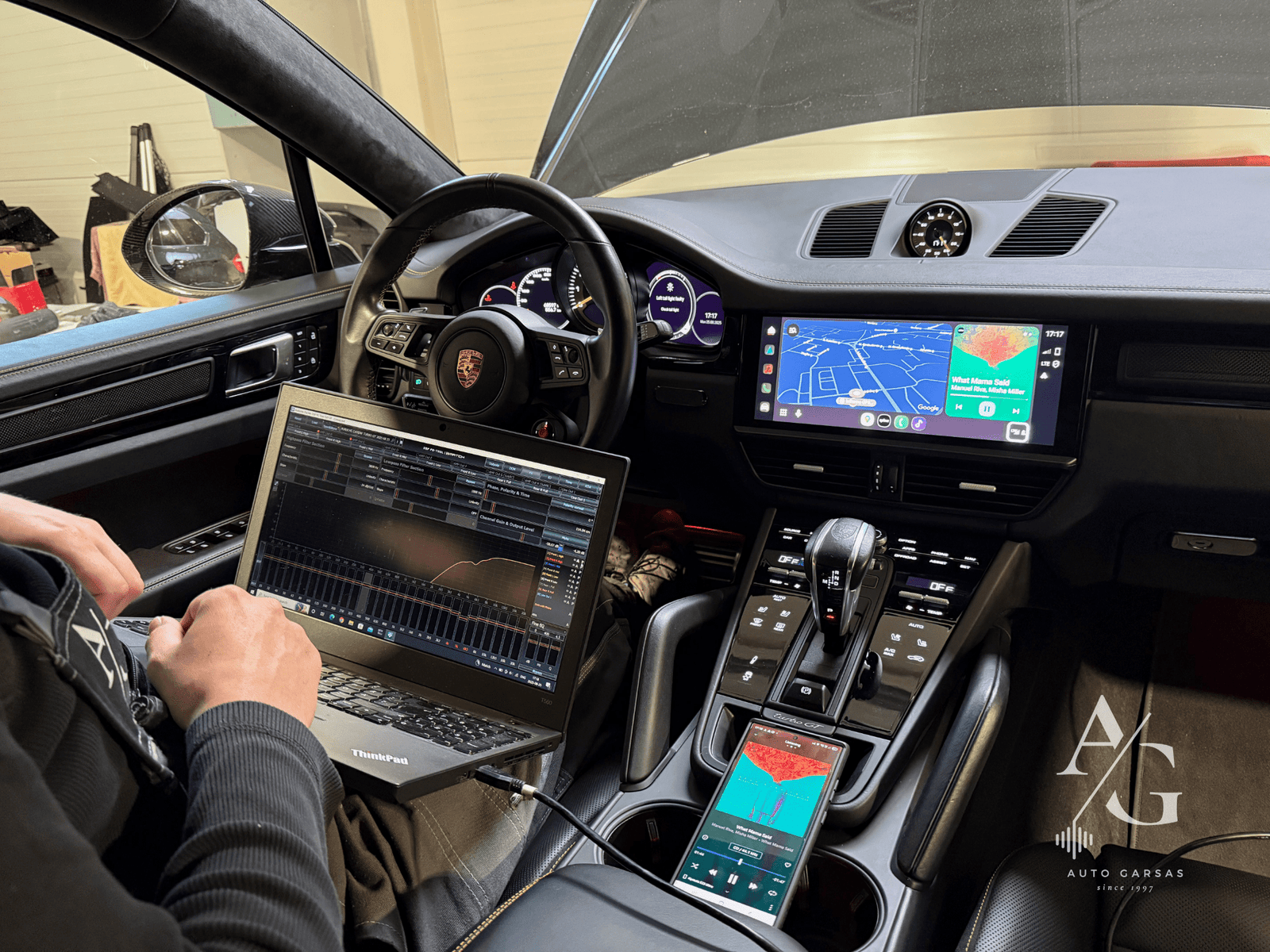

SOUND PROCESSOR (DSP) ADJUSTMENT MANUAL

Car audio system tuning – step by step

1. GOAL – WHAT ARE WE STRIVING FOR?

The main goal is to achieve smooth, natural sound reproduction across the entire frequency range at the listener's position. Ideally, we strive for the principle of the so-called Harman target curve:

Visually, the target curve resembles a gentle "slope" from low to high frequency – from approximately +6 dB at the lowest point to –3/–6 dB at the highest.



Fig. 1. Target audio curve in a car (20 Hz – 20 kHz)

2. REQUIRED TOOLS

• Measurement microphone (e.g., miniDSP UMIK-1, Dayton Audio iMM-6)

• Measurement software (REW – Room EQ Wizard, or processor software with RTA)

• Pink noise generator (usually integrated into the measurement software)

• Sound processor software (Helix DSP, Audison bit, Alpine, Mosconi, etc.)

• Listening test – well-known recordings (vocals, instruments, low-frequency music)

3. ADJUSTMENT SEQUENCE

3.1. Starting point – set to neutral position

• Set gain for all channels to the middle position or according to power calculation.

• All EQ settings – to 0 dB (flat).

• Turn off all additional functions (bass boost, loudness).

• Time alignment – to 0 ms.

• Set crossover filters according to speaker specifications (details below).

3.2. Crossover filter adjustment

This is the FIRST and MOST IMPORTANT step. Filters determine which frequency range reaches each speaker. This is not sound correction – it is speaker protection and correct operation.

Note: Linkwitz–Riley (LR) type filters are the most suitable because they create a smooth –6 dB point at the crossover frequency, ensuring an even sound level when transitioning between speakers.

3.2.1. Cut-offs based on resonant frequency (Fs) – speaker protection

Every speaker has a resonant frequency (Fs) – the frequency at which the speaker cone naturally "vibrates" most freely. Below Fs, the speaker becomes uncontrollable: huge cone excursions, distortion, overheating, mechanical damage. Therefore, Fs is a critical reference point for setting the High-Pass filter (HPF).

MAIN RULE:

The HPF frequency must always be EQUAL to or HIGHER than the speaker's Fs. Never set the HPF below Fs – it is a direct path to damaging the speaker.

Practical recommendations based on speaker type:

How to find Fs?

• Manufacturer specification (usually listed in technical data as "Fs" or "Resonant frequency").

• Thiele–Small parameter measurement with special equipment (Dayton Audio DATS, FuzzMeasure, REW + jig).

• If Fs is unknown – use the safe rule: for tweeter HPF not below 2.5 kHz, for midbass not below 60–80 Hz.

IMPORTANT about filter slope:

The filter does not cut abruptly – even after setting an HPF at 80 Hz with a 12 dB/oct slope, the speaker still receives a signal below 80 Hz, just weaker. Therefore:

Practical example – 3-way system:

Tweeter: Fs = 900 Hz → HPF = 2500 Hz @ 24 dB/oct (LR4). Protection factor ×2.8.

Midbass 6.5“: Fs = 55 Hz → HPF = 65 Hz @ 24 dB/oct, LPF = 2500 Hz @ 24 dB/oct.

Subwoofer 12“: Fs = 28 Hz → Subsonic HPF = 22 Hz @ 24 dB/oct, LPF = 65 Hz @ 24 dB/oct.

3.3. Level Matching

Using pink noise, equalize the volume level of all channels. Each speaker must play at the same volume level within its frequency range. This is done by adjusting the gain/trim of each channel in the processor.

• Turn off the subwoofer, tune the front channel (left/right).

• Add the rear channel – should be ~6 dB quieter than the front.

• Add the subwoofer – adjust by ear and measurement, avoiding excessive levels.

3.4. Time Alignment / Time Delay

The goal is for sound from all speakers to reach the listener's ears AT THE SAME TIME. The closest speaker is given the largest delay, the furthest one – the smallest or 0.

Distance measurement:

• Measure the distance from the listener's head to each speaker (in centimeters).

• Find the difference between the furthest speaker and each of the others.

• Enter this difference into the processor (in milliseconds or centimeters – depending on the software).

Formula: Delay (ms) = Distance difference (cm) ÷ 34.4

E.g.: If the furthest speaker is 150 cm away and the closest is 60 cm, then the delay for the closest = (150 – 60) ÷ 34.4 = 2.62 ms.

3.5. Equalizer (EQ) adjustment

The equalizer is used ONLY after the filters, levels, and time alignment are already set. The goal of EQ is to eliminate frequency anomalies caused by the car cabin.

Basic rules:

• FIRST, cut problematic frequencies rather than boost missing ones. Cutting sounds more natural.

• Use a narrow Q value (Q = 3–10) to remove problematic frequencies (resonant peaks).

• Use a wide Q value (Q = 0.5–2) for overall curve shaping.

• Do not change more than ±6 dB – if more is needed, the problem is mechanical (speaker mounting, insulation).

• Adjust each channel separately.

Typical car problems:

3.6. Final adjustment by ear

After measurements and technical adjustments – a final tuning by ear is required using well-known recordings:

• Vocals must sound centered, in front of the driver, "on the dashboard".

• Instruments must have a clear position on the soundstage (width and depth).

• The bass should "blend" with the front speakers, not be heard separately from the rear.

• There should be no sharp frequency that "pops out" – the sound must be even and natural.

4. WHERE TO ADJUST WHAT – SUMMARY

5. COMMON MISTAKES AND TIPS

1. Do not boost what is missing – cut what is too much. EQ cutting always sounds more natural than boosting.

2. Do not skip the physical part. If there are door vibrations, poor insulation, or a poorly mounted speaker – no DSP will fix it.

3. Measure from the listener's position. The microphone must be at the driver's head level.

4. Adjust time alignment after EQ. EQ changes can affect the phase and stage.

5. Write down the settings. Every car's tuning is unique – document what you have done.

6. Take your time. A good tuning job takes 1–2 hours. Listener fatigue is real – take breaks.
