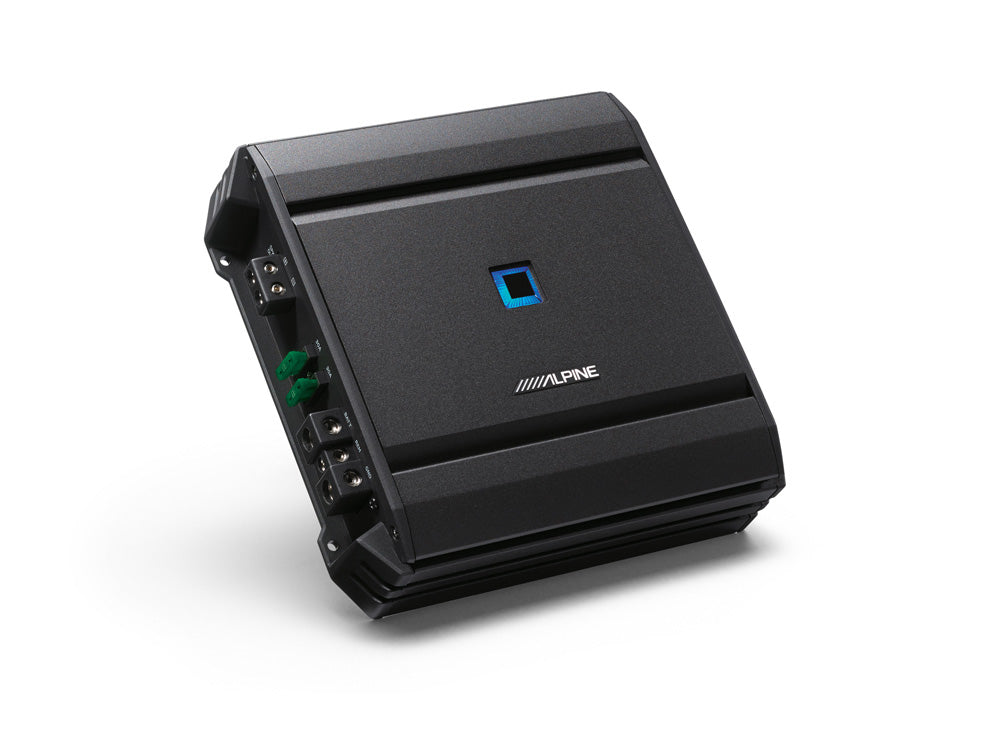

Alpine S-A60M, Mono car audio amplifier

Alpine introduces new S-Series amplifiers, perfect for S-Series loudspeakers.

€240.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. In the D-class category, these amplifiers have an excellent Watts to Euro ratio, very high heat resistance and overheat protection.

  • RMS power per channel at 2Ω 14.4V (≤1%THD+N): 1 x 600W.
  • Amplifier class D.
  • Bass EQ.


    DESCRIPTION

    Alpine S-Series audio components

    Three new S series amplifiers with reliable performance, adds to the S Series family of products known for high quality and competitive pricing. All three S-series amplifiers (mono, 4-channel and 5-channel) feature technologies currently found in the R and X-series models. The S-Series amplifiers are attractively priced and perfectly suited to existing S-Series loudspeakers.

    Fully digital solutions

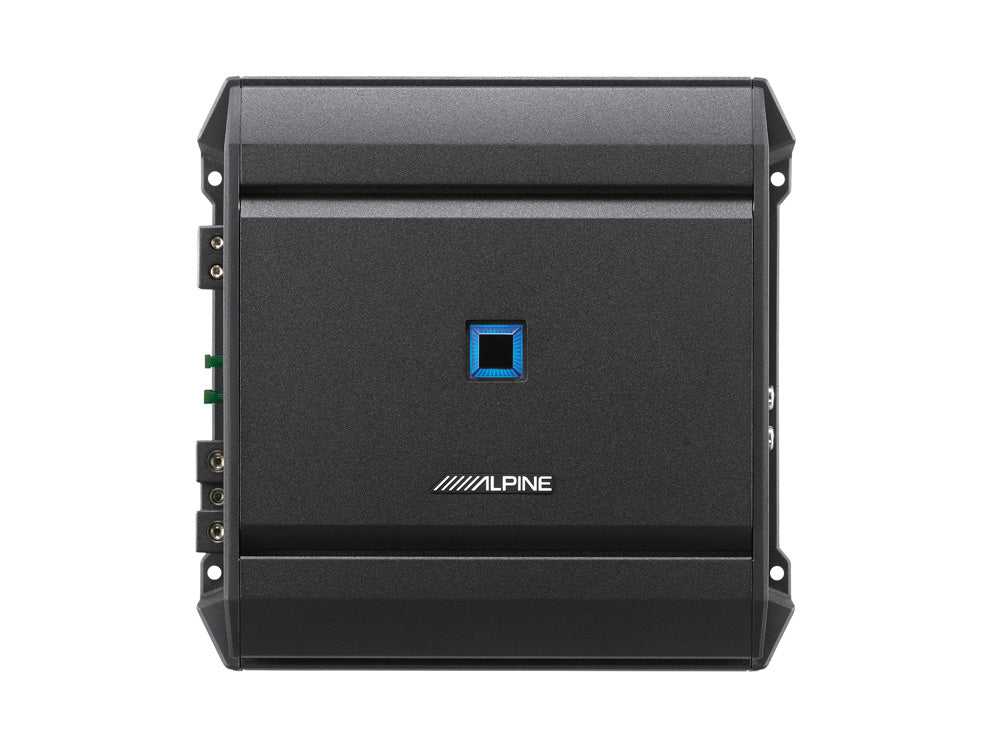

    Compact and powerful: the new digital amplification circuit allows for high power in a small size. The S-A60M measures just 204mm wide x 204mm long for easy installation in almost any vehicle.

    Temperature protection

    Together with Alpine's new advanced amplifier platform, the new S Series amplifiers feature an improved cooling system and protection circuitry that eliminates amplifier shutdown due to overheating for reliable music reproduction.

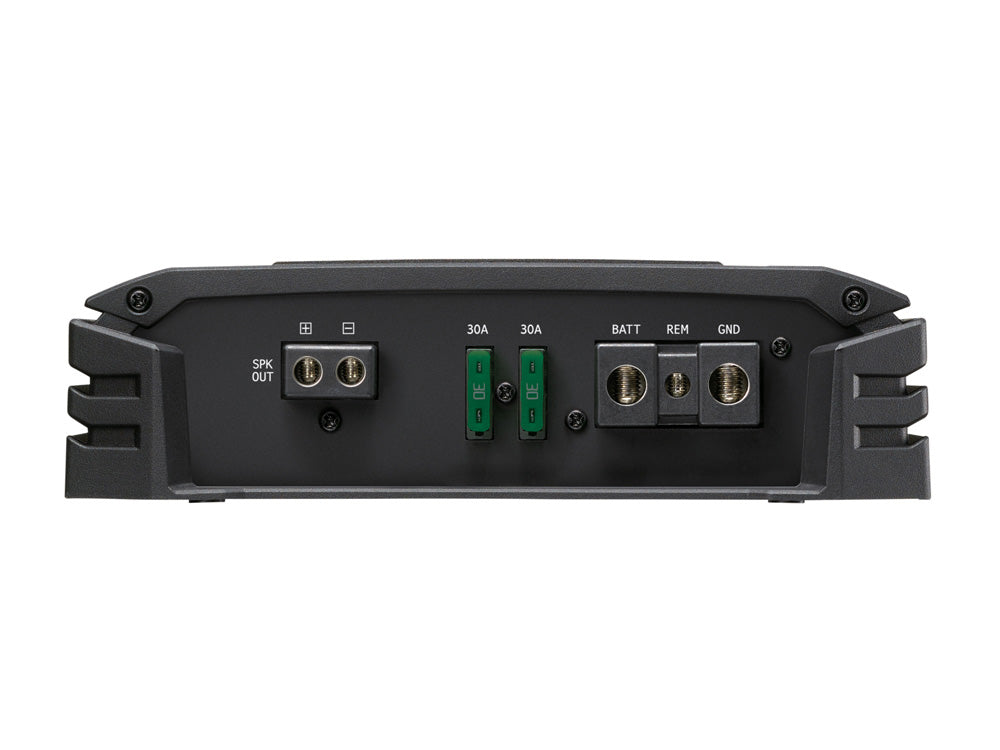

    All wire terminals - on one side

    For easier installation, all power and speaker wire connection terminals are located on one side of the amplifier.

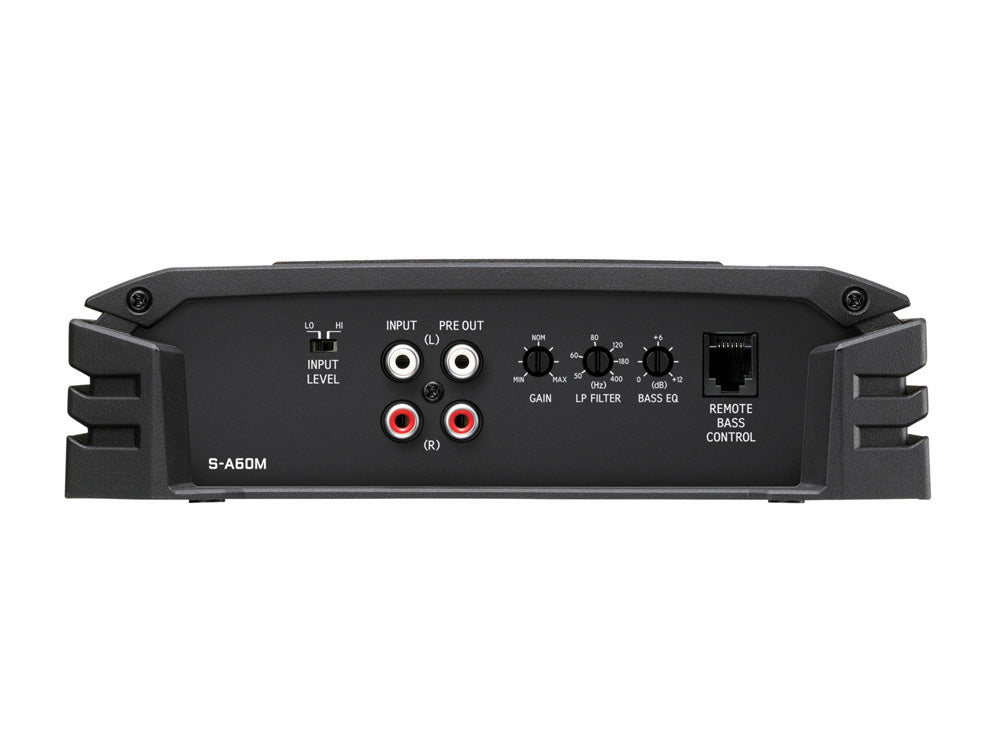

    Inputs for low/high level signals

    You can connect both low (line) and high (speaker) level input signals to the 2-channel RCA inputs. This makes it easy to connect the S-A60M directly to your original car stereo, regardless of the output power of your stereo (RCA connectors with open cable wires are sold separately).

    Control the subwoofer

    You can connect RUX-KNOB2 remote subwoofer control (sold separately) to the S-A60M to control the subwoofer level.

    High pass filter and Bass EQ

    With this filter, you can precisely adjust the cut-off frequency of the high-frequency filter, and with the integrated Bass EQ equalizer, you can additionally strengthen the low-frequency sound by up to 12dB.

    TECHNICAL DATA

    SPECIFICATIONS

    FEATURES
    Installation

    • Terminal Layout: One side
    • Small footprint for easy installation
    • Screw terminals (for speakers and power cables)

    General

    • Amplifier Type: Class-D (Digital)
    • Channel Design: Mono Channel
    • Thermal Management Control
    • Top Mounted LED Power/Status Indicator
    • Speaker Level Input with remote turn on
    • Crossover: Adjustable Low-pass (LPF)
    • Gain Control: Adjustable
    • Bass EQ
    • Bass Control: Remote Bass Control (RUX-KNOB2) Ready

    SPECIFICATIONS
    Max Power Output Ratings

    • Total Max Power: 1100W

    RMS Power Ratings

    • Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600W
    • Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330W

    Sound Tuning

    • Crossover: Variable LPF, 50-400Hz (-12dB/oct )

    General

    • Power Requirements: 14.4 V.DC (9 - 16 V allowable)
    • Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
    • High Level Input with automatic power on
    • Cable size: Power Cable AWG 4, SPK Cable AWG 8
    • Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
    • THD+N (@ 10W into 4 ohms): <0.03%
    • THD+N (@ 50W into 4 ohms): <0.08%
    • Damping Factor: >1000
    • Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
    • Weight: 1.9 kg

    Dimensions

    • Heat Sink (WxHxD) mm: 204 x 58 x 204
