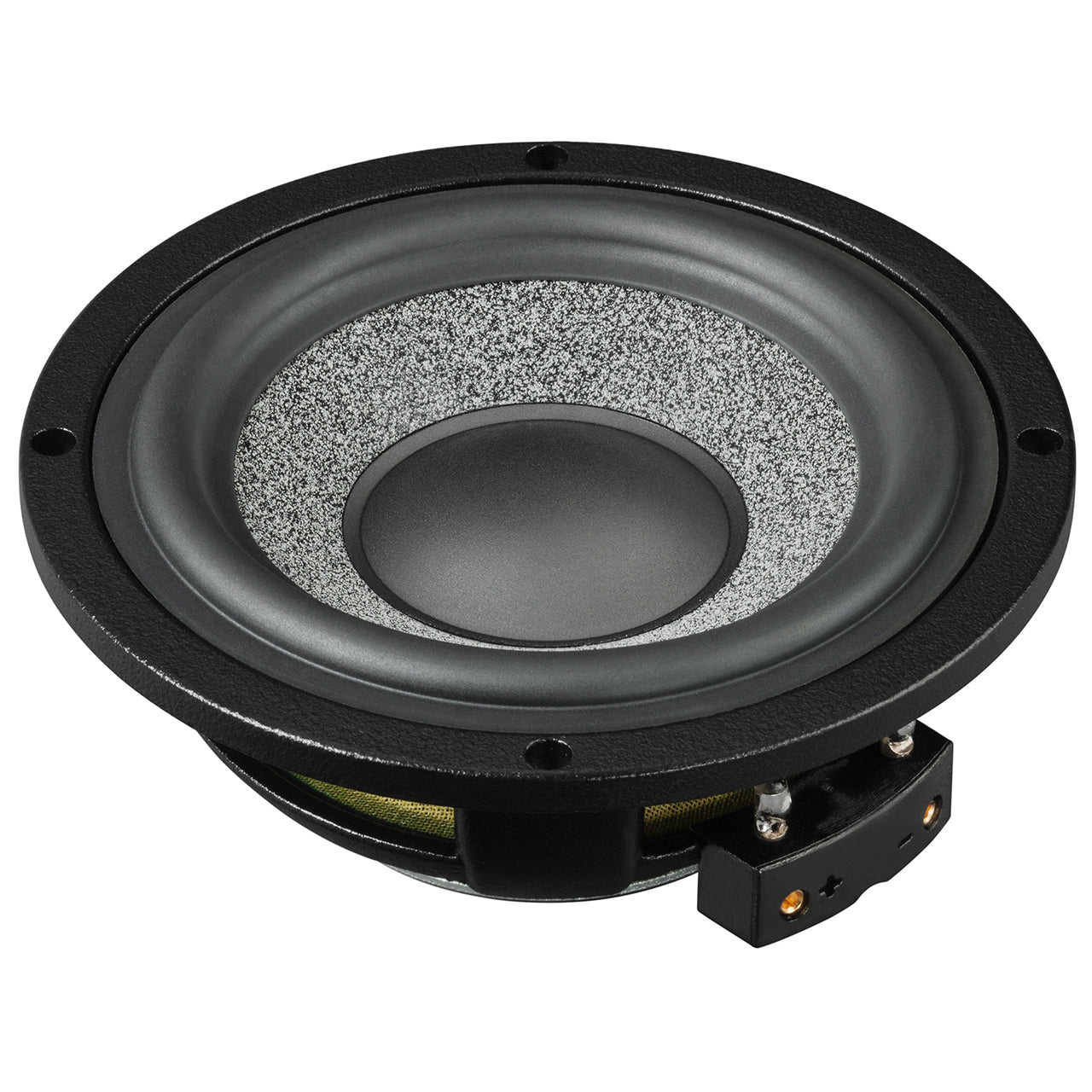

BRAX GRAPHIC GL3 MK2, midrange speaker

It all started with the vision of the passionate music lover and entrepreneur Heinz Fischer, to transfer the sound experience of legendary high-end audio components into an automobile environment without making any compromises in terms of design, technology and sound. following In line to this, our engineers focused on exceptional sound quality and once again pushed the technological limits when they designed our BRAX GRAPHIC speaker series. Outstanding components and unparalleled craftsmanship - solely made in Germany!

Progression in Perfection

In line with BRAX's typical self-concept and commitment, the constant pursuit of perfection is a must, resulting in continuous detailed improvements. The new GL3 MK2 now features a new dust cap made of exceptionally soft polyurethane, ensuring an even more balanced frequency response in the upper midrange and thus achieving maximum tonal neutrality.

A perfect team with maximum tonal harmony

The high-end midrange driver GL3 is, in combination with the GL1 MK2 tweeter and GL6 MK2 mid-woofer, the ideal complement for exceptional three-way constellations in our BRAX GRAPHIC speaker series. Its lively, dynamic sound characteristics and particularly wide frequency range make the GL3 MK2 ideal for an extraordinary acoustical experience.

MicroSphere – the material for maximum acoustic precision

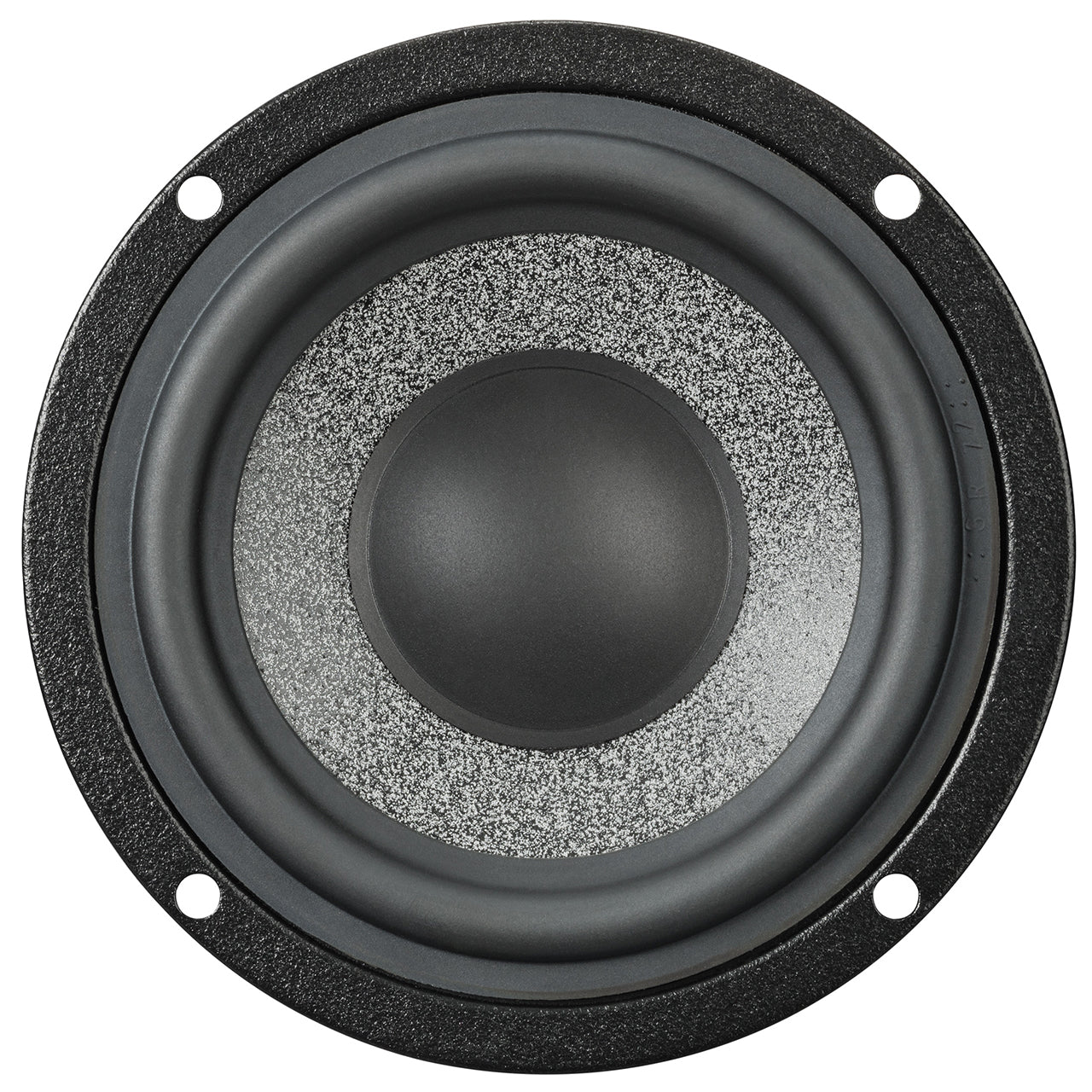

The centerpiece of this midrange is its particularly light paper cone with a modified "MicroSphere" coating. Its extremely precise and detailed reproduction harmonizes perfectly with the other speakers in the GRAPHIC series. This patented technology embeds ceramic micro hollow spheres with a mere diameter of 75 µm in a polyamide layer that is applied to the cone.

State-of-the-art technology

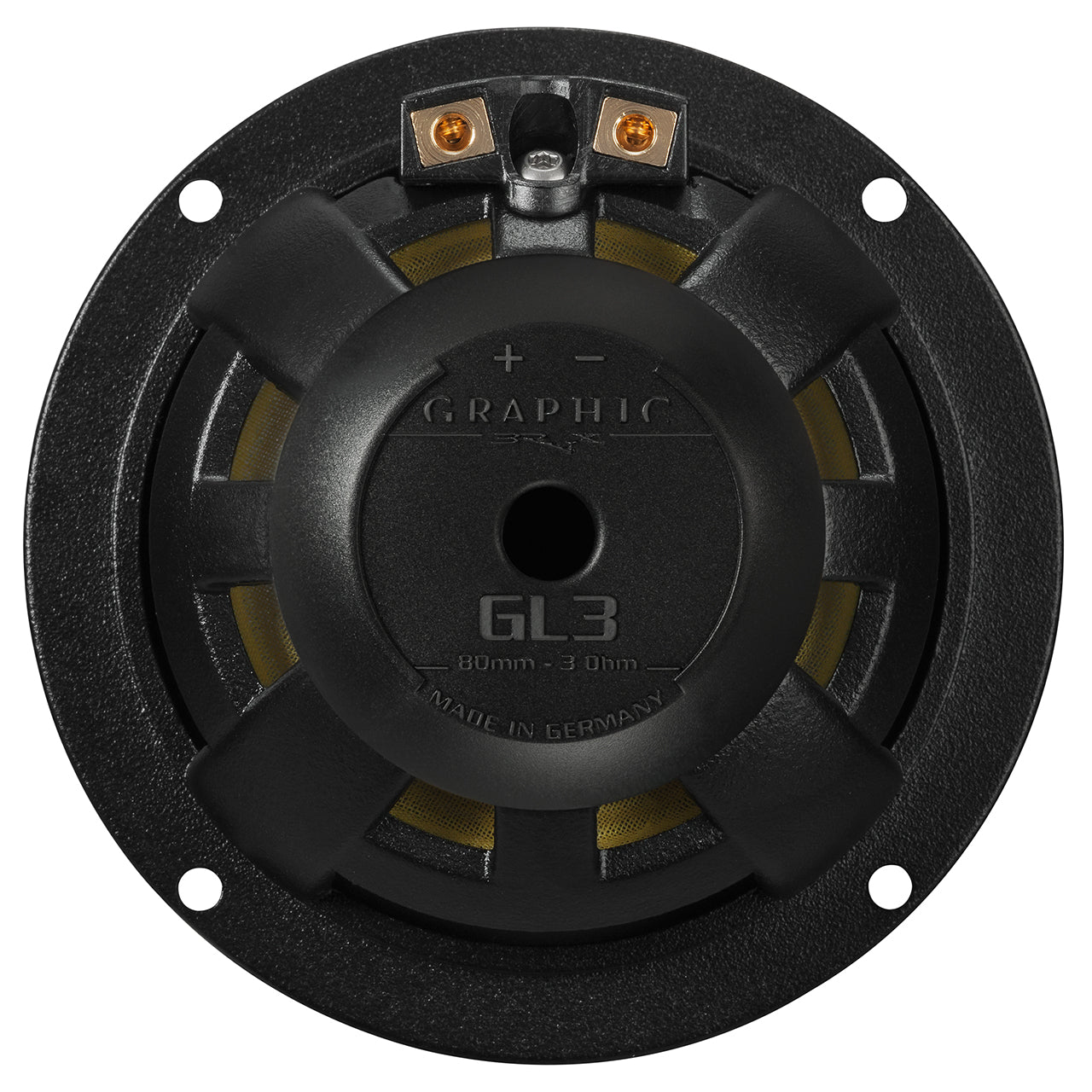

The cone is driven by a particularly linear push-pull neodymium magnet system, which is integrated into the aerodynamically sophisticated die-cast aluminum basket. The perfect ventilation of the long-stroke voice coil not only ensures excellent thermal stability, but also prevents compression effects right from the start. The soft rubber surround ensures an extremely low resonance frequency and thus the possibility of a low crossover frequency, ideally in fully active systems.

Details thought through

The love for every single detail manifests the GL3 MK2 as a BRAX transducer at reference level, which meets the highest tonal demands of any music lover. Typically for BRAX, each pair of speakers is given its own serial number and recorded in a service database. This high-end product – Made in Germany – is made perfect by the packaging in an elegant wooden box, which once again underlines the uncompromising philosophy of the BRAX brand.
