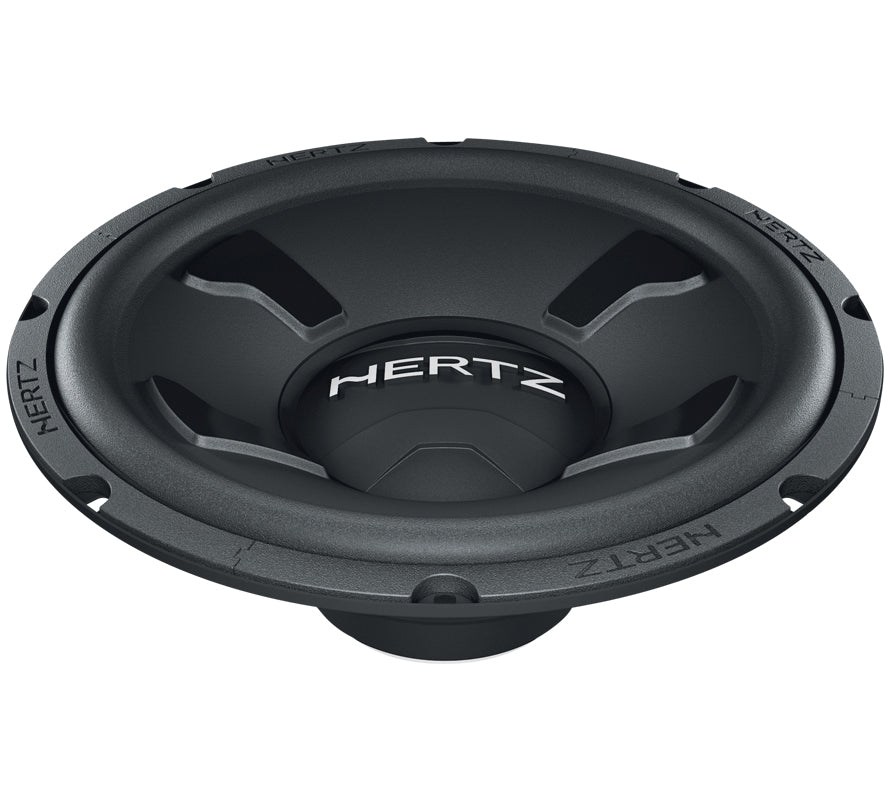

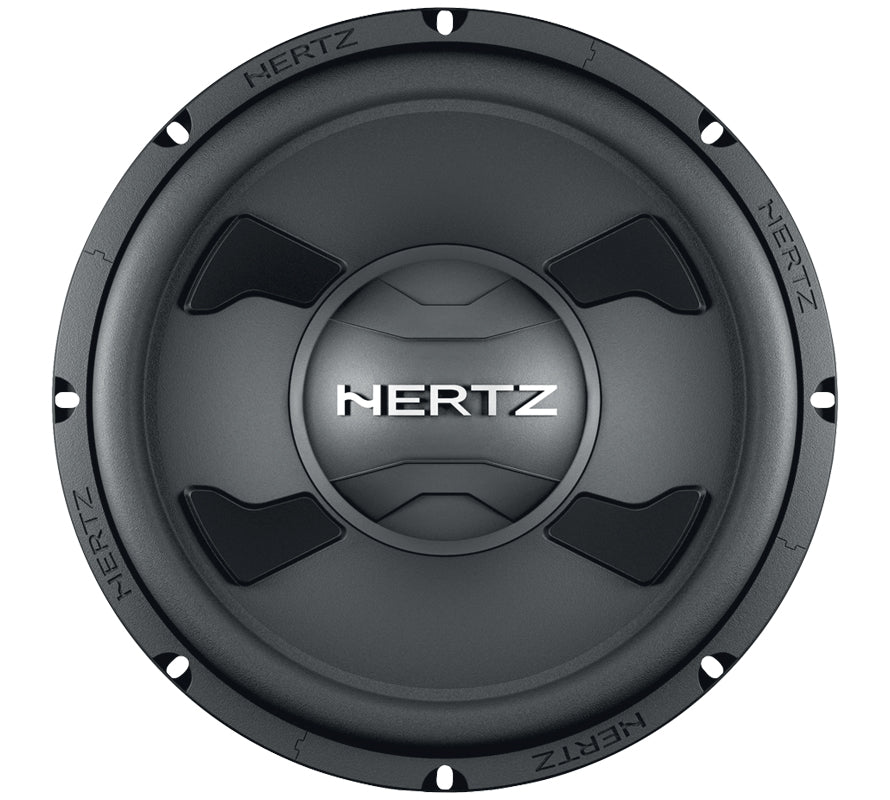

Hertz DBX 30.3 car subwoofer

Compact car subwoofer from Hertz.

€89.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Compact car subwoofer from Hertz.

  • Power: 1000 W
  • Sensitivity: 91 dB.
  • Frequency band: 28 ÷ 300 Hz.
  • High density flux ferrite magnet.

DESCRIPTION

The DS 30.3 car audio subwoofer box offers high efficiency and exceptional power handling. Equipped with a polypropylene membrane and butyl rubber surround, they provide high excursion with minimal distortion. An efficient cooling system ensures optimal heat dissipation, increasing their reliability.
The Dieci subwoofers are designed for use in compact sealed or reflex enclosures; thanks to an exclusive, carefully thought-out design, they can be used in any installation.

TECHNICAL DATA

SPECIFICATIONS

Size mm (in.) 300 (12)
Power Handling - Peak W 1000
Power Handling - Continuous W 250
Impedance Ω 4
Frequency response Hz 28 ÷ 300
Sensitivity dB SPL 91
Voice coil Ø mm (in.) 38 (1.5)
Magnetic High density flux ferrite
Cone/Dome Polypropylene with Mica injection
Xmax mm 9
X-Mech mm (in.) 16 (0.63)
Re Ω 3.3
Fs Hz 32
February l 70
Qts 0.62
Qes 0.71
Qms 5.14
Spl dB 91

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
