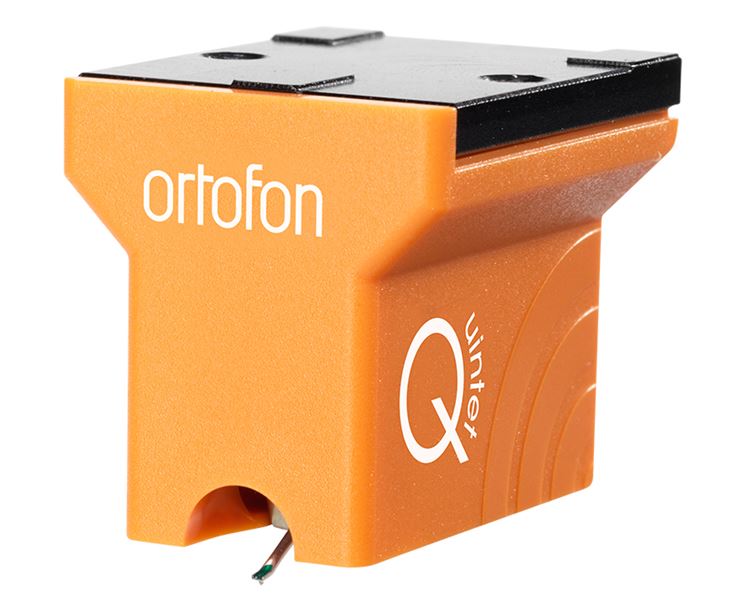

Ortofon MC Quintet Bronze, turntable head

€749.00 EUR

Ortofon MC Quintet Bronze, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

"Quintet Bronze" enters the higher league of quintets.

  • Stylus type: Nude Fine Line.
  • Frequency band: 20-20.000 Hz - +/- 1.5 dB .
  • Pressure power: 2.1-2.5 g (21-25 mN) .

The Quintet Bronze moves into the higher league of the Quintets.

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.

Additionally, its larger footprint ensures reduced distortion and record wear.

The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.


SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
  • Channel balance at 1 kHz - < 1.2 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency response 20-20.000 Hz - +/-1.5 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 80 µm
  • Compliance, dynamic, lateral - 15 µm/mN
  • Stylus type - Nude Fine Line
  • Stylus tip radius - r/R 8/40 µm
  • Tracking force range - 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 20 Ohm
  • Cartridge body material - ABS/Aluminium
  • Coil wire material - Pure 4-nines copper
  • Cartridge color - Bronze
  • Cartridge weight - 9 grams
    *) Typical value

INSTRUCTIONS

User Manual (EN).
