RVC NTSC CMOS 170°, rear camera

The rear camera is built into the brake light.
€145.00 EUR

RVC NTSC CMOS 170°, rear camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The rear camera is built into the brake light. Fits Ford Transit from 2012.

  • Sensor: 1/4inch CMOS.
  • Resistance standard IP 69K.
  • Resolution: 500 x 582 .
  • Cable length: 10 m.


DESCRIPTION

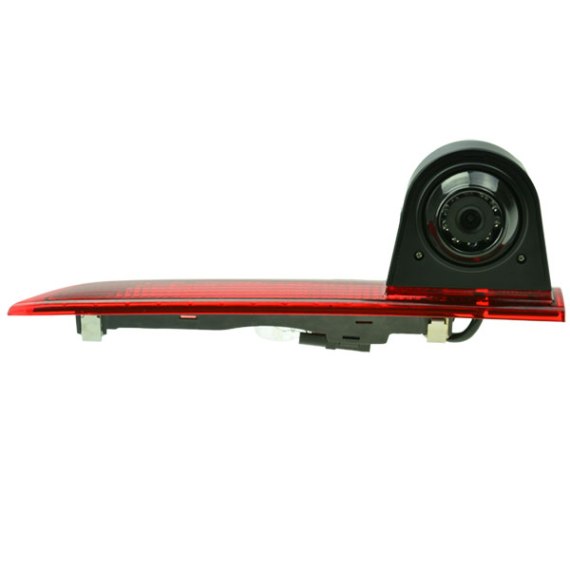

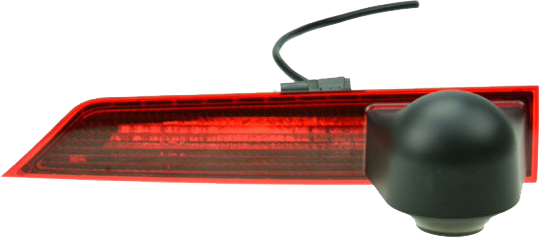

Vehicle-specific exchange brake light illumination-glass with rear-view camera and integrated LED brake light. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNICAL DATA

TECHNICAL DATA

  • Camera with vehicle-specific exchange brake light illumination-glass and LED break light
  • Sensor-type 1/4 inch CMOS
  • NTSC format (700 TV lines)
  • Resolution: 480i (500 x 582 pixels)
  • 2mm focal length
  • Min illumination: 0 LUX (IR on)
  • 9 IR night vision LEDs
  • Adjustable camera ball
  • Angle horizontal 82°, vertical 79°, diagonal 99°
  • Mirroring (fixed)
  • Protection class IP 69K
  • Camera color: black
  • 10m extension cable (4pin-KO)



Compatibility

Mature Model
Ford Transit Custom since MY2012
For vehicles with double doors only (not for hatchbacks)




Specifications

Operating voltage 12V DC (10~15V)
Current consumption 140mA
Operating temperature range -30°C to +70°C
Storage temperature range -40°C to +80°C
